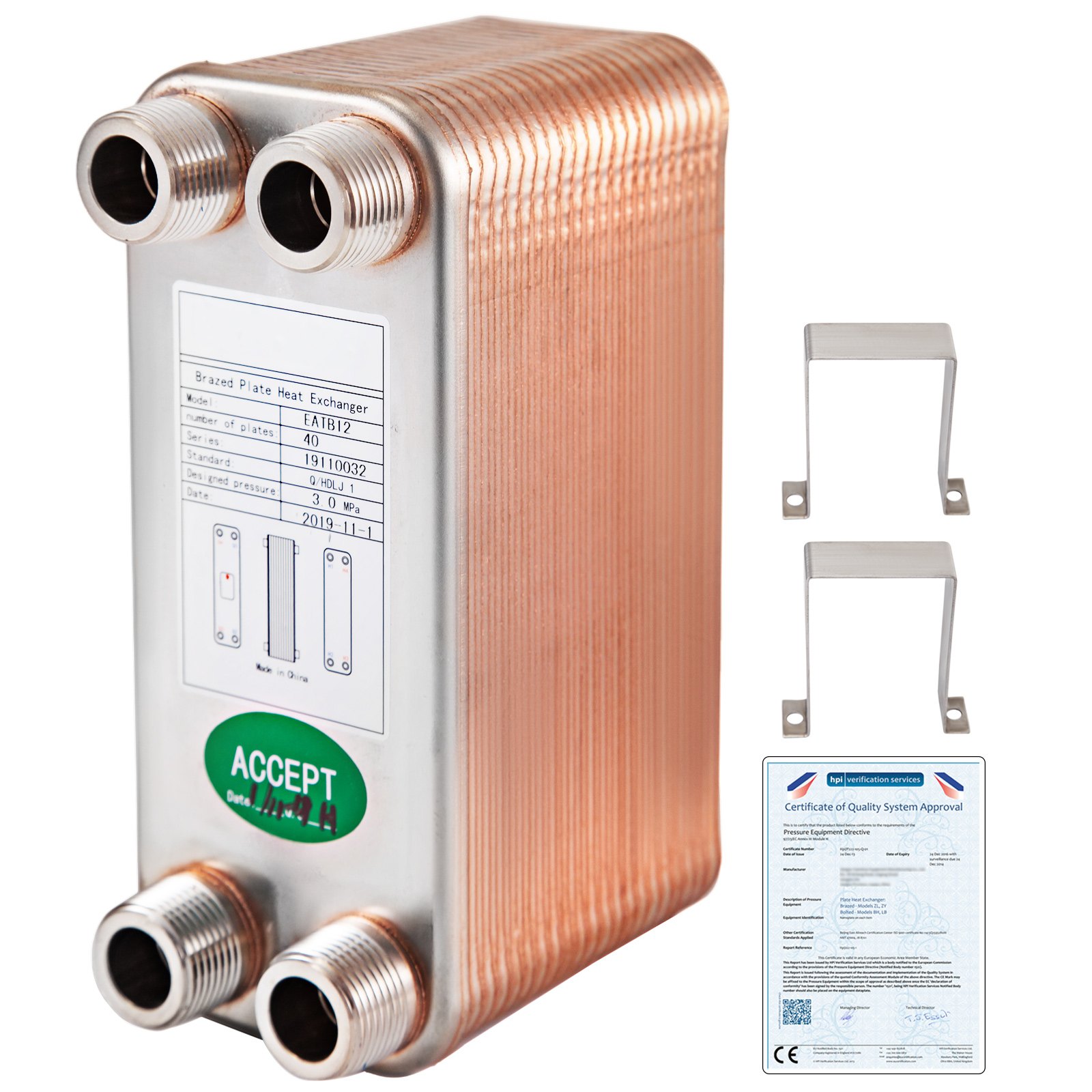

VEVOR heat exchanger with mounting brackets and quality certification. VEVOR heat exchanger with copper plates and excellent thermal performance. VEVOR heat exchanger with copper finish, green leaves, and low energy consumption. VEVOR heat exchanger made of 316l stainless steel with water splash background. VEVOR heat exchanger with dedicated mnpt ports and a green accept label. VEVOR heat exchanger with mounting brackets, compact and flexible design. VEVOR heat exchanger applications in kitchen, bathroom, pool, and maritime settings.
BSHRQ1240MN34G601V0

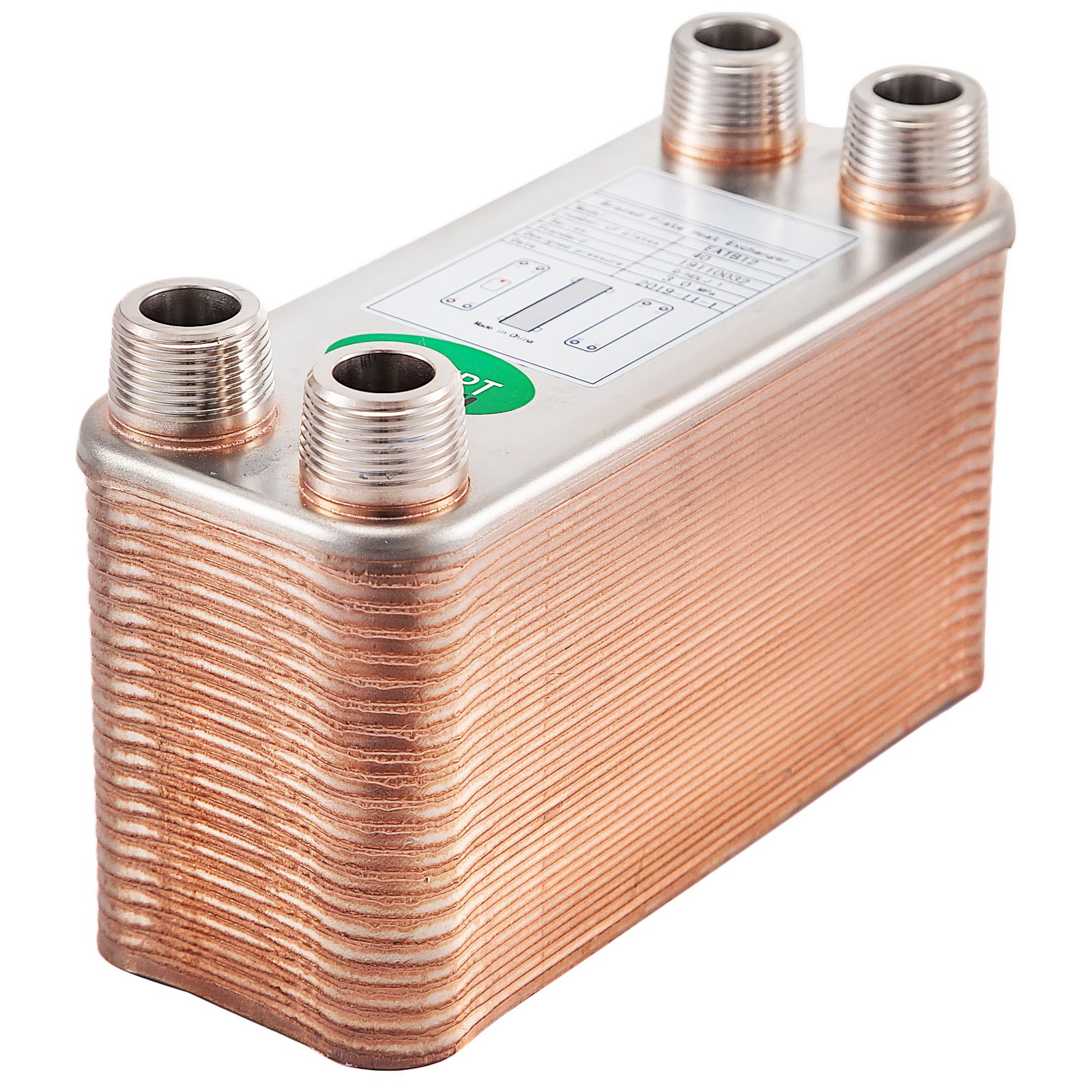

VEVOR Heat Exchanger 3"x7.5" 40 Plates Brazed Plate Heat Exchanger 316L 3/4" MPT Heat Exchanger B3-12A Beer Wort Chiller for Hydronic Heating

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

40 pcs

  • 60 pcs
  • 30 pcs
  • 40 pcs

About this item

  • 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm.
  • 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
  • 【ROBUST CONSTRUCTION】- This 40 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
  • 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
  • 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Heat Exchanger 3"x7.5" 40 Plates Brazed Plate Heat Exchanger 316L 3/4" MPT Heat Exchanger B3-12A Beer Wort Chiller for Hydronic Heating
40 pcs
VEVOR heat exchanger next to a bathtub with water splashes, highlighting key features.
VEVOR heat exchanger, including mounting brackets and quality certificate.
Brazed Plate Heat Exchanger 40 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel +99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

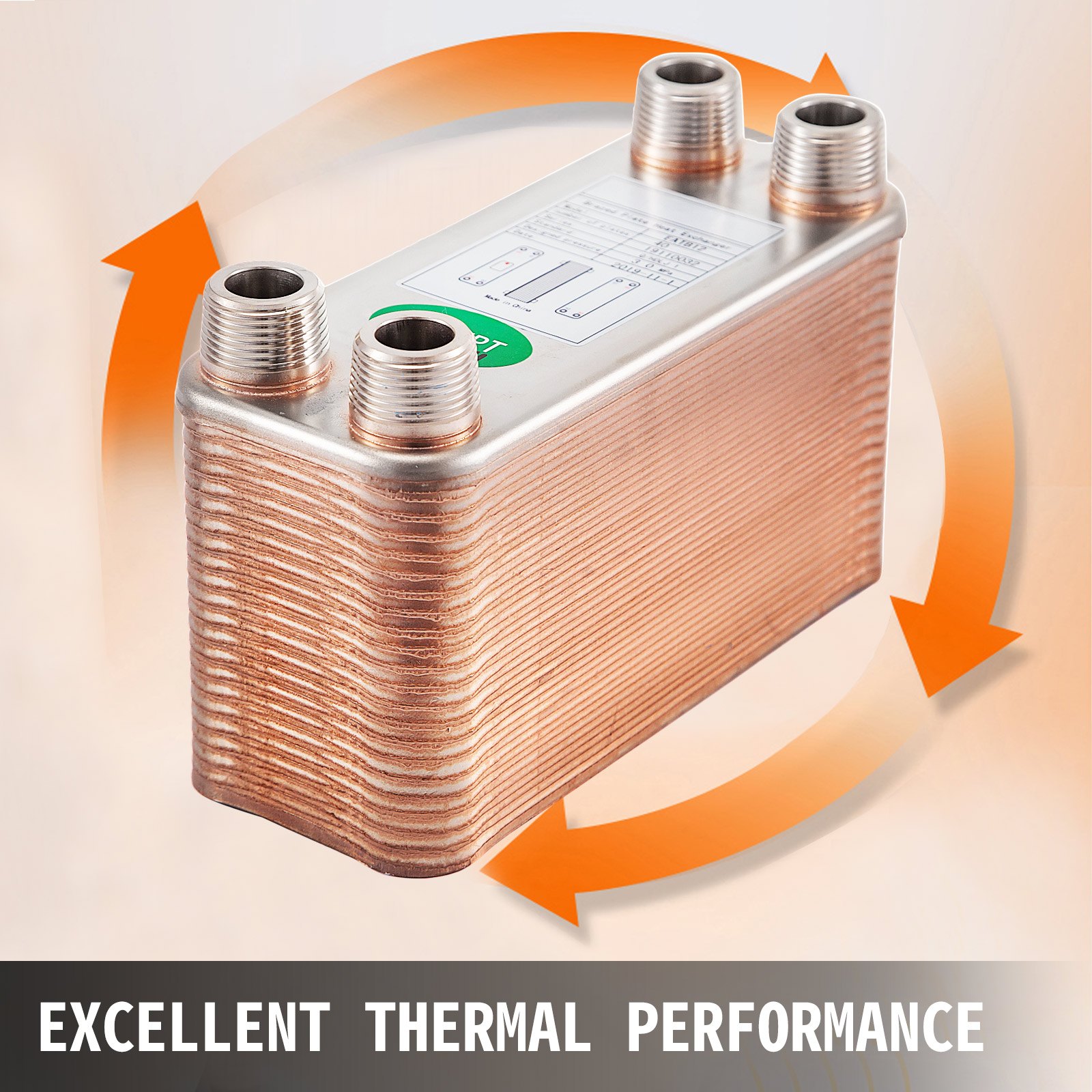

VEVOR heat exchanger showcasing excellent thermal performance.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

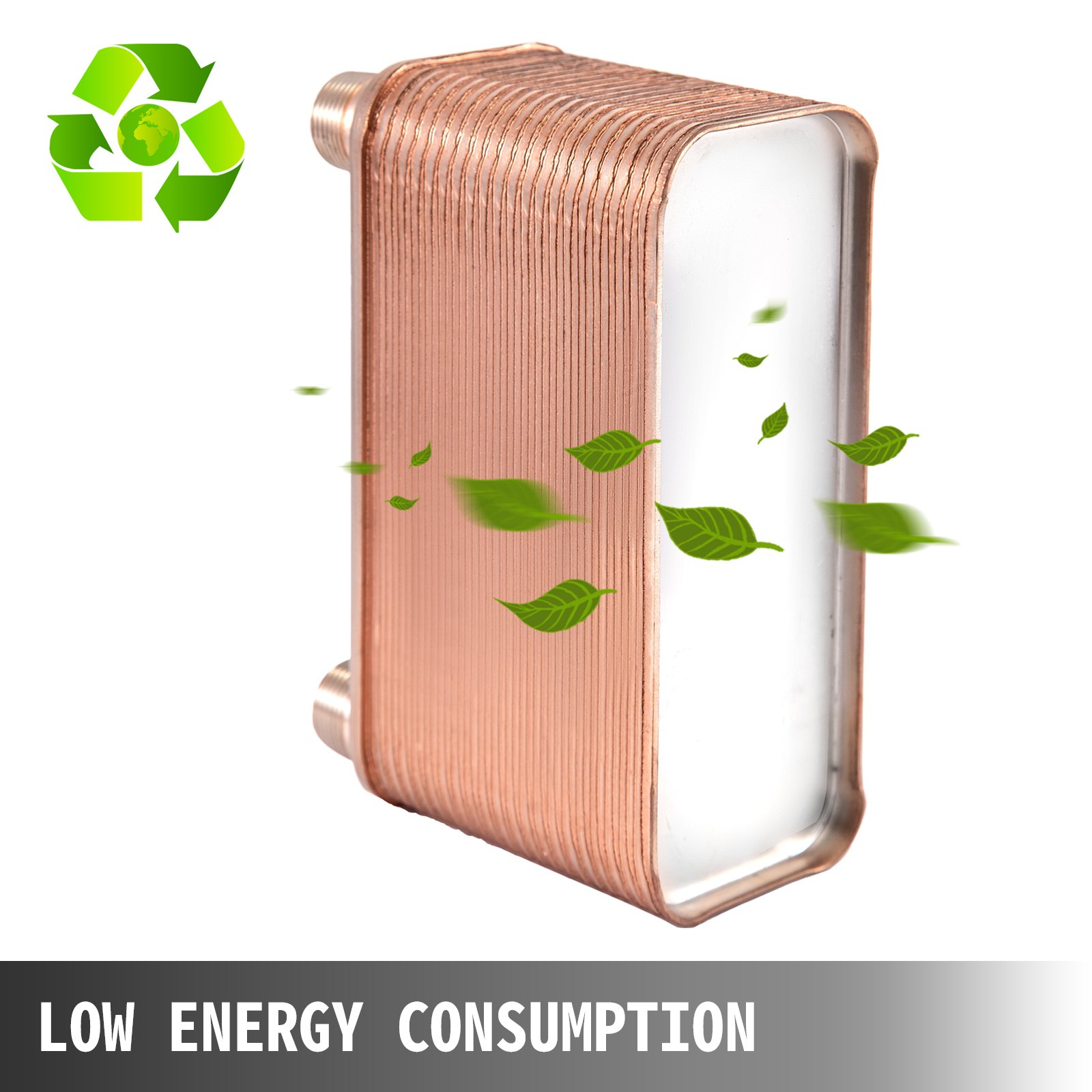

VEVOR heat exchanger with green leaves and recycling symbol, promoting low energy consumption.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

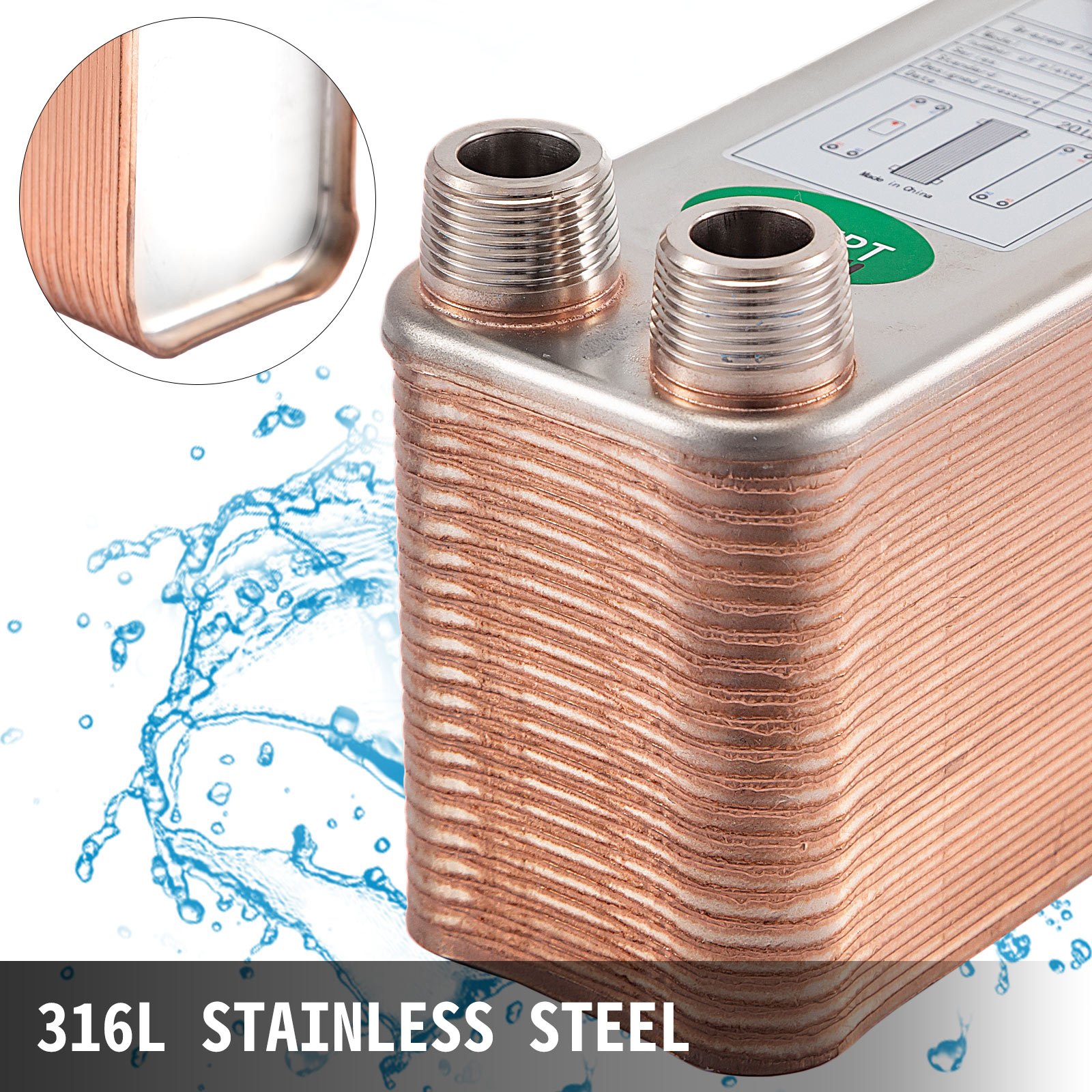

VEVOR heat exchanger with 316l stainless steel construction and water splash background.
316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.

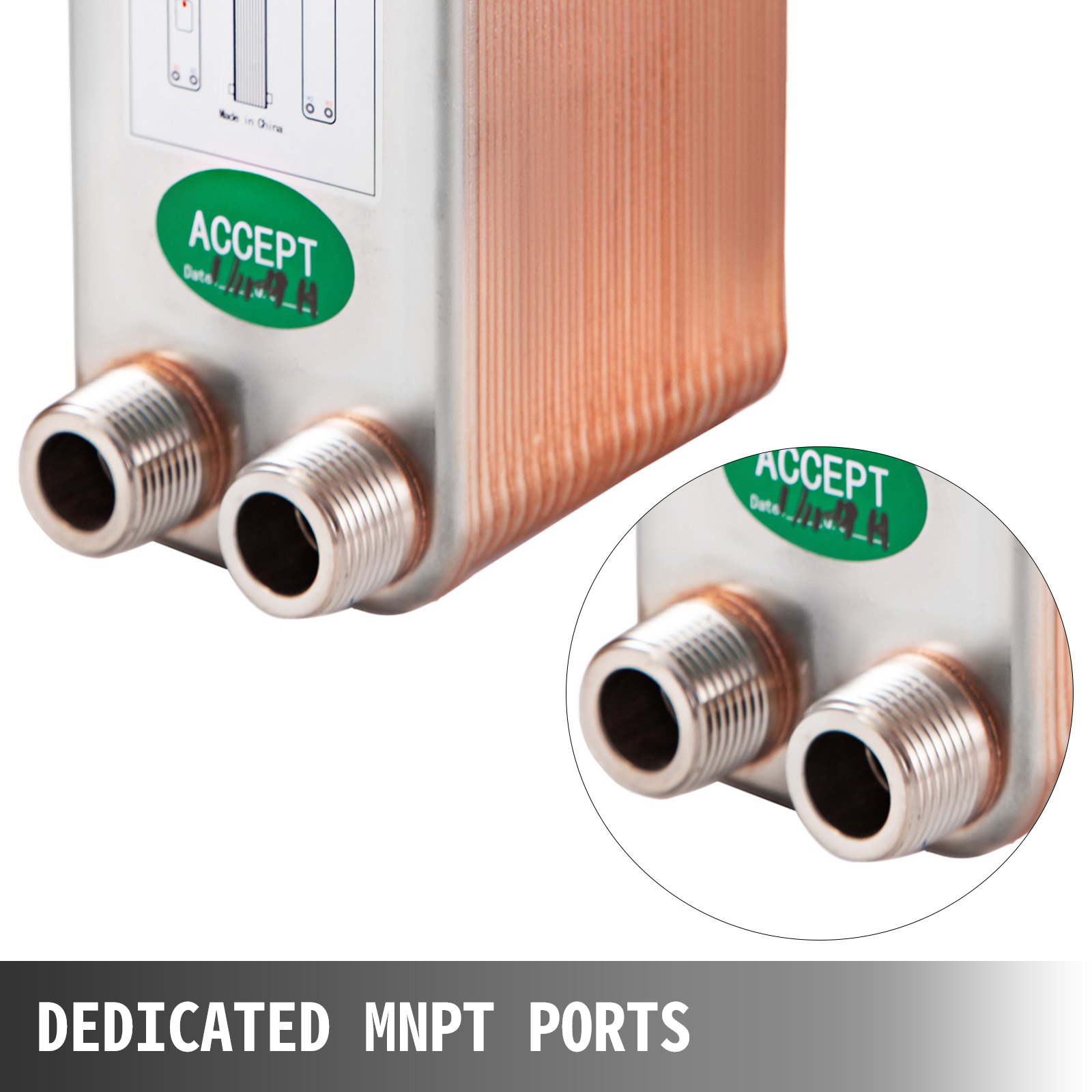

VEVOR heat exchanger with dedicated mnpt ports and copper connections.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.

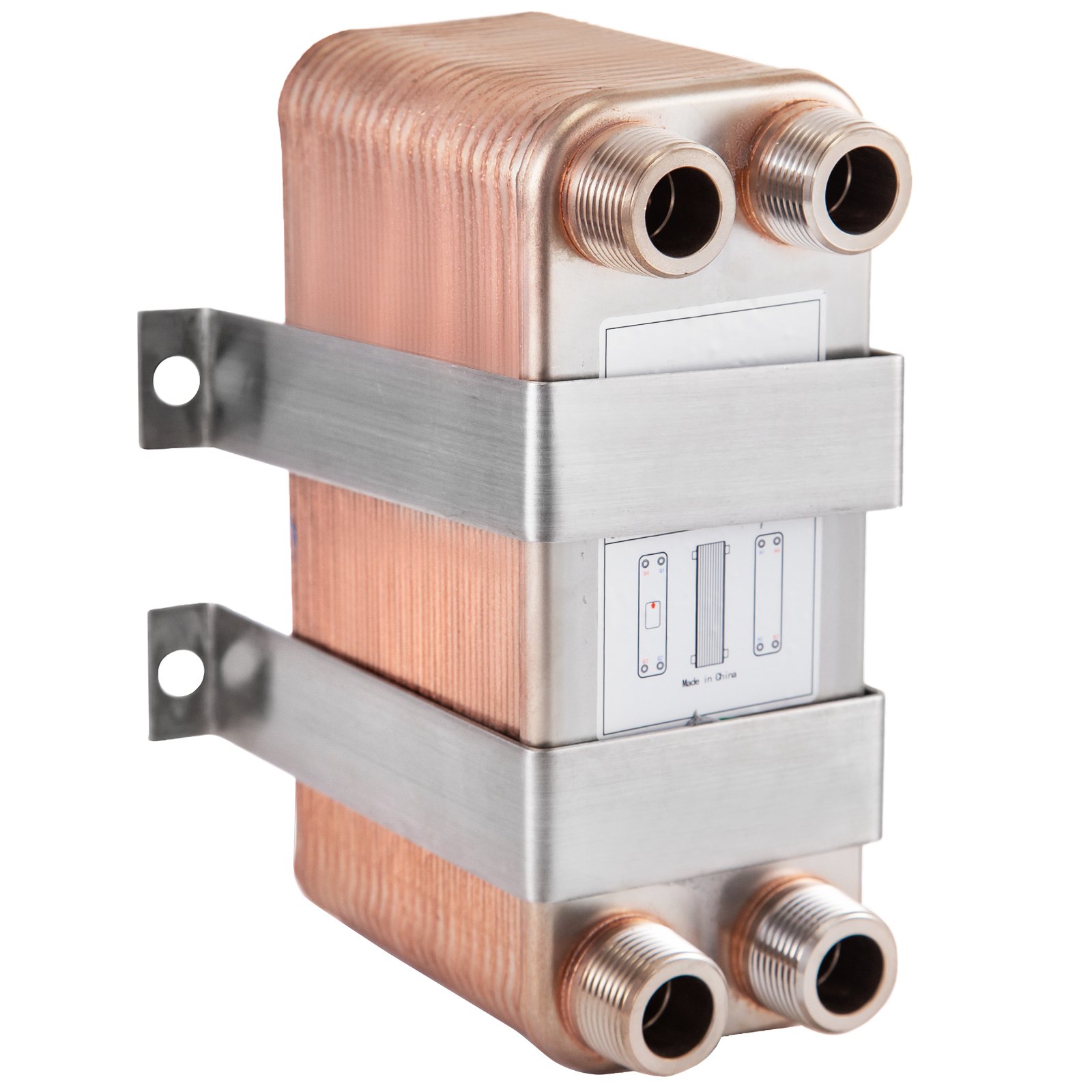

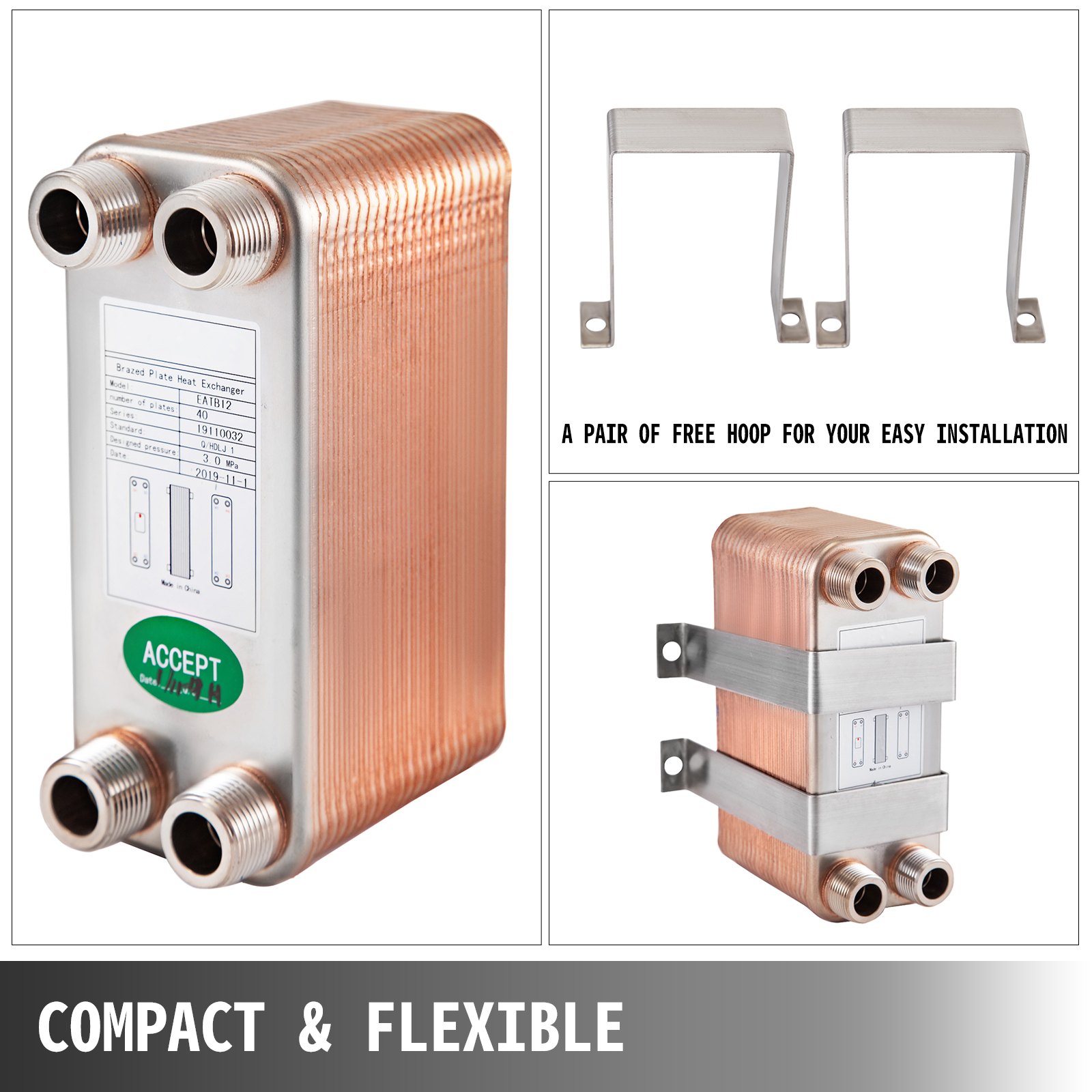

VEVOR heat exchanger with mounting brackets, compact and flexible design.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
VEVOR heat exchanger for kitchen, bathroom, industrial use, and maritime application.
Wide Application
The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.

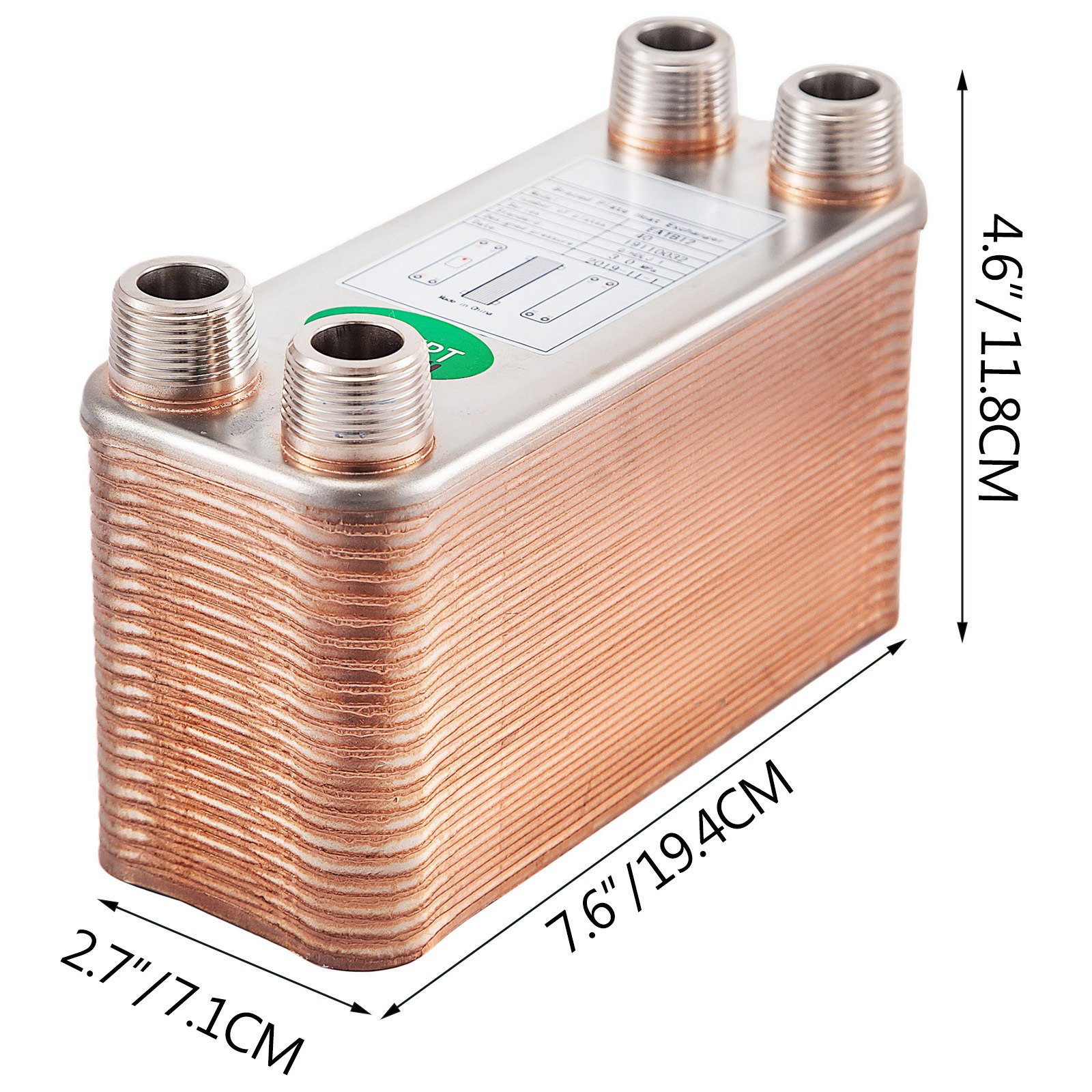

VEVOR heat exchanger with four ports and dimensions: 7.6"x2.7"x4.6".
Specifications
  • Model: EATB12
  • Material: 316L +99.9% Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 40
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm

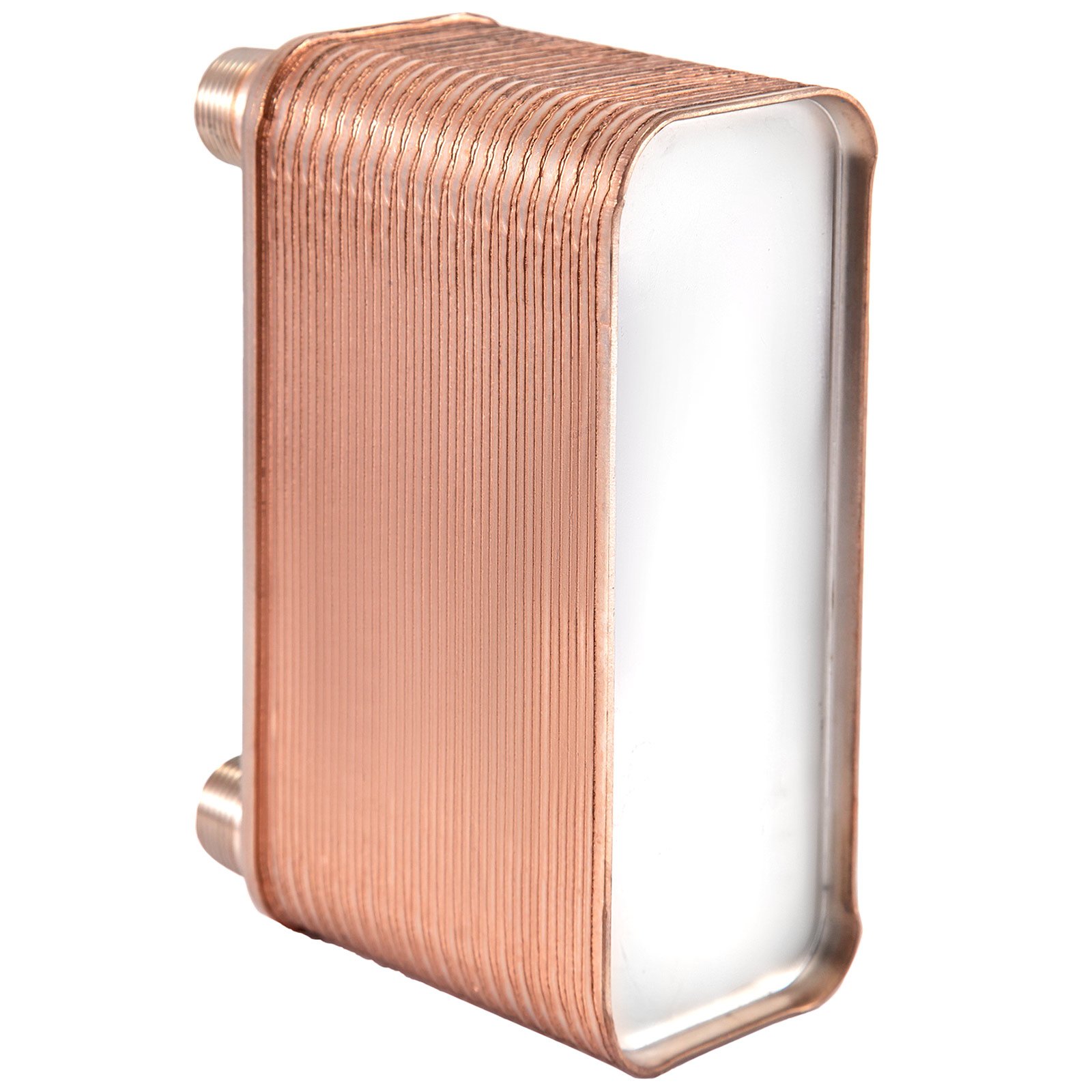

VEVOR heat exchanger with copper brazed plates and mounting brackets.

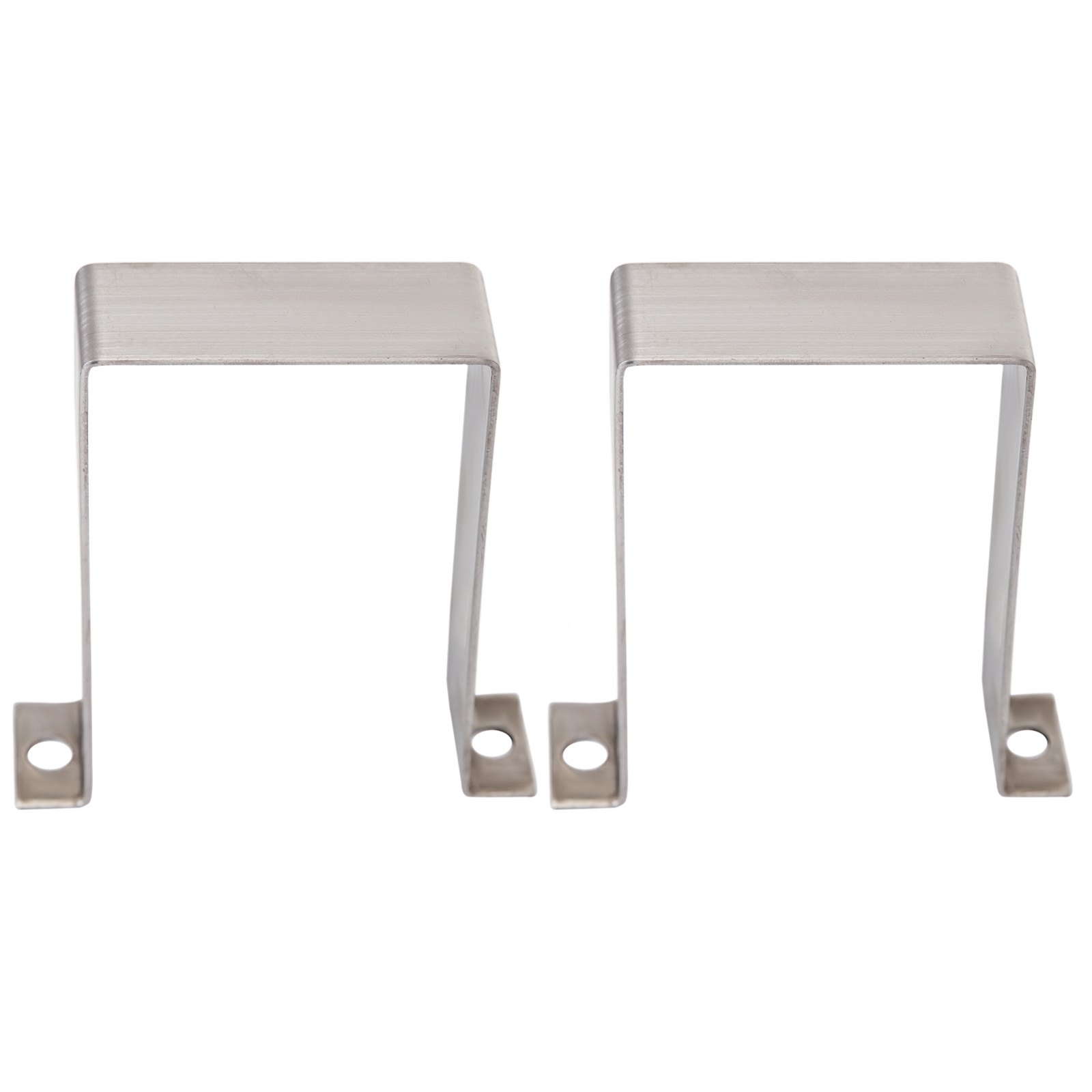

Package Content
  • 1 x Heat Exchanger
  • 1 x A Pair of Hoops
VEVOR heat exchanger next to a bathtub with water splashes, highlighting key features.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR heat exchanger, including mounting brackets and quality certificate.
Brazed Plate Heat Exchanger 40 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel +99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
  • High Thermal Efficiency
  • Energy Optimized
  • Robust Construction
  • Compact Design
VEVOR heat exchanger showcasing excellent thermal performance.
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.
VEVOR heat exchanger with green leaves and recycling symbol, promoting low energy consumption.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.
VEVOR heat exchanger with 316l stainless steel construction and water splash background.
316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.
VEVOR heat exchanger with dedicated mnpt ports and copper connections.
Dedicated MNPT Ports
Four Thickened 3/4" MNPT ports for your easier installation.
VEVOR heat exchanger with mounting brackets, compact and flexible design.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
VEVOR heat exchanger for kitchen, bathroom, industrial use, and maritime application.
Wide Application
The heat exchanger plate is ideal for outdoor wood furnaces/boilers, radiant floor heating projects, plumbing systems, snowmelt systems, swimming pools, domestic water applications, HVAC and refrigeration systems, solar heating, and other liquid to liquid heat transfer applications.
VEVOR heat exchanger with copper brazed plates and mounting brackets.
Package Content
  • 1 x Heat Exchanger
  • 1 x A Pair of Hoops
VEVOR heat exchanger with four ports and dimensions: 7.6"x2.7"x4.6".
Specifications
  • Model: EATB12
  • Material: 316L +99.9% Copper
  • Ports: 3/4" MNPT
  • Plate Quantity: 40
  • Design Pressure(Max):3.0 Mpa
  • Test Pressure:(Min):4.5 Mpa
  • Design Temp.(℃): Max +225
  • Design Temp.(℃): Min -196
  • Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm

Heat Exchanger for Versatile Applications

This VEVOR heat exchanger is perfect for a wide range of applications. It can be used for radiant floor heating, hot tub heating, and even homebrew chilling. This versatility makes it an incredibly useful addition to any setup. The 316L stainless steel material ensures durability and reliability. It can handle high pressure and temperature. So, it’s suitable for both home and commercial use. These heat exchangers are designed to meet different heating and cooling needs efficiently. Their compact size also allows for easy installation in tight spaces.


Efficient Cooling for Homebrew Wort Chillers

This heat exchanger is highly efficient in cooling wort for homebrew setups. It can cool 6 gallons of wort from 210° to 65° in under 5 minutes. This fast cooling saves time and improves brewing efficiency. The compact design of this heat exchanger makes it easy to handle and store. You can clip it next to your kettle, ready for use whenever needed. 40 plates in this heat exchanger ensure effective heat transfer. So, it’s an excellent choice for homebrew enthusiasts.


Fastidious Cleaning Made Easy

Cleaning this heat exchanger is simple and necessary. After each use, it needs thorough cleaning to maintain efficiency. Alternating between hot PBW and water helps in effective cleaning. This method guarantees the removal of all residue. The easy-clean design minimizes maintenance headaches. It is recommended to be cleaned immediately after use to avoid any build-up. Additionally, the stainless steel material is corrosion resistant, ensuring long-term use.


Compact and Durable Design for Easy Installation

This heat exchanger is compact, making it easy to install. Its small size allows it to fit in tight spaces. Despite its compactness, it is highly durable. This device is made from 316L stainless steel and can handle high pressure and temperature. The included mounting bracket adds to its ease of installation. Built to last, this heat exchanger provides reliable performance over time. Furthermore, its design facilitates seamless integration into various systems.


High-Performance Heat Transfer for Radiant Floor Heating

It is ideal for radiant floor heating systems. It efficiently transfers heat, ensuring optimal performance. The 40 plates ensure effective heat exchange. This makes it suitable for both small and large heating projects. The material uses high heat conductivity. This heat exchanger can handle a wide range of temperatures. Even with the lowest temperature level of -196°C, this device is a dependable choice for any heating application.


Reliable for Hot Tub Heating with Outdoor Wood Boiler

This heat exchanger is reliable for heating hot tubs. It works well with outdoor wood boilers, and it can quickly raise the temperature of your hot tub water. This ensures a comfortable and enjoyable experience. Its compact size enables installation in a variety of settings. Durable material: It can handle the rigors of outdoor use. This heat exchanger has consistent performance. So, it’s an excellent addition to any hot bath heating system.


Excellent Value for Money with Fast Shipping

It offers excellent value for money. It is competitively priced, making it accessible to many. The fast shipping ensures you get it promptly. This heat exchanger combines quality and affordability. You can use it for various heating and cooling needs. Reliable performance with easy installation makes it a great investment. This heat converter is perfect for a hygienic, affordable solution.


Ideal for Hydronic Heating Systems

It is the perfect heat exchanger for hydronic heating systems. It efficiently transfers heat, making it a reliable component. The compact design ensures it fits well in various setups. It can handle high pressure and temperature. This makes it suitable for any hydronic system. This heat exchanger guarantees optimal performance in heating applications.


See More

Specification

Model
EATB12
Material
316L +99.9% Copper
Ports
3/4" MNPT
Plate Quantity
40
Design Pressure(Max)
3.0 Mpa
Test Pressure
(Min)
Design Temp.(℃)
Max +225
Design Temp.(℃)
Min -196
Dimension
7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm
Questions and Answers
7 Questions
The description says "preset temp" , is this capable of regulating temp?
Yes, for example, the cold water side needs to increase the temperature through partition heat exchange. It has an inlet water temperature and an outlet water temperature. The outlet water temperature is the preset temperature that the customer wants, but whether it can be achieved depends on the specific working conditions. . Heat exchange = temperature difference * flow * specific heat * specific gravity.
By vevor
What is the thread size
The thread of this model is external thread NPT3/4.
By vevor
Hello, What filter size should I use to prevent blocking the inside of heat exchanger?
Hello, it is generally recommended to use a filter of 60 mesh or above.
By vevor
What is the weight of the product ?
2.80kg.
By vevor
Can the refrigeration lines be brazed on or do they have to use the npt fittings?
If you use this product to exchange cold water and hot water, you can use threaded pipes. If you want to use refrigerant (such as R22, 32, 404, etc.), you need to use welded pipes. You can directly insert copper pipes into our heat exchanger pipes and weld them together.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
68 Review(s)
Clear filters
Constantinos Placiotis Constantinos Placiotis
Home owners
This thing worked great for my outdoor wood broiler I hooked it in front of my hot water heater unplugged my hot water heater and started using it it worked awesome and it's still working today to heat my hot water
TKibe TKibe
Wort Chiller
Works great, helps drop my temps pretty quick here in Florida. Better than my counterflow, I may pipe my counterflow to prechill the cooling water that I recycle in the summer months.
Dr. Brian Briggs Dr. Brian Briggs
Master Brewer
For a 60 plate, I was expecting more from it. You need two pumps and the water needs to be iced. The pump for the wort should be a pump specifically for wort and able to push quickly through exchanger to cycle quicker.
Byron Byron
Vevor Fan
This thing worked way better than I expected. I have been using coiled copper for years and haven't been able to afford the glycol chillers. I will be using this for a long time.
VEVOR Customer VEVOR Customer
As expected, fast delivery.
Exactly what I needed for my new home build. Fast shipping - even though the carrier claimed it weighed 200lbs. Lol
chevychix chevychix
Innovative!
Great for cooling sap!
David David
Well built product that performs well.
This product works as advertised and is well built.
Glenda Fultz Glenda Fultz
Works great
Very good quality. Used it to hook up outside wood stove to hot water heater. Working great!!
Mr. McCann Mr. McCann
So far so good!
This thing is an absolute ripper... especially for the money. Used on our outdoor wood boiler.
ANTONIO JOSE ALONZO PALACIOS ANTONIO JOSE ALONZO PALACIOS
serious and responsible seller !!
After receiving an item in poor condition, I just did the review, the seller immediately contacted me and sent a new one !! Thank you so much !!
