VEVOR Heat Exchanger, 5"x 12" 30 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

30 PCS

  • 80 PCS
  • 50 PCS
  • 100 PCS
  • 30 PCS

About this item

  • High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. UL and CE certified for reliable quality.
  • Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 260-360K BTU per hour, saving pump power and electricity, reducing overall application costs.
  • Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 30 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.
  • Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
  • Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Heat Exchanger, 5"x 12" 30 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling
30 PCS
Unleashing Ultimate Heat Efficiency

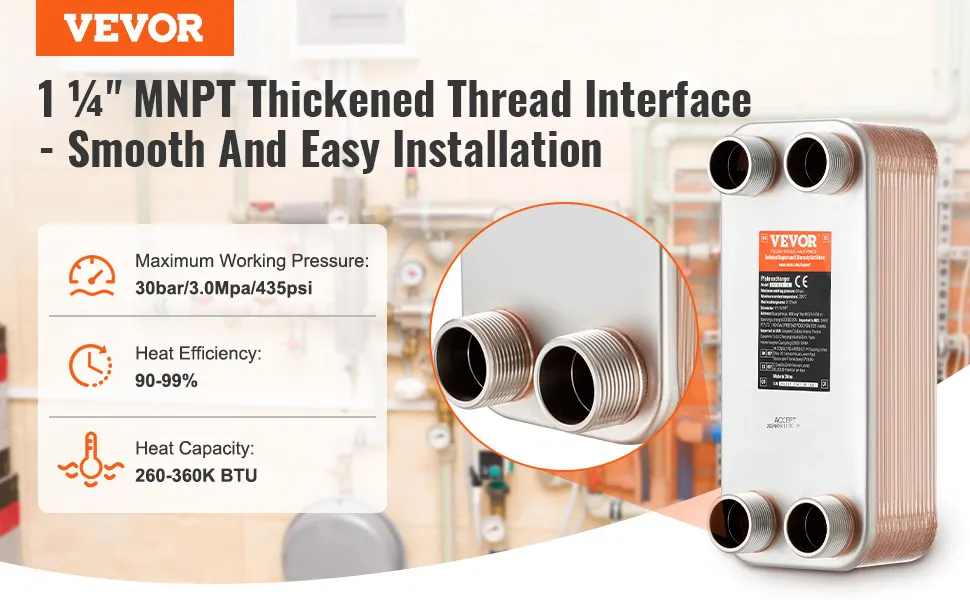

VEVOR heat exchanger with 1 ¼" mnpt thread, 260-360k btu, 90-99% efficiency, and 435psi pressure ratings.
VEVOR heat exchanger with 1 ¼" mnpt thread, 260-360k btu, 90-99% efficiency, and 435psi pressure ratings.
Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

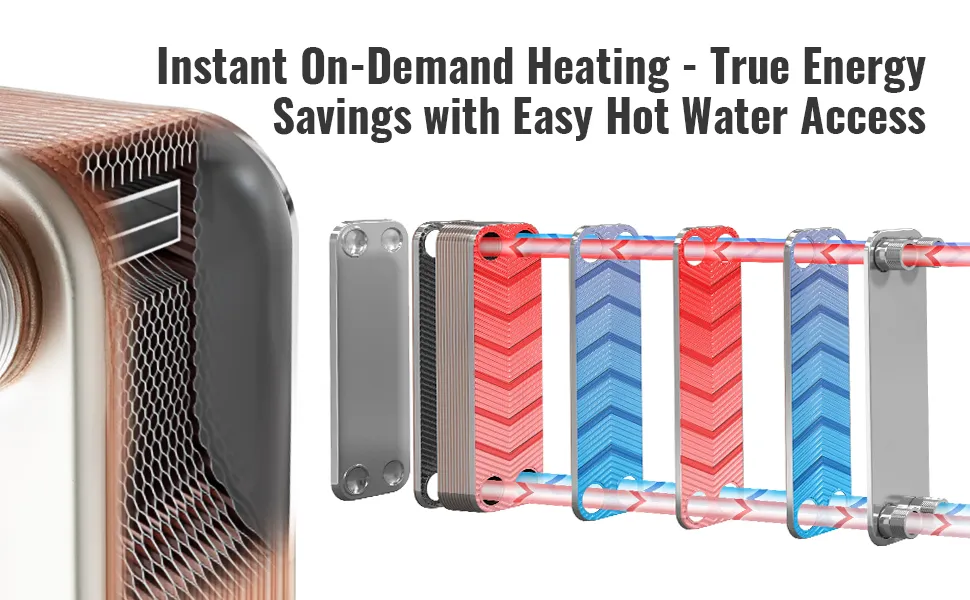

VEVOR heat exchanger with energy-efficient plates and tubes for instant hot water access.
VEVOR heat exchanger with energy-efficient plates and tubes for instant hot water access.
Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.

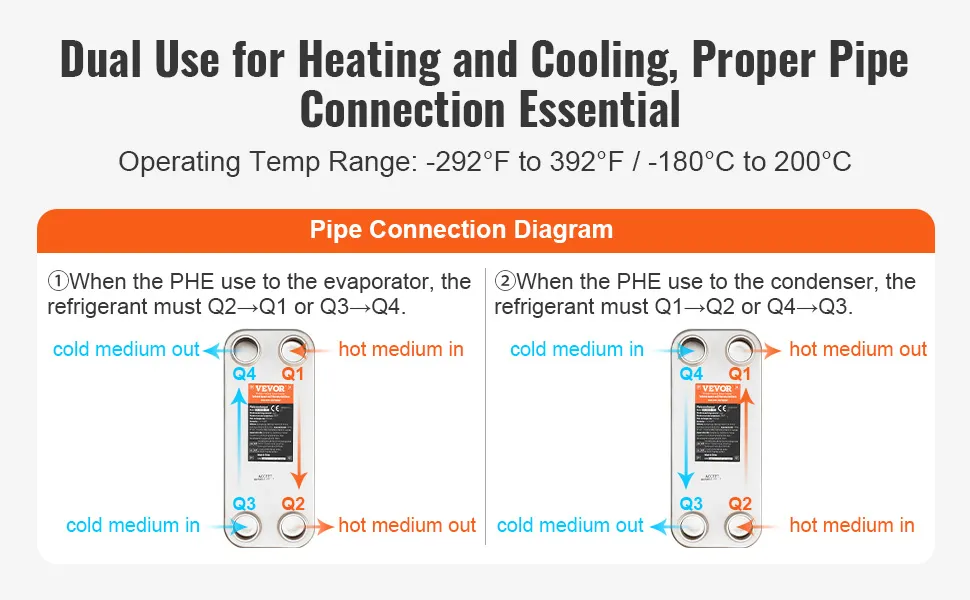

VEVOR heat exchanger pipe connection diagram for heating and cooling, temp range: -292°f to 392°f
VEVOR heat exchanger pipe connection diagram for heating and cooling, temp range: -292°f to 392°f
This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

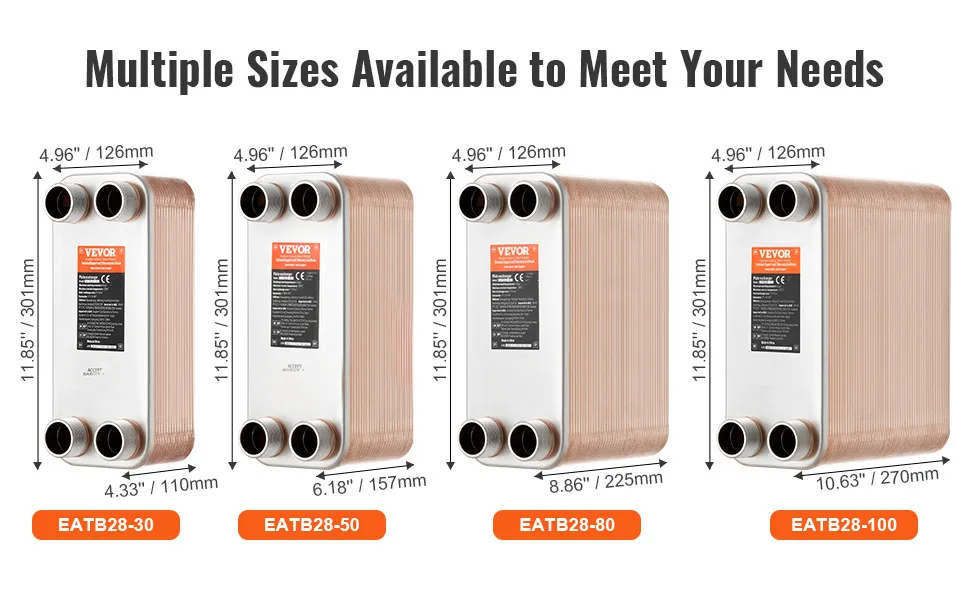

VEVOR heat exchanger in four sizes: eatb28-30, eatb28-50, eatb28-80, eatb28-100.
VEVOR heat exchanger in four sizes: eatb28-30, eatb28-50, eatb28-80, eatb28-100.
Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.
efficient underfloor heating, snow melting, rapid beer cooling, diesel cooling with VEVOR heat exchanger.
efficient underfloor heating, snow melting, rapid beer cooling, diesel cooling with VEVOR heat exchanger.
Our heat exchanger comes in 4 different sizes to meet your needs.

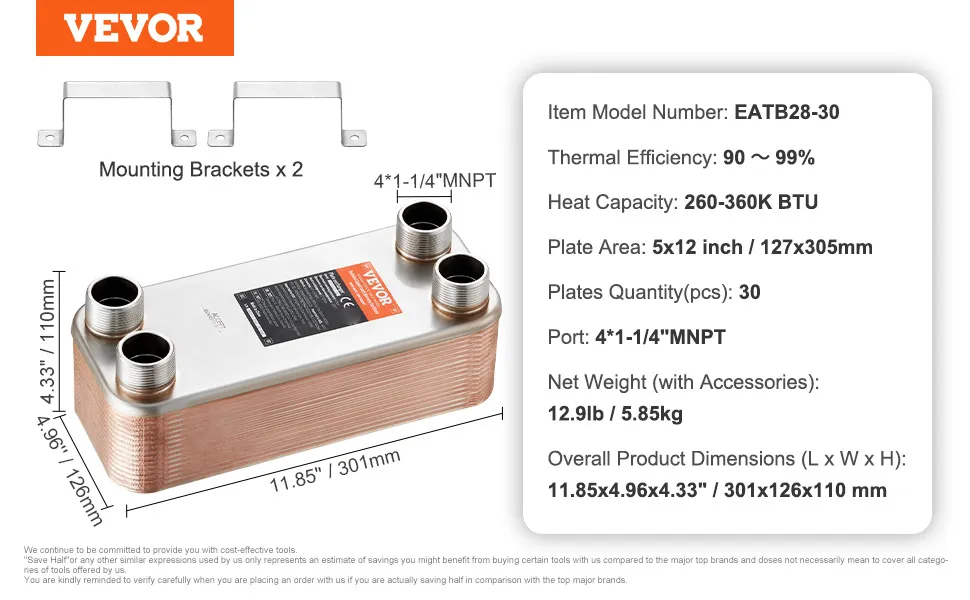

VEVOR heat exchanger with mounting brackets, 30 plates, 4 ports, high thermal efficiency, and compact design.
VEVOR heat exchanger with mounting brackets, 30 plates, 4 ports, high thermal efficiency, and compact design.

Specification

Model
EATB28-30
Thermal Efficiency
90~99%
Heat Capacity
260-360K BTU
Plate Area
5x12 inch/ 127x305mm
Plates Quantity(pcs)
30
Port
4*1-1/4" MNPT External Thread
Color
Stainless Steel + Copper Color
Material
304/316 Stainless Steel, Solder
Net Weight (with Accessories)
12.9lb / 5.85kg
Product Dimensions (L x W x H)
11.85x4.96x4.33" / 301x126x110 mm
Questions and Answers
1 Questions
What is max operating pressure?
The pressure is 30bar/3.0Mpa.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
9 Review(s)
Clear filters
Noah Noah
This thing performs so much better than i had hoped for
Easy to install, fast delivery and works really great
Sophia Sophia
Very good
Very good product, was very easy to install. It fittings sealed well with no leaks heats my domestic water extremely fast and efficiently.
Elijah Elijah
Used in a shower water cooler.
Here in Texas our ground water come out of the tap at 68 F in the summertime. My wife asked for a “cold shower” button because she didn’t want to take up the space in our house with a cold plunge, but she read it helps with weight loss and depression. So I combined this with a beverage cooler, an aquarium chiller, an air switch and some aquarium pumps for instant cold shower. I wrapped this in pipe wrap insulation to keep cold losses down. Works great!
Isabella Isabella
Great project for DIY selfers
I upgraded my heat exchanger to this boy, make sure you put enough Teflon on the threaded couplings to avoid any leaks. I used PEX pipe and sharkbite fittings for this application
Liam Liam
Works great!
We have a wood stove and our old heat exchanger and water heater failed. We installed this heat exchanger and it started heating our water within minutes.
Olivia Olivia
Great product
I'm using this for my outdoor boiler to heat my potable water going into my water heater. Boiler is about 180 ° F and the potable water exiting exchanger into the water heater is about 160°F. Too hot so I put a tempering valve in. Quality product. Easy to install. Would by again.
Noah Noah
Awesome
Saves us $100 on our electric bill a month by not using our hot water tank.
Sophia Sophia
Amazing
The answer to how do you make your wife happy… According to my wife & kids, this Un limited HOT water is the best part! It is amazing how HOT the water is!
Elijah Elijah
Great price Quick shipment
Everything works perfectly. Price was fair and no delay on receiving shipment.
