VEVOR punch press machine with foot pedal, pneumatic operation, and control panel. VEVOR punch press machine with output pressure 1121n-1962n model scj63x75-50. VEVOR punch press machine with hand button and footswitch on a grey background. VEVOR punch press machine with adjustable handwheel and 50/60hz solenoid valve. VEVOR punch press machine with blue base and close-up on a machined groove detail. VEVOR punch press machine air source valve, pressure adjuster, and oil absorption components. VEVOR punch press machine showing extrusion, combination, forming, and riveting processes.
200KGJTQYCC000001V1

220kg Vertical Pneumatic Punch Press Machine 110v Mute Operation 16mm Die Hole

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • High Accuracy: Theoretical Output Pressure: 1121-1962 N / 114-200 kg, Pressure: 441 lbs / 200 kg. Our machine is a small precision pressure equipment, equipped with high accuracy rotational resistance guide rod and guide plate, will adapt to high-speed precision impact load.
  • Humanized Design: Can be used with both hand buttons and footswitch control, increase the protection device. Heating mode, temperature control and pressure sensors, and pre-control devices comply with the International standards to ensure operating safety.
  • Simple Operation: Our cylinder adopts a double sealing structure with good sealing performance and a high power conversion rate. It is easy to install, easy to operate, no noise when the hydraulic system and the generated electric standby.
  • Quick Adjustment: According to different products and modes, adjust the height of speed, stroke, pressure, and stamping time. Operation pressure easily adjustable from 0.4-0.7 Mpa according to the requirement.
  • Widely Applicable: Compressed air as a power source, high efficiency, and can reduce labor. Our machine is suitable for electronics, electrical appliances, instruments, meters, cameras, watches, jewelry, hardware, clothing, shoes and hats industries, etc.

Frequently Bought Together

People Who Bought This Item Also Bought

220kg Vertical Pneumatic Punch Press Machine 110v Mute Operation 16mm Die Hole
VEVOR punch press machine with single column, high precision, and noise-free operation.
VEVOR punch press machine with blue base, safety switch, and pneumatic components.
Top-Grade Vertical Pneumatic Punch Press Machine
Our pneumatic press uses high-performance cylinders, no noise in the hydraulic system or under standby status. Use high accuracy rotational resistance guide rod and guide plate. Saves electricity consumption and lowers production cost.
  • Note: Theoretical Output Pressure: 1121-1962 N / 114-200 kg, the actual output is about 80% theoretical output.
  • High Accuracy
  • Humanized Design
  • Simple Operation
  • Quick Adjustment
  • Widely Applicable
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

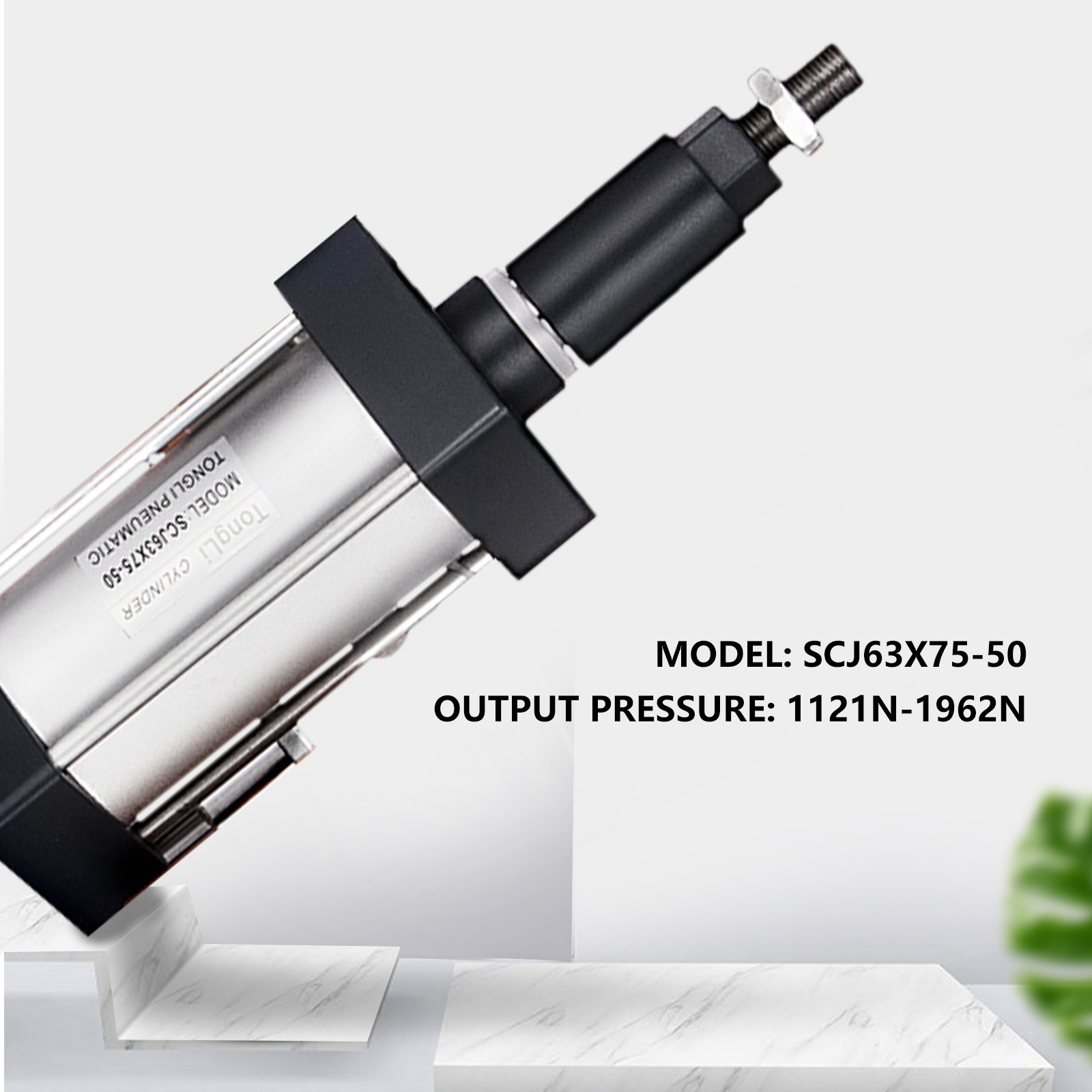

VEVOR punch press machine scj63x75-50, output pressure 1121n-1962n
Highly Sealed Cylinder
Cylinder diameter 2.5" / 63 mm, the maximum stroke of 2.95" / 75 mm, adjustable range of 2" / 50 mm. Adopt a two-way sealing design, good sealing effect, high power conversion rate.

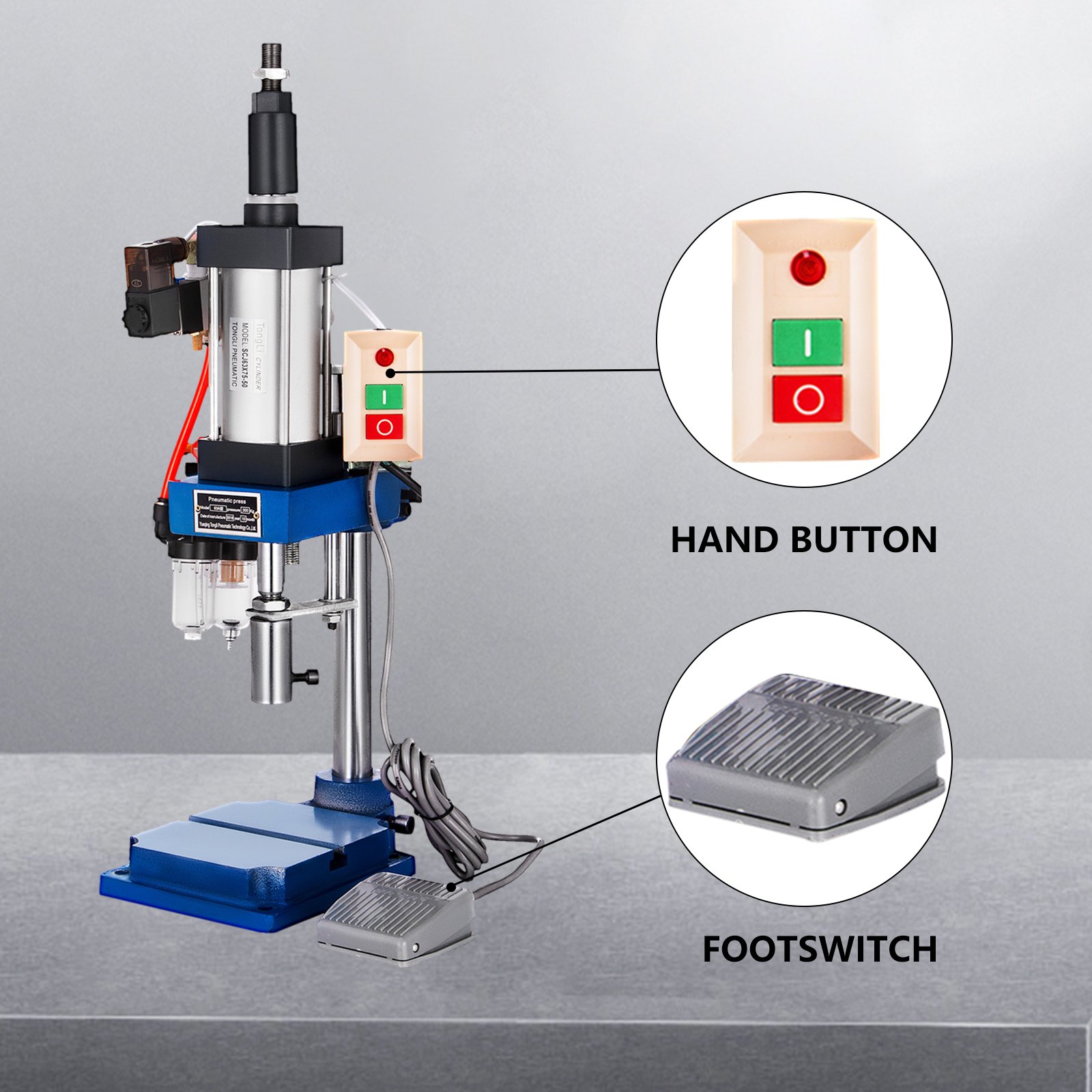

VEVOR punch press machine with hand button and footswitch controls.
Hand Buttons & Footswitch
Use manual control of stamping, with a footswitch to start work, double protection device, safe and reliable operation. The footswitch cord is 6 ft / 1.8 m long and easy to use.

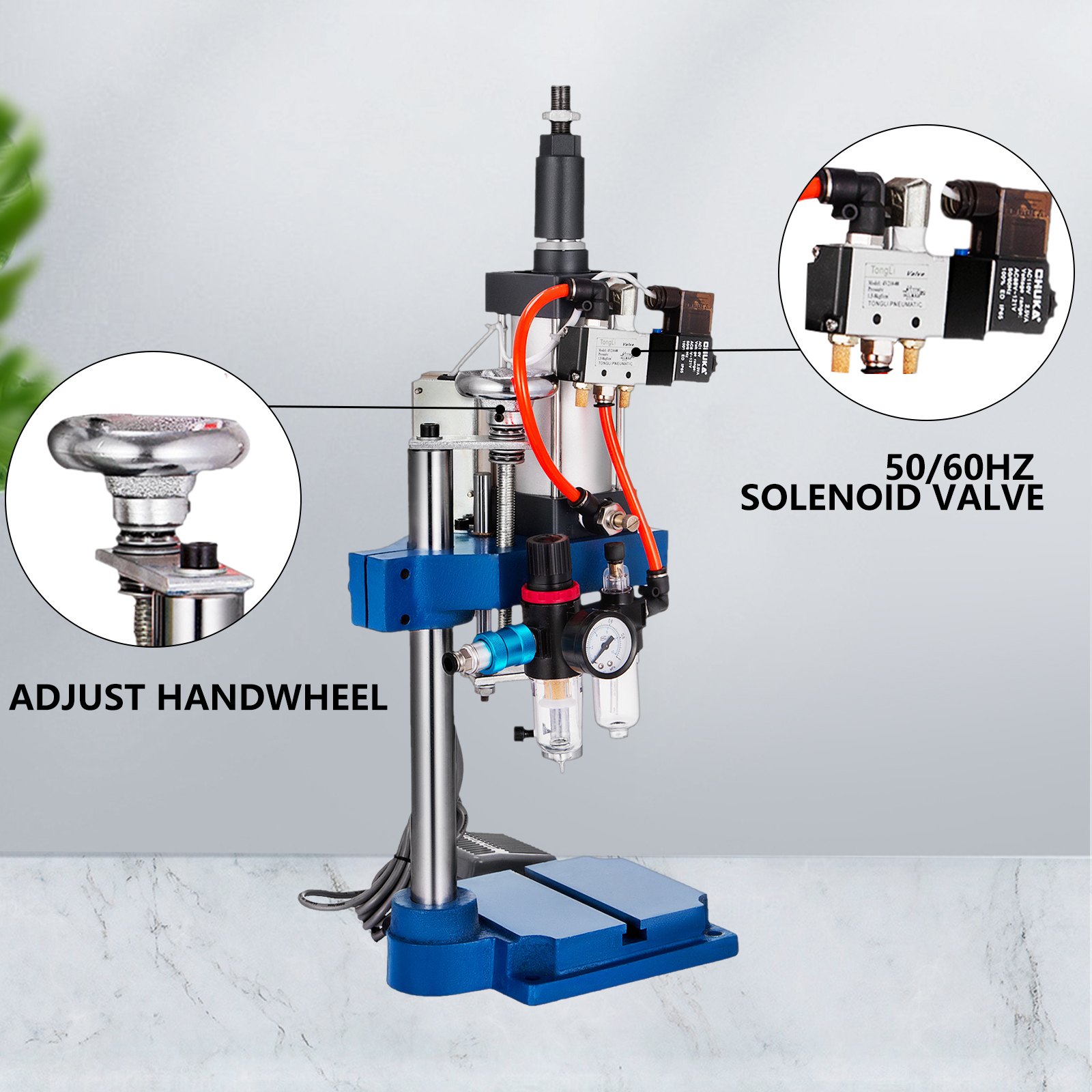

VEVOR punch press machine with adjustable handwheel and 50/60hz solenoid valve.
Precision Design
Rotate the height adjustment handle to adjust the height of the body easily. The solenoid valve has high precision and sensitivity and can operate at a high frequency for a long time.

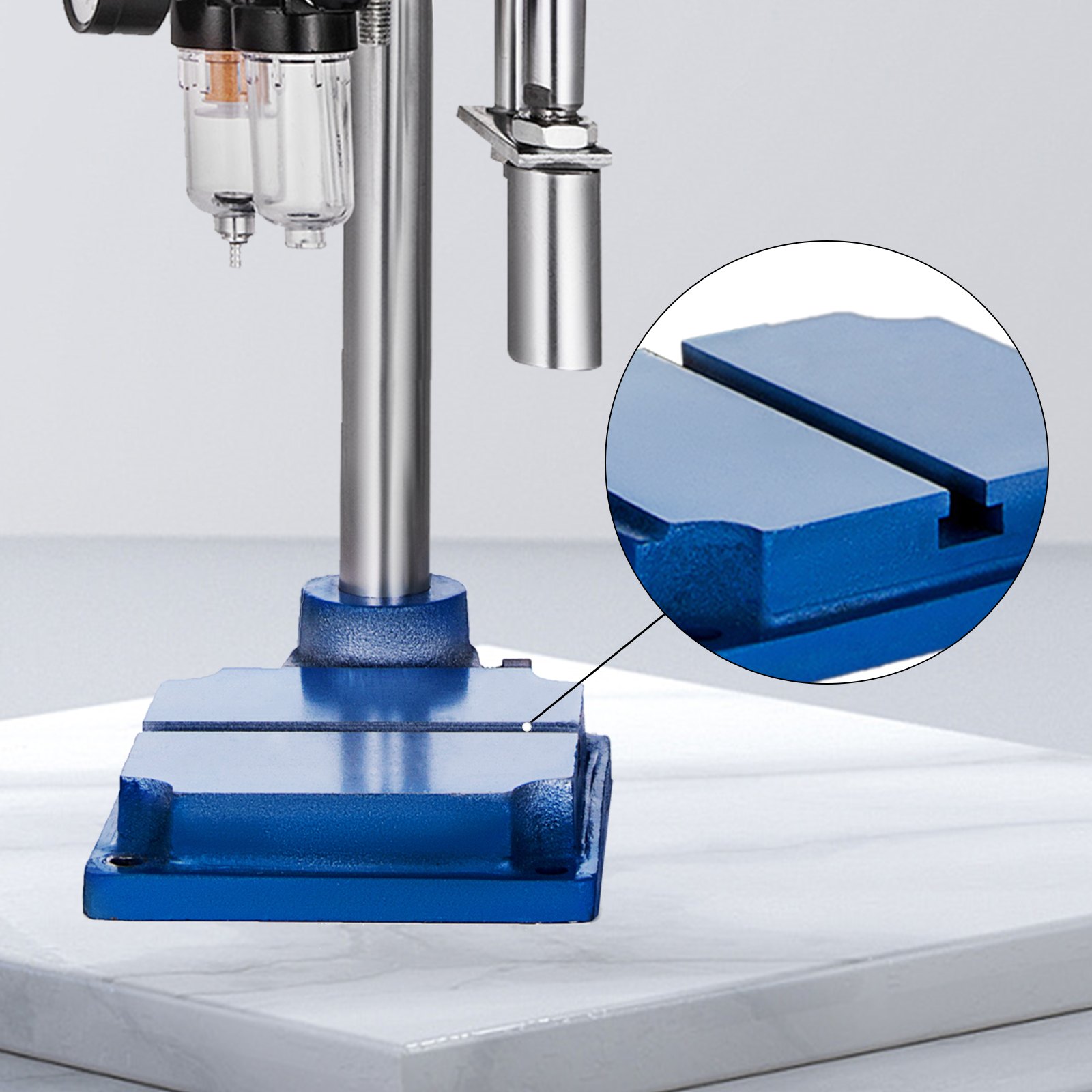

VEVOR punch press machine with blue base and close-up of precision details.
T-groove Base
Pneumatic presses with a 9" x 6" size T-shaped groove HT200 cast iron base, wear durability, securely mounted. It is easy to install various molds, and it is very convenient to install and disassemble.

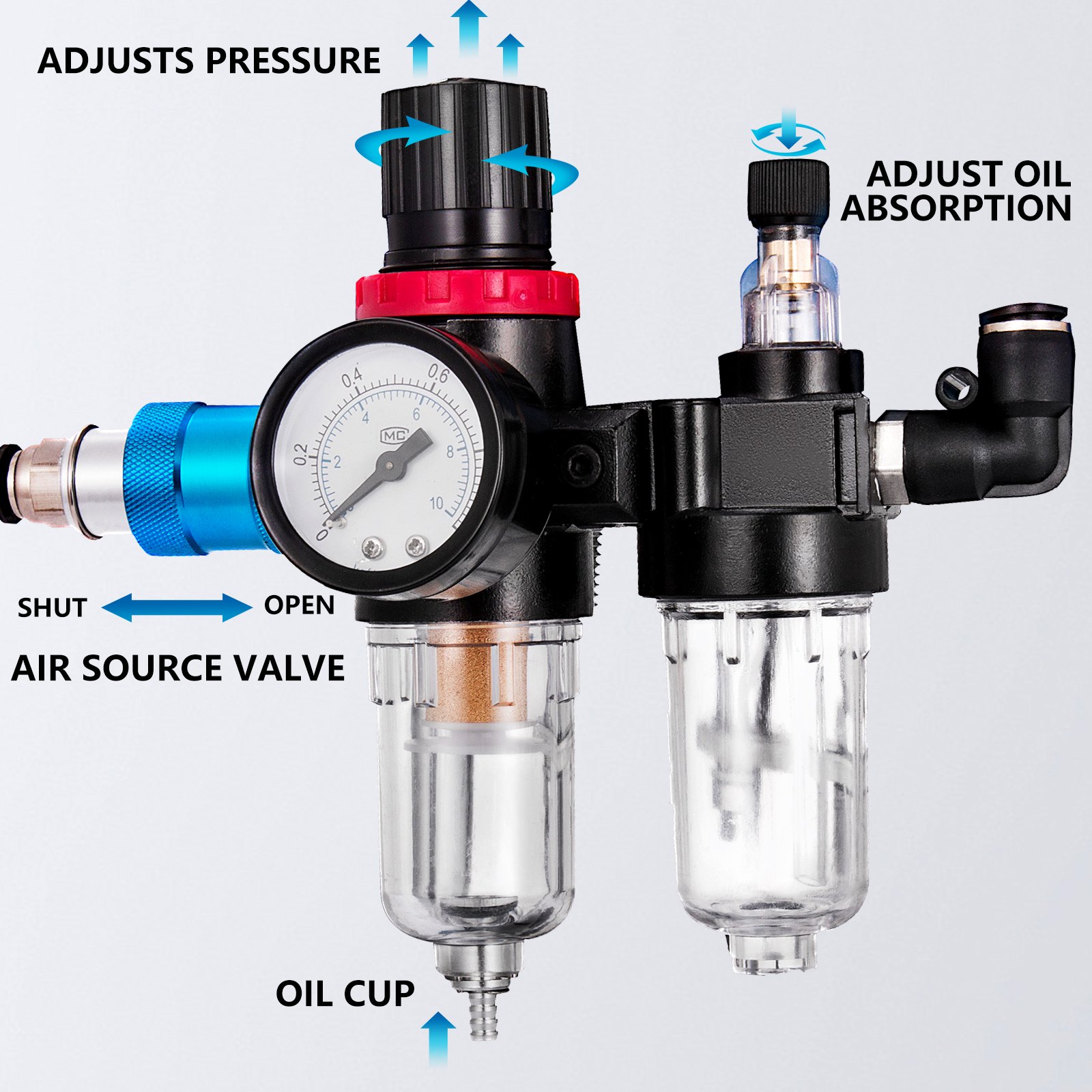

VEVOR punch press machine components: pressure gauge, oil cup, air source valve.
Air Source Processor
Precision instruments can be any combination of decomposition to meet the different needs of air. And the oil cup polymeric material, heat sealing performance, impermeable airtight.

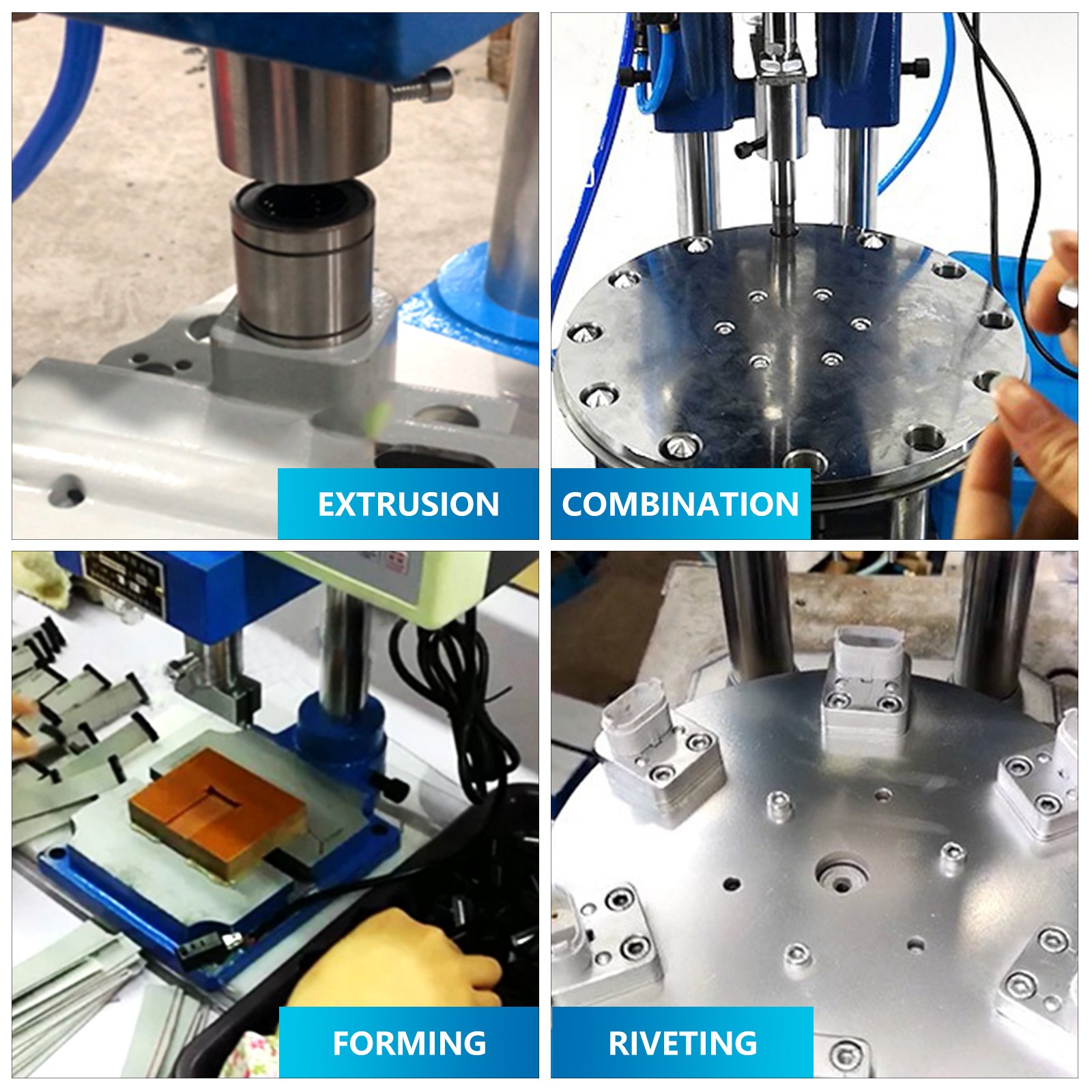

VEVOR punch press machine showcasing extrusion, combination, forming, and riveting functions.
Multifunctional Use
Pneumatic punching machine is used for pattern hot stamping and can combine workpieces, punching, bending, riveting, extrusion, forming, punching, etc.

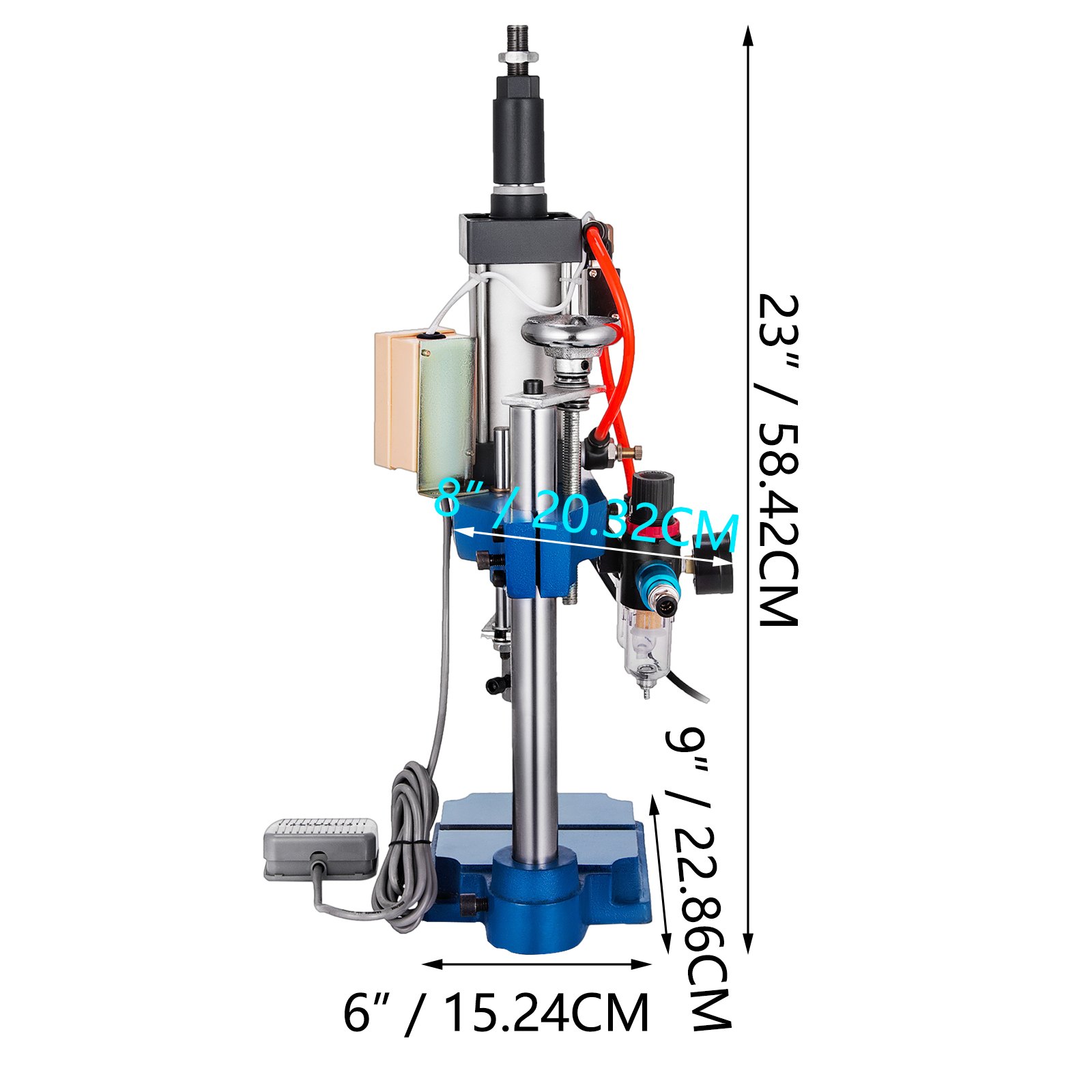

VEVOR punch press machine dimensions: 23" by 8" by 9", base 6" wide.
Specifications
  • Voltage: 110V AC
  • Power Source: Pneumatic
  • Operation Pressure: 0.4-0.7 Mpa (4-7 kg/cm², or 110-140 PSI)
  • Theoretical Output Pressure: 1121-1962 N / 114-200 kg
  • Actual Output: About 80% Theoretical Output
  • Die Hole Diameter: 0.63" / 16 mm
  • Depth of Throat and Mouth: 5.3" x 5.9" / 135 x 150 mm
  • Stroke: 5.9" x 5.3" / 150 x 135 mm
  • Tracheal Size: 0.31" x 0.2" / 8 x 5 mm
  • Adjustable Cylinder Size: 2.5" x 2.95" / 63 x 75 mm
  • Control Form: Manual
  • Layout Form: Vertical
  • Gross Weight: 39.3 lbs / 17.8 kg
  • Package Dimensions: 26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm

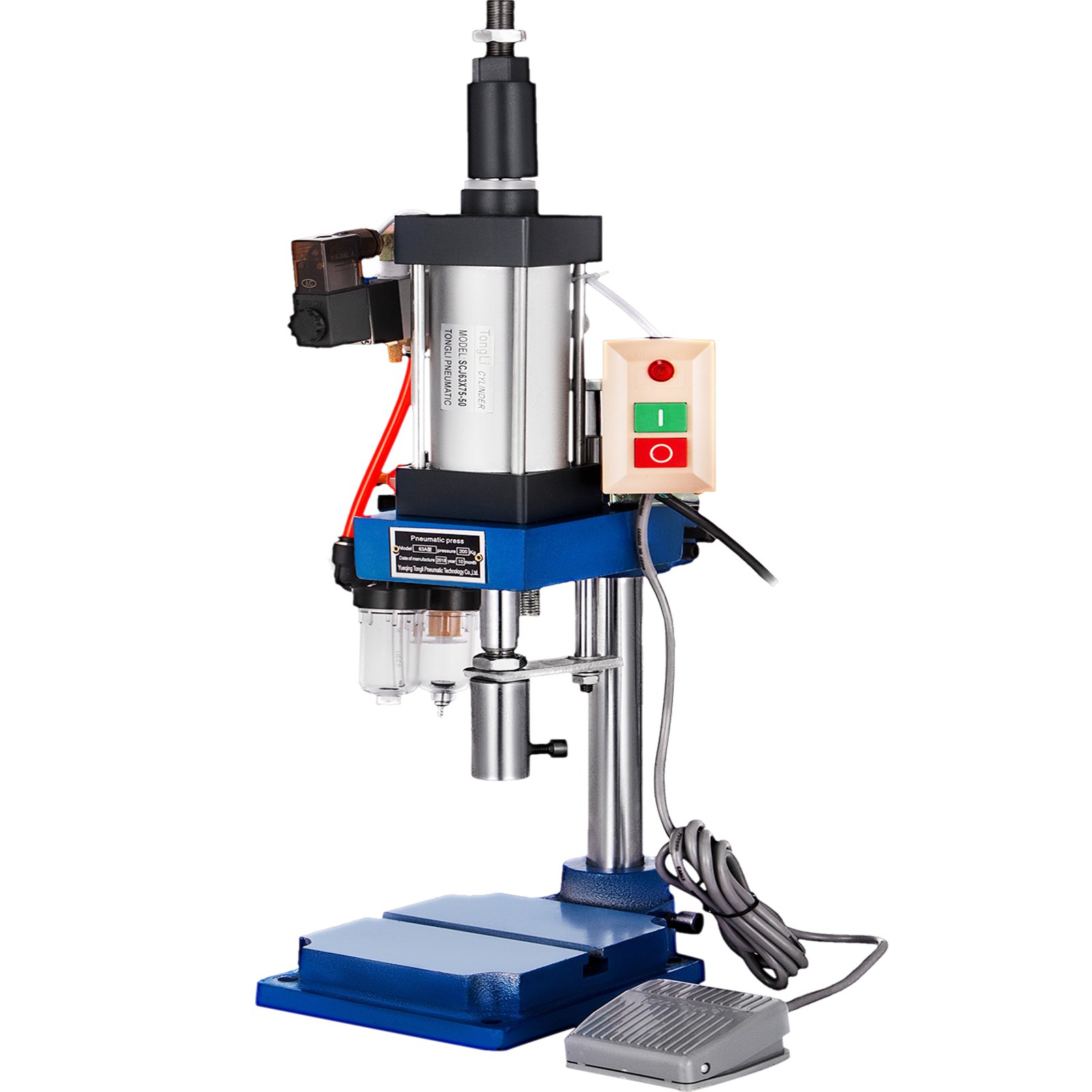

VEVOR punch press machine with control panel and foot switch
Package Content
  • 1 x Pneumatic Punch Press Machine
  • 1 x Foot Pedal
  • 1 x Manual
VEVOR punch press machine with single column, high precision, and noise-free operation.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR punch press machine with blue base, safety switch, and pneumatic components.
Top-Grade Vertical Pneumatic Punch Press Machine
Our pneumatic press uses high-performance cylinders, no noise in the hydraulic system or under standby status. Use high accuracy rotational resistance guide rod and guide plate. Saves electricity consumption and lowers production cost.
  • Note: Theoretical Output Pressure: 1121-1962 N / 114-200 kg, the actual output is about 80% theoretical output.
  • High Accuracy
  • Humanized Design
  • Simple Operation
  • Quick Adjustment
  • Widely Applicable
VEVOR punch press machine scj63x75-50, output pressure 1121n-1962n
Highly Sealed Cylinder
Cylinder diameter 2.5" / 63 mm, the maximum stroke of 2.95" / 75 mm, adjustable range of 2" / 50 mm. Adopt a two-way sealing design, good sealing effect, high power conversion rate.
VEVOR punch press machine with hand button and footswitch controls.
Hand Buttons & Footswitch
Use manual control of stamping, with a footswitch to start work, double protection device, safe and reliable operation. The footswitch cord is 6 ft / 1.8 m long and easy to use.
VEVOR punch press machine with adjustable handwheel and 50/60hz solenoid valve.
Precision Design
Rotate the height adjustment handle to adjust the height of the body easily. The solenoid valve has high precision and sensitivity and can operate at a high frequency for a long time.
VEVOR punch press machine with blue base and close-up of precision details.
T-groove Base
Pneumatic presses with a 9" x 6" size T-shaped groove HT200 cast iron base, wear durability, securely mounted. It is easy to install various molds, and it is very convenient to install and disassemble.
VEVOR punch press machine components: pressure gauge, oil cup, air source valve.
Air Source Processor
Precision instruments can be any combination of decomposition to meet the different needs of air. And the oil cup polymeric material, heat sealing performance, impermeable airtight.
VEVOR punch press machine showcasing extrusion, combination, forming, and riveting functions.
Multifunctional Use
Pneumatic punching machine is used for pattern hot stamping and can combine workpieces, punching, bending, riveting, extrusion, forming, punching, etc.
VEVOR punch press machine with control panel and foot switch
Package Content
  • 1 x Pneumatic Punch Press Machine
  • 1 x Foot Pedal
  • 1 x Manual
VEVOR punch press machine dimensions: 23" by 8" by 9", base 6" wide.
Specifications
  • Voltage: 110V AC
  • Power Source: Pneumatic
  • Operation Pressure: 0.4-0.7 Mpa (4-7 kg/cm², or 110-140 PSI)
  • Theoretical Output Pressure: 1121-1962 N / 114-200 kg
  • Actual Output: About 80% Theoretical Output
  • Die Hole Diameter: 0.63" / 16 mm
  • Depth of Throat and Mouth: 5.3" x 5.9" / 135 x 150 mm
  • Stroke: 5.9" x 5.3" / 150 x 135 mm
  • Tracheal Size: 0.31" x 0.2" / 8 x 5 mm
  • Adjustable Cylinder Size: 2.5" x 2.95" / 63 x 75 mm
  • Control Form: Manual
  • Layout Form: Vertical
  • Gross Weight: 39.3 lbs / 17.8 kg
  • Package Dimensions: 26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm

220kg Pneumatic Punch Press for Metal Stamping

The vertical punch press is an excellent tool for creating leakage testers and punching holes in leather. The vertical pneumatic punch press offers impressive performance. The humanized design increases safety. Made of sturdy material, this mute operation punch press builds to last. You can use it for heavy tasks without worrying about its breakage. This pneumatic punch press 220 kg is easy to install and use. With manual control, you can easily monitor the operation. The guide rod and plate handle high-speed precision impact loads. It is perfect for tasks that require high accuracy and reliability. It operates quietly.


High Precision & Performance

The industrial punch press machine is outstanding in precision and performance. It has a pressure range of 1121–1962 N (114–200 kg). The pressure range provides a strong push that punches through the material. It can hold up to 441 lbs (200 kg). You can handle a lot of work without any problems.


The punch press for metalworking is very accurate and works fast. Your job is done smoothly. The press has particular parts, like a guide rod and plate. These parts help keep everything in place and make sure machines move correctly. You don't have to press hard because the machine does everything. You can do delicate tasks like precisely putting small pins into plastic.


Quiet & Safe Operation

Equipped with the mute operation feature, this pneumatic press machine is very beneficial for you. It works safely and precisely. This is great for places where loud noise is a problem. You don't get distributed by a loudspeaker using this vertical punch press. It uses compressed air to work, which is very efficient and saves labor costs. Compressed air helps the machine press or punch material. You don't have to use a lot of energy to get the job done. This 16mm-die hole punch press completes the work well without making noise. The foot pedal activates during operation. It enhances users' safety and avoids any accidents. It is a reliable choice for those who are concerned about workplace safety.


Humanized Design to Easily Control

With hand buttons and foot pedals, you can easily control the pneumatic press machine. It has a heating mode, temperature control, and pressure sensors. The heating mode provides heat when you work on materials. The temperature control ensures that everything is at the right heat level.


It prevents your material from overheating and burning. The pressure sensors make sure the machine applies the right amount of pressure. This helps you get the quality results without any damage. You can control all these modes and focus on your projects. The foot pedals let you control the machine with your foot. Your hands are free to handle the materials.


Sturdy Build Quality & Durability

Made of sturdy material, this punch press machine 110V is very strong. It can handle a lot of heavy use. The sturdy construction ensures that it stays in place. You can focus on your work without worrying about slipping. It provides excellent results even after using it many times. It has a strong build and works reliably. You can work on metals and leathers. You only need to do a little bit of maintenance. You can keep the mute operation punch press in good shape for a long time.


Easy Setup & Use

One of the best things about this vertical punch press is that it is easy to set up and use. The machine comes with a foot pedal that is easy to install and use. You press the pedal with your feet, and the machine starts working. This is very convenient because you don't need to use your hands. The industrial punch press machine is accessible by taking complicated steps. Everything is straightforward to understand. Just follow the step-by-step instructions and assemble your machine.


Versatile — Ideal for Small Businesses & Hobbyists

The vertical pneumatic punch press is a fantastic tool for small business owners. This machine is great for projects like leatherworking, knife making, and other crafts. You can also make a leather belt with minimal effort and energy. This machine helps you do work quickly and saves your efforts. You can finish your projects faster and spend more time enjoying your work. You can work on leather, metal, and other materials. This versatility makes this machine a valuable tool for anyone who loves to create things.


See More

Specification

Voltage
110V AC
Power Source
Pneumatic
Operation Pressure
0.4-0.7 Mpa (4-7 kg/cm², or 110-140 PSI)
Theoretical Output Pressure
1121-1962 N / 114-200 kg
Actual Output
About 80% Theoretical Output
Die Hole Diameter
0.63" / 16 mm
Depth of Throat and Mouth
5.3" x 5.9" / 135 x 150 mm
Stroke
5.9" x 5.3" / 150 x 135 mm
Tracheal Size
0.31" x 0.2" / 8 x 5 mm
Adjustable Cylinder Size
2.5" x 2.95" / 63 x 75 mm
Control Form
Manual
Layout Form
Vertical
Gross Weight
39.3 lbs / 17.8 kg
Package Dimensions
26.4" x 13.4" x 13.4" / 67 x 34 x 34 cm
Questions and Answers
30 Questions
What is the interface if we were to make custom tooling? Is it held in by just the set screw?
It is punching. 16 of the inner hole, the cylinder is threaded m16.
By vevor
Can this punch a 18mm hole through a 28 gauge sheet metal?
Hello, we are very sorry for the inconvenience, due to the lack of prototype for the time being, our technicians can not verify your question in time to give an accurate answer, you can refer to the product detail page/manual for more information, thank you for your understanding.
By vevor
Confirming if I were to want to attach a "tool" to the end of the interface I would require a threaded connection/bolt that is an M16-1.5, ie a metric dimensioned bolt with a 16mm diameter and a 1.5mm (fine) thread pitch not a 2.0mm (coarse) thread pitch. In addition how far up the interface is the center of the set screw so that I may size the length of my bolt properly as well.
Please download manual in below link for reference, the link is valid in 3 days: https://we.tl/t-0pEyu3uh60.
By vevor
What is the thread on the end of the Cylinder Ram?
The thread is M16*1.5.
By vevor
Can it open oysters
Yes, it can open oysters.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
16 Review(s)
Clear filters
Erik Olson Erik Olson
Works great!
Works way better than expected. High quality materials used for sure. Been using it all day everyday for 6months no issues. 1 thing is I wish they included the air lines and standard compressor quick disconnects. Will likely add another soon.
I buy a lot I buy a lot
Price is great. Needs a small improvement...
For the price you get a lot of press. The single tube/bar riser at the rear is just not beefy enough. It is fine for small press loads but when the loads get up higher you can see flex and move where it enters the cast base. It will probably work fine for my requirements.
Karlon Karlon
Punch
Turned it in to a soap stamp. Directions we're not easy. Watch YouTube to figure out directions. Quick delivery and arrived in good shape.
Eric Lawrence Eric Lawrence
Mr
This little press was a steal. It does exactly what I need it to. The press us also loaded with features that just should be there for the money I paid, foot pedal, stroke adjustment and press height adjustment are very handy things for a press that cost less than a "C" note delivered to your door. If you don't require huge pressure, only moderate pressure, this press should work fine if it's not too small.
Rex Rex
Owner
I was a little disappointed in the power but very impressed with the quality and what all you get for the money.
Rock River Iron Works Rock River Iron Works
New tool
Bought this for making kydex sheaths for my custom knives I had to do a bit of tuning to make it work for the eyelet setter.
Dave Beck Dave Beck
Used to make leakage tester
This is a good low cost way to get a working punch press for modification. With a bit of effort, you can have a nice press and it can save a lot of work. Some areas to look at 1) Power switch box wiring should be beefed up. Wire are loose and can pull out. Also, ground wire is not attached. 2) Power switch box is lightly mounted by a single side wall screw attachment. If you’re going to use this much, I’d recommend mounting it to an angle iron as shown. 3)Think about how you’re going to guard this. The foot switch won’t prevent you from squashing you hand when the Ram comes down.
Batia Batia
Good pump
It completed faster than I expected. Never get stuck once or do anything bad. I am glad to have this tool.
Gabriel Gabriel
Does the Job!
The effect is very good. It's much easier than drilling holes
Anzhela Anzhela
Amazing product, Solid and Easy set up! Great Price!
I've bought this Press machine for my small business. I had to do some improvements in order to attach the molds I use and this press is amazing.Seems like it's very well built for the price, solid.It's worth buying !!!
