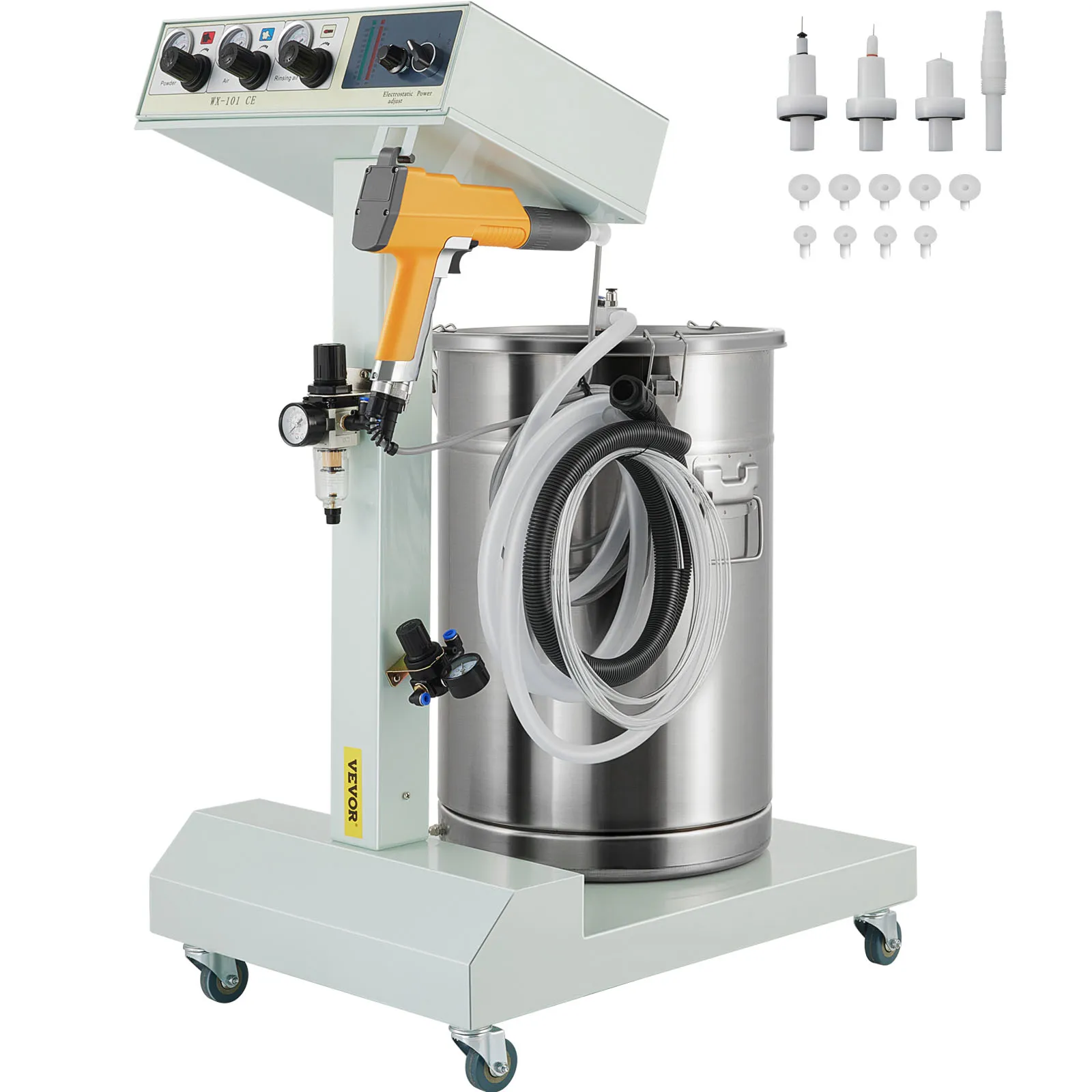

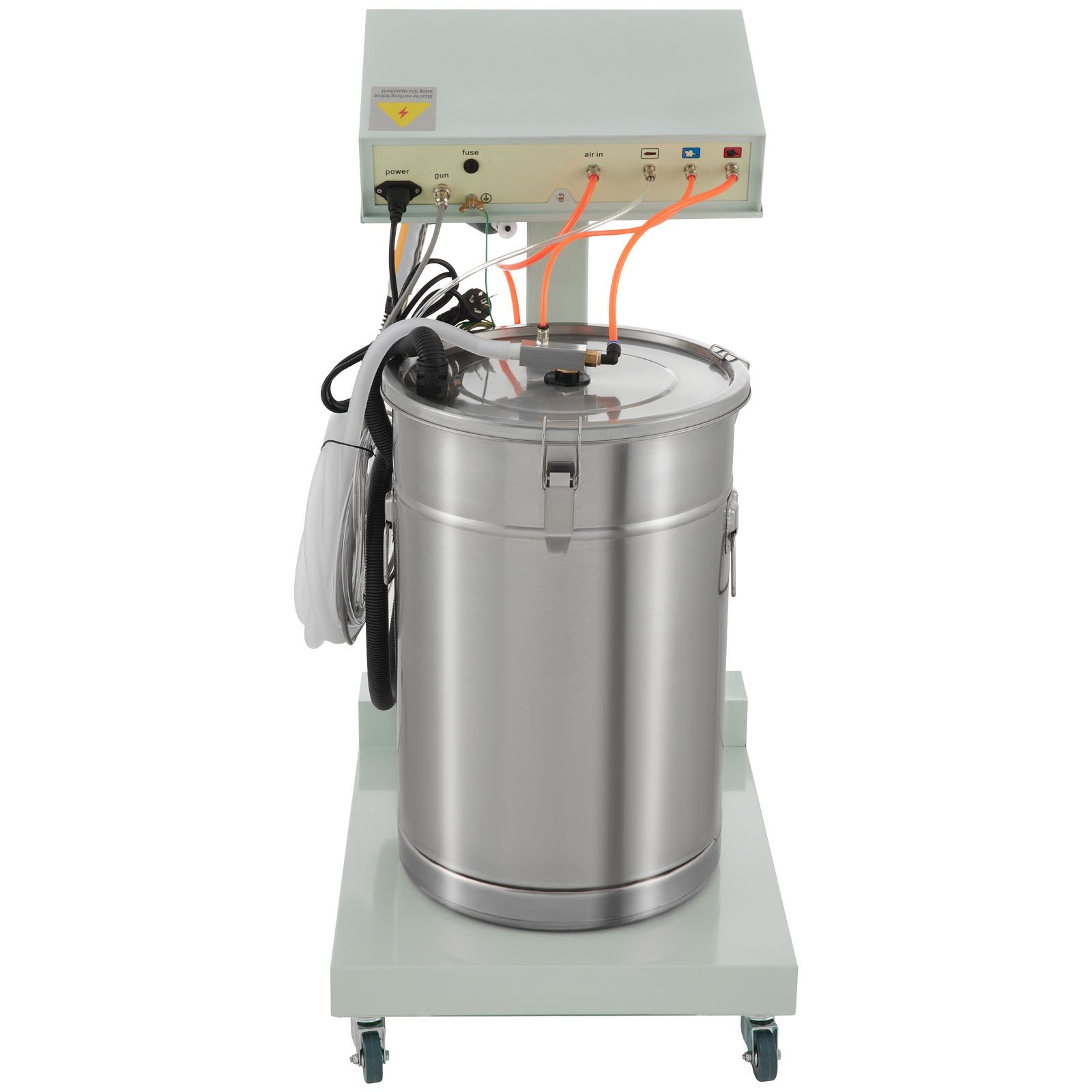

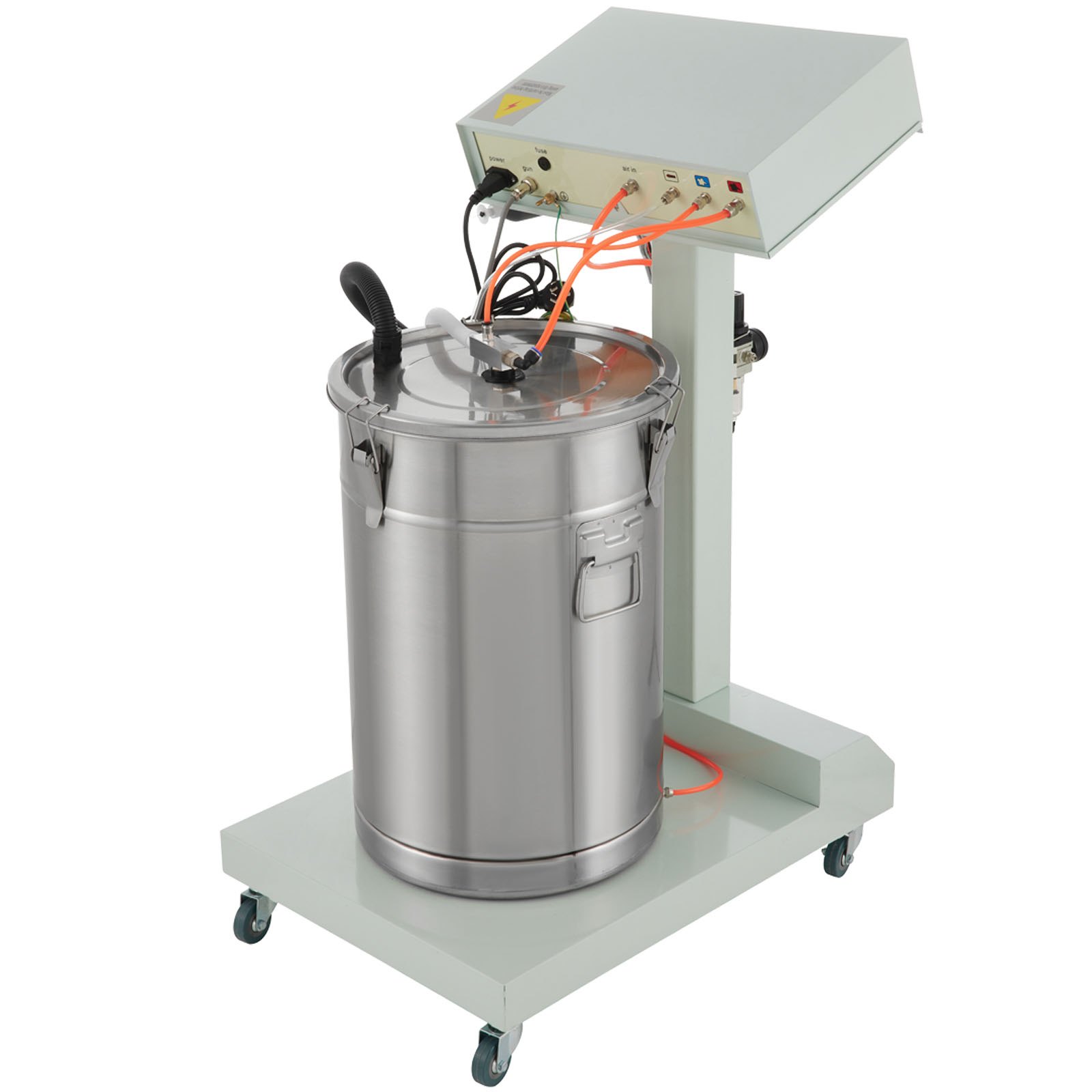

VEVOR powder coating machine with control panel, spray gun, and accessories on wheels. VEVOR powder coating machine showcasing easy operation, efficiency, and strong electrostatic coating. VEVOR powder coating machine panel controls labeled with functions and adjustment knobs. VEVOR powder coating machine showcasing adjustable spray shapes and strong electrostatic coating. VEVOR powder coating machine with stainless steel bucket, thickened construction, and wheels. VEVOR powder coating machine in a workshop with spray grab bracket and oil-water separator. VEVOR powder coating machine specifications and uses in various industrial contexts.
WX-101PTJ00000001V1

VEVOR 40W 50L Electrostatic Powder Coating Machine with Spraying Gun Paint 550g WX-101 Powder Coating System (40W 50L)

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • High Efficiency Powder Coating System: The electrostatic powder coating system machine is designed for DIYers and handy persons. Perfect for spraying big projects like a ship, bridge, hardware, garage, fitness equipment, and more. It features two interior gas designs so that the needle is no longer needle-guided fluid powder to enhance the discharge effect and improve the powder's rate.
  • Simple Control Panel: Each function is clearly labeled, so you can conveniently adjust the powder, air, rinsing air, electrostatic through the knobs. The rinsing air can clean the machine and extend the service life. It is also easy to operate with an OFF/ ON switch. This control panel ensures the perfect spray effect and satisfies your work's various needs.
  • Powder Coating Gun: This Coating machine features a strong electrostatic spraying effect, providing a consistent and smooth finish. Meanwhile, it is powder-saving. With different nozzles, you can spray diffusion and fan-shaped coatings. Also, you can adjust the spraying distance by using big or small nozzles.
  • Excellent Quality: The 45L powder bucket adopts high-quality stainless steel; it has rust prevention and corrosion resistance advantages. Large capacity supports uninterrupted work. Its thickened construction helps the stability and increases the load capacity. One of the advantages of this machine is it features 4 flexible universal wheels, which can erase fatigue and increase maneuverability around projects.
  • Considerate Details: This user-friendly design helps the beginner to work more quickly. Electrostatic manual powder coating has an oil-water separator. Filter water, oil, and clean gas in the compressor to ensure an efficient separation effect. A spray grab bracket reduces the pressure caused by long-term spraying force on the arm. A high-quality powder pump and pressure regulator features a superior atomization effect.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 40W 50L Electrostatic Powder Coating Machine with Spraying Gun Paint 550g WX-101 Powder Coating System (40W 50L)

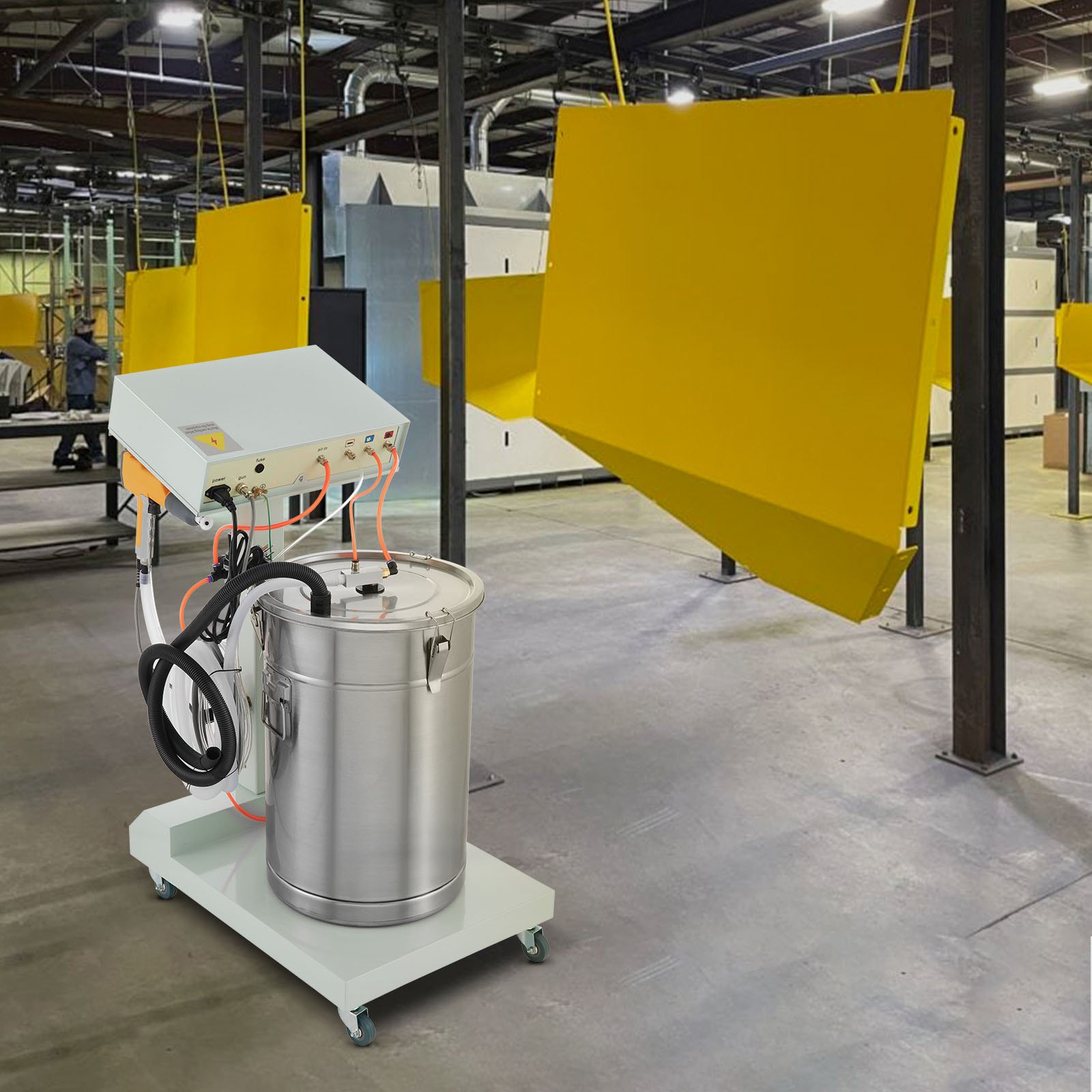

VEVOR powder coating machine in industrial hardware and handrail setting.

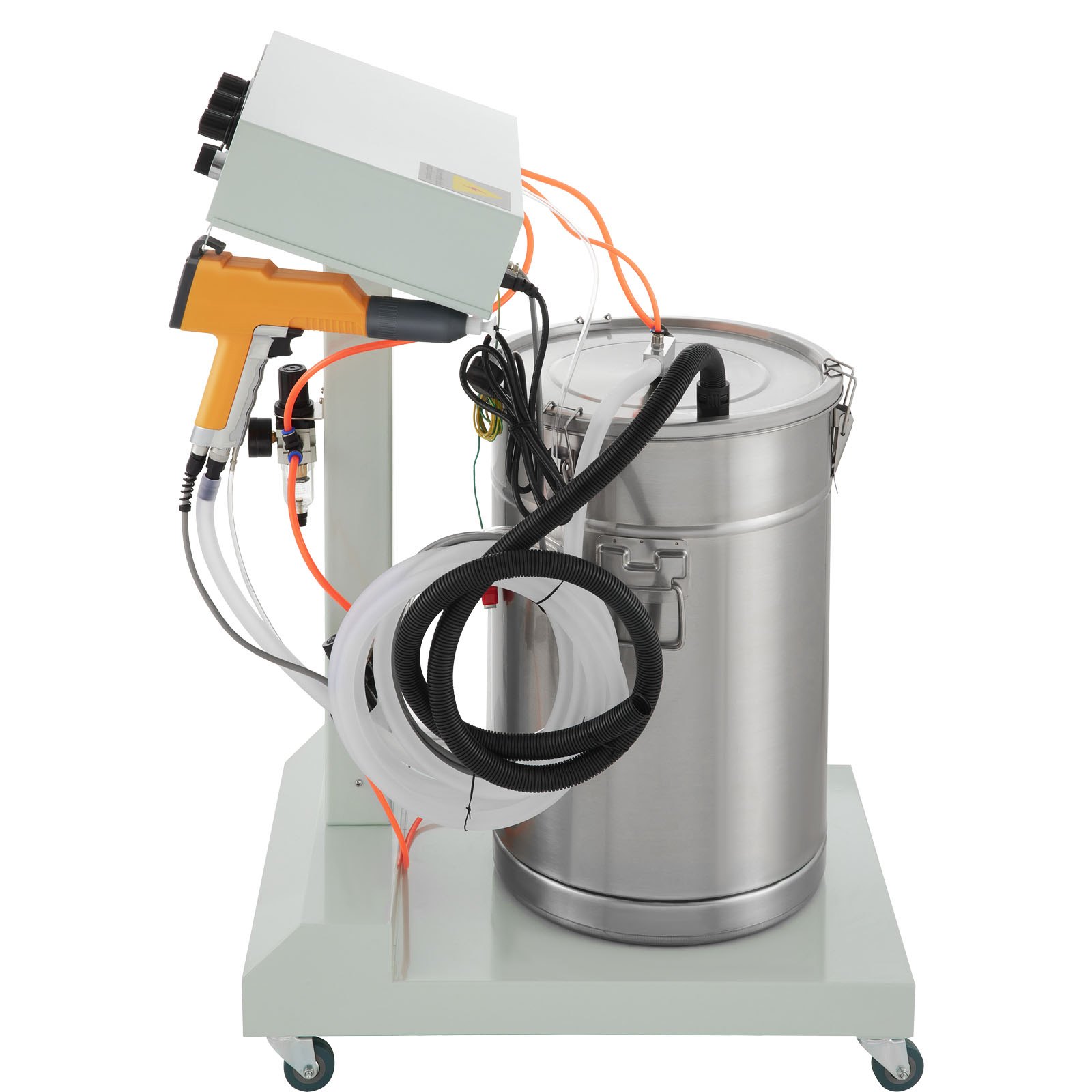

VEVOR powder coating machine with control panel, hoses, and attachments.

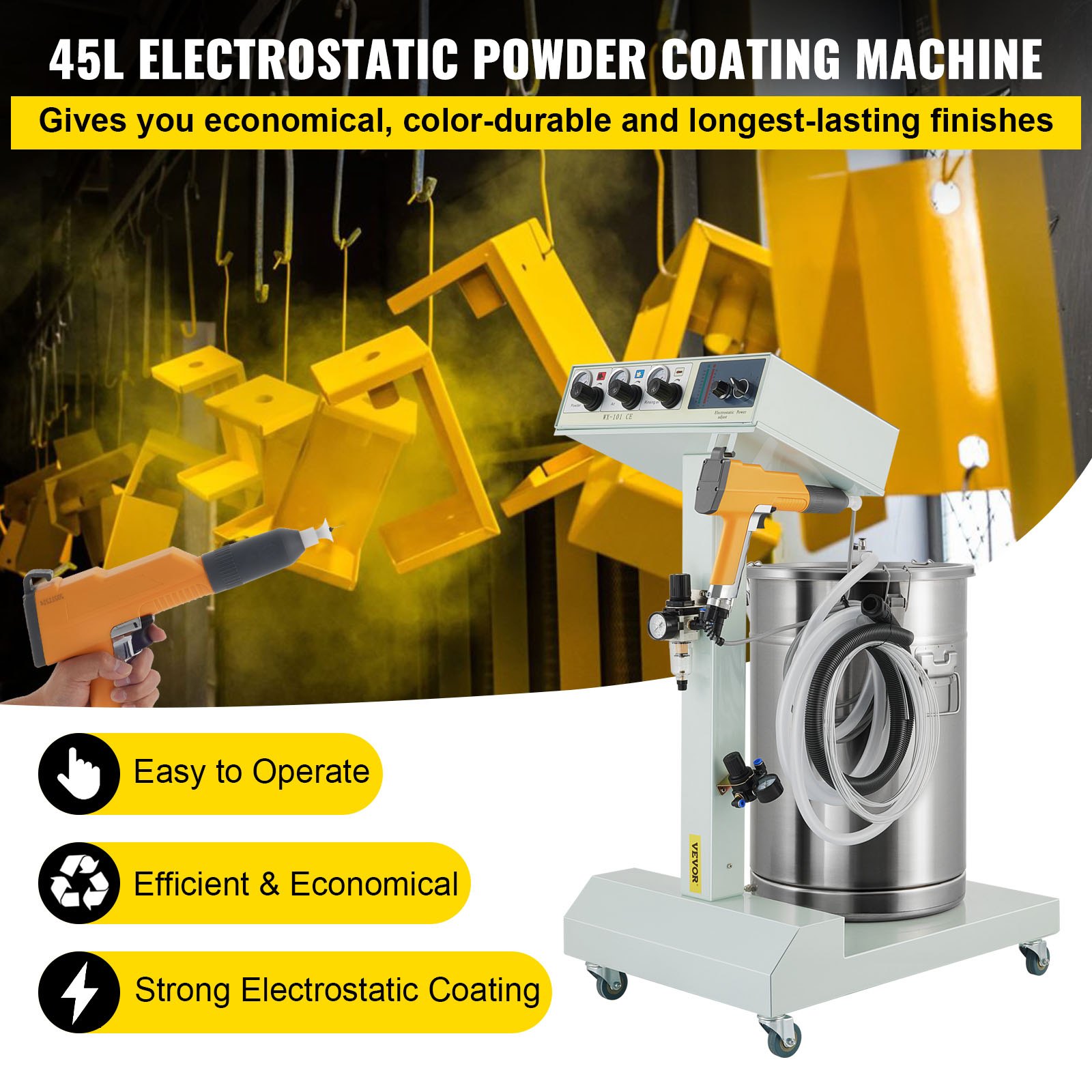

Electrostatic Powder Coating Machine
Efficient & Large Capacity & Easy to Use
Electrostatic Powder Coating Machine is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. The charged powder particles adhere to the elements and are held there until melted and fused into a smooth coating in a curing oven.
  • High Efficiency Powder Coating System
  • Simple Control Panel
  • Powder Coating Gun
  • Excellent Quality
  • Considerate Details
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

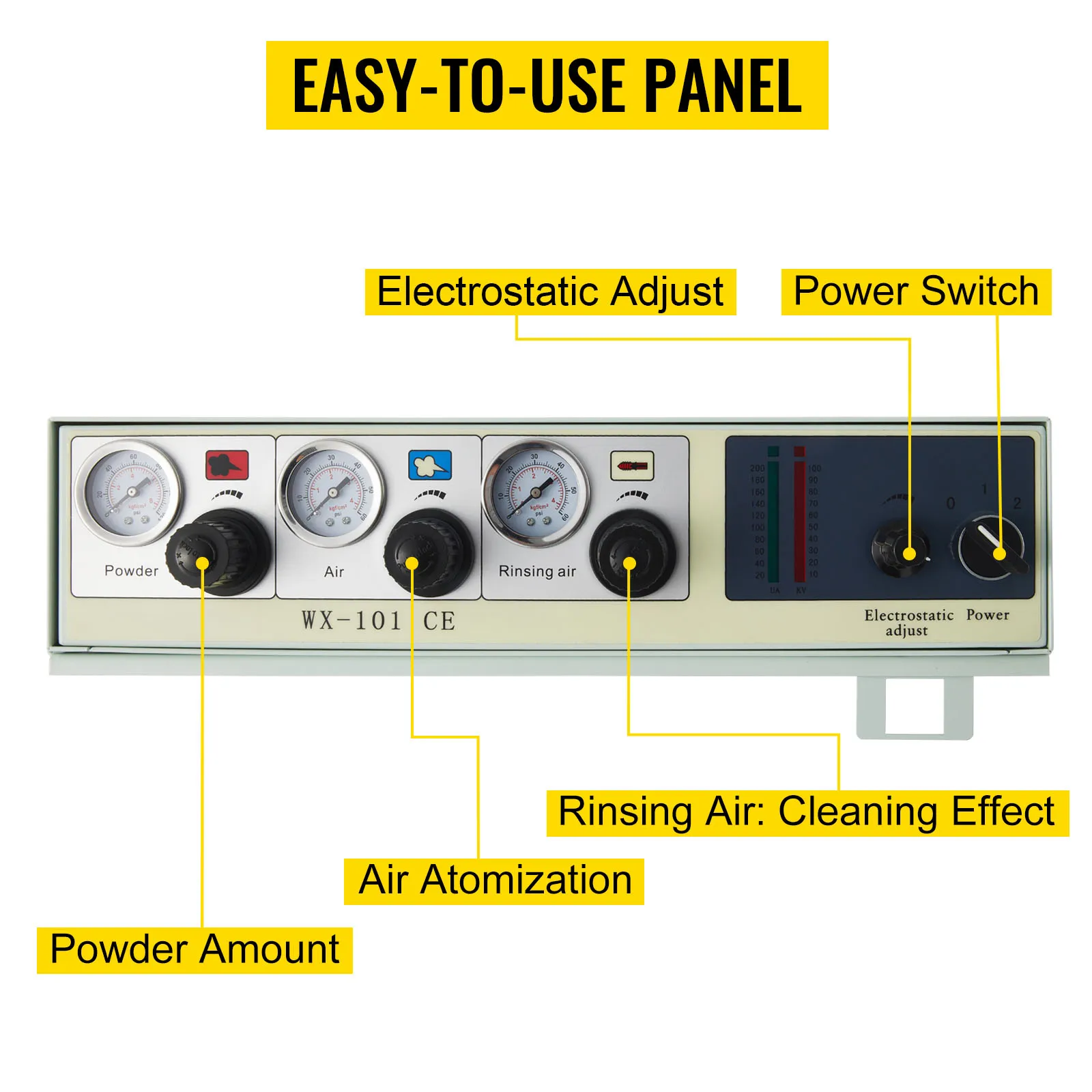

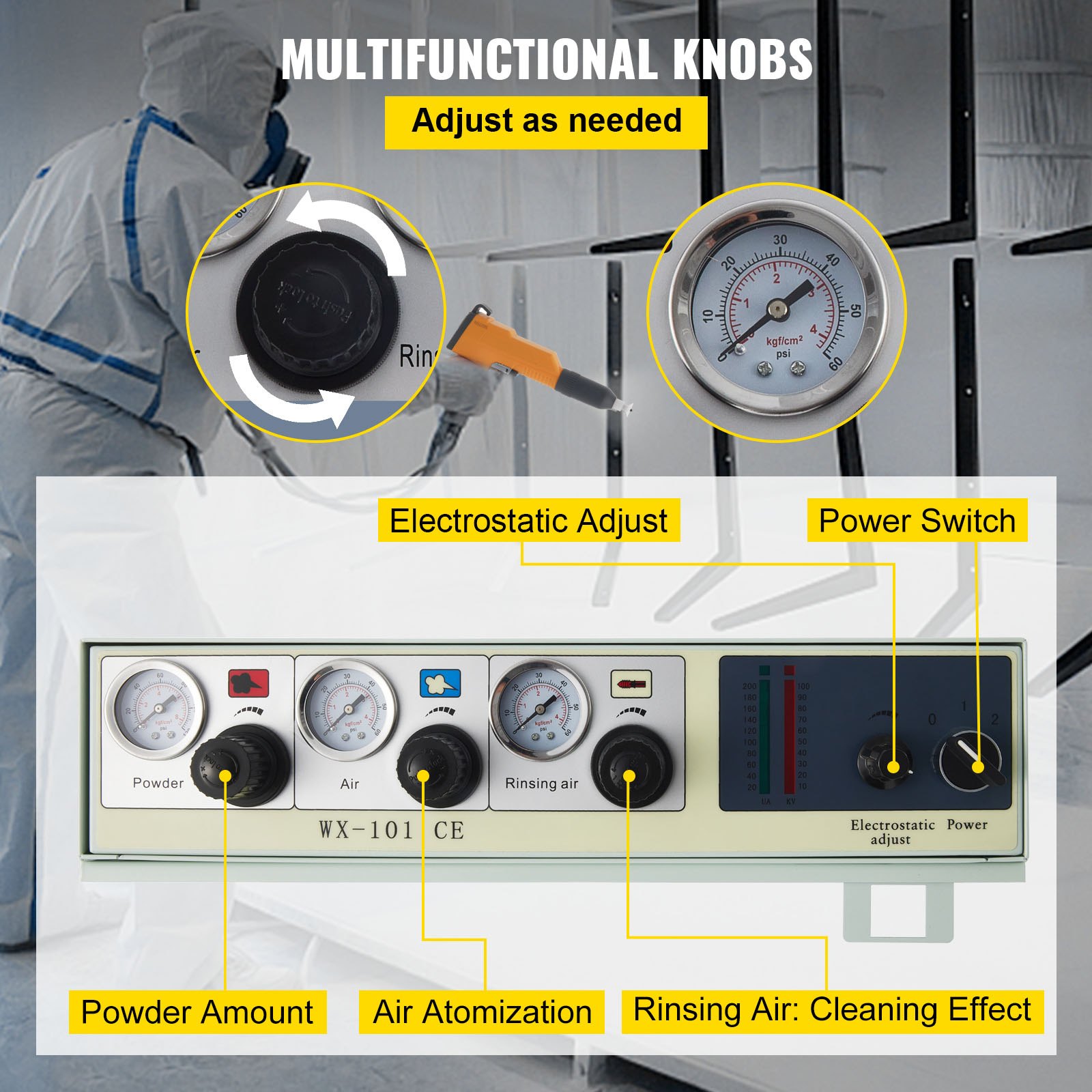

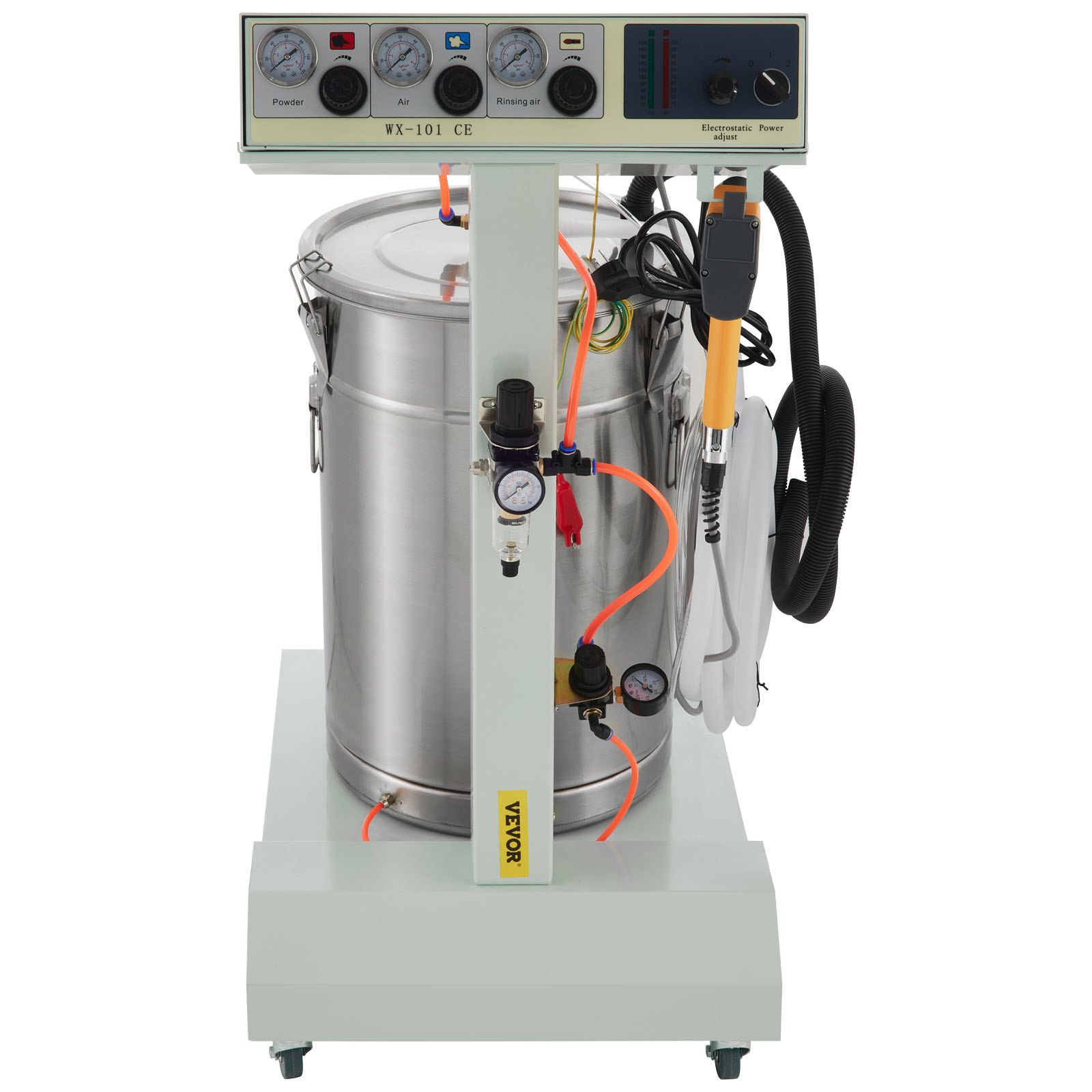

VEVOR powder coating machine control panel with labeled dials and switches.
Easy-to-use Panel
This coating machine is equipped with a control panel, and each function is clearly labeled. You can rotate the knobs according to your needs. It concludes powder, air, rinsing air, and electrostatic adjustment.

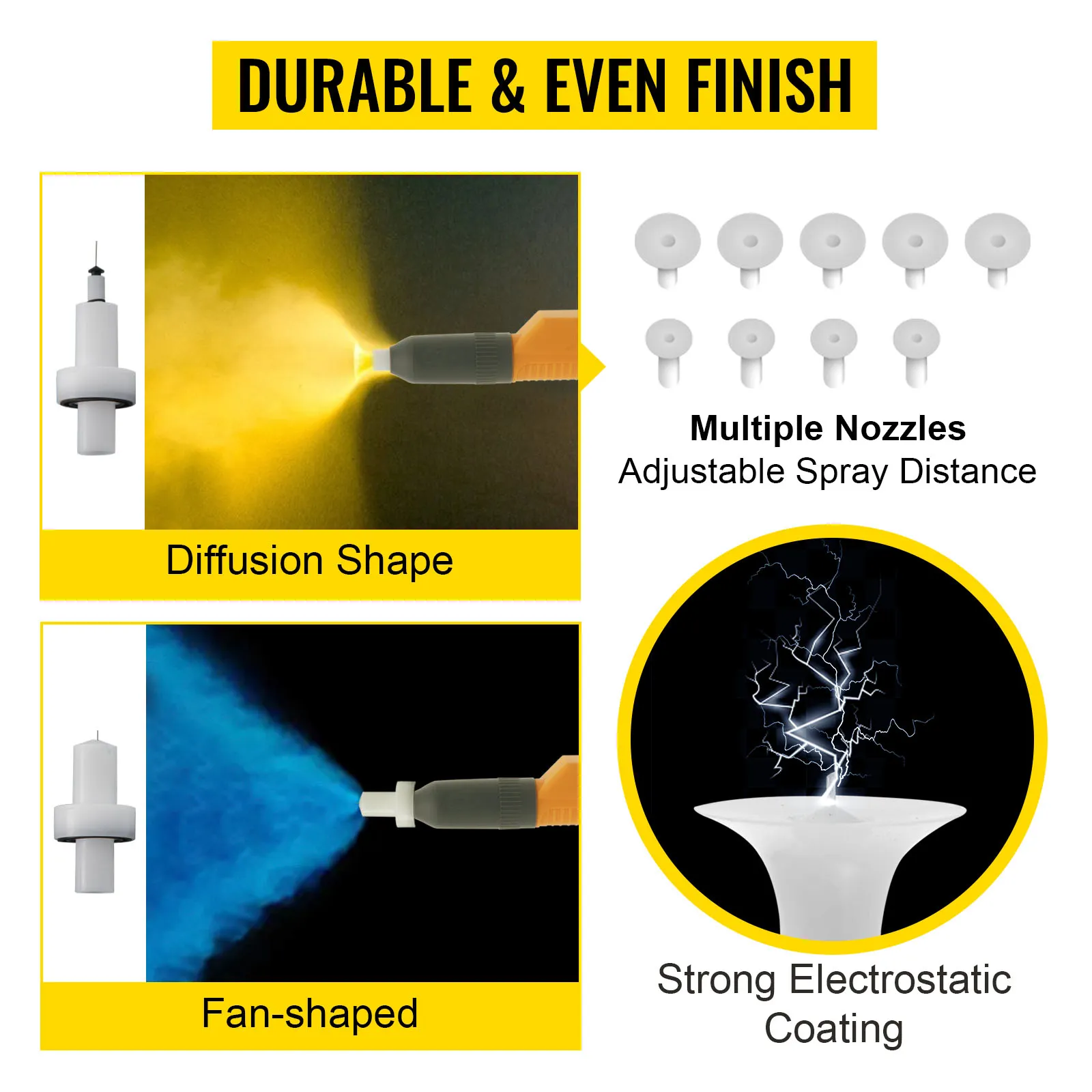

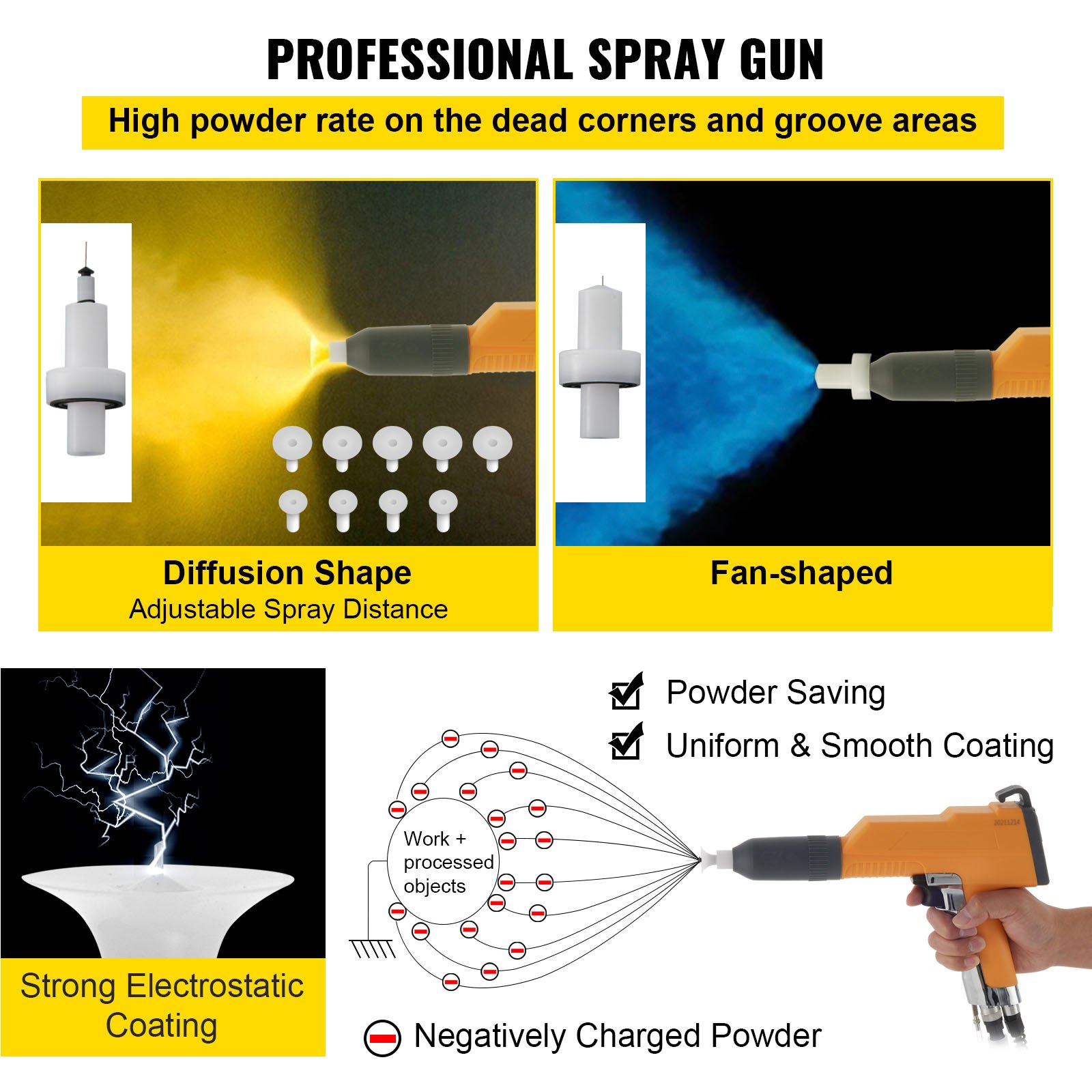

VEVOR powder coating machine offers multiple nozzles for diffusion and fan-shaped spray. durable, even finish.
Durable & Even Finish
The powder coating gun is durable and lightweight, and the powder output effect is efficient and smooth. In addition, you can use different nozzles to achieve a distinct and superior coating effect.

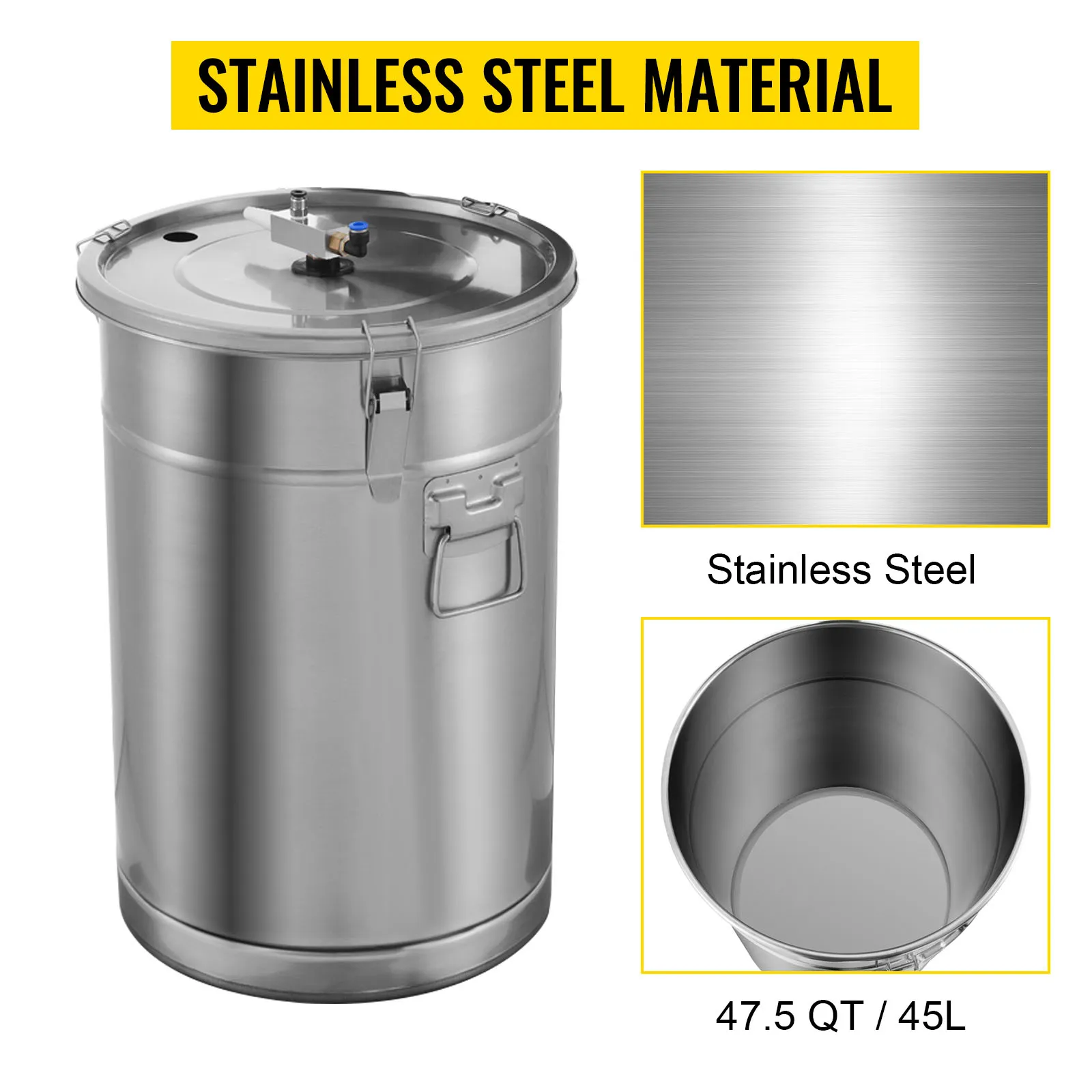

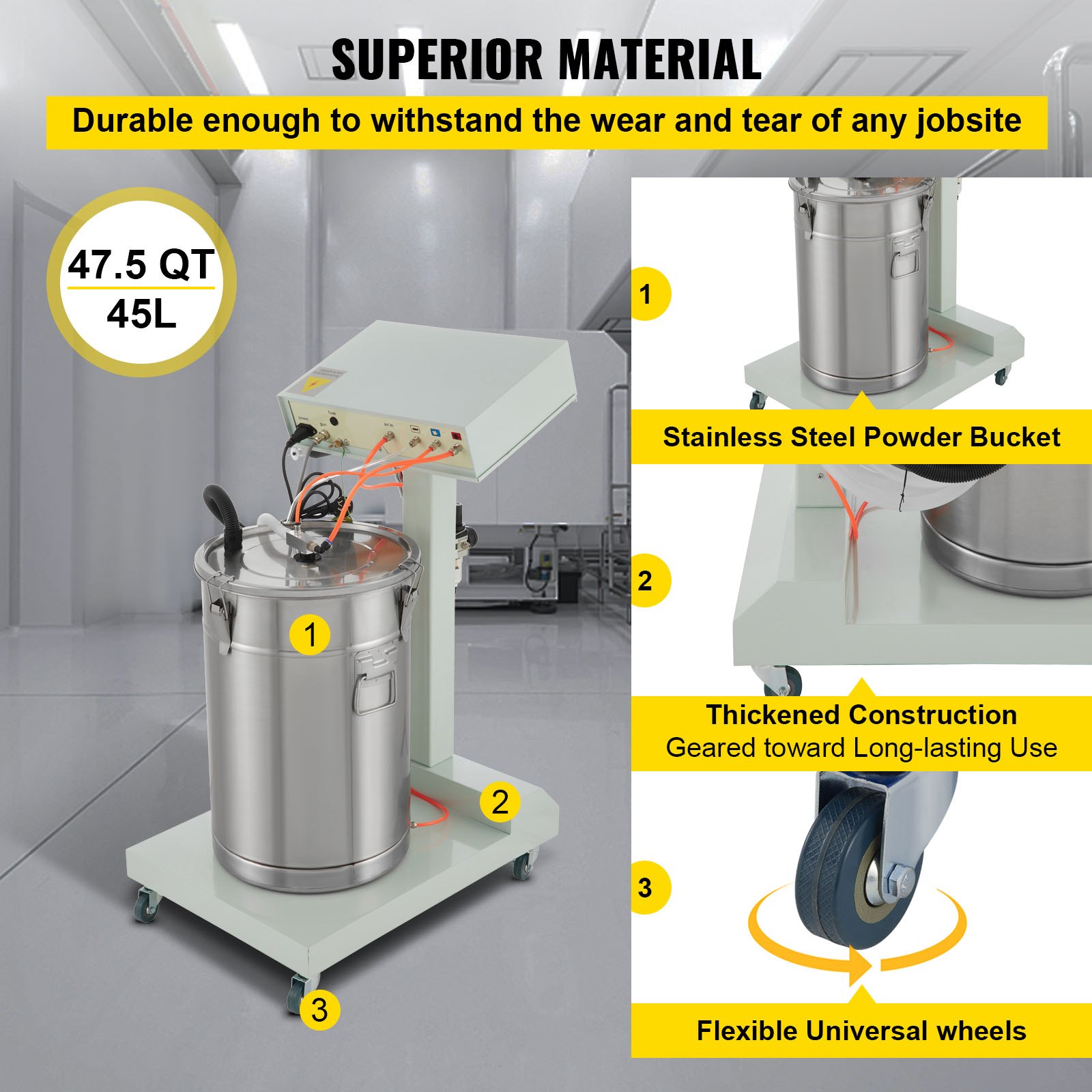

VEVOR powder coating machine with stainless steel 47.5 qt / 45l container.
Stainless Steel Material
The 45L powder bucket is made of stainless steel with a humanized design, and the widened frame increases the load-bearing capacity.

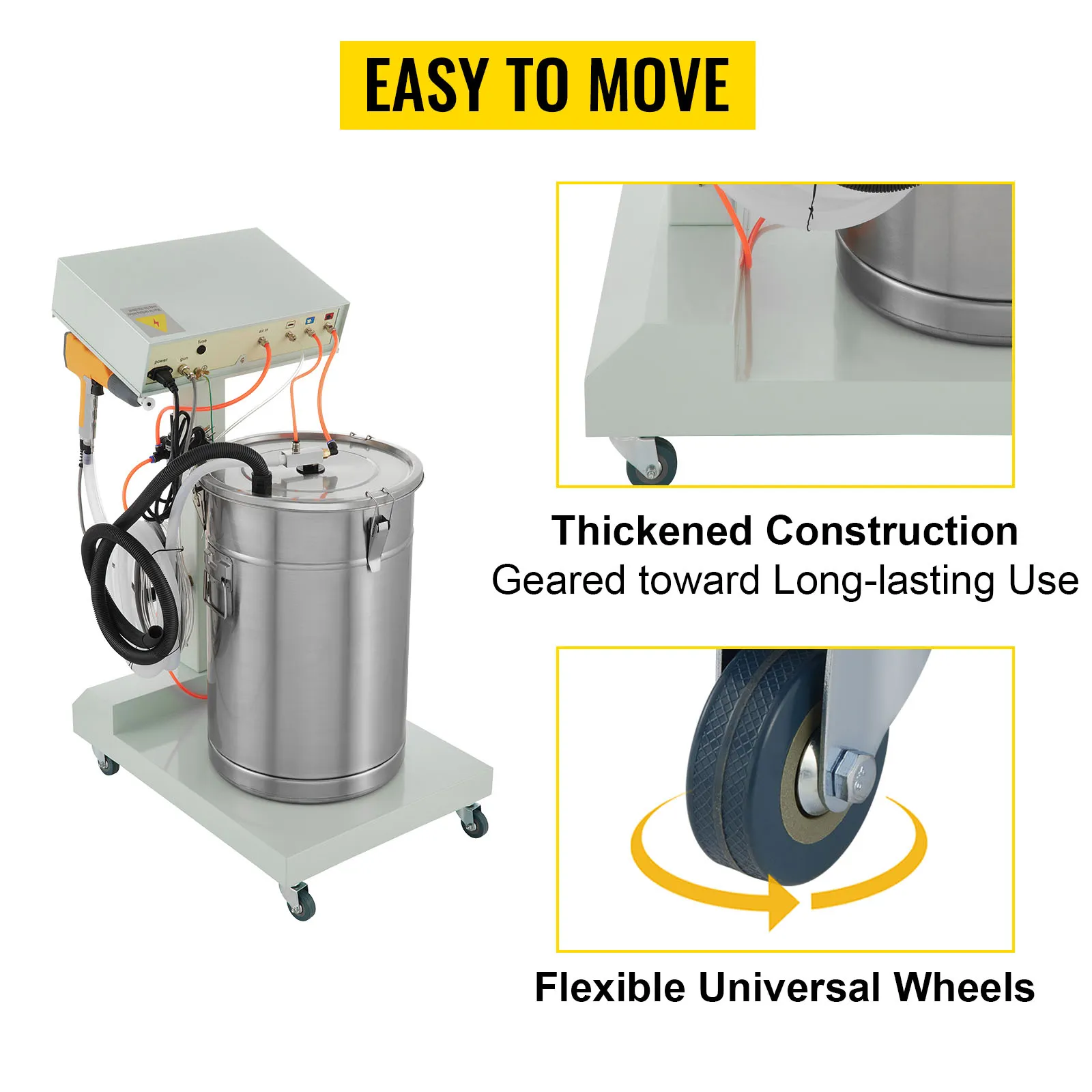

VEVOR powder coating machine with thickened construction and flexible universal wheels.
Easy to Move
The powder coating machine has four universal wheels, a mobile push-pull wheel design, is easy to move, saves time and effort, and is suitable for various working environments.

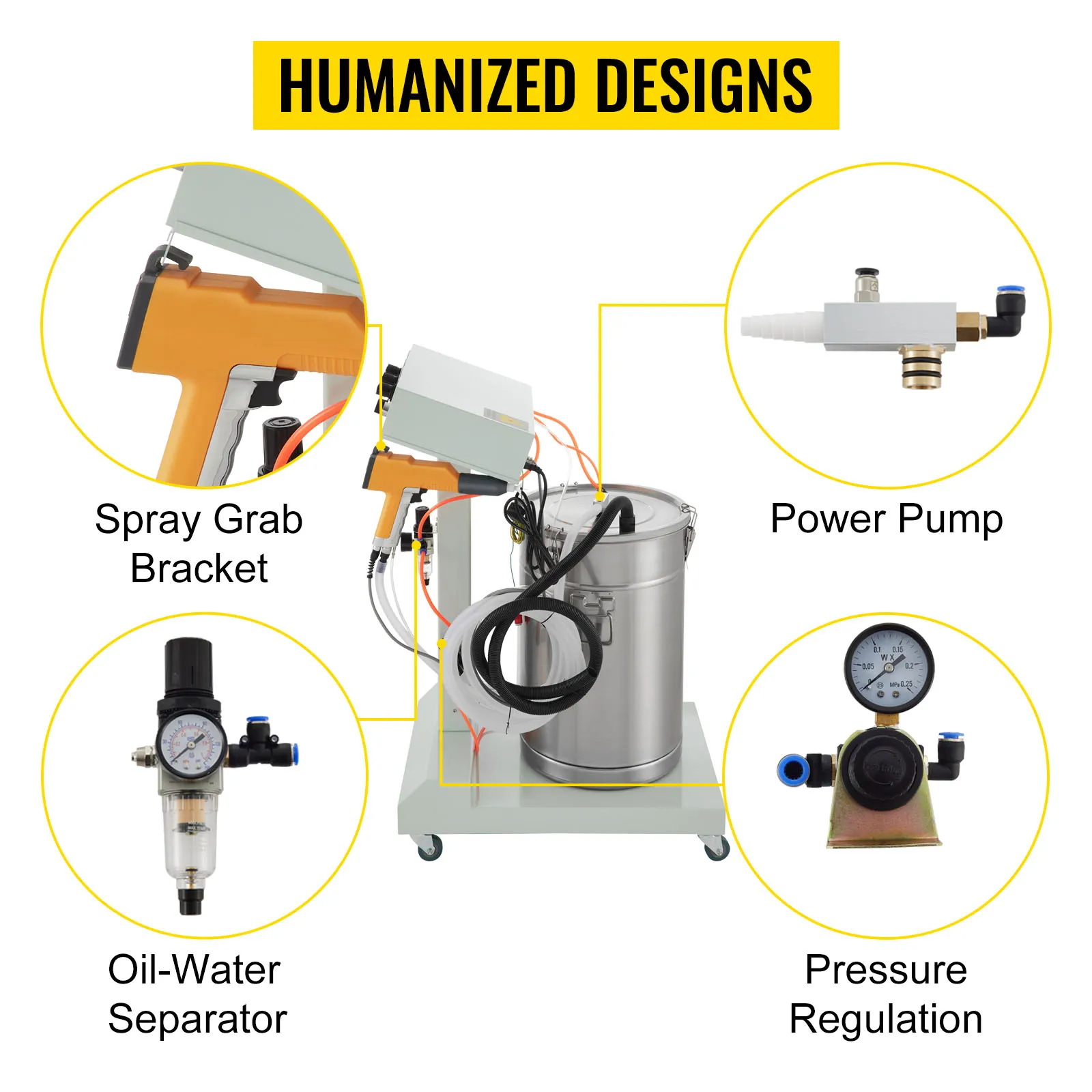

VEVOR powder coating machine features spray grab bracket, power pump, oil-water separator, pressure regulation.
Humanized Designs
The spraying coat machine has a gun bracket, an oil-water separator, a high-quality powder pump, and a pressure regulator that helps the beginner work more efficiently.
VEVOR powder coating machine applying paint to industrial hardware and fitness equipment.
Wide Application
Powder coating is widely used in home appliances, hardware, security doors (windows), heat sinks, construction, auto parts, sports equipment, medical equipment, aluminum, and other industries.

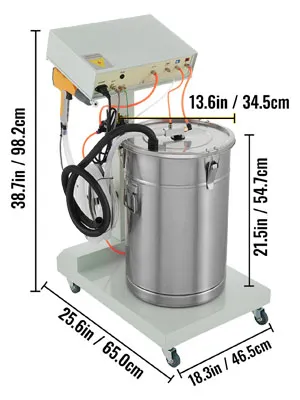

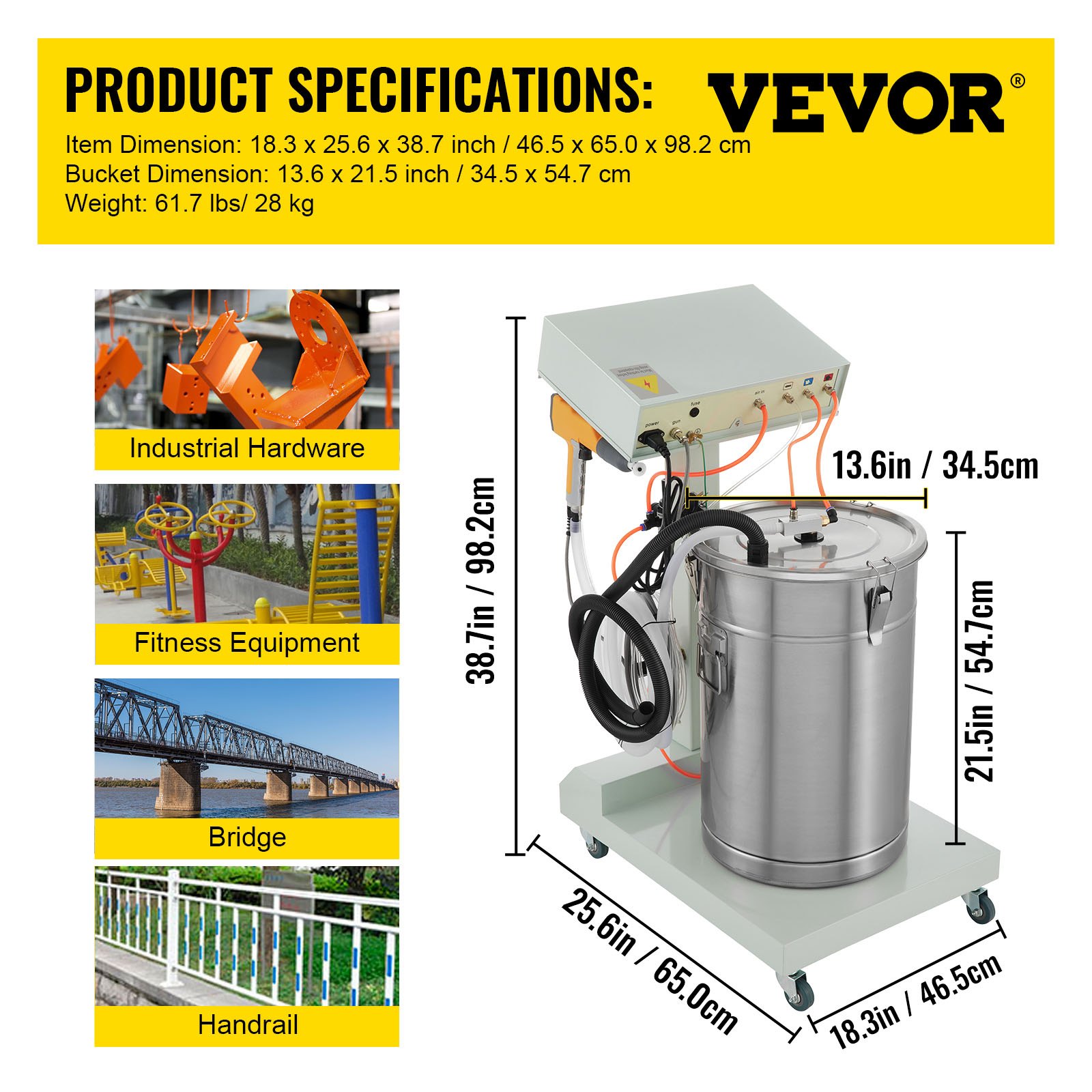

VEVOR powder coating machine with steel container, dimensions annotated.
Specifications
  • Power Voltage: AC110V
  • Frequency: 50/60Hz
  • Spraying Rate: 550g/min.
  • Input Power: 50W
  • Electromagnetic Valve Control Power Voltage: DC 24V
  • Maximum Output Current: 200Ua
  • Input Air Pressure: 0-0.6Mpa
  • Output Air Pressure: 0-0.5Mpa
  • Max. Air Consumption: 13.2m³/H
  • Output Powder Volume: Max. 1.2 lbs/Min
  • Output Power Voltage: 0-100kv
  • Polarity: Negative
  • Length Of Gun Cable: 157.5 inch/ 4 m
  • Powder Hopper Volume: 47.5 qt/ 45 L
  • Item Dimension: 18.3x 25.6x 38.7 inch/ 46.5 x 65 x 98.2 cm
  • Bucket Dimension: 13.6 x 21.5 inch/ 34.5 x 54.7 cm
  • Control Panel Dimension: 16.8 x 11 x 4.1 inch/ 42.8 x 27.8 x 10.5 cm
  • Weight: 61.7 lbs/ 28 kg

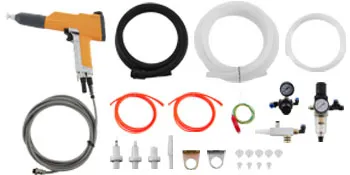

VEVOR powder coating machine with accessories including hoses, nozzles, and regulators.
Package Content
  • 1 x Powder Coating System
  • 1 x Powder Bucket
  • 1 x Trolley
  • 1 x Manual Powder Gun With Gun Cable
  • 1 x Powder Gun Spare Parts
  • 1 x Gun Bracket
  • 1 x Oil-Water Separator
  • 1 x Pressure Regulating Valve
  • 1 x Powder Pump
  • 1 x Powder Hose, Air Tubes, Grounding Line
VEVOR powder coating machine in industrial hardware and handrail setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR powder coating machine with control panel, hoses, and attachments.
Electrostatic Powder Coating Machine
Efficient & Large Capacity & Easy to Use
Electrostatic Powder Coating Machine is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. The charged powder particles adhere to the elements and are held there until melted and fused into a smooth coating in a curing oven.
  • High Efficiency Powder Coating System
  • Simple Control Panel
  • Powder Coating Gun
  • Excellent Quality
  • Considerate Details
VEVOR powder coating machine control panel with labeled dials and switches.
Easy-to-use Panel
This coating machine is equipped with a control panel, and each function is clearly labeled. You can rotate the knobs according to your needs. It concludes powder, air, rinsing air, and electrostatic adjustment.
VEVOR powder coating machine offers multiple nozzles for diffusion and fan-shaped spray. durable, even finish.
Durable & Even Finish
The powder coating gun is durable and lightweight, and the powder output effect is efficient and smooth. In addition, you can use different nozzles to achieve a distinct and superior coating effect.
VEVOR powder coating machine with stainless steel 47.5 qt / 45l container.
Stainless Steel Material
The 45L powder bucket is made of stainless steel with a humanized design, and the widened frame increases the load-bearing capacity.
VEVOR powder coating machine with thickened construction and flexible universal wheels.
Easy to Move
The powder coating machine has four universal wheels, a mobile push-pull wheel design, is easy to move, saves time and effort, and is suitable for various working environments.

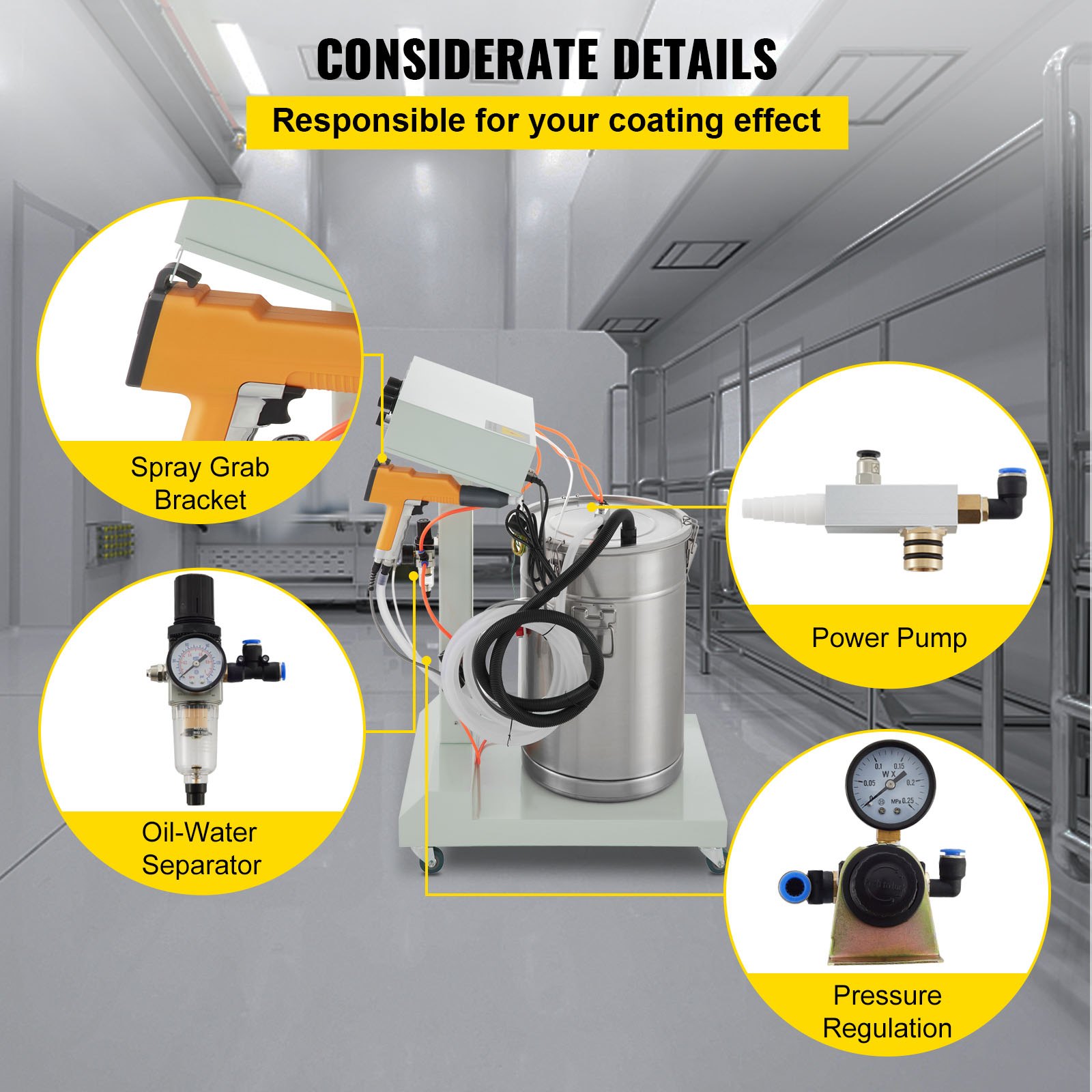

VEVOR powder coating machine features spray grab bracket, power pump, oil-water separator, pressure regulation.
Humanized Designs
The spraying coat machine has a gun bracket, an oil-water separator, a high-quality powder pump, and a pressure regulator that helps the beginner work more efficiently.
VEVOR powder coating machine applying paint to industrial hardware and fitness equipment.
Wide Application
Powder coating is widely used in home appliances, hardware, security doors (windows), heat sinks, construction, auto parts, sports equipment, medical equipment, aluminum, and other industries.
VEVOR powder coating machine with accessories including hoses, nozzles, and regulators.
Package Content
  • 1 x Powder Coating System
  • 1 x Powder Bucket
  • 1 x Trolley
  • 1 x Manual Powder Gun With Gun Cable
  • 1 x Powder Gun Spare Parts
  • 1 x Gun Bracket
  • 1 x Oil-Water Separator
  • 1 x Pressure Regulating Valve
  • 1 x Powder Pump
  • 1 x Powder Hose, Air Tubes, Grounding Line
VEVOR powder coating machine with steel container, dimensions annotated.
Specifications
  • Power Voltage: AC110V
  • Frequency: 50/60Hz
  • Spraying Rate: 550g/min.
  • Input Power: 50W
  • Electromagnetic Valve Control Power Voltage: DC 24V
  • Maximum Output Current: 200Ua
  • Input Air Pressure: 0-0.6Mpa
  • Output Air Pressure: 0-0.5Mpa
  • Max. Air Consumption: 13.2m³/H
  • Output Powder Volume: Max. 1.2 lbs/Min
  • Output Power Voltage: 0-100kv
  • Polarity: Negative
  • Length Of Gun Cable: 157.5 inch/ 4 m
  • Powder Hopper Volume: 47.5 qt/ 45 L
  • Item Dimension: 18.3x 25.6x 38.7 inch/ 46.5 x 65 x 98.2 cm
  • Bucket Dimension: 13.6 x 21.5 inch/ 34.5 x 54.7 cm
  • Control Panel Dimension: 16.8 x 11 x 4.1 inch/ 42.8 x 27.8 x 10.5 cm
  • Weight: 61.7 lbs/ 28 kg

40W Powder Coating Machine for Professional Results

The VEVOR 40W 50L powder coating machine is made to deliver professional-grade results. It is ideal for both DIY enthusiasts and small businesses. This machine has a spraying rate of 550 g per minute. So, it ensures both efficient and quick coverage. With a high maximum output current of 200 Ua, this ensures consistent and even powder application. Therefore, the machine is perfect for large and small projects alike. The electrostatic technology ensures that the powder adheres well to the surface, providing a smooth finish. Can it handle different types of powder coatings? Yes! This equipment can work with various applications. You can use this machine for all kinds of powder coating and various applications too.


Easy Assembly and Setup with Online Resources

It may not have detailed instructions, but it is easy to assemble. Users can find helpful videos and images online to guide them through the process. This makes setup quick and straightforward, even for those new to powder coating. Once assembled, the machine works perfectly, providing reliable performance. The simple design means users can start their projects without much delay. That ease of use makes it shrewdly suitable for DIY projects and small businesses.


Cost-Effective Solution with Industrial-Level Performance

The 40W powder coating machine provides industrial-level performance for less than half the cost. It offers results comparable to expensive setups, making it a cost-effective option overall. Users can achieve professional finishes without breaking the bank. The machine’s large 50-liter hopper allows for extended use without frequent refills. This is especially useful for larger projects. This investment is worth it as its affordability does not compromise quality.


High-Quality Finish with Excellent Powder Adhesion

It has electrostatic technology. This machine provides excellent powder adhesion. Hence, it ensures great powder adherence. You get a high-quality finish on the coated items. The machine can handle various powder types, including tricky metallic powders. With this result, you get a smooth and even coating every time. Due to this quality, it is suitable for both hobbyist and commercial applications. Users can expect consistent results in all their projects. So, any powder coating project can be completed with confidence using this tool.


Versatile Applications for DIY Projects and Businesses

The VEVOR powder coating machine is versatile and suitable for a wide range of applications. It can be used in many different projects. For instance, it can be used for refurbishing furniture or bike parts. You should try it for DIY projects like refinishing furniture. Is the machine suitable for small businesses? Yes, it is suitable for fabricators or repair shops. What kind of workshop will benefit from this equipment? Well, the performance of the tool makes it an excellent addition to any workshop. With its flexibility in handling different types of powders and ability to coat various materials, these things make it incredibly useful. Whether you're working at home or in a business, you can achieve reliable results with confidence.


Quick and Efficient Coverage with High Spraying Rate

The 40W powder coating machine has a high spraying rate of 550 g per minute. This ensures quick and efficient coverage, saving time on projects. The fast application rate is beneficial for large projects, reducing the overall time needed. Additionally, the efficiency makes it suitable for commercial use where time is critical for completing projects quickly. It also benefits DIY enthusiasts who want to finish projects within minutes without losing quality. The high spraying rate does not compromise either speed or quality.


Durable and Reliable Design with Easy Maintenance

The VEVOR powder coating machine is built to last. It has a durable design that can withstand regular use. The machine also comes with easy maintenance. You don’t have to worry about maintenance too much. There are simple adjustments you can make to optimize its performance. Our powder coating machine has strong construction and can handle various projects without issues. This reliability makes it an excellent long-term investment for any user. Easy maintenance means users can focus more on their projects and less on upkeep.


See More

Specification

Power Voltage
AC110V
Frequency
50/60Hz
Spraying Rate
550g/min.
Input Power
40W
Electromagnetic Valve Control Power Voltage
DC 24V
Maximum Output Current
200Ua
Input Air Pressure
0-0.6Mpa
Output Air Pressure
0-0.5Mpa
Max. Air Consumption
13.2m³/H
Output Powder Volume
Max. 1.2 lbs/Min
Output Power Voltage
0-100kv
Polarity
Negative
Length Of Gun Cable
157.5 inch/ 4 m
Powder Hopper Volume
47.5 qt/ 45 L
Item Dimension
18.3x 25.6x 38.7 inch/ 46.5 x 65 x 98.2 cm
Bucket Dimension
13.6 x 21.5 inch/ 34.5 x 54.7 cm
Control Panel Dimension
16.8 x 11 x 4.1 inch/ 42.8 x 27.8 x 10.5 cm
Weight
61.7 lbs/ 28 kg
Questions and Answers
2 Questions
What is the minimum amount of powder paint that must be placed into the hopper for this to work properly?
The maximum capacity of the powder bucket is 45 liters, and it is generally recommended to pour into two-thirds of the powder bucket. It should at least reach the position where the powder suction pipe can be sucked. (The powder suction tube is a white tube inserted into the inside of the powder bucket on the powder bucket cover.)
By vevor
Are their extra hoppers available?
Package Content: 1 × Manual Powder Gun With Gun Cable 1 × Powder Gun Spare Parts 1 × Control Unit 1 × Powder Injector 1 × Fluidized Powder Hopper 1 × Trolley 1 × Oil-Water Separator 1 × Pressure Regulating Valve 1 × Powder Hose ,Air Tubes ,Grounding Line
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
19 Review(s)
Clear filters
Kathy Kathy
Ms.
It works so well that we will be ordering another one. Just right for what we were looking for. Love doing business.
UA UA
Good
Good product, really terrible company. If the item you received is faulty or defective, good luck returning it or getting your money back.
U A U A
Nope
I purchased the second one of this machine from Vevor. I also purchased upgraded one of these before. It is good when it works. I havent had issues with first two. I recently ordered another one, item arrived fine. After assembling it (i did it before), it has electrical issue and air circulation problem. I used it with the same exact setup i used the previous vevor machine. It didn't work. I wrote to customer service, it took them a while to respond. I am operating a business, last thing i need is a non working machine to take space in the booth. I put it in the box, thinking that they would take care of the issue. NOPE. They are dragging feet, everything they can do to avoid return. Asking for a video, this and that. All i am asking is for a replacement unit, not a refund or anything. This one is ready to ship back to them, they can run any tests, take as much videos as they want with it. Anyways, its been over a week, back and forth. Nothing yet. They are still asking for a video. I need to go set up the non working machine, take a video and then pack it back together again. It is ridiculous. So beware, do not feel confident that you will return if it doesn't work. It looks like this company is not backing up their product or quality.
George George
Outstanding
Great Communication, Fast delivery and very happy with the results. I can put this down to one of my most satisfying dealings yet. This supplier is one of the most Trustworthy that I have dealt with on Amazon. I would not hesitate to buy from and trust this supplier in the future.
Justin Justin
Pretty good
The system works pretty good
Daniel Daniel
Excellent product
It is an excellent quality product as described, but for my taste it takes a while to arrive.
Ray Ray
owner
Had some air leaks and wasn't piped properly internally... About 20 minutes of fine tuning required. If you have enough mechanical skill to be powder coating, issues shouldn't be a problem. Works absolutely fine after adjustments. Would purchase again.
mmoe mmoe
Excellent for DIY
Worked right after assembly, finish quality of powdered parts was excellent even with a tricky metallic powder. Only a couple minor issues, which really were somewhat expected at this price. The air filter material at the bottom for the media pot doesn't fluidize the powder great. It either is half fluidized or boiling over. The other issue is adjusting the air system. it works as is, but has limited adjustment for ratioing the air. Some time spent reorganizing the air system will probably make a great tool even better, but I think for most jobs it works fine as is. On the whole, this powder coating system is a fantastic value! No regrets at all.
Greg Greg
Powder coat machine
Had to open up the unit and re plumb the air lines that were wrong. Thankfully there is helpful videos and pictures on the web. Works decent now. Lays down powder pretty good
E-Fee E-Fee
it's good but theres issues
well theres one issue. the worse instruction set as in there are none. very easy to assemble you can see where parts go so that was easy. but the air hoses inside the assembly plate are wrong. had to play with machine for a few hours to get it right. also one of my air regulators was broken but was an easy swap rather than waiting for support. but yeah its defitinly worth the price and issues i have endured so far
