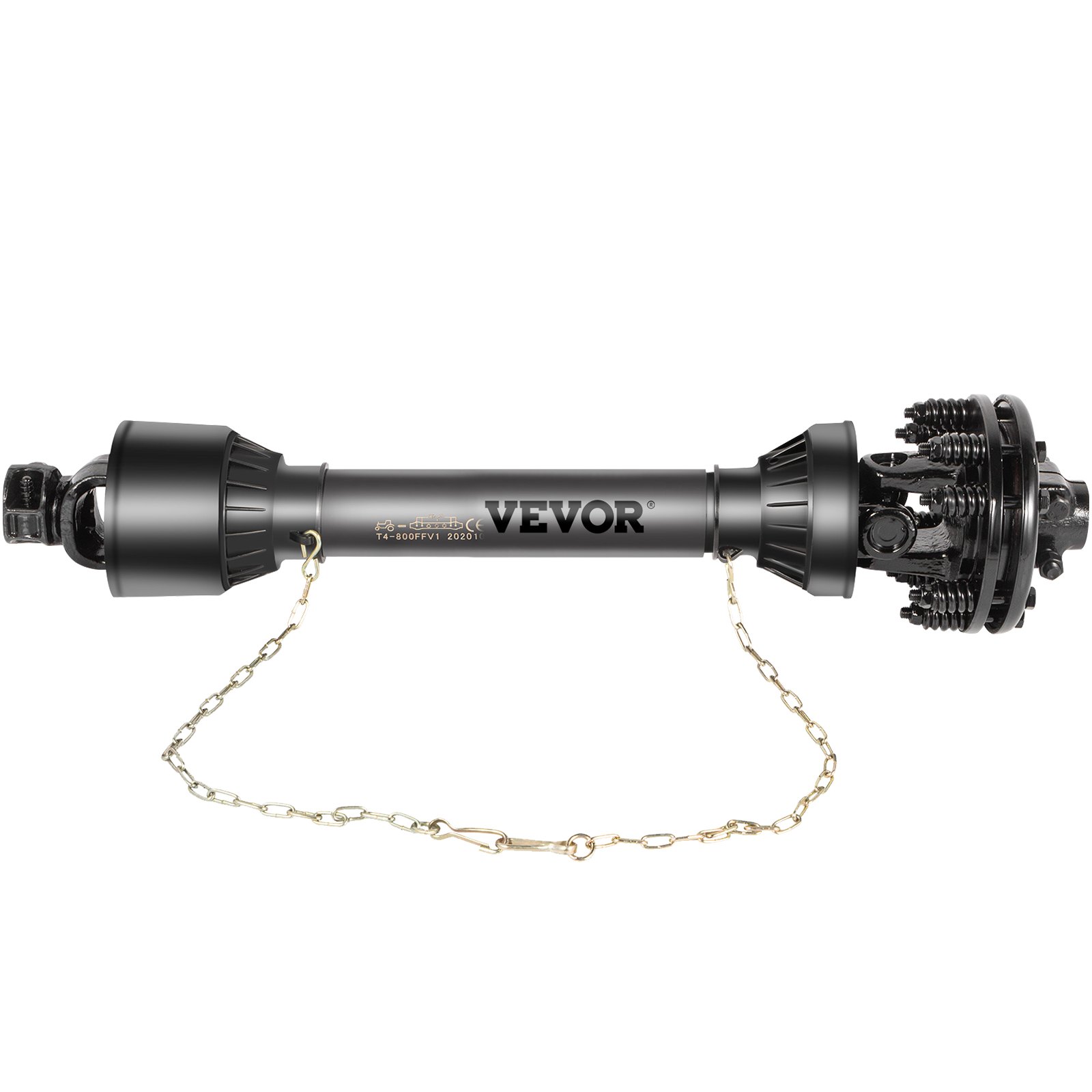

VEVOR pto shaft with protective covers and a safety chain. VEVOR pto shaft connected to green machinery, showcasing power transmission specifications. VEVOR pto shaft with 1-3/8" x 6 spline implement and tractor ends. VEVOR pto shaft, 43"-59" adjustable length, collapsed 43in, extended 59in. flexible design. VEVOR pto shaft with telescoping tubes, plastic shield, security chain, and slip clutch VEVOR pto shaft installation steps: detach, measure, cut, deburr, assemble. VEVOR pto shaft with specifications: 43in to 59in length, 28.44 lbs, 1-3/8in diameter.
CDZT4B11004FF0001V0

VEVOR PTO Shaft, 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 43”-59” Brush Hog PTO Shaft with Slip Clutch Black, for Finish Mower, Rotary Cutter

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

59"/1500 mm

  • 61"/1550 mm
  • 41"/1050 mm
  • 55"/1400 mm
  • 59"/1500 mm

Black

  • Black
  • Yellow

About this item

  • Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.

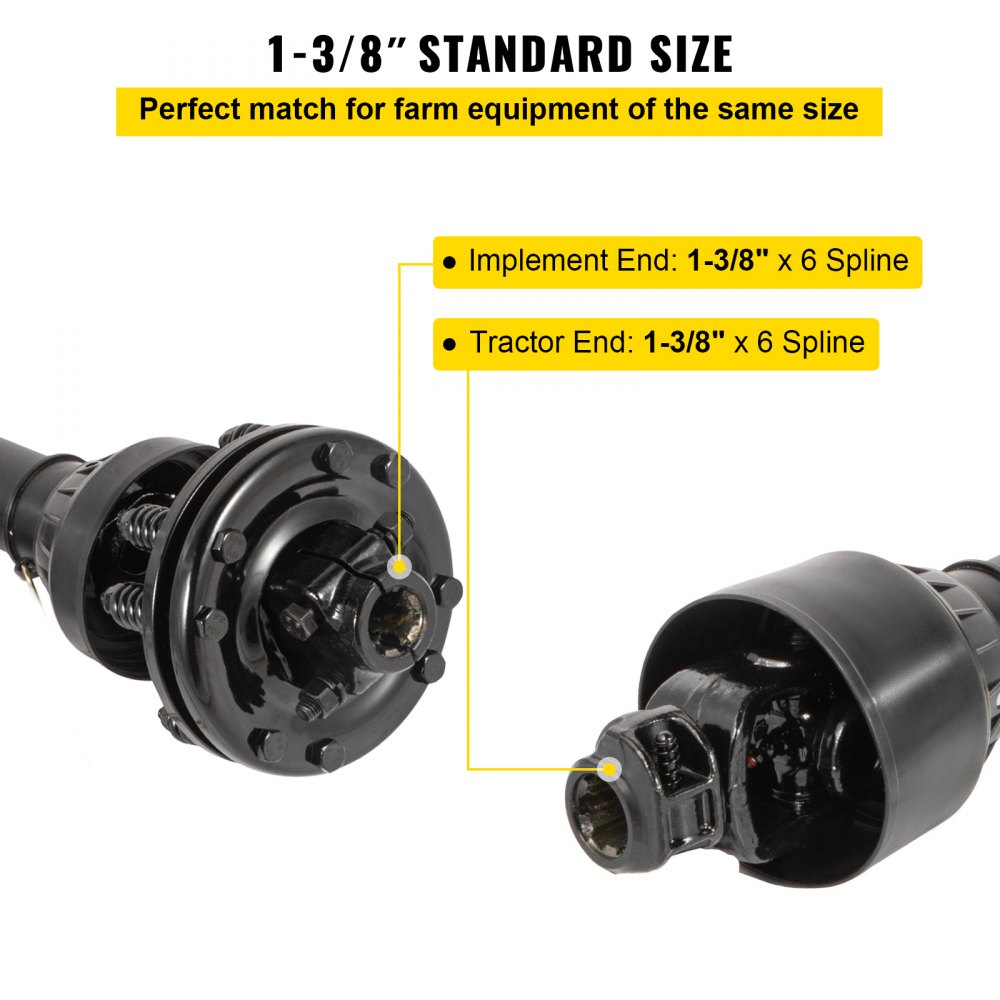

  • 6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.

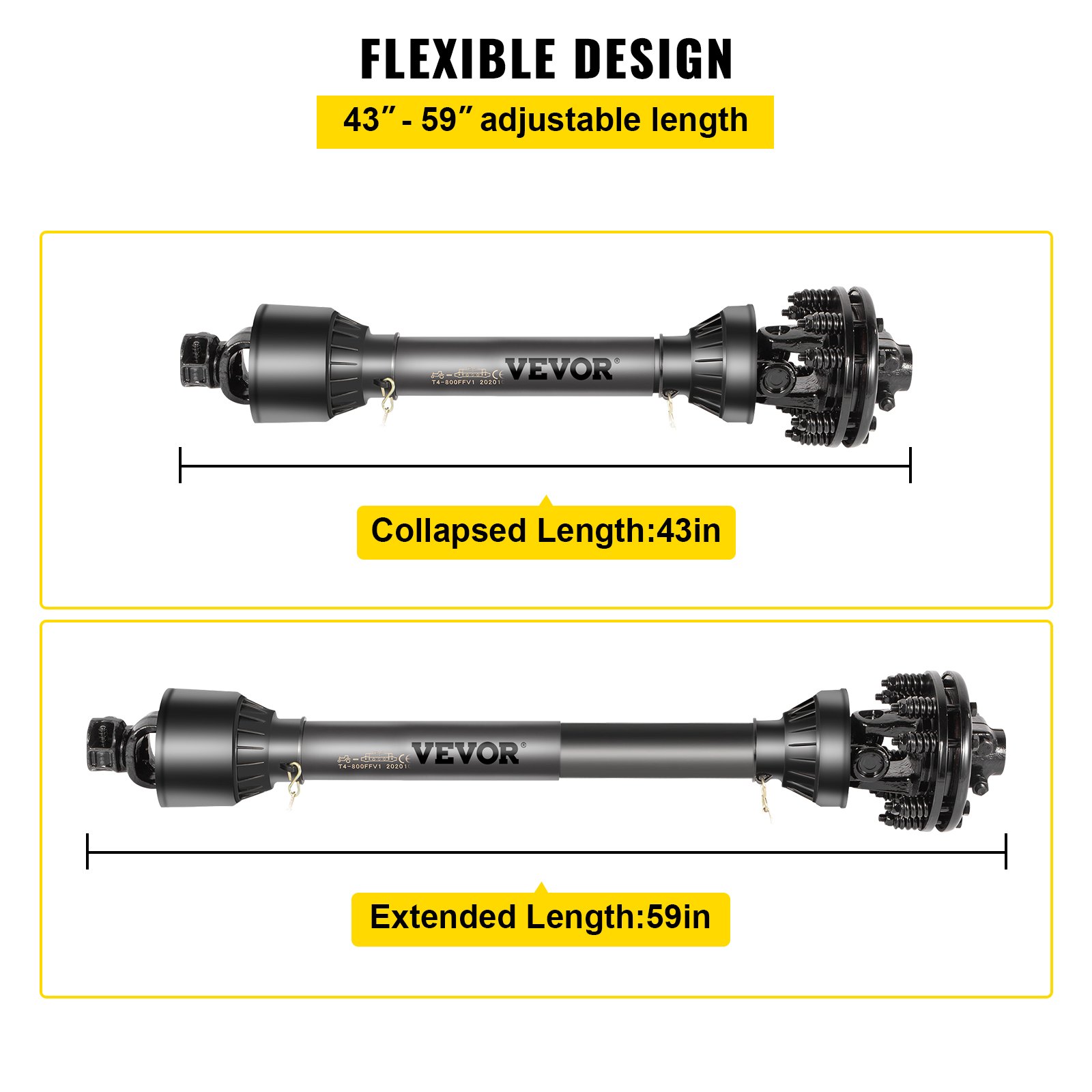

  • Adjustable Length: Compressed Length: 43" / 1100 mm; Extended Overall Length: 59" / 1500 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
  • Easy Assembly&Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
  • Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and many more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PTO Shaft, 1-3/8” 6 Spline Tractor and Implement Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 43”-59” Brush Hog PTO Shaft with Slip Clutch Black, for Finish Mower, Rotary Cutter
59"/1500 mm Black
VEVOR pto shaft for tractors in a wheat field, adjustable length 43"-59".
VEVOR pto shaft with durable design and connecting chain.
PTO Drive Shaft with Slip Clutch
43"-59" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

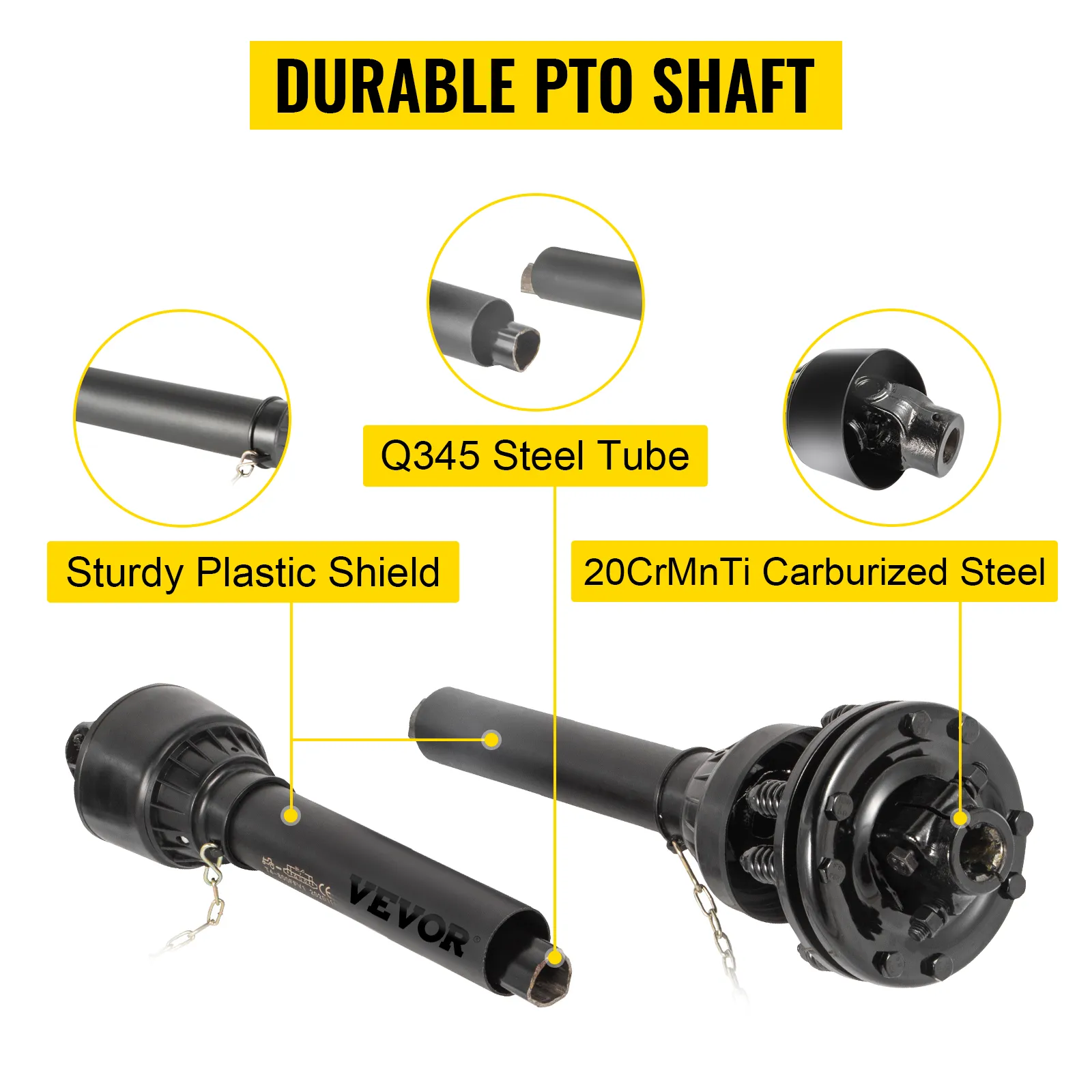

VEVOR pto shaft with q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

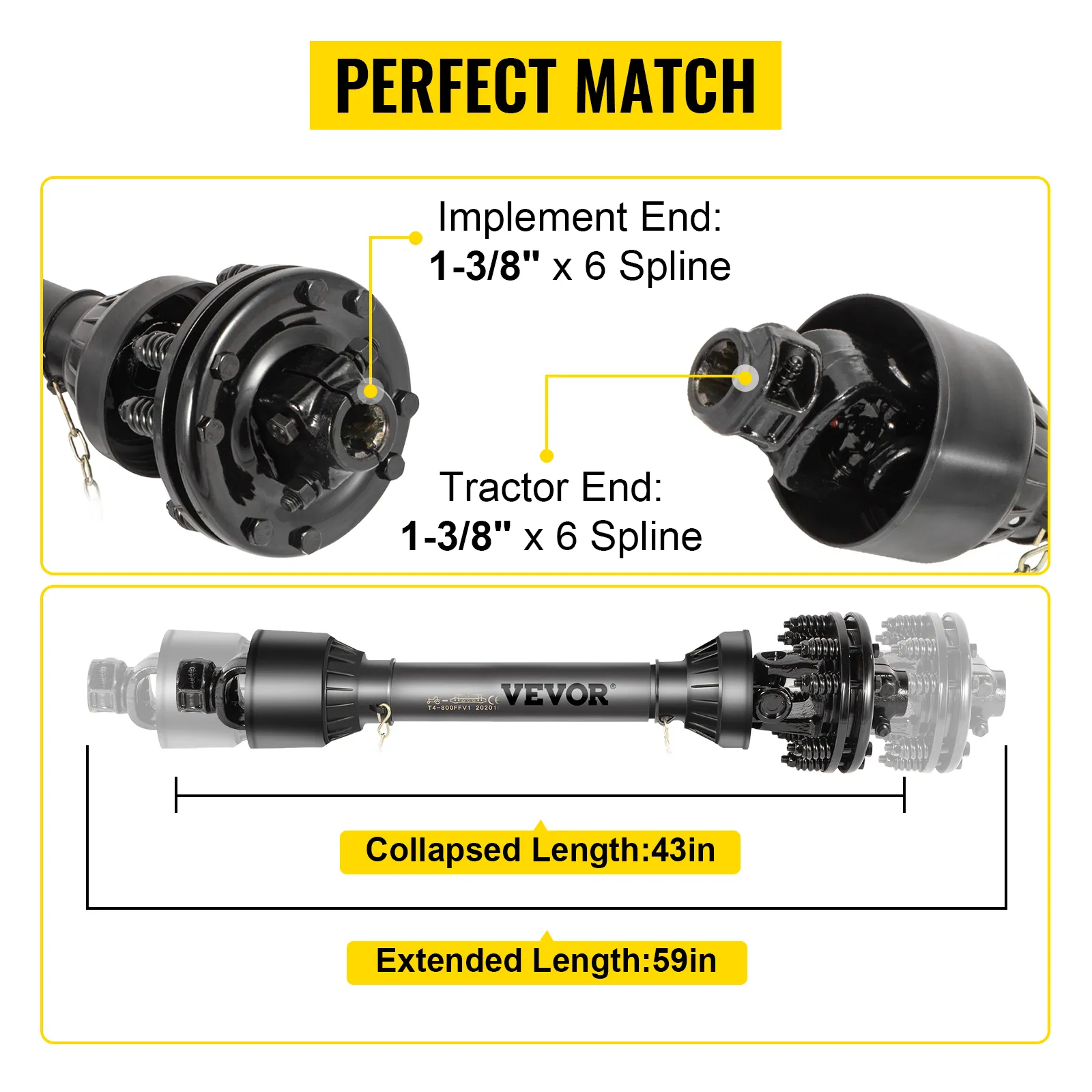

VEVOR pto shaft with multiple spline ends and adjustable length from 43in to 59in.
Perfect Match
With 43"-59" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

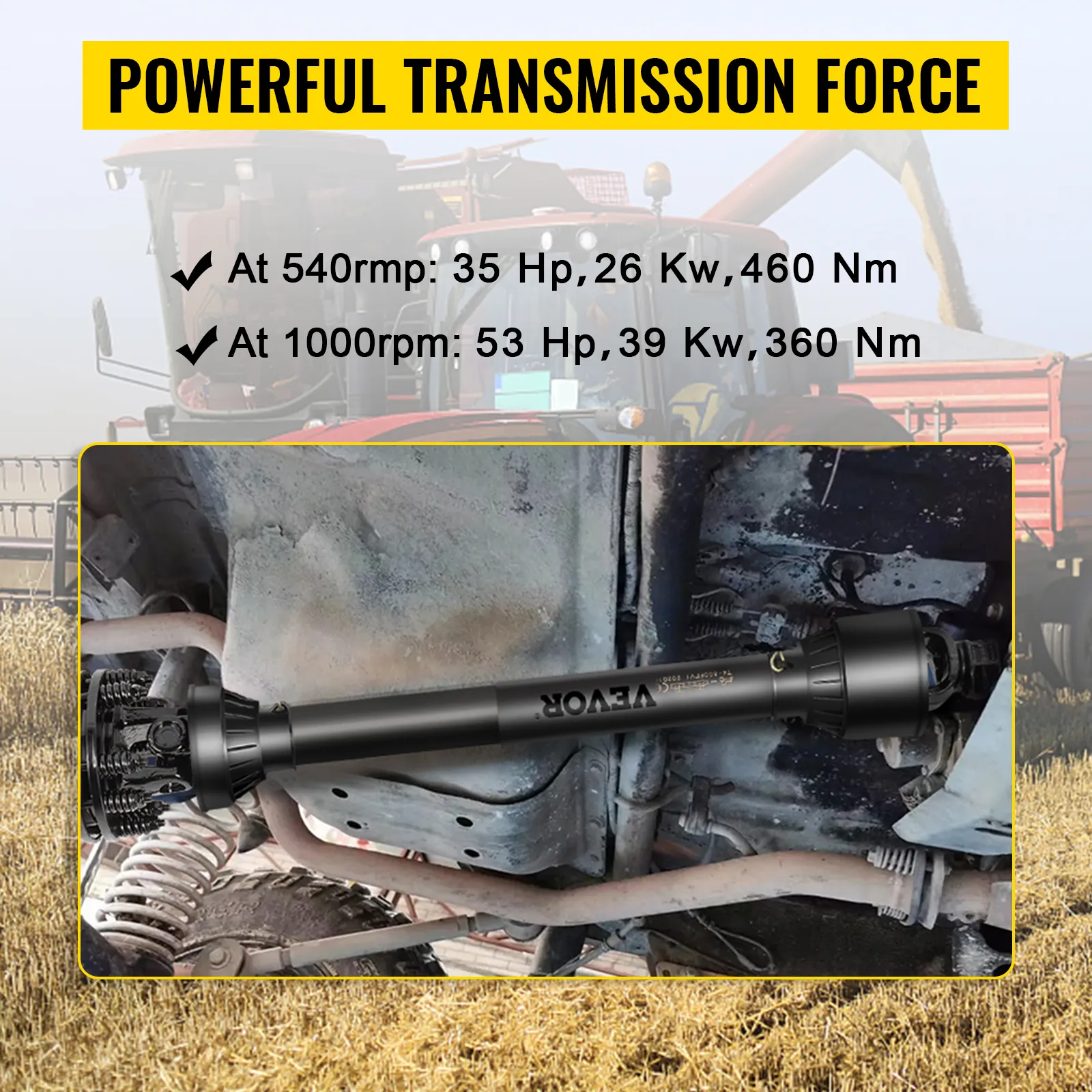

VEVOR pto shaft with performance ratings at 540 rpm and 1000 rpm for powerful transmission.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

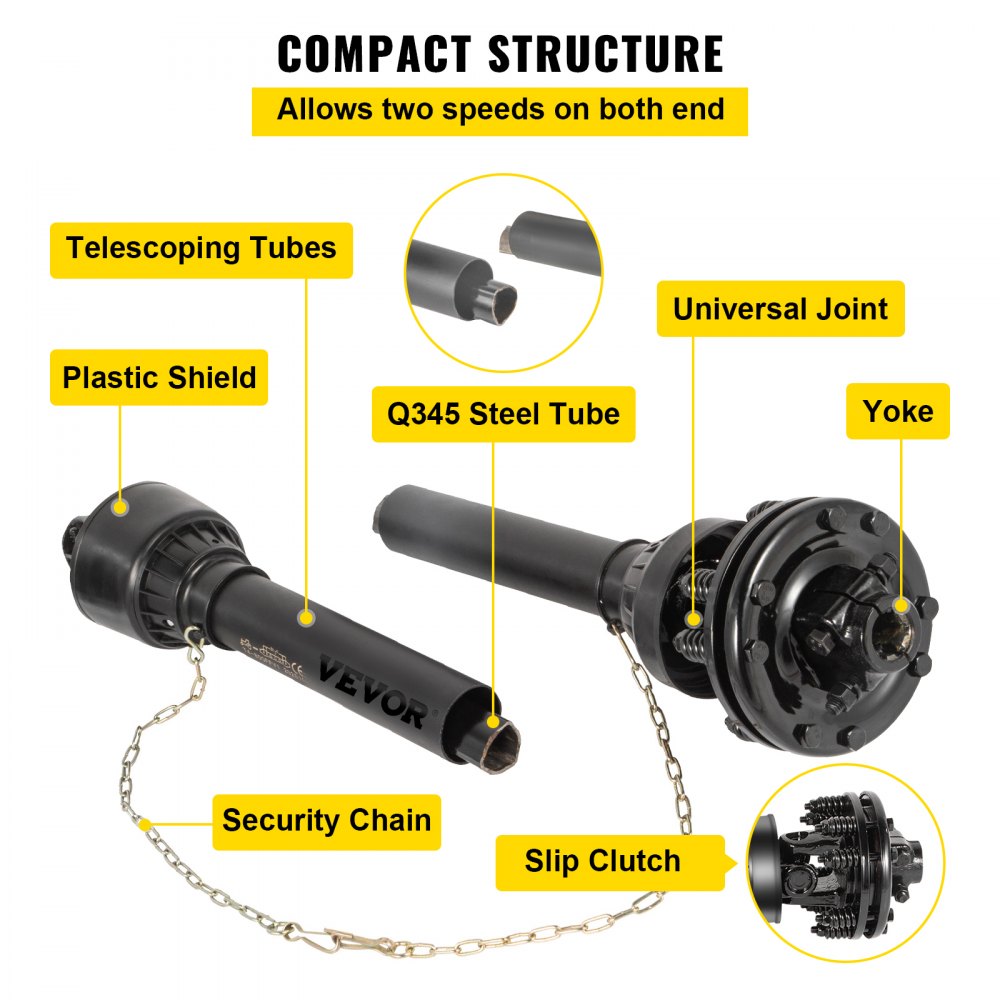

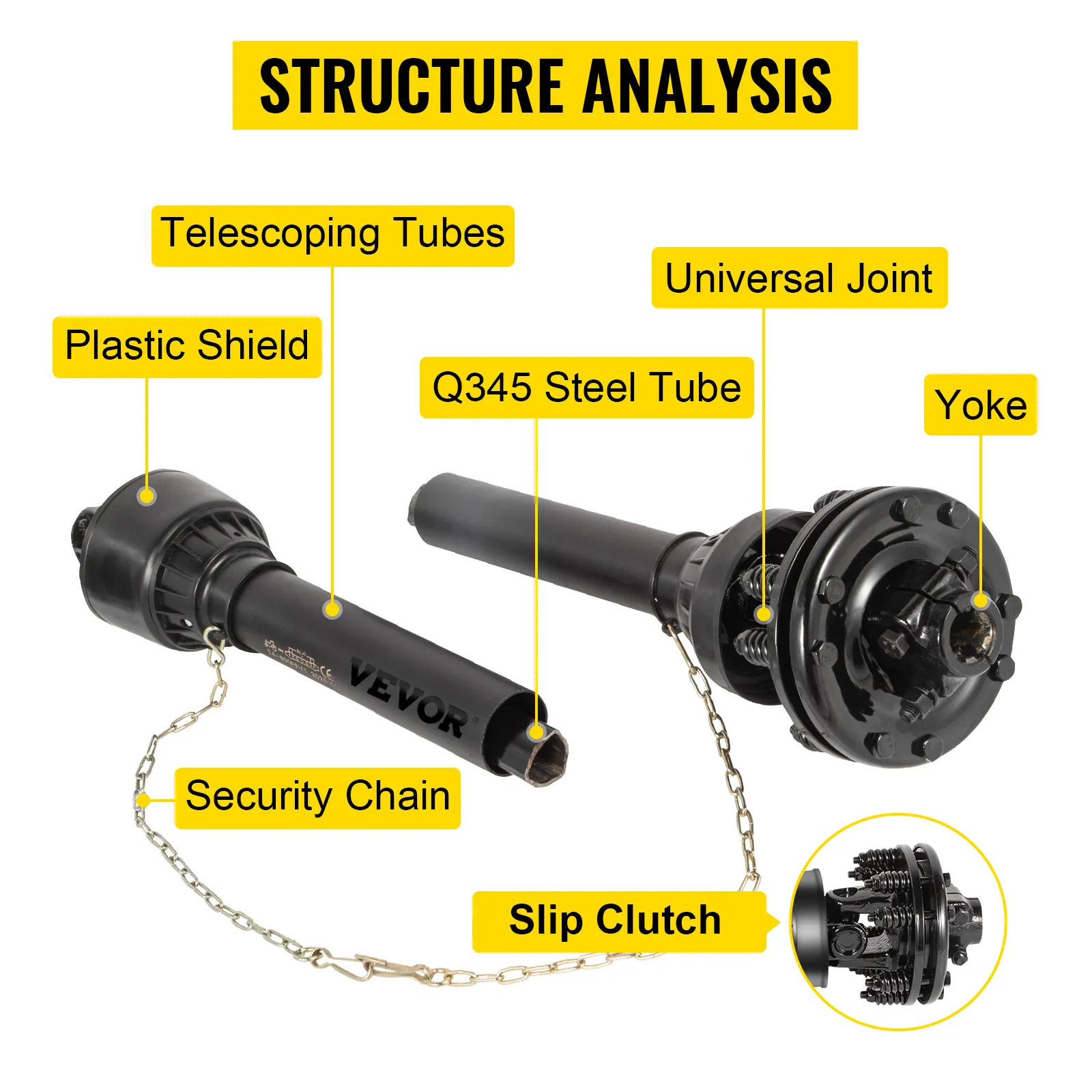

VEVOR pto shaft structure analysis with telescoping tubes, slip clutch, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a slip clutch, a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

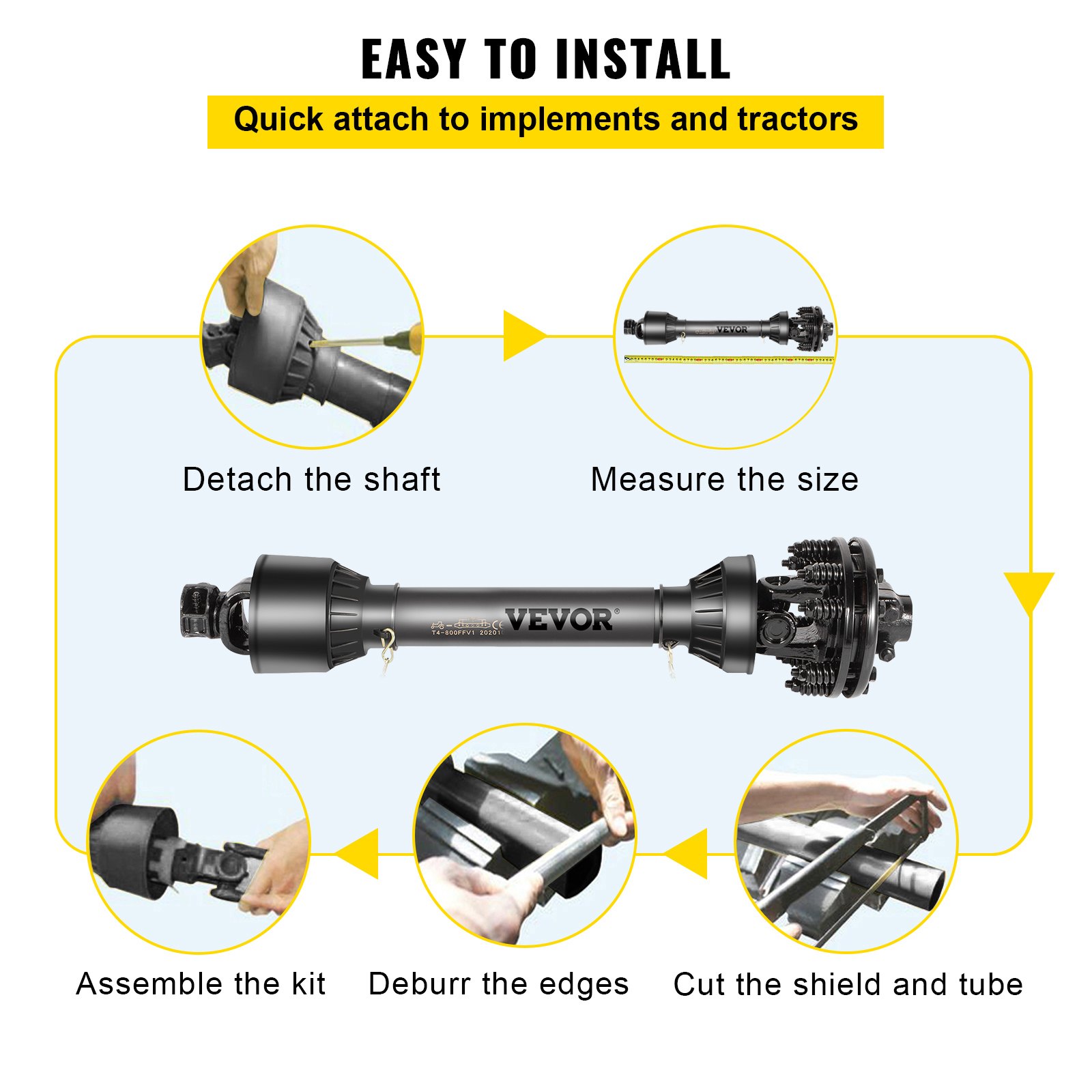

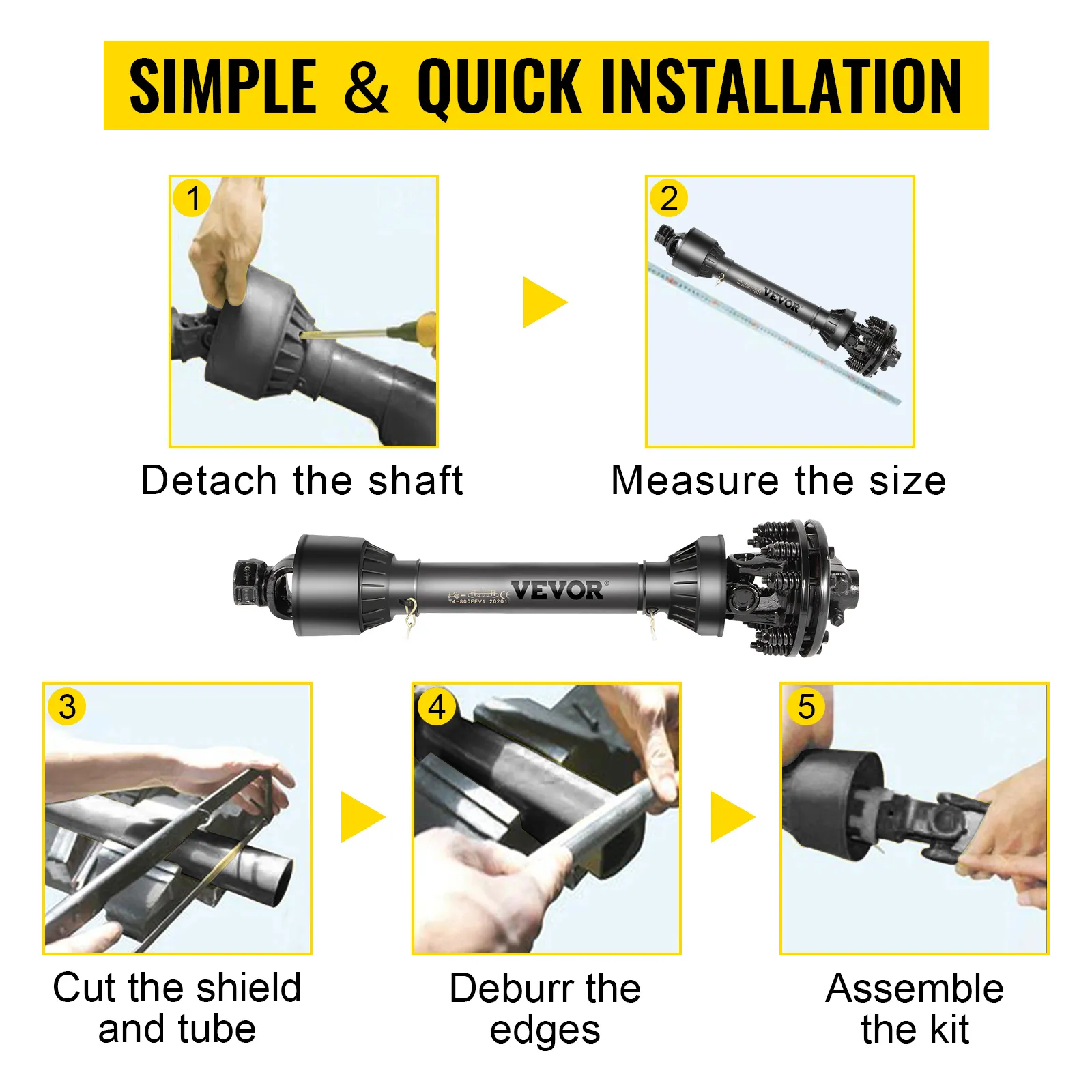

simple steps for VEVOR pto shaft installation, with clear numbered visuals, and instructions.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.

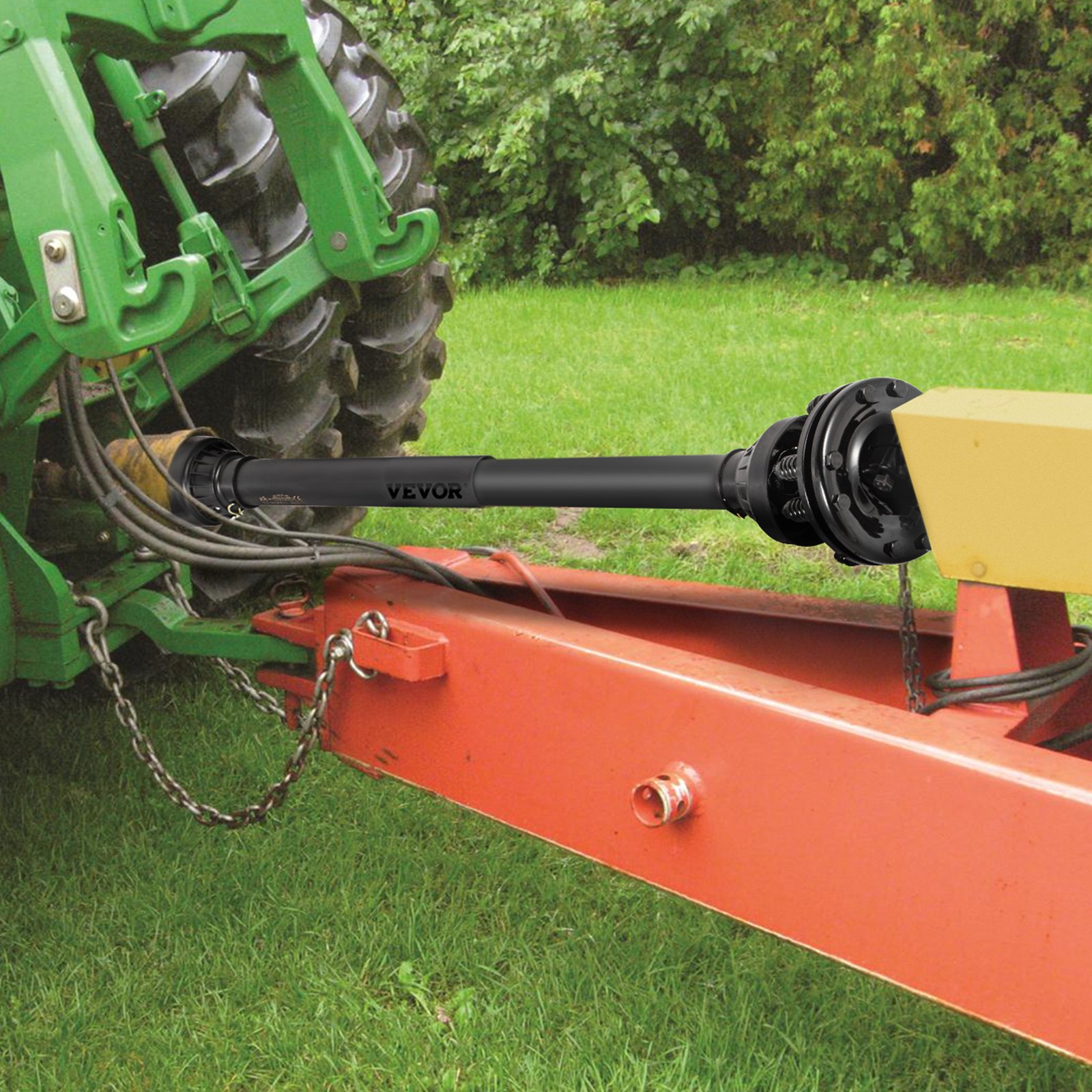

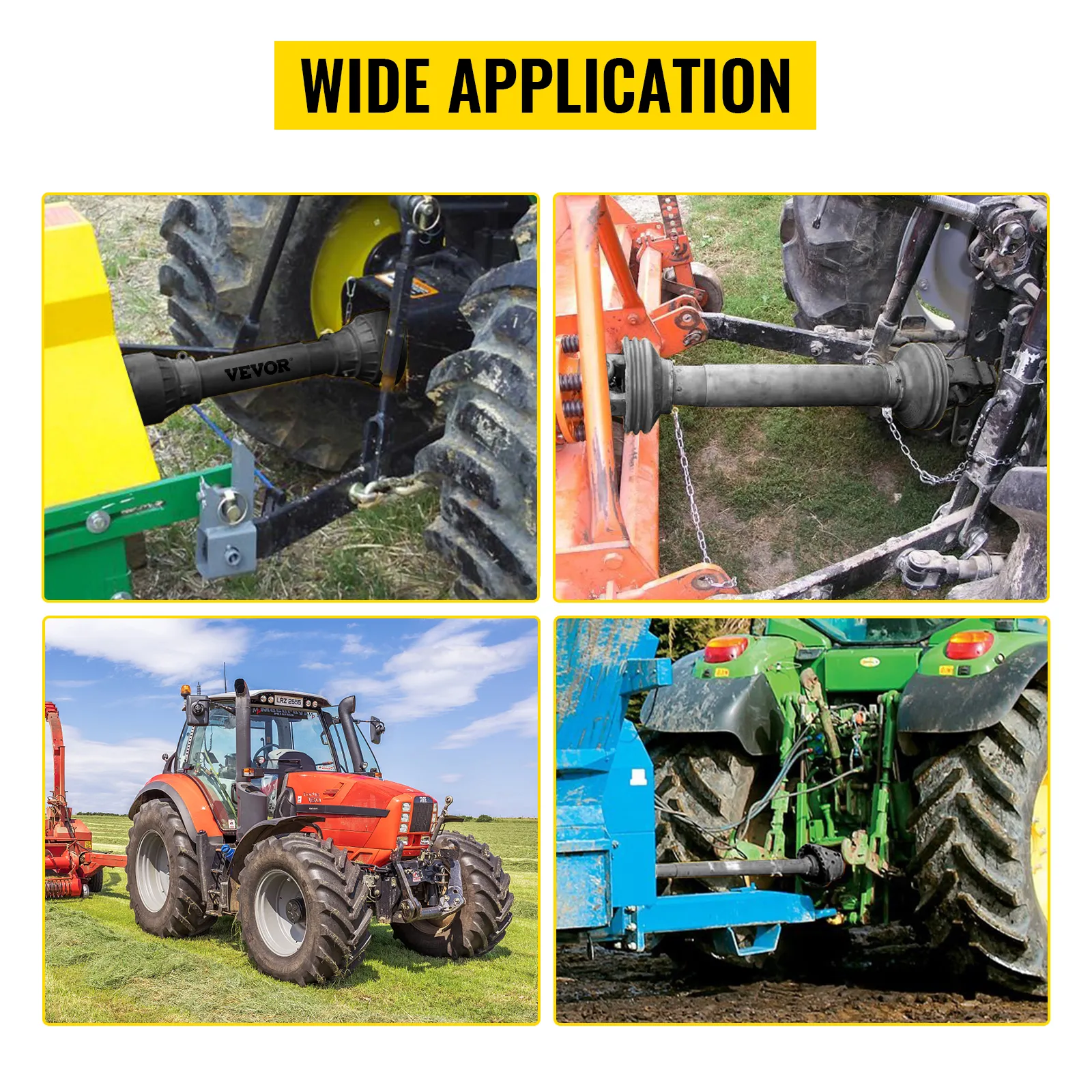

VEVOR pto shaft connected to various tractors for wide application in farming tasks.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

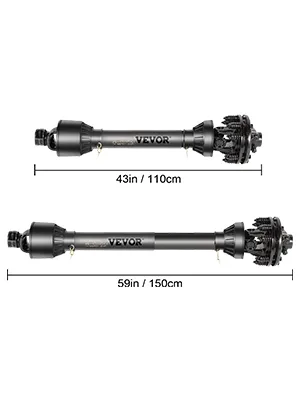

two VEVOR pto shafts of 43in/110cm and 59in/150cm sizes, black in color.

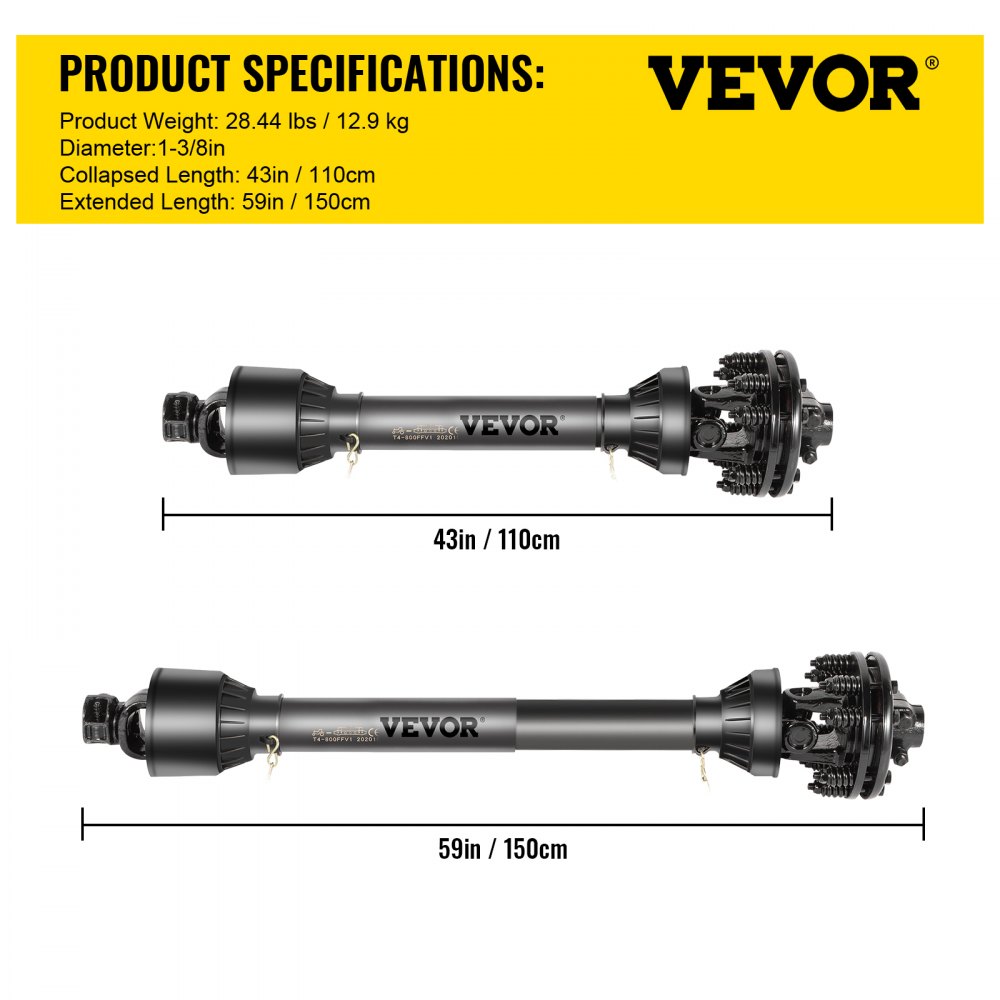

Specifications
  • Model: T4-BⅢP*1100mm*4.05.05B*4FFV1
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x 6 Spline
  • Compressed Length: 43" / 1100 mm
  • Extended Overall Length: 59" / 1500 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

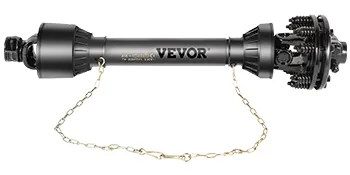

VEVOR pto shaft with u-joints and security chain for agricultural machinery.
Package Content
  • 1 x PTO Shaft
  • 1 x Locking Pin
  • 1 x User Manual
VEVOR pto shaft for tractors in a wheat field, adjustable length 43"-59".
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with durable design and connecting chain.
PTO Drive Shaft with Slip Clutch
43"-59" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR pto shaft with q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft with multiple spline ends and adjustable length from 43in to 59in.
Perfect Match
With 43"-59" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft with performance ratings at 540 rpm and 1000 rpm for powerful transmission.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft structure analysis with telescoping tubes, slip clutch, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a slip clutch, a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
simple steps for VEVOR pto shaft installation, with clear numbered visuals, and instructions.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft connected to various tractors for wide application in farming tasks.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
VEVOR pto shaft with u-joints and security chain for agricultural machinery.
Package Content
  • 1 x PTO Shaft
  • 1 x Locking Pin
  • 1 x User Manual
two VEVOR pto shafts of 43in/110cm and 59in/150cm sizes, black in color.
Specifications
  • Model: T4-BⅢP*1100mm*4.05.05B*4FFV1
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x 6 Spline
  • Compressed Length: 43" / 1100 mm
  • Extended Overall Length: 59" / 1500 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

PTO Shaft Perfect Fit for Various Implements

This PTO shaft is perfect for various implements. It suits finish mowers, rotary cutters, and more. The 1-3/8” 6-spline tractor fits perfectly. It fits many different machines. Our 6-spline implement end connects easily. This versatility makes it an excellent choice for all applications. The shaft's fit is precise, ensuring efficient power transfer. The fit remains snug and secure, reducing the risk of slips during use. A seamless connection between your tractor and implement comes with this PTO O shaft. You should recommend this PTO shaft to anyone in need of reliable equipment for their work. The design of these shafts aims to simplify and enhance your work efficiency.

Durable PTO Shaft Made from High-Quality Steel

This is a high-quality steel shaft. It features 20CrMnTi carburized steel and Q345 steel. These materials ensure durability and strength. The shaft can withstand heavy use in harsh conditions. The steel construction resists wear and tear, making it long-lasting and reliable in all weather conditions. The materials are chosen for their robustness, ensuring that this shaft won't bend or break easily.


It can handle high torque loads. The steel construction maintains its integrity through heavy usage, even under high-torque loading. We have treated it to enhance its durability. Our shaft maintains its integrity through heavy use, providing reliable performance over time. That means that you get the most out of your investment. Why is this PTO shaft regarded as a dependable choice?


Cost-Effective Solution Compared to Local Stores

This PTO shaft is cost-effective. The price of this PTO shaft is lower than that of similar products at local stores. You can save money without sacrificing quality. The price point makes it an attractive option. Tractor owners don't need to pay a premium for this reliable shaft. Savings add up, especially for those on a tighter budget. You get excellent value for your money. The shaft's affordability doesn't mean a compromise on quality, making it a rational choice for people looking to save. This cost-efficient solution ensures that we deliver a high-quality product at a reasonable price, making it a win-win situation for both your wallet and your equipment.


Easy Installation and Adjustment for Perfect Fit

This PTO shaft installation is simple. It comes with clear instructions for easy setup. The adjustable length allows a perfect fit. You can shorten or extend it as needed. This flexibility ensures it fits your specific requirements. No special tools are required for installation. The process is quick and hassle-free. The adjustable length makes it versatile, so you can use it with different machines without issues. The fit is secure and snug, ensuring optimal performance. This ease of installation saves you time and effort. The adjustable feature is especially useful for those with various implements. Its ease of use ensures a perfect fit.


Fast Shipping and Reliable Performance from VEVOR

The shaft maintains consistent performance. It efficiently distributes power to your tool. Fast shipping means less downtime for your equipment. You can get back to work quickly. The dependable performance guarantees the smooth completion of your tasks. You can trust VEVOR for timely delivery and dependable products. This combination of rapid shipping and reliable performance is invaluable. Customers appreciate the efficiency and satisfaction!


Ideal for Heavy Use with Robust Design

The PTO shaft's robust design makes it ideal for heavy use. We built it to withstand tough conditions. The shaft can handle demanding tasks easily. With its construction, it won't fail under pressure. The design focuses on strength and durability. This means it lasts longer. For those who regularly use their equipment, the strong build ensures it will last longer in tough environments. Our design focuses on strength rather than just hard work. For those who use the tools frequently, the strong build ensures long-term performance. Even with rigorous use, this shaft maintains its performance. You get a reliable product because the robust structure guarantees longevity. This makes it an efficient choice for demanding jobs.


CE Certified for Safety and Quality Assurance

The certification ensures safety and quality. You can trust its performance and reliability. The certification means it meets high safety standards, ensuring it operates safely without risk. Having tested the product gives you peace of mind. CE certification is a testament to its quality, guaranteeing safe and effective operation. The design incorporates safety features. This ensures you can use the shaft confidently. Quality assurance means you can count on this product. It serves as an endorsement for both safety and quality.


See More

Specification

Model
T4-BⅢP*1100mm*4.05.05B*4FFV1
Part Type
PTO Drive Shaft
Series
4
Certificate
CE Certification
Material
20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End
1-3/8" x 6 Spline
Implement End
1-3/8" x 6 Spline
Compressed Length
43" / 1100 mm
Extended Overall Length
59" / 1500 mm
At 540RPM
35hp, 26Kw, 460Nm
At 1000RPM
53hp, 39Kw, 360Nm
Color
Black
Questions and Answers
4 Questions
I am having a hard time confirming the expanded workable length. By the answer, it appears it would be approximately 52 inches. I am interested if the expanded length is 59”. Can someone confit, Also, can you confirm the diameter of the slip clutch.
The diameter is 180mm.
By vevor
Q: 1) Are the Compressed Length (43") and the Extended Length (59") the working range the PTO shaft can be used within to operate the tractor implement or are they the extreme limits between which the shaft sections will bind (compressed) and pull apart (extended)? If these are not the working lengths please confirm the minimum and maximum safe use lengths. So if I understand your previous answer, the maximum workable length of this shaft is a little over 63”, is that correct?
The maximum workable length of this shaft is slightly more than 63" - it is not recommended to go beyond this value as it is unsafe
By vevor
can the vevor shaft that is 43 to 59 be shortened to 28 inches
Yes.
By vevor
1) Are the Compressed Length (43") and the Extended Length (59") the working range the PTO shaft can be used within to operate the tractor implement or are they the extreme limits between which the shaft sections will bind (compressed) and pull apart (extended)? If these are not the working lengths please confirm the minimum and maximum safe use lengths. 2) What are the reference points for these lengths, are they the very tips of the female spline receivers or the distance between u-joints?
1100MM is the shortest closed length of the assembly, 1/3 of the stretched steel pipe 700, that is, stretched 230, and the maximum working length is 1330. The length is generally the length from side to side, and it is also the length from side to side after stretching.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
165 Review(s)
Clear filters
Daniel Daniel
Westrick
Came as described, came as promised, Good service and Quality , It was prompt and fast. Would buy off of them again.
Tim from Maine Tim from Maine
Huge stress relief for me with wood chipper.
This is just what I needed. I have a wood chipper and was breaking shear bolts every few minutes. I dealt with that for a month or so and then ordered this unit. Worked perfect and as described. Fast shipping too. Well worth the prices that it is. It rescued my blood pressure from all the headaches from the shear Type.
outdoordad outdoordad
works great!
Finally got it hooked up to my tiller and worked like a champ. Great price, seems good quality and no issues hooking up. Seems winner all around. Just started using, so all fives so far.
Dan U Dan U
Great replacement shaft
Great replacement shaft! I used it to convert from my old/failed spline drive bush hog gearbox and it installed and functioned without issue! Very satisfied, and would recommend!!
Yolanda Yolanda
Cortadora
Es la medida que necesitaba, y ya anda trabajando perfectamente.
Benjamen Jennett Benjamen Jennett
Mr
Came as described and installed very easily. Best part is, I put it to work right away on my five foot brush hog and this new set up worked remarkably! I definitely recommend these this item!
Jason Jason
Mr
Using on 72” finish mower, working excellent and awesome price. Seems to be made of good quality . Would recommend and will and have bought more if they are available..
T W T W
Great product
Very well built. Fit was perfect. Didn't have to alter it at all for my application. Was easy to install. Joints have grease fittings for easy lubrication.
Jeff suggs Jeff suggs
Owner
Fits great. Heavy duty quality. Would recommend to others looking for the same or similar product.
Sean Sean
Owner
Great pto shaft for a great price compared to big stores at the same quality. Fit my tractor and bush hog perfectly
