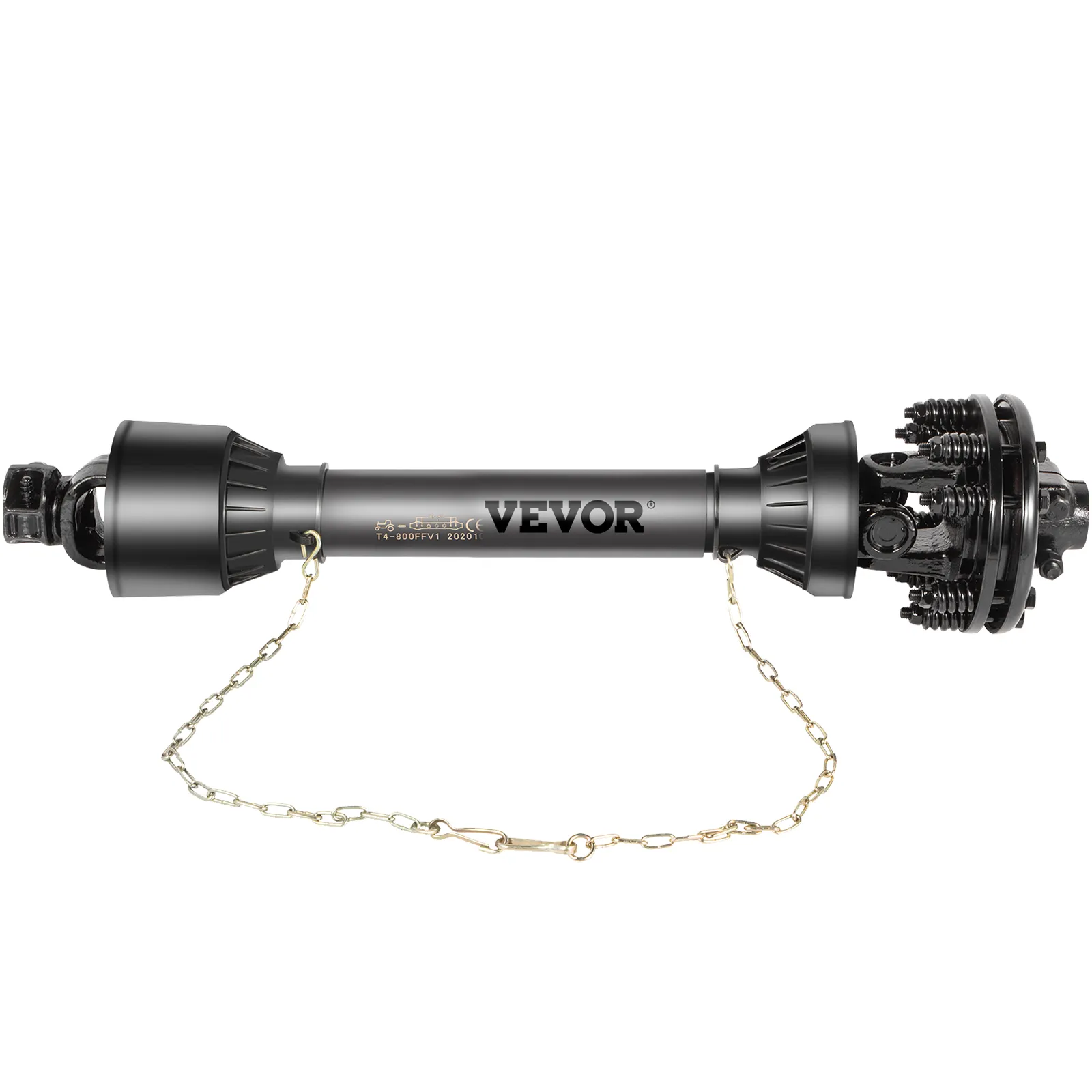

VEVOR pto shaft in black with metal chain and connectors. VEVOR pto shaft connecting green tractor to red machinery on grass field. VEVOR pto shaft 1-3/8" x 6 spline for tractor and implement ends. VEVOR pto shaft flexible design with 47"-67" adjustable length. VEVOR pto shaft with q345 steel tube, slip clutch, security chain, and telescoping tubes. easy installation steps for VEVOR pto shaft: detach, measure, cut, deburr, and assemble. VEVOR pto shaft product specifications with dimensions and weight.
CDZT6B12006FFV301V0

VEVOR PTO Shaft, 1-3/8” PTO Drive Shaft, 6 Spline Both Ends PTO Driveline Shaft, Series 6 Tractor PTO Shaft, 47”-67” Brush Hog PTO Shaft, Black PTO Shaft w/Slip Clutch for Bush Hog/Finish Mower

See All Customer Reviews
10 Reviews 4 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Sturdy and Durable: This PTO shaft is a well-forged series6 driveline shaft with CE certification. It consists of a slip clutch, a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
  • 6 Spline Ends: Tractor end: 1-3/8" x 6 Spline; implement end: 1-3/8" x 6 Spline. Our brush hog PTO shaft can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
  • Adjustable Length: Compressed Length: 47"; Extended Overall Length: 67". Friction Disc Dia: 5.5". The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 55 hp, 40 Kw, and 850 nm torque at 540 rpm, while at 1000 rpm features 83 hp, 61 Kw, and torque 690 nm. It allows two sides of the PTO drive line shaft to spin at different speeds.
  • Easy Assembly＆Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
  • Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PTO Shaft, 1-3/8” PTO Drive Shaft, 6 Spline Both Ends PTO Driveline Shaft, Series 6 Tractor PTO Shaft, 47”-67” Brush Hog PTO Shaft, Black PTO Shaft w/Slip Clutch for Bush Hog/Finish Mower
Description Specification Questions and Answers Reviews

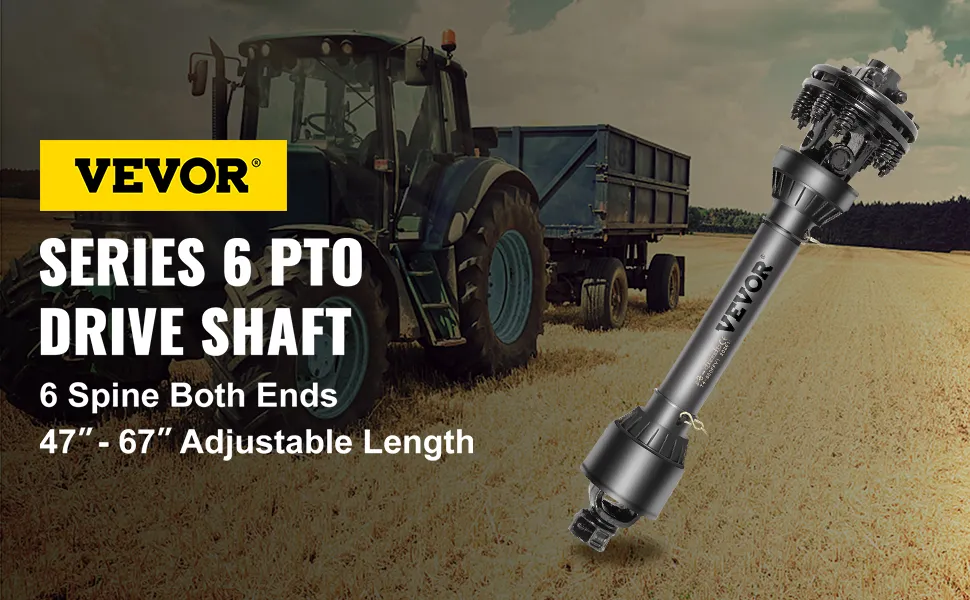

VEVOR pto shaft with 6 spine ends, adjustable length 47"-67", next to tractor in field
VEVOR pto shaft with chain, durable black metal construction.
PTO Drive Shaft
1-3/8" 6-spline ends ＆ 47"-67" ＆ Series 6
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline Ends
  • Adjustable Length
  • Easy Assembly＆Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

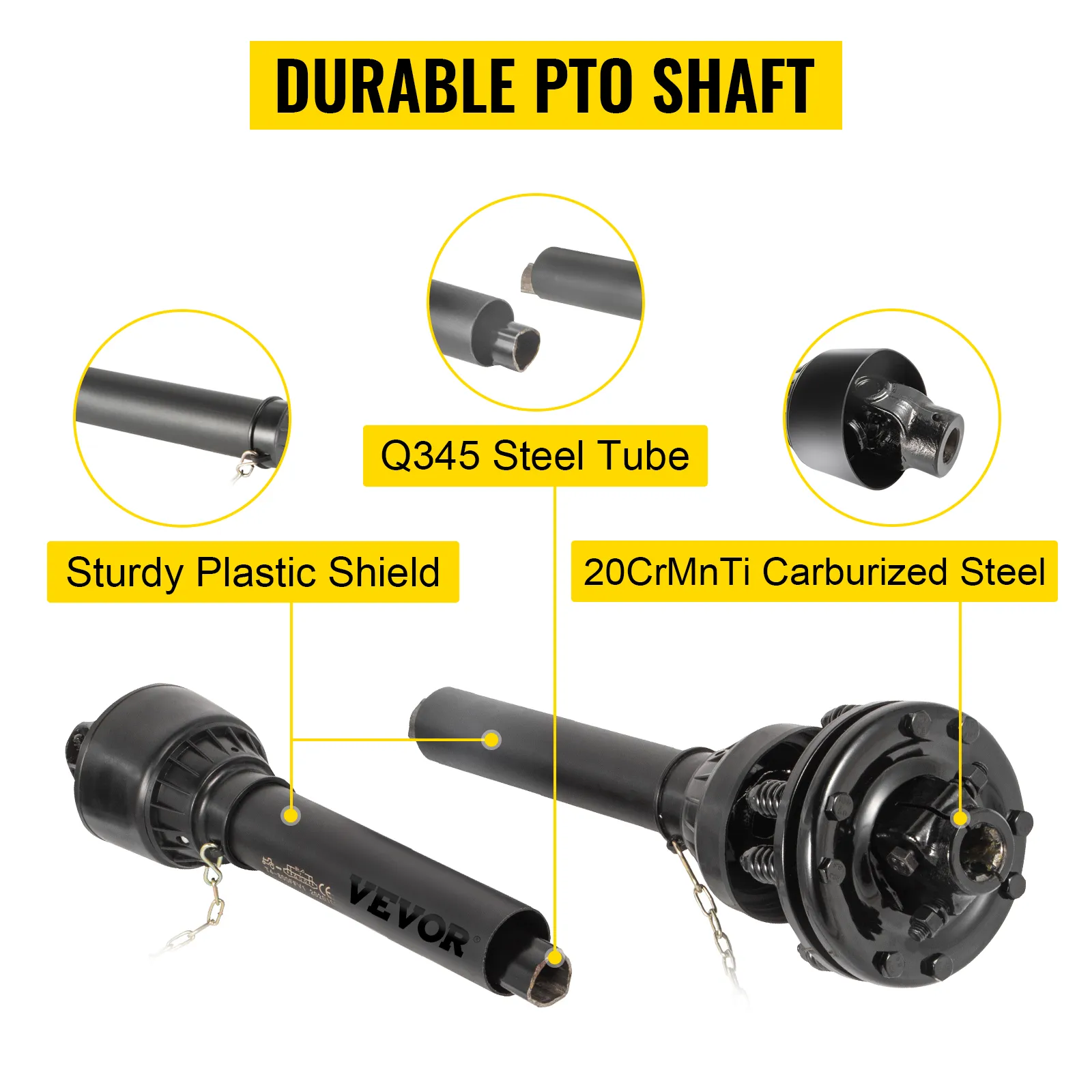

VEVOR pto shaft with q345 steel tube and sturdy plastic shield.
Durable PTO Shaft
This T6 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

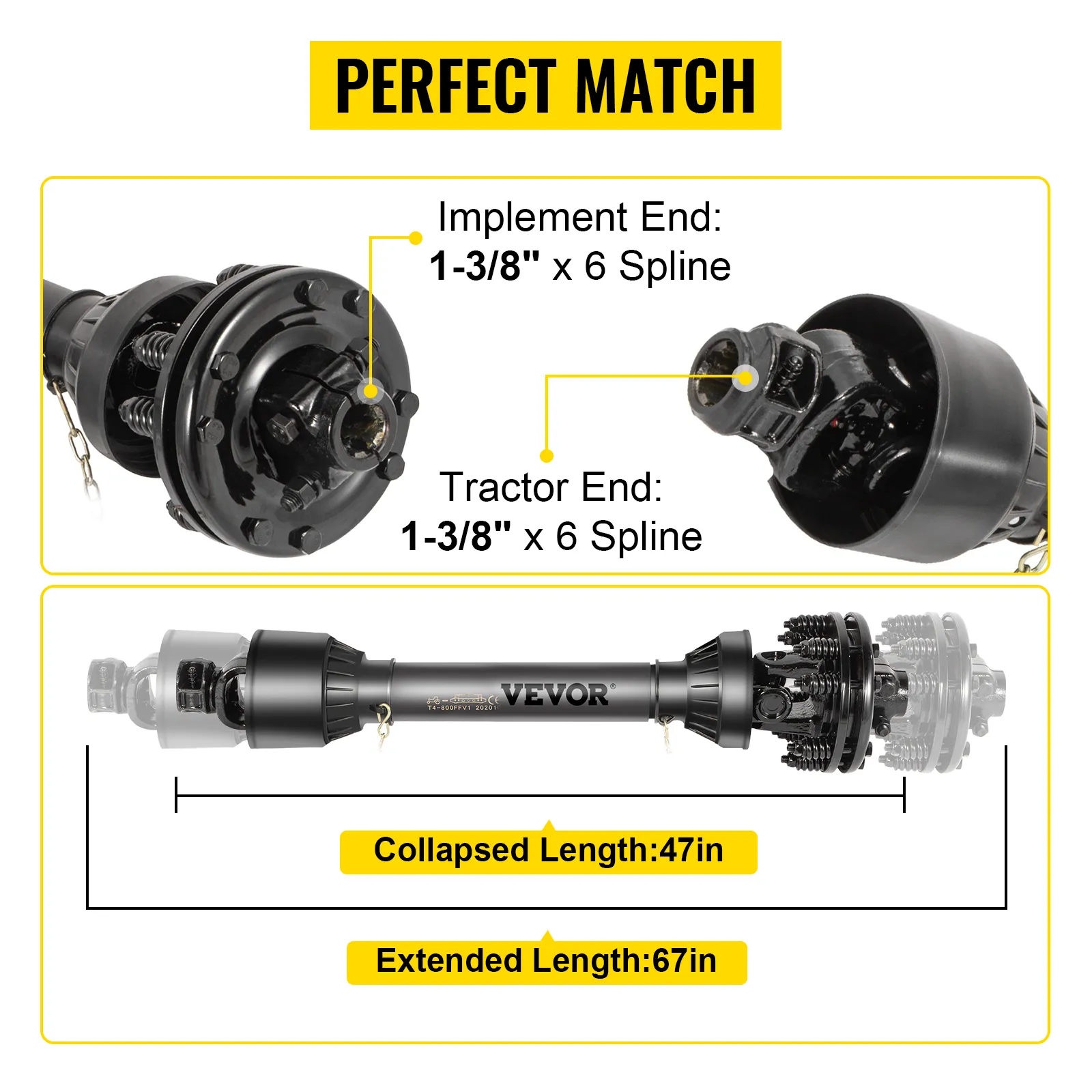

VEVOR pto shaft with 1-3/8" x 6 spline ends, 47in collapsed, 67in extended.
Perfect Match
With 47"-67" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

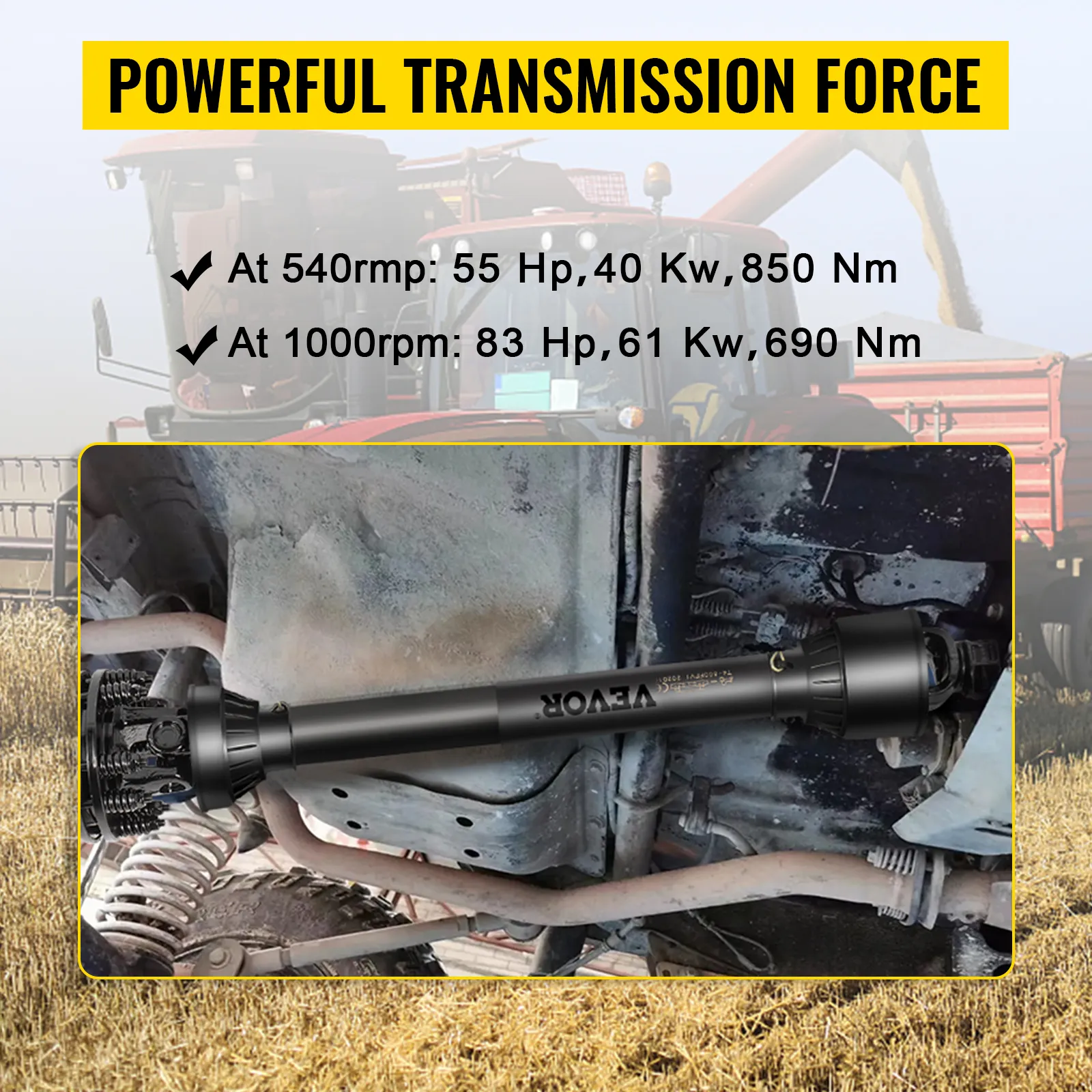

VEVOR pto shaft showcasing power ratings with tractors in the background.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 55 hp, 40 Kw, and 850 nm torque; 83 hp, 61 Kw, and 690 nm at 1000 rpm.

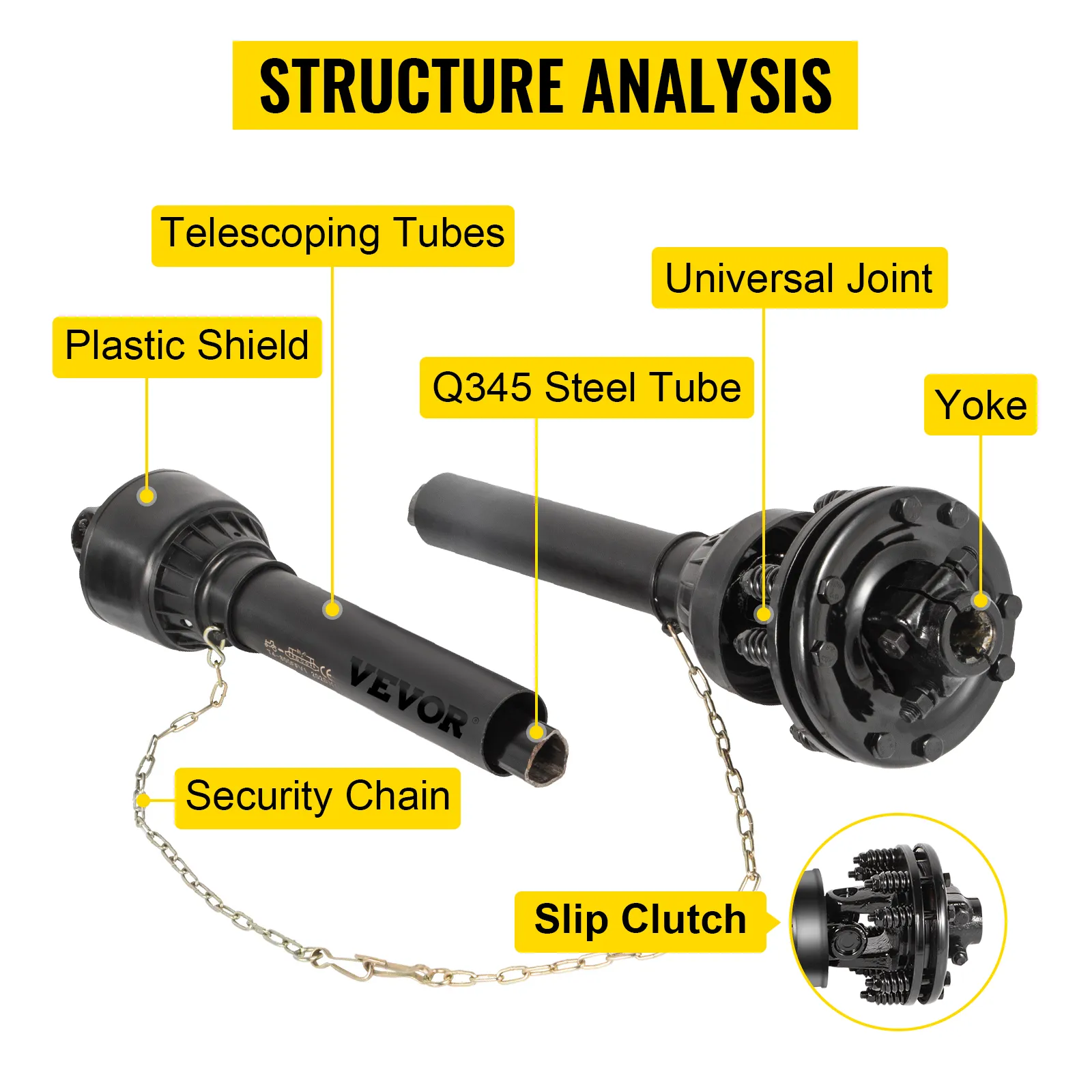

VEVOR pto shaft structure analysis with telescoping tubes, slip clutch, and plastic shield.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a durable slip clutch, a telescoping tube, a safety chain, and a safety shield. It allows two speeds on both ends and transfers the power into the equipment.

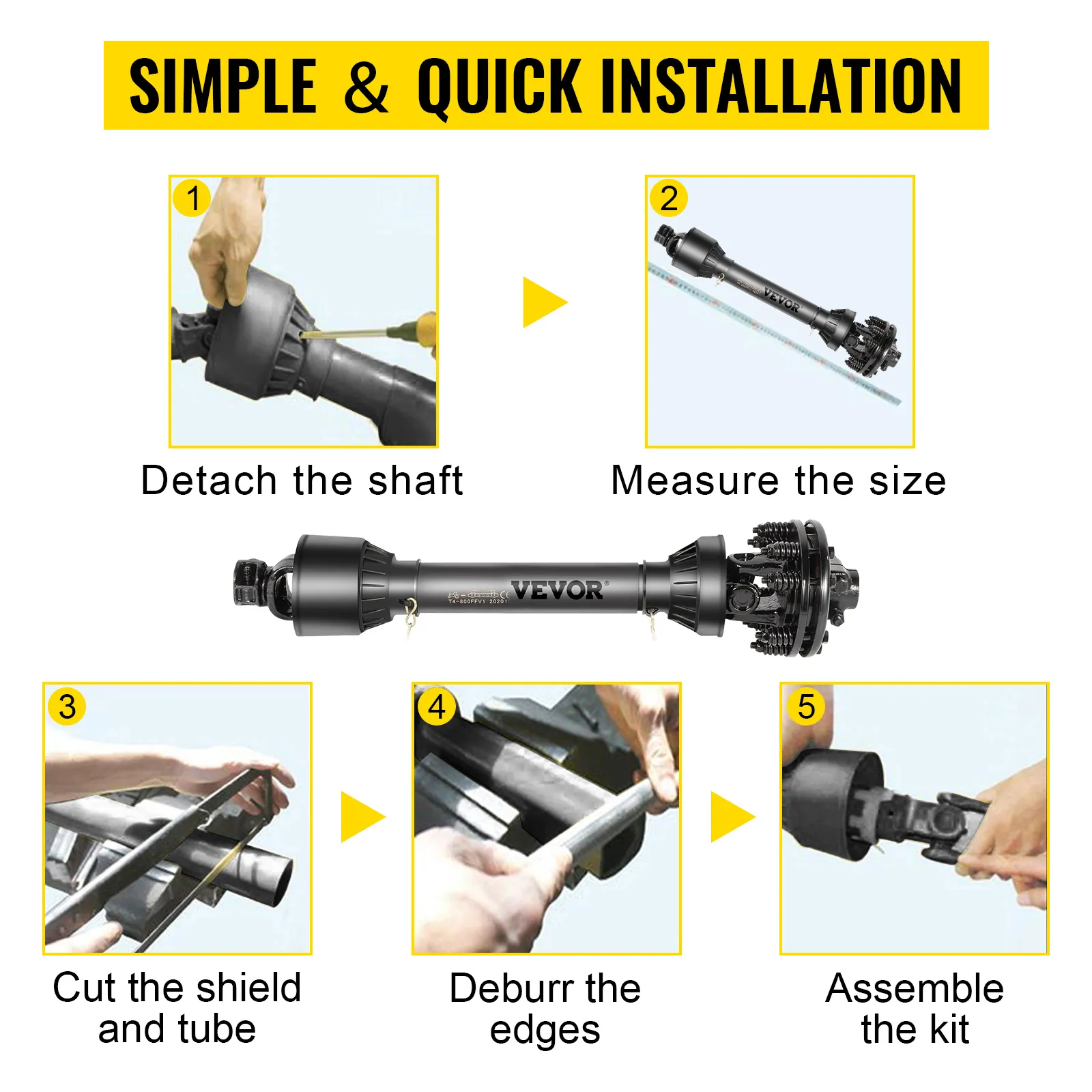

installation steps for VEVOR pto shaft: detach, measure, cut, deburr, assemble.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.

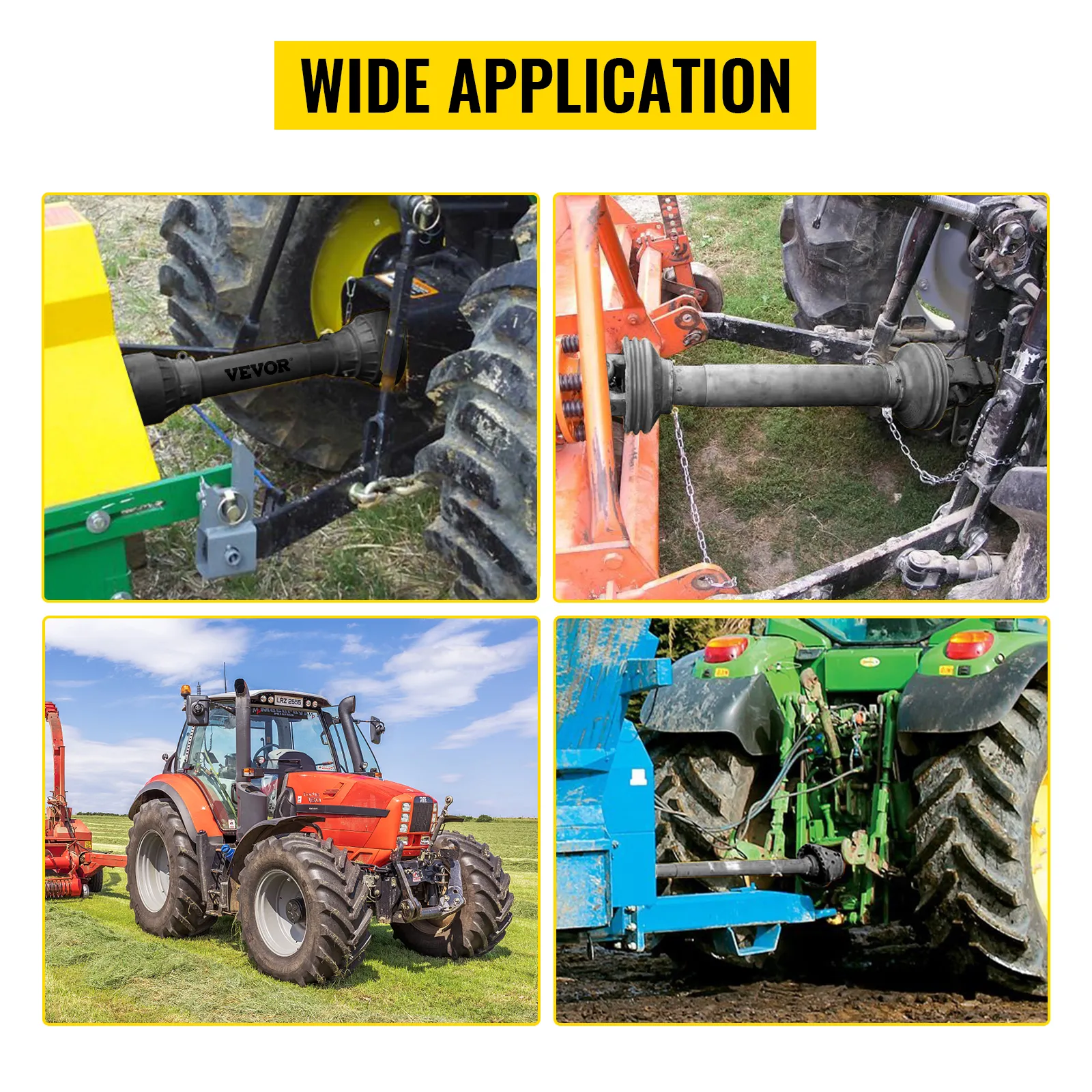

VEVOR pto shaft on various tractors demonstrating wide agricultural application.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

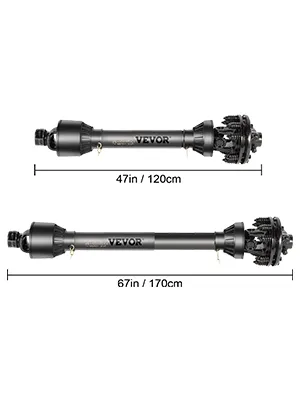

VEVOR pto shaft in 47in/120cm and 67in/170cm lengths for agricultural use.
Specifications
  • Part Type: PTO Drive Shaft
  • Series: 6
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x 6 Spline
  • Compressed Length: 47" / 1200 mm
  • Extended Overall Length: 67" / 1700 mm
  • Max Torque: 1500Nm
  • Friction Disc Dia.: 5.5" / 140 mm
  • At 540RPM: 55hp, 40Kw, 850Nm
  • At 1000PRM: 83hp, 61Kw, 690Nm
  • Color: Black

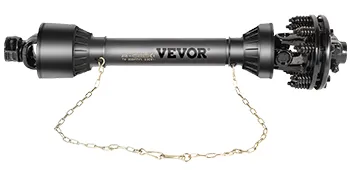

VEVOR pto shaft with black metallic body and connecting chain.
Package Content
  • 1 x PTO Shaft with Slip Clutch
  • 1 x Locking Pin
  • 1 x User Manual
VEVOR pto shaft with 6 spine ends, adjustable length 47"-67", next to tractor in field
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with chain, durable black metal construction.
PTO Drive Shaft
1-3/8" 6-spline ends ＆ 47"-67" ＆ Series 6
This splined PTO shaft is built from sturdy steel and features 6-spline tractor and implement ends. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline Ends
  • Adjustable Length
  • Easy Assembly＆Safer Use
VEVOR pto shaft with q345 steel tube and sturdy plastic shield.
Durable PTO Shaft
This T6 tiller PTO shaft is built from high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft with 1-3/8" x 6 spline ends, 47in collapsed, 67in extended.
Perfect Match
With 47"-67" extendable length and featuring 1-3/8" 6-spline on both tractor and implement ends (include a slip clutch), the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft showcasing power ratings with tractors in the background.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 55 hp, 40 Kw, and 850 nm torque; 83 hp, 61 Kw, and 690 nm at 1000 rpm.
VEVOR pto shaft structure analysis with telescoping tubes, slip clutch, and plastic shield.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a durable slip clutch, a telescoping tube, a safety chain, and a safety shield. It allows two speeds on both ends and transfers the power into the equipment.
installation steps for VEVOR pto shaft: detach, measure, cut, deburr, assemble.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to a proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft on various tractors demonstrating wide agricultural application.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
VEVOR pto shaft with black metallic body and connecting chain.
Package Content
  • 1 x PTO Shaft with Slip Clutch
  • 1 x Locking Pin
  • 1 x User Manual
VEVOR pto shaft in 47in/120cm and 67in/170cm lengths for agricultural use.
Specifications
  • Part Type: PTO Drive Shaft
  • Series: 6
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x 6 Spline
  • Compressed Length: 47" / 1200 mm
  • Extended Overall Length: 67" / 1700 mm
  • Max Torque: 1500Nm
  • Friction Disc Dia.: 5.5" / 140 mm
  • At 540RPM: 55hp, 40Kw, 850Nm
  • At 1000PRM: 83hp, 61Kw, 690Nm
  • Color: Black

Specification

Part Type
PTO Drive Shaft
Series
6
Material
20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End
1-3/8" x 6 Spline
Implement End
1-3/8" x 6 Spline
Compressed Length
47" / 1200 mm
Extended Overall Length
67" / 1700 mm
Max Torque
1500Nm
Friction Disc Dia.
5.5" / 140 mm
At 540RPM
55hp, 40Kw, 850Nm
At 1000PRM
83hp, 61Kw, 690Nm
Color
Black
Questions and Answers
4 Questions
or Ask a Question
Can this be used with a round ended implement?
Answer This Question
This can not be used with a round ended implement.
By vevor
Helpful ( 0 )
can this item be ordered with the 1000 pto instead of 540 pto?
Answer This Question
540 and 1000 are universal, they are just different in terms of force.
By vevor
Helpful ( 0 )
What is the maximum working length end to end for this driveline?
Answer This Question
It needs not to exceed 1800mm.
By vevor
Helpful ( 0 )
900mm has been discontinued, Can the 1100mm pto shaft be cut down to size?
Answer This Question
Yes.
By vevor
Helpful ( 0 )

Customer Reviews

5.0 Out of 5
Based on 10 reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
10 Review(s)
Clear filters
D. Stamper D. Stamper
Nice quality and a fraction of what the local tractor supply house charges
I'm really happy with this one . very heavy duty, fit perfectly, I loosened the clutch pack about one turn and it still may be too tight. I've been known to tear up bush hogs clearing stuff thats too big but I think this shaft will out last the next two mower decks and gear boxes.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
VEVOR Customer VEVOR Customer
Quality
Was skeptical because of Chinese cheap brands out there but this thing meets my expectations and then some!!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Dennis Dennis
Farmer
Good quality shaft. Couldn't get a 74" shaft so I got the 67" shaft and made it work. .. Wish they made the longer shaft. Six spline on both ends...
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Larry Larry
owner
Replaced old PTO shaft ,that had issues. with this new VEVOR PTO SHAFT with slip clutch. Had no issues ,well pleased. I bush hog waterways, wooded areas and small grass patches. worked good. .
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
AA AA
Perfect fit; great value
I bought this slip clutch and PTO shaft as a replacement on a bush hog mower. It fit perfectly and works great. The price point on this item was great too!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Kyra Kyra
Suprised
For the price you can’t beat it. Heavy duty, we’ll see how the bearings in the joints hold up, but it appears to be really high quality for 1/3 of the price of similar items locally
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Joey Gideon Joey Gideon
Great quality and better price
Very good quality. Half the price of local supply stores. Quality is as good as or better than that of local supply stores. This was my first purchase from Vevor and i was pleasantly surprised.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Joe Joe
Happy Customer
Great quality and excellent value. Using it on a tiller, and it’s doing great. Money well spent.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
Mike Mike
Keeps implements turning
This the 2nd PTO shaft I have purchased from Vevor. Both are of good quality, durable and less expensive than competitors.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
john c tyson jr john c tyson jr
Great value
The quality and price are awesome..
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
