VEVOR pto shaft with safety chain and black finish. VEVOR pto shaft connected to green tractor in field, showing power transmission. VEVOR pto shaft with 1-3/8" x round end and 1-3/8" x 6 spline tractor end. VEVOR pto shaft: 43in collapsed, 61in extended, flexible design 43"-61" adjustable length. VEVOR pto shaft with telescoping tubes, plastic shield, and universal joint. easy installation of VEVOR pto shaft with step-by-step visual guide. VEVOR pto shaft, 43in to 61in adjustable length, 1-3/8in diameter, 28.44 lbs, 12.9 kg.
CDZT4B11004055001V0

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline Tractor, Round Implement Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 43"-61" Brush Hog PTO Shaft Black, for Finish Mower, Rotary Cutter

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

61"/1550 mm

  • 61"/1550 mm
  • 41"/1050 mm
  • 55"/1400 mm
  • 59"/1500 mm

Black

  • Black
  • Yellow

About this item

  • Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
  • 6 Spline & Round Ends: Constructed with a 6-spline tractor end and a round implement end, our brush hog PTO shaft has a standard size of 1-3/8 inches. It can match perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
  • Adjustable Length: Compressed Length: 43" / 1100 mm; Extended Overall Length: 61" / 1550 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
  • Easy Assembly&Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
  • Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline Tractor, Round Implement Ends PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 43"-61" Brush Hog PTO Shaft Black, for Finish Mower, Rotary Cutter
61"/1550 mm Black

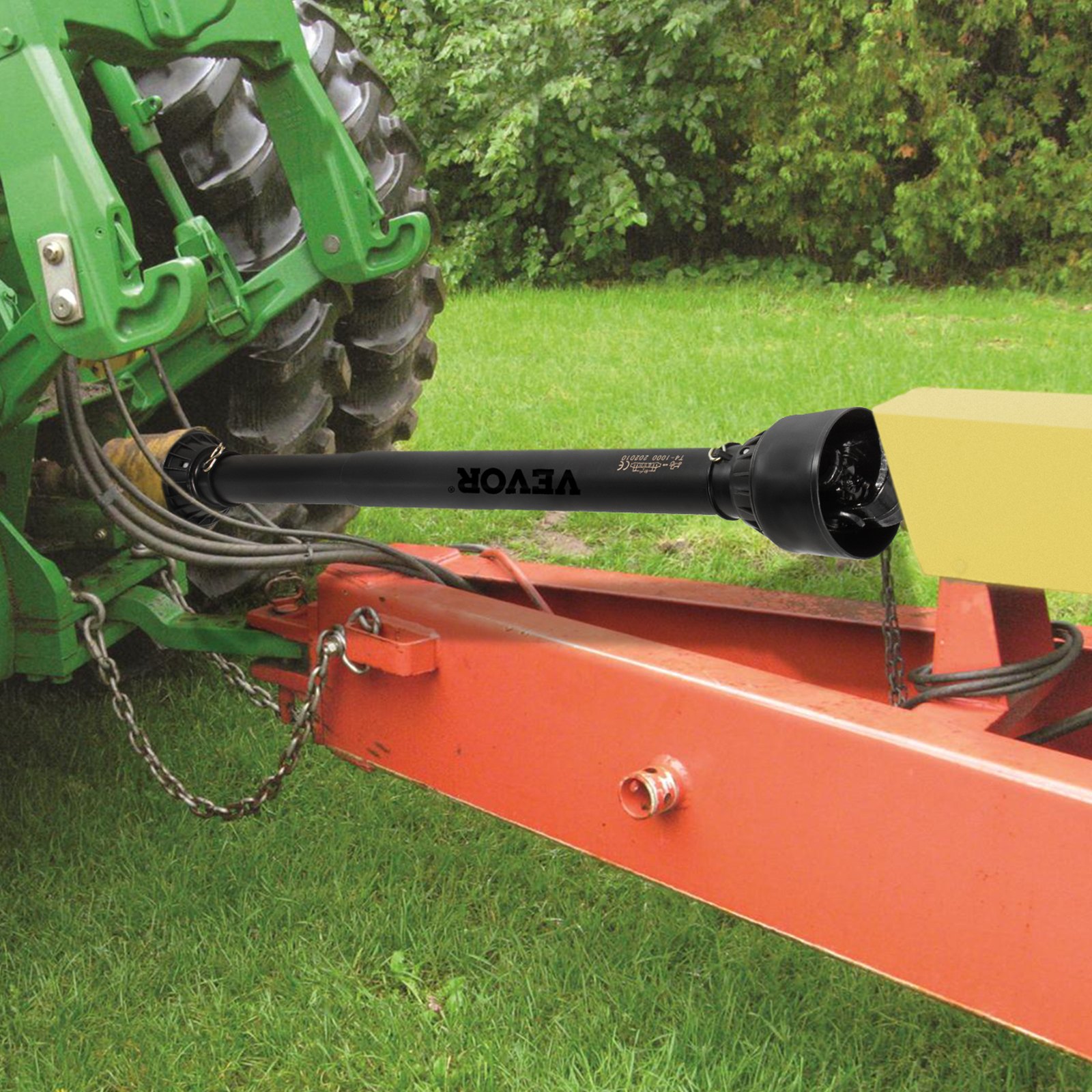

VEVOR pto shaft in a field near a tractor with text details on specifications.

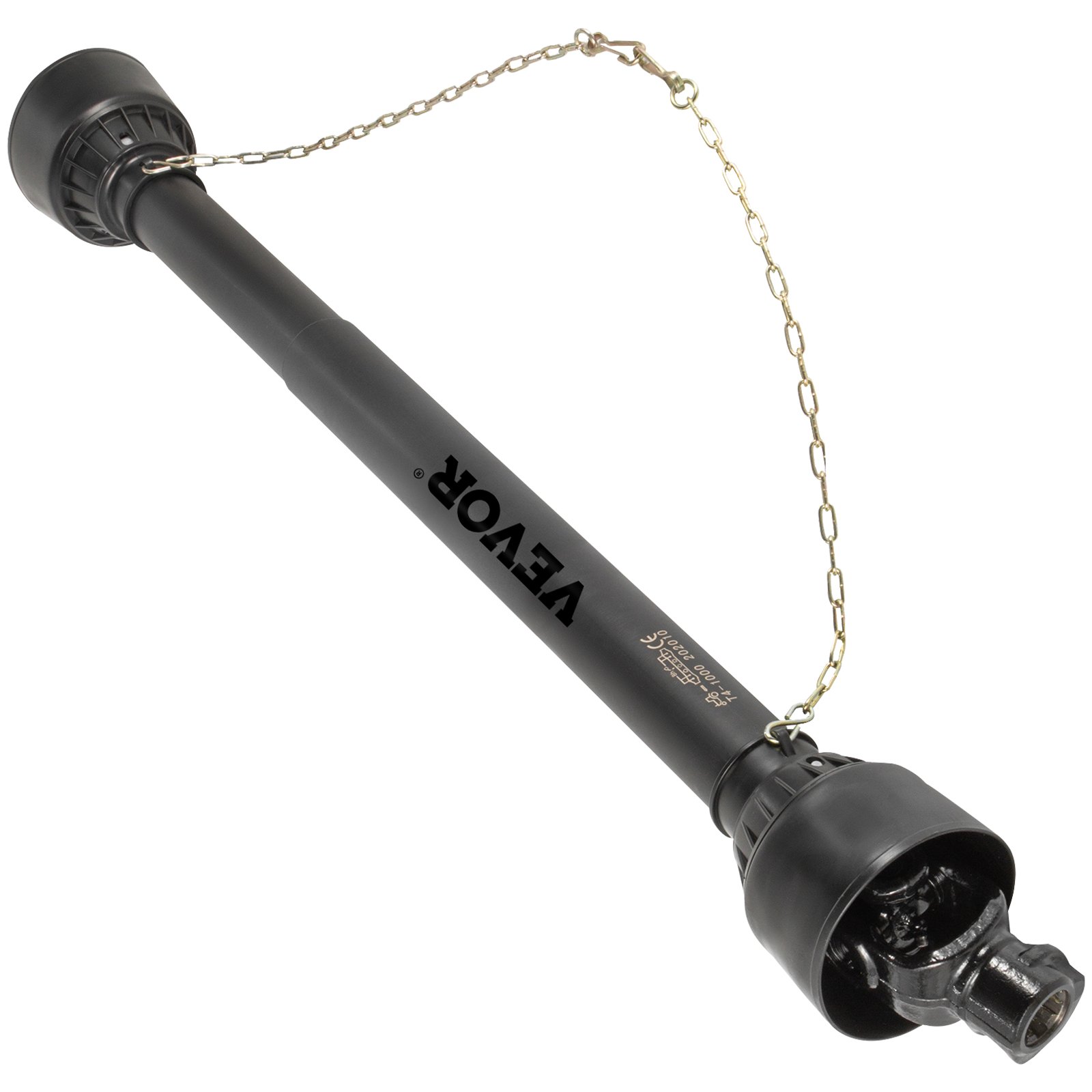

VEVOR pto shaft with chain, black steel construction, close-up view.
PTO Drive Shaft for Tractors
43"-61" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with q345 steel tube, sturdy plastic shield, and 20crmnti carburized steel.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

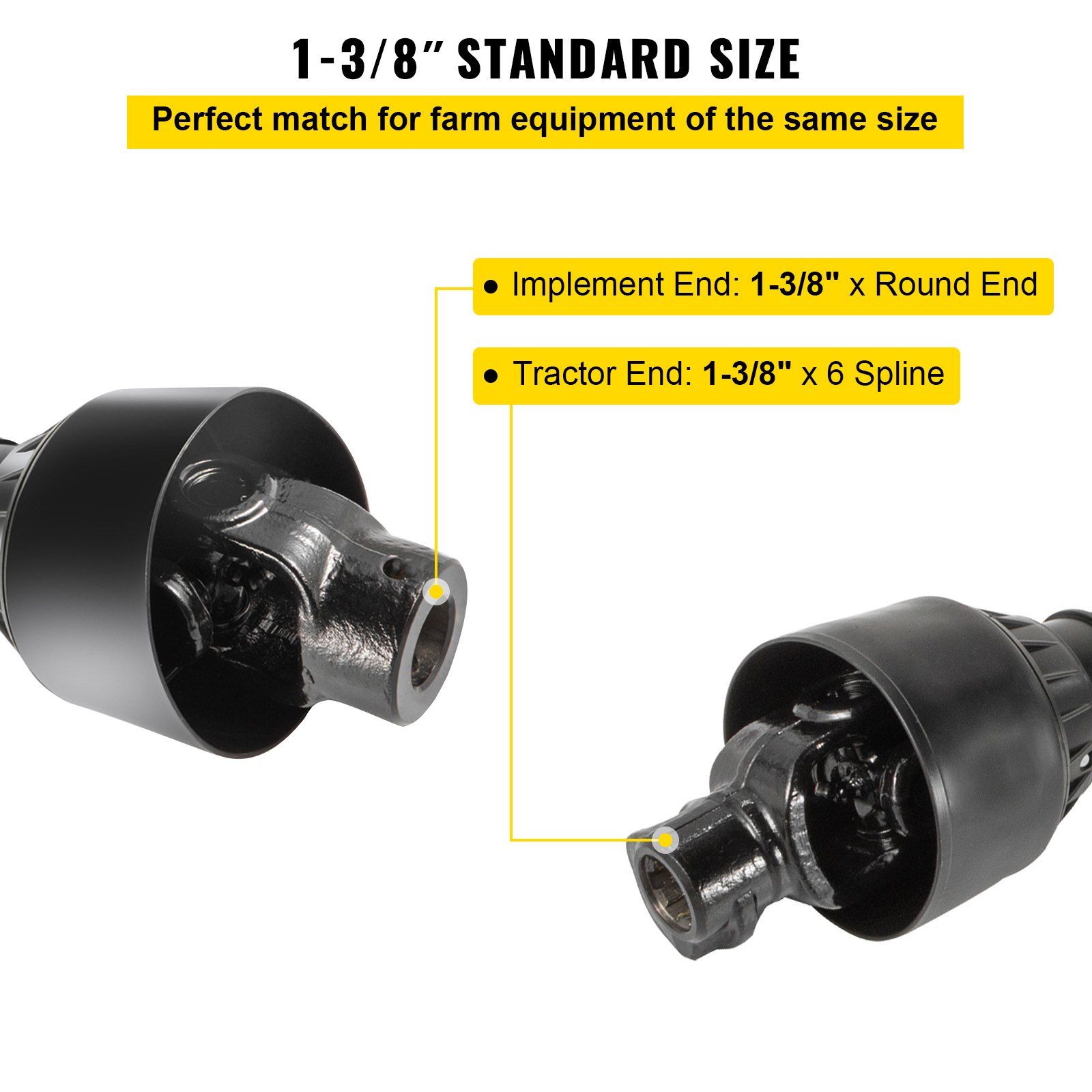

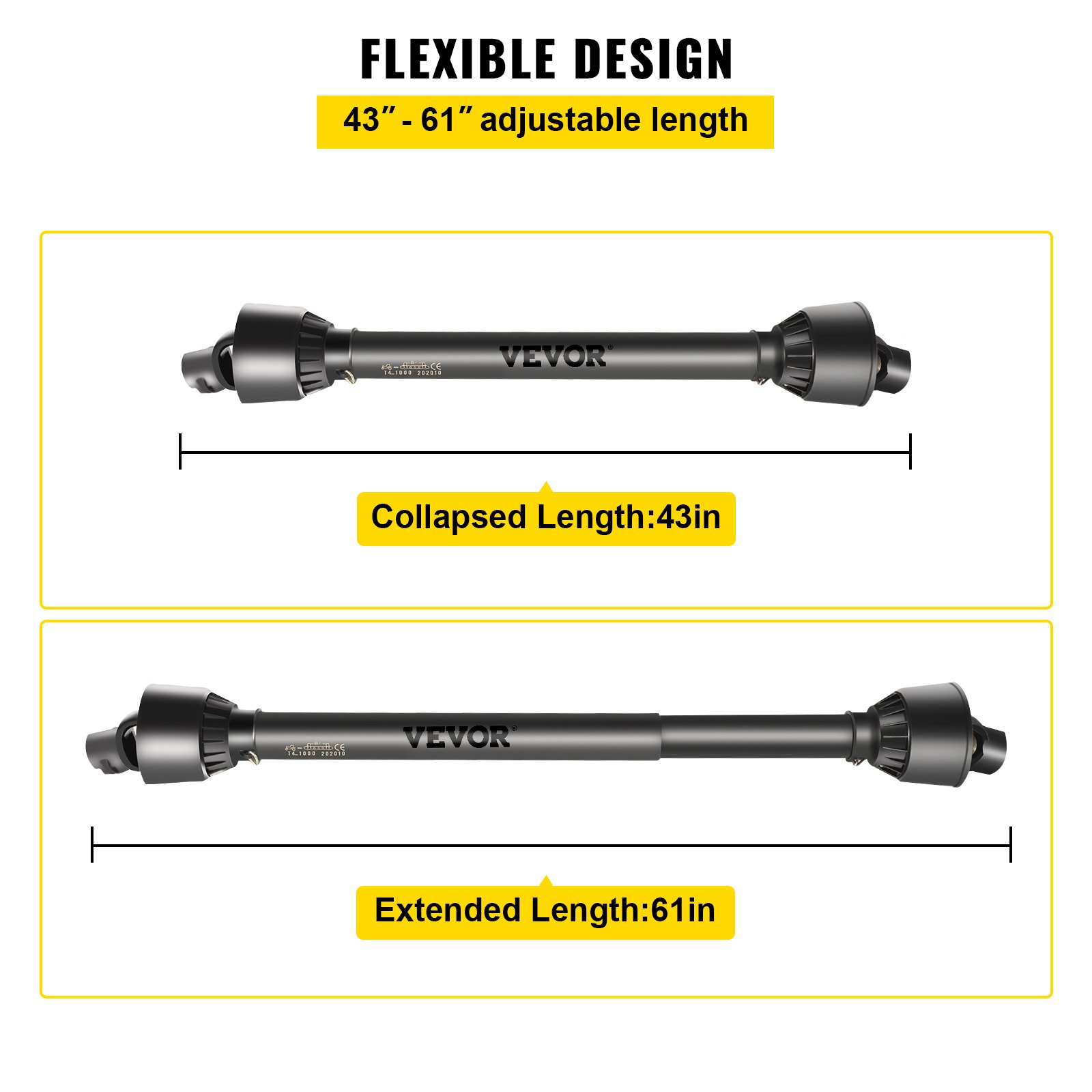

VEVOR pto shaft with 1-3/8" round and 6 spline ends, adjustable 43-61 inches.
1-3/8" Standard Size
With 43"-61" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

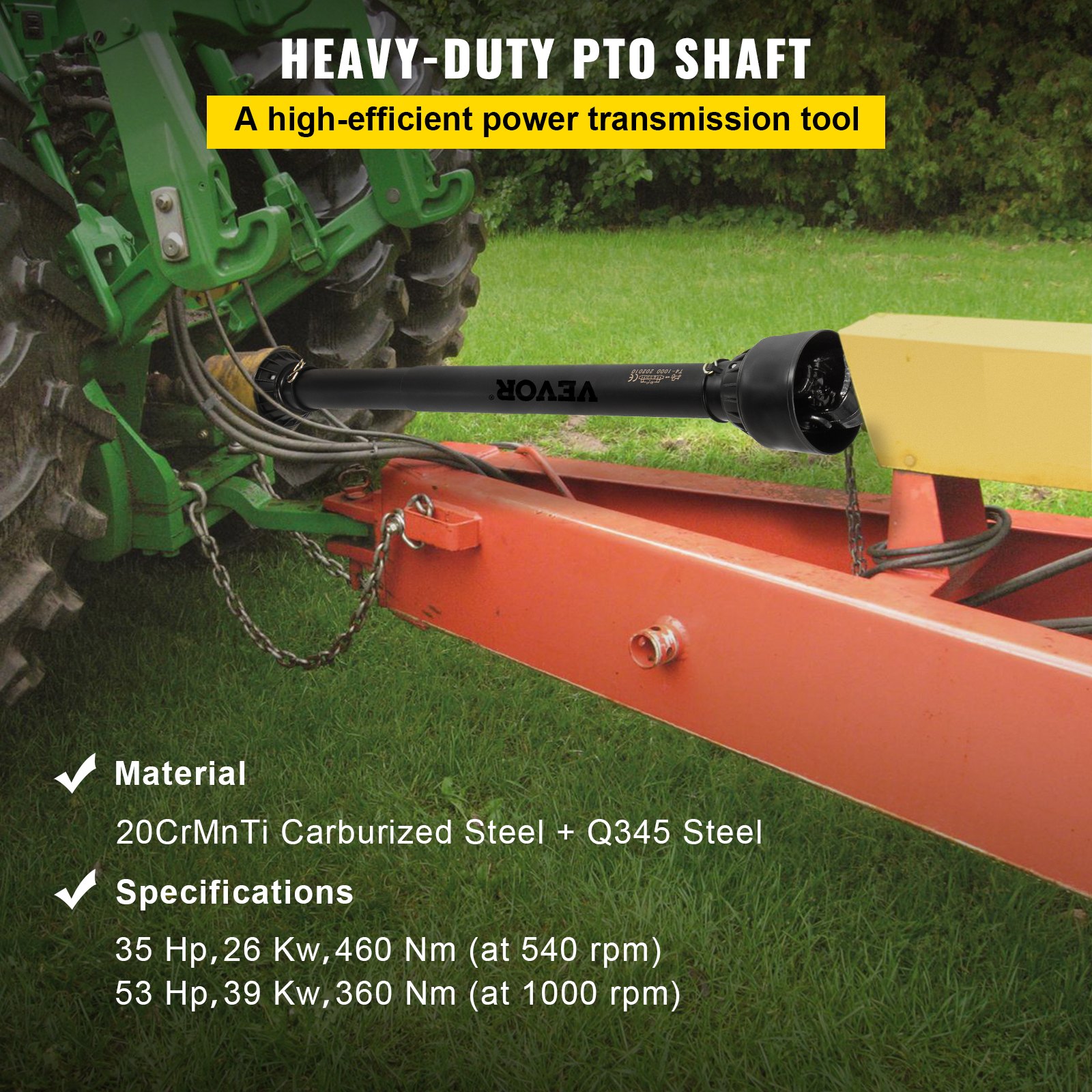

VEVOR pto shaft with specifications for power and torque displayed over machinery.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

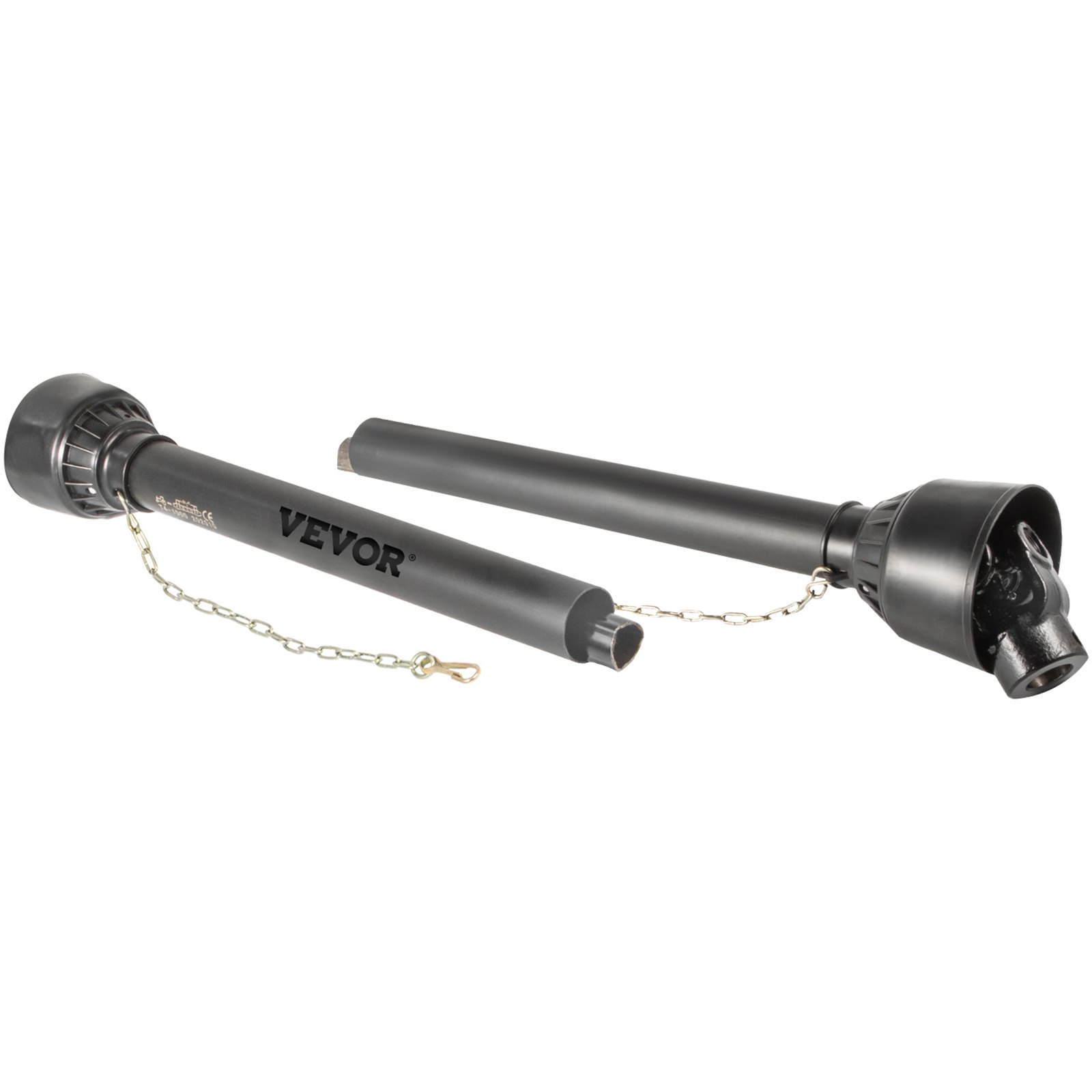

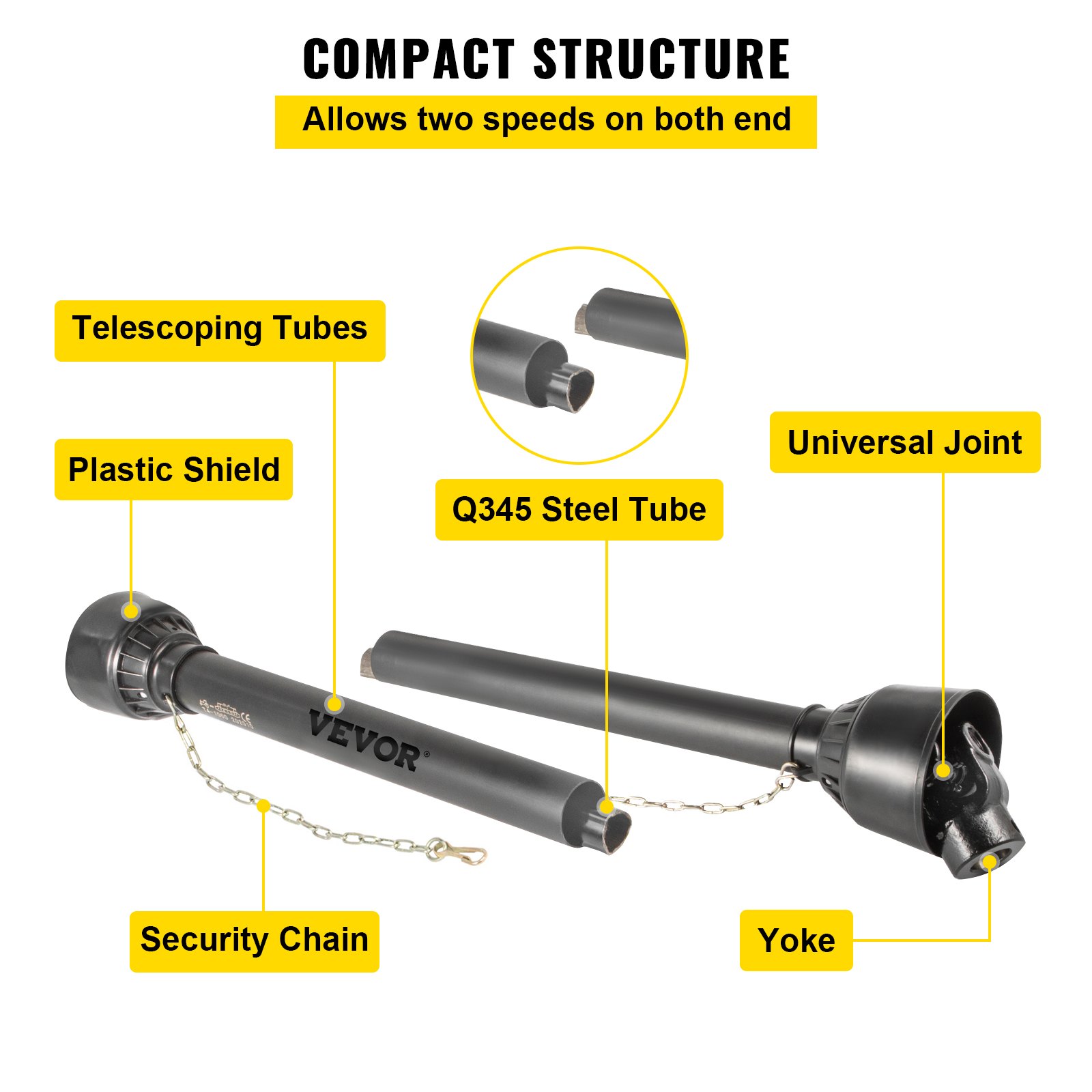

VEVOR pto shaft with telescoping tubes, plastic shield, q345 steel tube, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

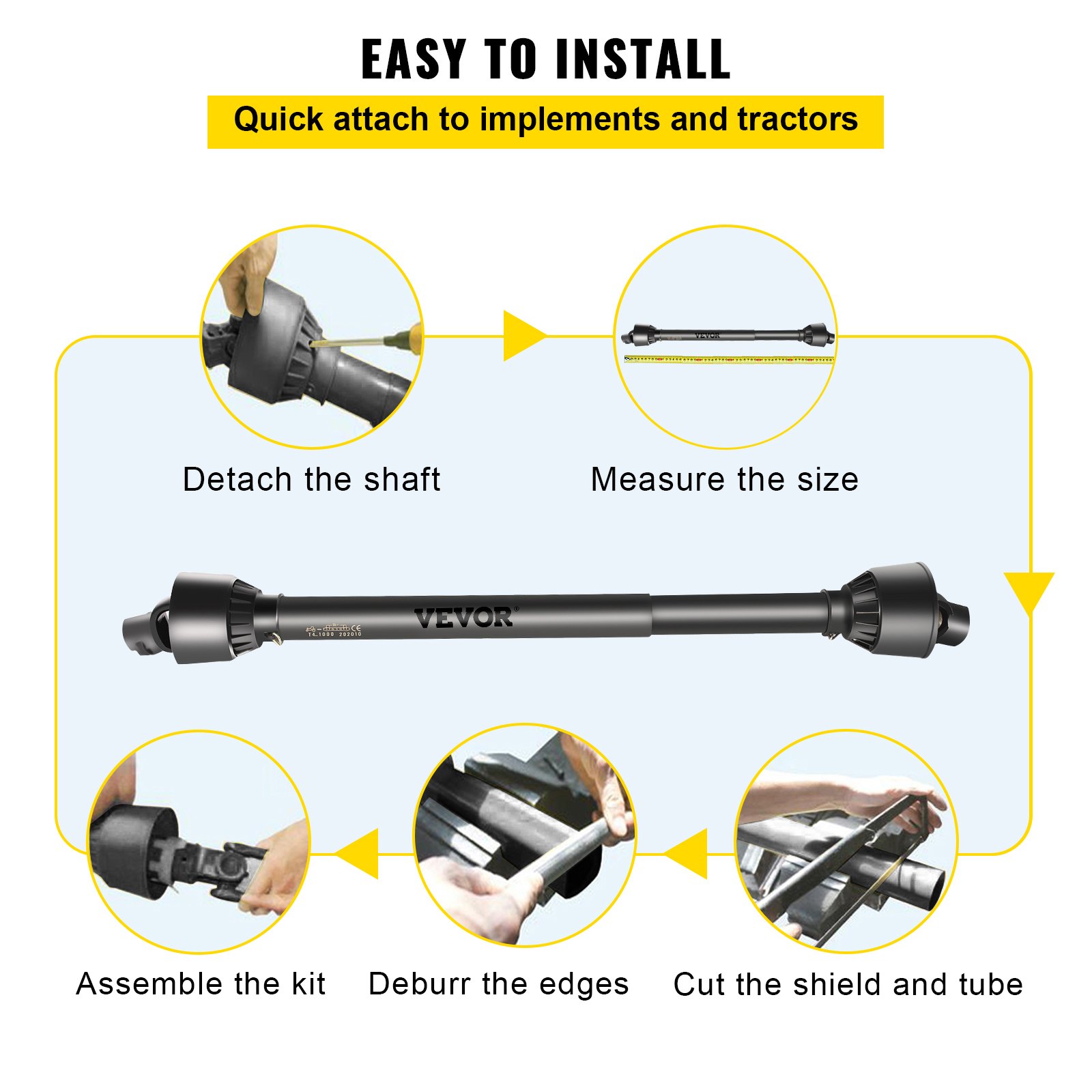

VEVOR pto shaft installation steps: detach, measure, cut, deburr, assemble. simple & quick.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft on multiple tractors and machinery for various applications.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

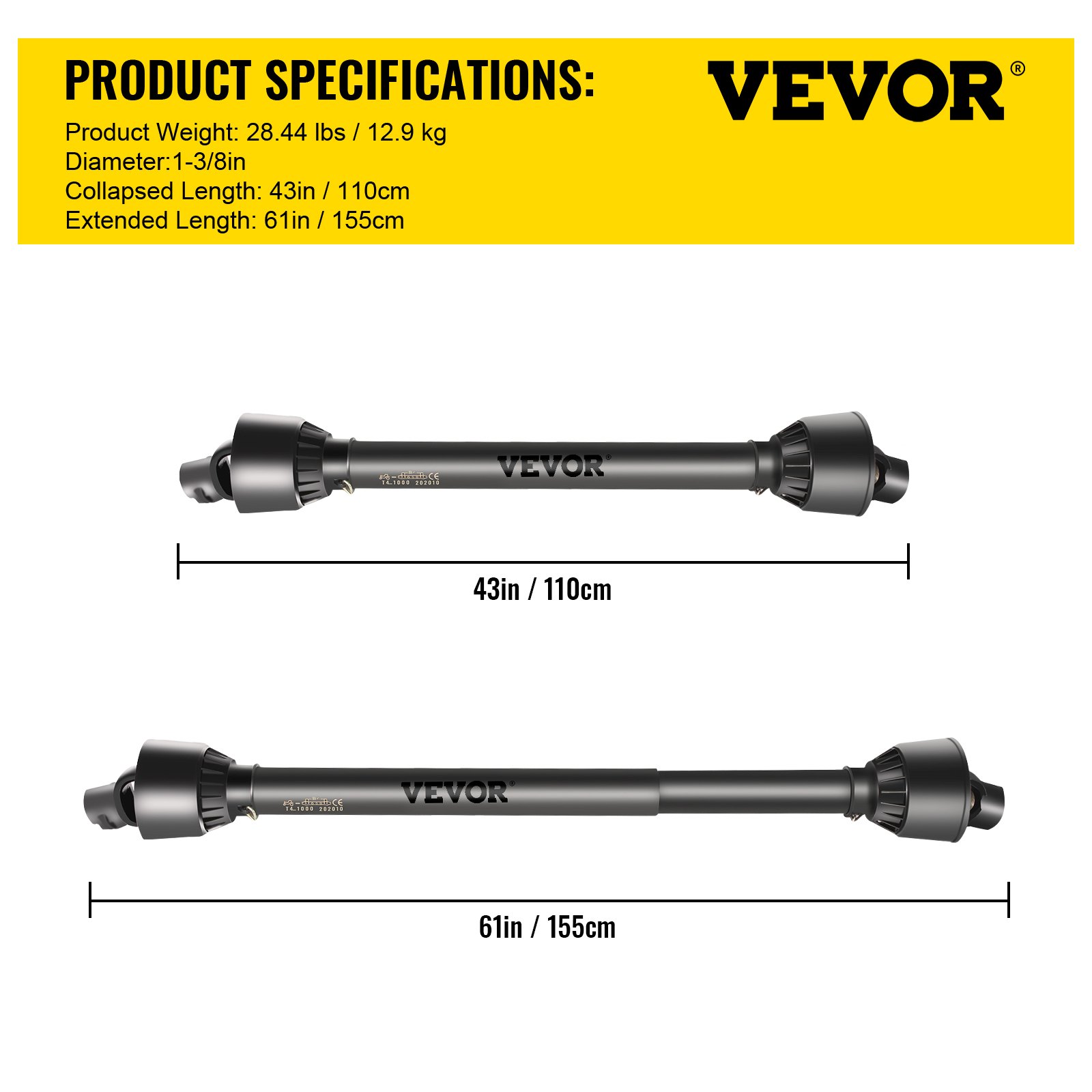

two VEVOR pto shafts, 43in/110cm and 61in/155cm, displayed horizontally.
Specifications
  • Model: T4-BⅢP*1100mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 43" / 1100mm
  • Extended Overall Length: 61" / 1550mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

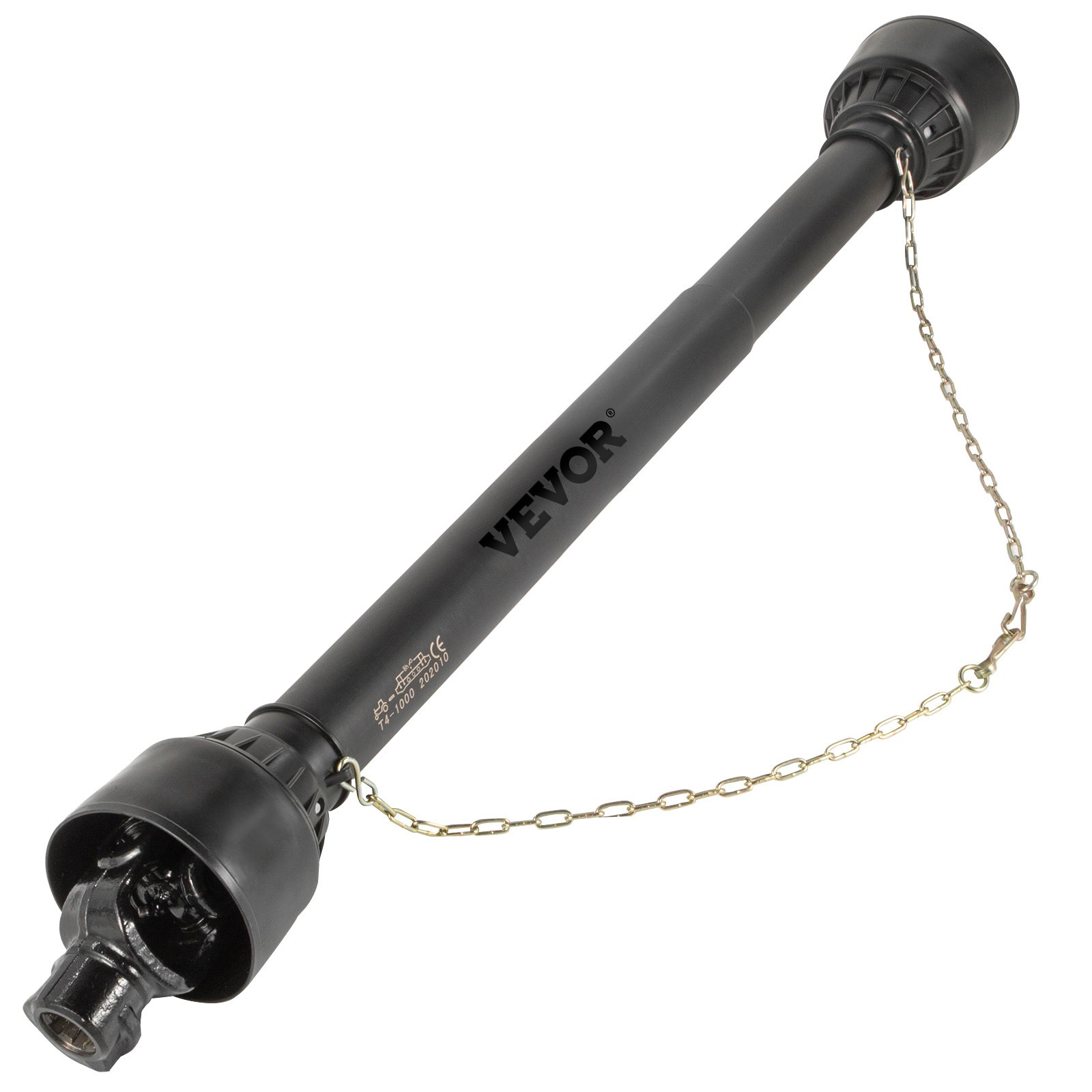

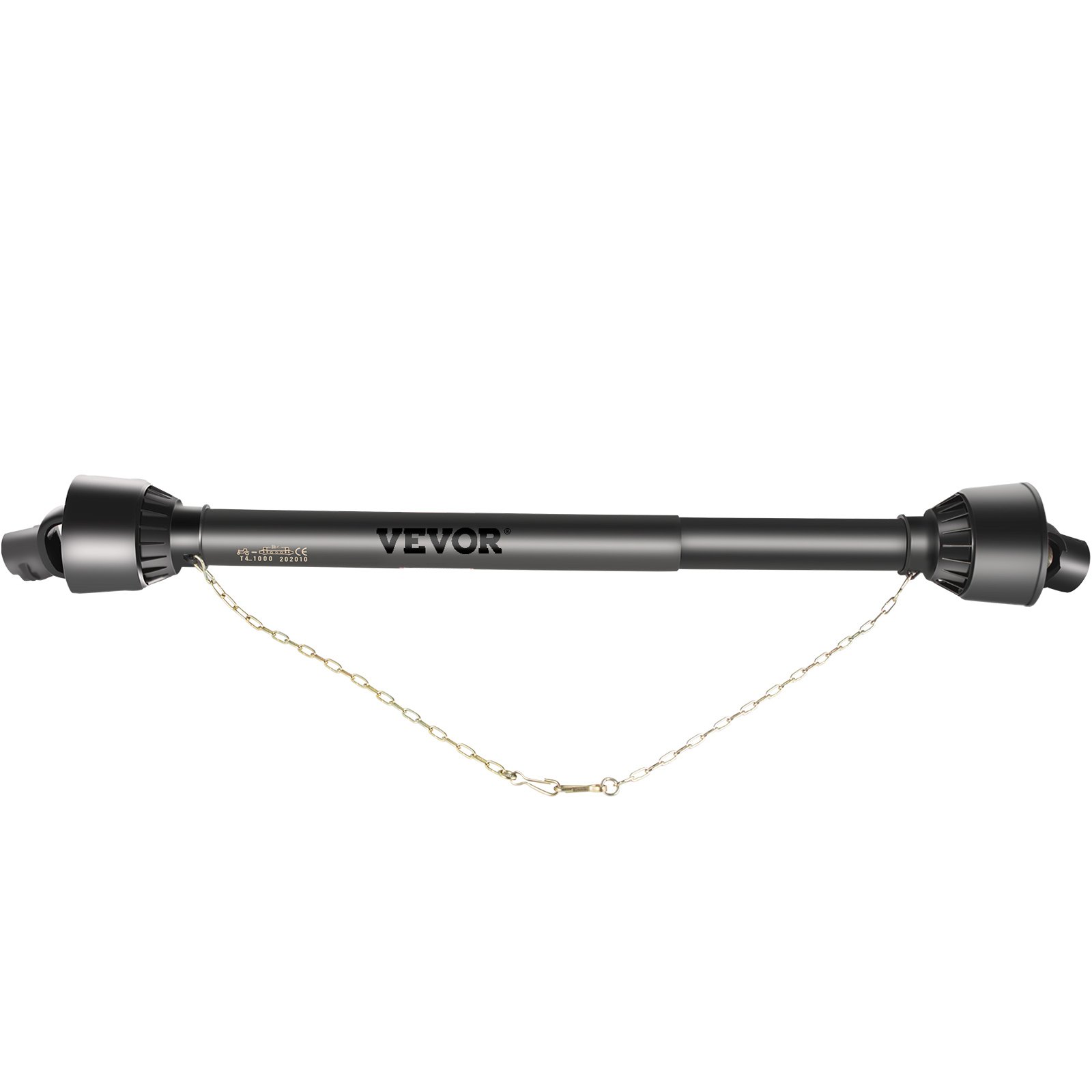

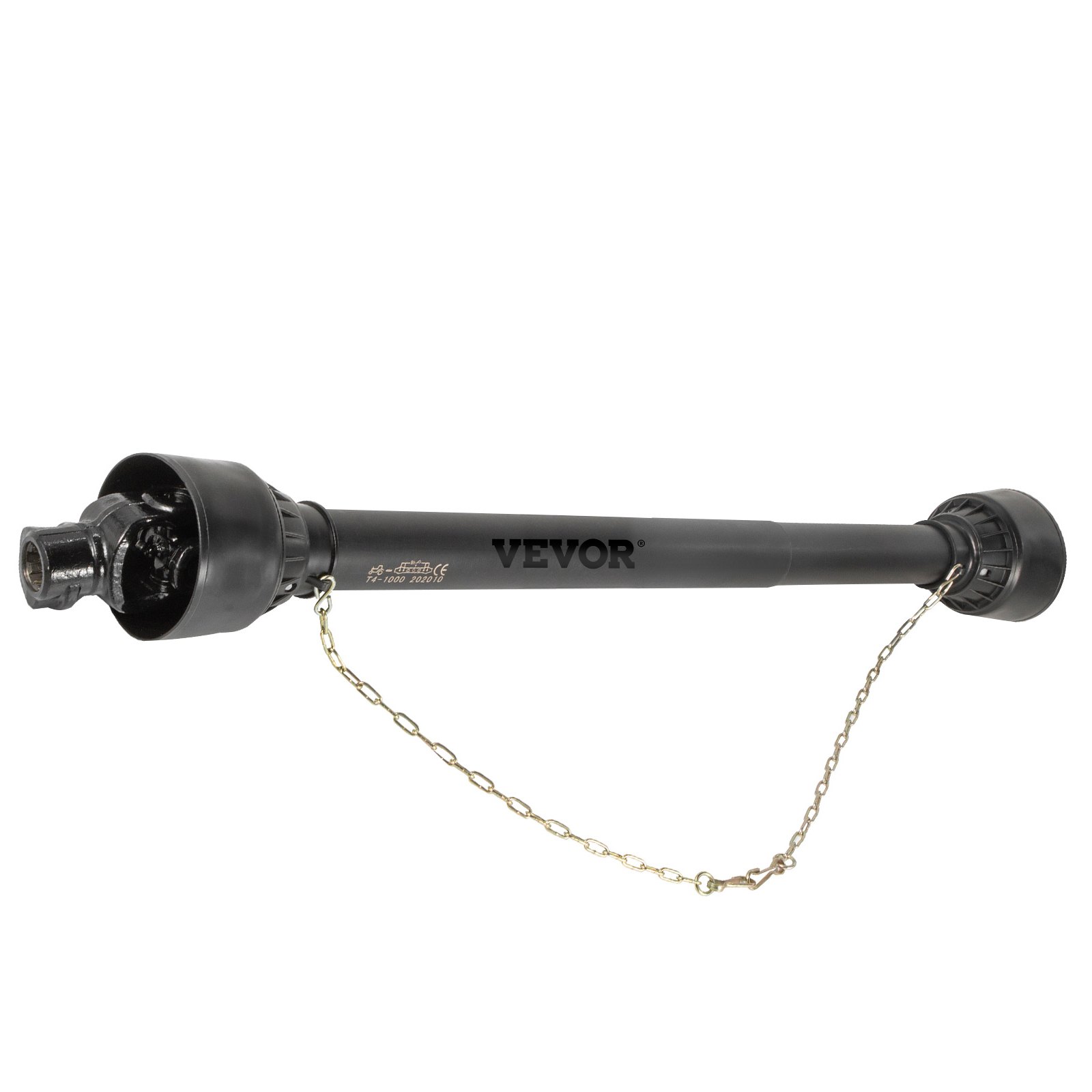

black VEVOR pto shaft with protective covers and safety chain on a white background.
Package Content
  • 1 x PTO Shaft
  • 1 x User Manual
VEVOR pto shaft in a field near a tractor with text details on specifications.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with chain, black steel construction, close-up view.
PTO Drive Shaft for Tractors
43"-61" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR pto shaft with q345 steel tube, sturdy plastic shield, and 20crmnti carburized steel.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft with 1-3/8" round and 6 spline ends, adjustable 43-61 inches.
1-3/8" Standard Size
With 43"-61" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft with specifications for power and torque displayed over machinery.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft with telescoping tubes, plastic shield, q345 steel tube, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
VEVOR pto shaft installation steps: detach, measure, cut, deburr, assemble. simple & quick.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft on multiple tractors and machinery for various applications.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
black VEVOR pto shaft with protective covers and safety chain on a white background.
Package Content
  • 1 x PTO Shaft
  • 1 x User Manual
two VEVOR pto shafts, 43in/110cm and 61in/155cm, displayed horizontally.
Specifications
  • Model: T4-BⅢP*1100mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 43" / 1100mm
  • Extended Overall Length: 61" / 1550mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

PTO Shaft Offers High Durability and Performance for Heavy Use

This PTO shaft is made from high-quality 20CrMnTi carburized steel. It's designed to handle heavy-duty tasks. Hence, it maintains its performance even after extensive use. You can trust it for both finish mowers and rotary cutters. This makes it a great choice for farmers and landowners because of its robust construction. The combination of reliability and durability ensures long service life. Your confidence will be used with confidence for various agricultural tasks as well. It is built to withstand tough conditions and heavy loads. This durability guarantees that your investment will last. You won't need frequent replacements. The PTO shaft offers consistent performance every time you use it. It is a reliable component for your agricultural equipment.


Cost-Effective Solution Compared to Local Store Prices

It offers great value for money. It costs significantly less than similar products at local stores. You can save a lot by choosing this shaft. Even with its lower price, it doesn't compromise on quality. In terms of performance, it matches more expensive options. This is an advisable choice for budget-conscious buyers. You get a slick product without spending countless dollars. That makes it an affordable solution for your agricultural needs. You can equip your machinery without breaking the bank. There’s an excellent balance between cost and quality. This PTO shaft is a smart investment for any farm or garden.


Easy Installation and Compatibility with Various Equipment

The PTO shaft is easy to install. It comes with clear instructions for hassle-free setup. You don't need special tools or skills to attach it. It fits perfectly with different types of equipment. You can use it with finish mowers, rotary cutters, and more. Its versatile compatibility makes it a practical choice. This saves you time and effort during installation. You can quickly hook it up and get back to work. This convenience is especially useful for busy farmers. The shaft's design ensures an interdisciplinary and stable connection. It works seamlessly with your existing machinery. So, you should trust its reliable performance right from the start.


Reliable Slip Clutch Mechanism for Safety and Efficiency

It is a must-have for anyone using heavy-duty tools. The PTO shaft’s slip clutch ensures your operations run smoothly. You can trust it for safe and efficient performance. This feature extends the life of your equipment.


Quick and Reliable Shipping for Timely Equipment Replacement

This is important when you need a replacement part urgently. You won’t have to wait long to get your equipment back in service. Fast shipping reduces downtime on your farm or garden. You can continue your tasks without significant interruptions. This reliability is essential for maintaining productivity. VEVOR ensures that you get the PTO shaft as soon as possible. To plan your operations with confidence, quick shipping is a major benefit of purchasing from VEVOR.


Pre-Greased and Easy to Maintain for Long-Term Use

This PTO shaft comes pre-greased for your convenience. It is ready to use right out of the box. Pre-greasing ensures a smooth operation from the start. Moreover, it extends the lifespan of this shaft. Proper lubrication reduces wear and tear. This means you won’t need frequent maintenance. The shaft’s design makes it easy to grease when needed. Accessible grease fittings simplify the maintenance process. You can keep your equipment in top condition with minimal effort. This ease of maintenance ensures long-term use. You can trust the PTO shaft to perform well over time. It is a low-maintenance solution for agricultural needs.


Versatile Length Adjustment for Different Implement Needs

It offers versatility in length adjustment. The PTO shaft provides flexibility in various applications. It can be extended or compressed to fit various implements, making it suitable for different tasks. You can use it with a variety of agricultural tools. The adjustable length ensures optimum fit every time. You won’t need multiple shafts for specific equipment. This saves you money and storage space. You can adapt the shaft to your specific needs. This feature is especially useful for multi-tool setups. Adjustable length makes it pliable for many applications, too. So, you get a single shaft that meets diverse requirements.


CE Certified Quality Ensuring Safety and Compliance

It is CE certified. This certification ensures its safety and compliance with standards. It meets the necessary regulations for agricultural equipment. Using a certified product ensures peace of mind. You know that the shaft is safe to use. It also complies with legal requirements. This certification reflects VEVOR’s commitment to quality. The PTO shaft performs reliably in all conditions. The CE certification adds an extra layer of assurance to keep you and your equipment safe. Use the shaft confidently in your operations. It is a mark of quality and safety.


See More

Specification

Model
T4-BⅢP*1100mm*4.05.05B*4.05.A35
Part Type
PTO Drive Shaft
Series
4
Certificate
CE Certification
Material
20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End
1-3/8" x 6 Spline
Implement End
1-3/8" x Round End
Compressed Length
43" / 1100mm
Extended Overall Length
61" / 1550mm
At 540RPM
35hp, 26Kw, 460Nm
At 1000RPM
53hp, 39Kw, 360Nm
Color
Black
Questions and Answers
6 Questions
Will this work on a 6 foot brush hog with an 85 hp tractor
No.
By vevor
Can this be cut down to something 24 to 34 inch range
For this PTO Shaft, it can be adjusted to 24 inches, but it will not stretch to 34 inches, it is too short.
By vevor
On your pto drivelines the pictures or text do not indicate if the spline end(tractor end) has a pin to engage the groove on the pto shaft of the tractor. Could you provide a picture or description please?
12.7*90. Please purchase the screw and nut size according to your actual usage. There is no picture.
By vevor
what size are the universal joints?
The size is 27*74.6mm.
By vevor
I use a 1-3/8”-6 spline implement adapter to JDeere 21 spline 506 rotary cutter. Can I use shear bolt thru the coupler/adapter? JDeere 506 has a small diameter shear pin which I will be using (grade2) to keep from damaging the gearbox or driveline. ( New Holland TC35D tractor 540 rpm with the 5ft. rotary bush cutter)
Yes, it can be done that way.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
156 Review(s)
Clear filters
Daniel Daniel
Westrick
Came as described, came as promised, Good service and Quality , It was prompt and fast. Would buy off of them again.
Tim from Maine Tim from Maine
Huge stress relief for me with wood chipper.
This is just what I needed. I have a wood chipper and was breaking shear bolts every few minutes. I dealt with that for a month or so and then ordered this unit. Worked perfect and as described. Fast shipping too. Well worth the prices that it is. It rescued my blood pressure from all the headaches from the shear Type.
outdoordad outdoordad
works great!
Finally got it hooked up to my tiller and worked like a champ. Great price, seems good quality and no issues hooking up. Seems winner all around. Just started using, so all fives so far.
Dan U Dan U
Great replacement shaft
Great replacement shaft! I used it to convert from my old/failed spline drive bush hog gearbox and it installed and functioned without issue! Very satisfied, and would recommend!!
VEVOR Customer VEVOR Customer
Quality
This is a very well made pto shaft for bush mowers. I am so please with the quality of this shaft that I recommend anyone needing one then don't hesitate to order it. You won't be disappointed.
Dave Dave
owner
Good quality product, heavy duty construction with a price that can't be beat. I would buy again if needed.
Dave Dave
Quality
Nice unit. Fit right on my brush hog. Already greased and ready to go. No regrets can’t beat the price
Partsman Partsman
Bumpkin
Great quality, fast delivery, came ready to use. Using it on my brush hog with excellent results so far. I'd recommend this to others.
Todd Todd
mr
The product arrived in good packaging. It is a very nice piece, built solid and the price was great
Justin Justin
Perfect replacement.
Exactly what I needed to complete my brushhog overhaul. Works great, well put together, price was great! Would definitely purchase again!
