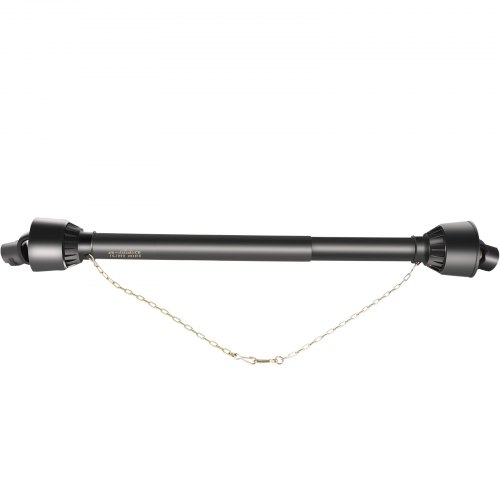

VEVOR pto shaft with black tubing and safety chain. VEVOR pto shaft for tractor with material and specifications overview. VEVOR pto shaft with 1-3/8" ends: round and six-spline for farm equipment. VEVOR pto shaft, 30"-39" adjustable length, 30in collapsed, 35in extended. VEVOR pto shaft with telescoping tubes, plastic shield, security chain, and universal joint. VEVOR pto shaft installation steps: detach shaft, measure size, cut shield, deburr, assemble. VEVOR pto shaft, 30in-39in, product weight: 18.74 lbs, diameter: 1-3/8in.
CDZT4B75040550001V0

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline Tractor End and Round Implement End PTO Driveline Shaft, Tractor PTO Shaft, 30"-39" Brush Hog PTO Shaft Black, for Finish Mower, Rotary Cutter

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • 6 Spline & Round Ends: Our brush hog shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Tractor end: 1 3/8" x 6-spline; implement end: 1 3/8" x round end.
  • Adjustable Length: Compressed Length: 30" / 750 mm; Extended Overall Length: 39" / 980 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque.
  • Sturdy & Reliable: This shaft is a well-forged series 4 driveling shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield.
  • Convenient & Secure: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
  • Wide Application: It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and many more. Control the speed and power of your machine effectively.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline Tractor End and Round Implement End PTO Driveline Shaft, Tractor PTO Shaft, 30"-39" Brush Hog PTO Shaft Black, for Finish Mower, Rotary Cutter
tractor with VEVOR pto shaft and trailer in a wheat field. series 4 pto drive shaft shown.
VEVOR pto shaft with chain attachment and black finish.
PTO Drive Shaft for Tractors
30"-39" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly.
  • Sturdy & Reliable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft specifications, showing implement end, tractor end, and length options.
Perfect Match
With 30"-39" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft with powerful transmission force and performance specs.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft with telescoping tubes, q345 steel tube, and plastic shield.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
VEVOR pto shaft installation: detaching, measuring, cutting, deburring, and assembling.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft used in various tractors for agricultural applications.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
VEVOR pto shaft, two sizes: 30in/75cm and 39in/98cm, black finish.
Specifications
  • Model: T4-BⅢP*750mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 30" / 750 mm
  • Extended Overall Length: 39" / 980 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black
VEVOR pto shaft with safety chain and protective covers on both ends.
Package Content
  • 1 x PTO Shaft
  • 1 x Locking Pin
  • 1 x User Manual
tractor with VEVOR pto shaft and trailer in a wheat field. series 4 pto drive shaft shown.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto shaft with chain attachment and black finish.
PTO Drive Shaft for Tractors
30"-39" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly.
  • Sturdy & Reliable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly
VEVOR pto shaft with q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft specifications, showing implement end, tractor end, and length options.
Perfect Match
With 30"-39" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft with powerful transmission force and performance specs.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft with telescoping tubes, q345 steel tube, and plastic shield.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
VEVOR pto shaft installation: detaching, measuring, cutting, deburring, and assembling.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft used in various tractors for agricultural applications.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
VEVOR pto shaft with safety chain and protective covers on both ends.
Package Content
  • 1 x PTO Shaft
  • 1 x Locking Pin
  • 1 x User Manual
VEVOR pto shaft, two sizes: 30in/75cm and 39in/98cm, black finish.
Specifications
  • Model: T4-BⅢP*750mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 6 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 30" / 750 mm
  • Extended Overall Length: 39" / 980 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

PTO Shaft Offers Unbeatable Cost Efficiency and Quality

The cost-effectiveness of the VEVOR PTO shaft is a budget-friendly option without compromising on quality. It's made from high-quality materials like 20CrMnTi carburized steel and Q345 steel. This ensures durability and long-term use. However, the cost is significantly lower. You get that performance at a lower cost. It fits perfectly for various implements like brush hogs and rotary cutters. Competitive pricing makes it an excellent choice for farmers and landowners because you can save money and still get the product.


Easy Installation and Adjustment of the PTO Shaft

This PTO shaft is designed to be easy to install. It comes with clear instructions for those who don't know how to set up a PTO shaft. The length is adjustable, so no cutting is usually required. The included hardware is decent and easy to work with. Plastic guards are simple to remove for greasing. This means you can set it up quickly and get back to work. Even if adjustments are needed, the process is straightforward, saving you time and effort, making it an effective choice.


Durable and Reliable Performance for Heavy-Duty Use

The VEVOR PTO shaft is built to last. It can handle tough conditions without issues. The shaft itself is sturdy and can withstand heavy-duty use. Whether running on brush hogs or using the rotary cutter, it performs reliably. This holds up well even after several hours of usage. These solid u-joints run true. This ensures smooth operation and reduces wear and tear. Quality construction ensures it can manage demanding tasks without breaking down.


Versatile Compatibility with Various Implements

Whether you are working on finish mowers, rotary cutters, or anything in between, this PTO shaft is versatile and fits a wide range of implements. It works well with finish mowers, rotary cutters, etc. The tractor end is 1/8" x 6 spline, and the implement end is 1-3/8” x round end. This makes it compatible with many different machines. You can use it for various tasks around your farm or property. Because of its versatility, you can use more than one product. So, being able to collect all these tools and equipment is advantageous.


Fast and Reliable Shipping with Well-Packaged Delivery

It is a product that arrives well-packaged to prevent damage during transit. You can expect prompt delivery, often before schedule, so you return to work quickly. The packaging is strong and protects the shaft during shipping. This ensures it arrives in perfect condition and is ready to use.


Pre-Greased and Easy to Maintain for Longevity

The PTO shaft is made in good shape for convenience. This means that it's ready to use right out of the box. The grease points are easy to access, making maintenance simple. Regular greasing ensures the shaft runs smoothly and lasts longer. Easy maintenance means you spend less time on upkeep. It keeps the part in top condition and extends its lifespan. Proper maintenance is key to getting the most out from your equipment.


Excellent Customer Service and Support from VEVOR

The VEVOR provides exceptional customer service and support. If you have any issues or questions, they are quick to respond. The customer service representatives are helpful and knowledgeable. They help you with any concerns that may arise. This ensures a smooth buying experience. You can trust that any problems will be resolved promptly. Good customer care is essential for peace of mind. It makes sure you are well taken care of after your purchase!


See More

Specification

Model
T4-BⅢP*750mm*4.05.05B*4.05.A35
Part Type
PTO Drive Shaft
Series
4
Certificate
CE Certification
Material
20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End
1-3/8" x 6 Spline
Implement End
1-3/8" x Round End
Compressed Length
30" / 750 mm
Extended Overall Length
39" / 980 mm
At 540RPM
35hp, 26Kw, 460Nm
At 1000RPM
53hp, 39Kw, 360Nm
Color
Black
