VEVOR pto shaft with safety chain in black finish, for agricultural machinery. VEVOR pto shaft connected to green tractor and red machinery on grass. VEVOR pto shaft with 1-3/8" standard size, ideal for farm equipment. VEVOR pto shaft with flexible design, adjustable from 53 to 74 inches. VEVOR pto shaft with telescoping tubes, universal joint, q345 steel tube, and yoke. easy installation of VEVOR pto shaft: detach shaft, measure, cut, deburr, and assemble. VEVOR pto shaft specifications: weight 30.42 lbs, diameter 1-3/8in, extends to 74in.
CDZT4B13004055001V0

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline End and Round Implement End PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 51"-75" Brush Hog PTO Shaft, for Finish Mower, Rotary Cutter

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Sturdy and Durable: This PTO shaft is a well-forged series4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
  • 6 Spline & Round Ends: Tractor end: 1 3/8" x 6-spline; implement end: 1 3/8" x round end. Our brush hog PTO shaft matches perfectly with the same size and type of implements and tractors, providing magnificent driving force for your machinery. Your machinery will be running like never before.
  • Adjustable Length: Compressed Length: 51" / 1300 mm; Extended Overall Length: 74" / 1900 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It has 35 Hp, 26 Kw, and 460 Nm torque at 540 rpm, while at 1000 rpm features 53 Hp, 39 Kw, and 360 Nm torque. It allows two sides of the PTO drive line shaft to spin at different speeds.
  • Easy Assembly&Safer Use: As a high-efficient power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers in the transmission process.
  • Wide Application: The PTO (Power Take-Off) shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, rotary tillers, brush cutters, hush hug, tractors, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR PTO Shaft, 1-3/8" PTO Drive Shaft, 6 Spline End and Round Implement End PTO Driveline Shaft, Series 4 Tractor PTO Shaft, 51"-75" Brush Hog PTO Shaft, for Finish Mower, Rotary Cutter
VEVOR pto shaft with tractor, 53"-79" adjustable length, 6-spline and round end.
black VEVOR pto shaft with connecting chain and protective end caps
PTO Drive Shaft for Tractors
51"-74" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

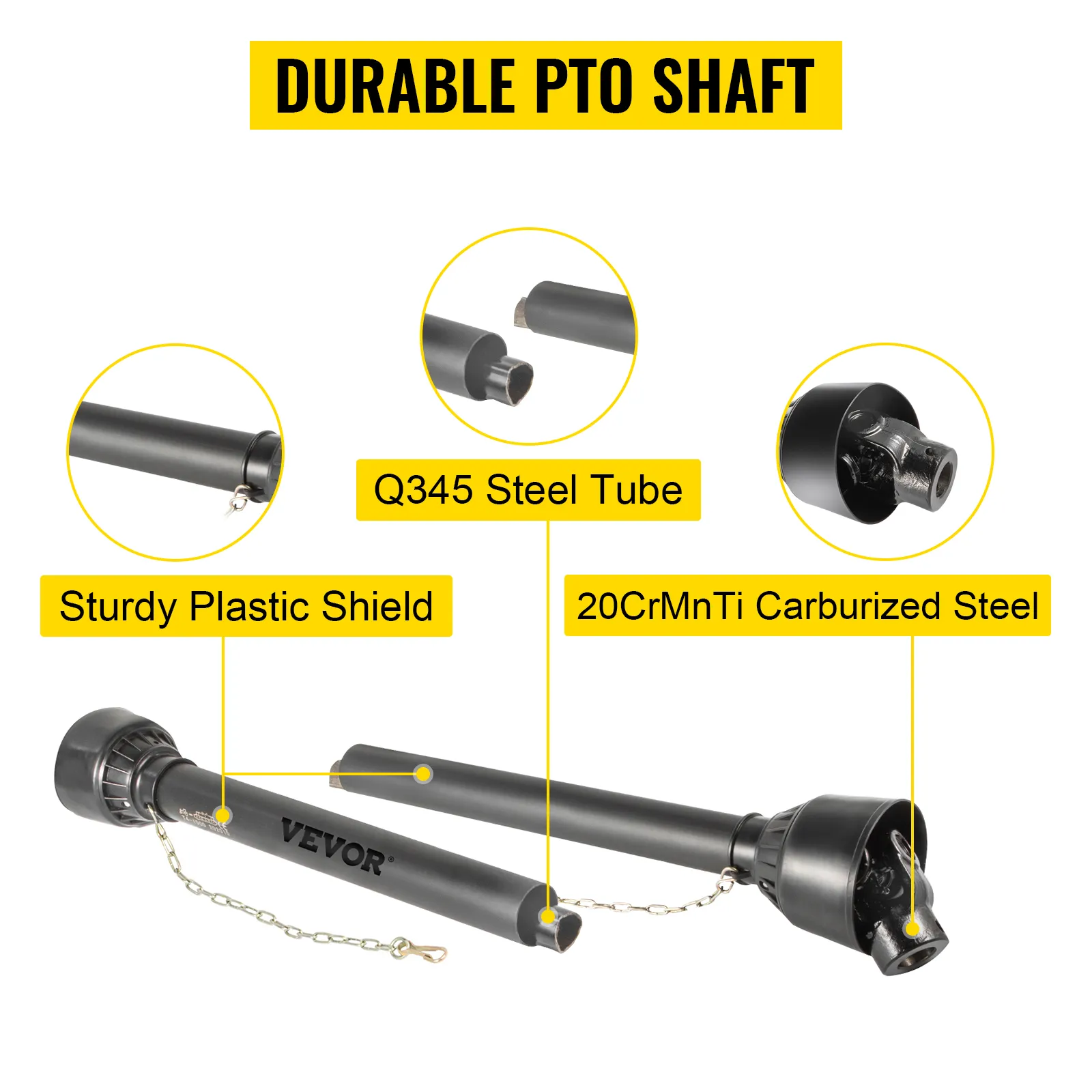

VEVOR pto shaft features q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft with 1-3/8" implement and tractor ends, 53-74 inch length.

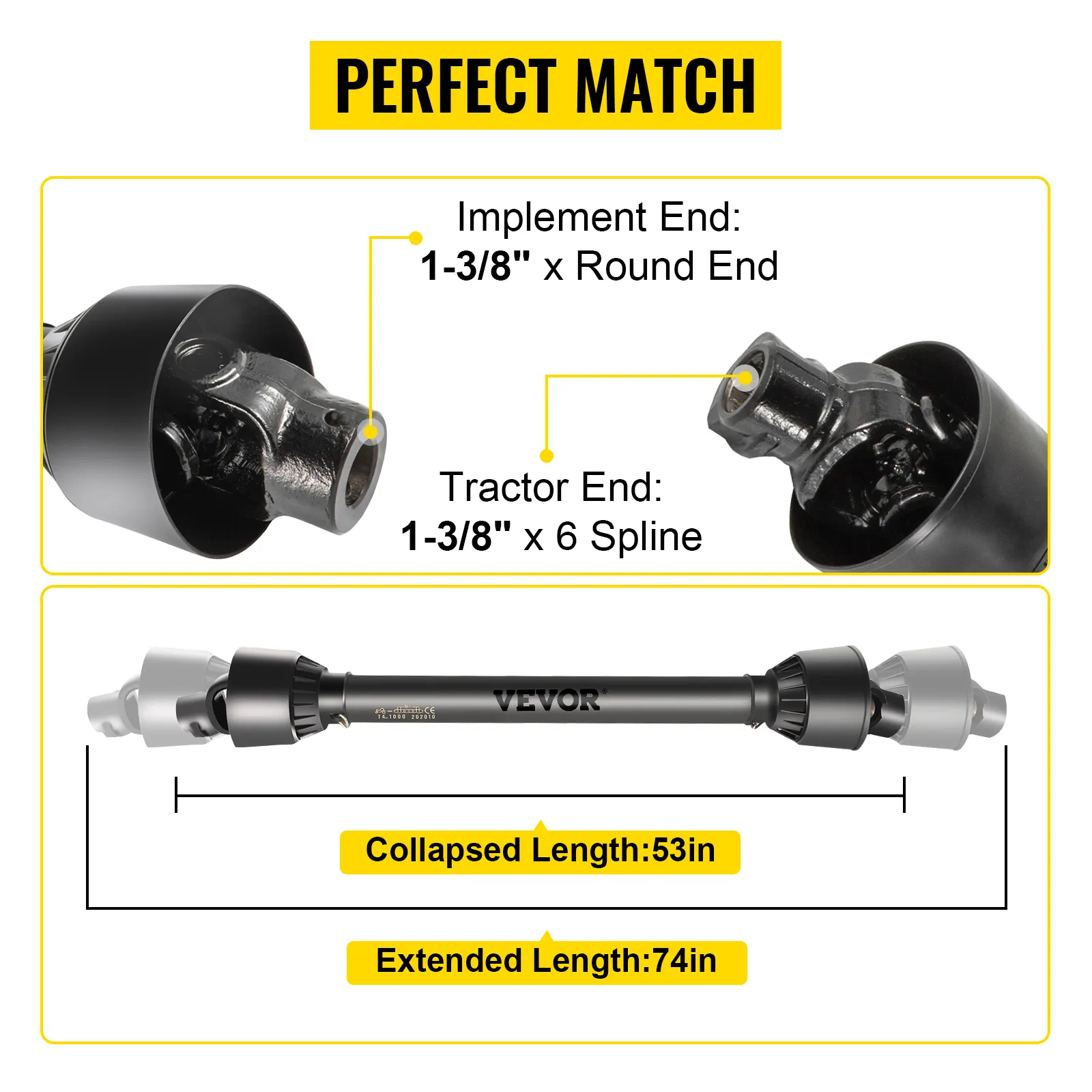

Perfect Match
With 51"-74" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

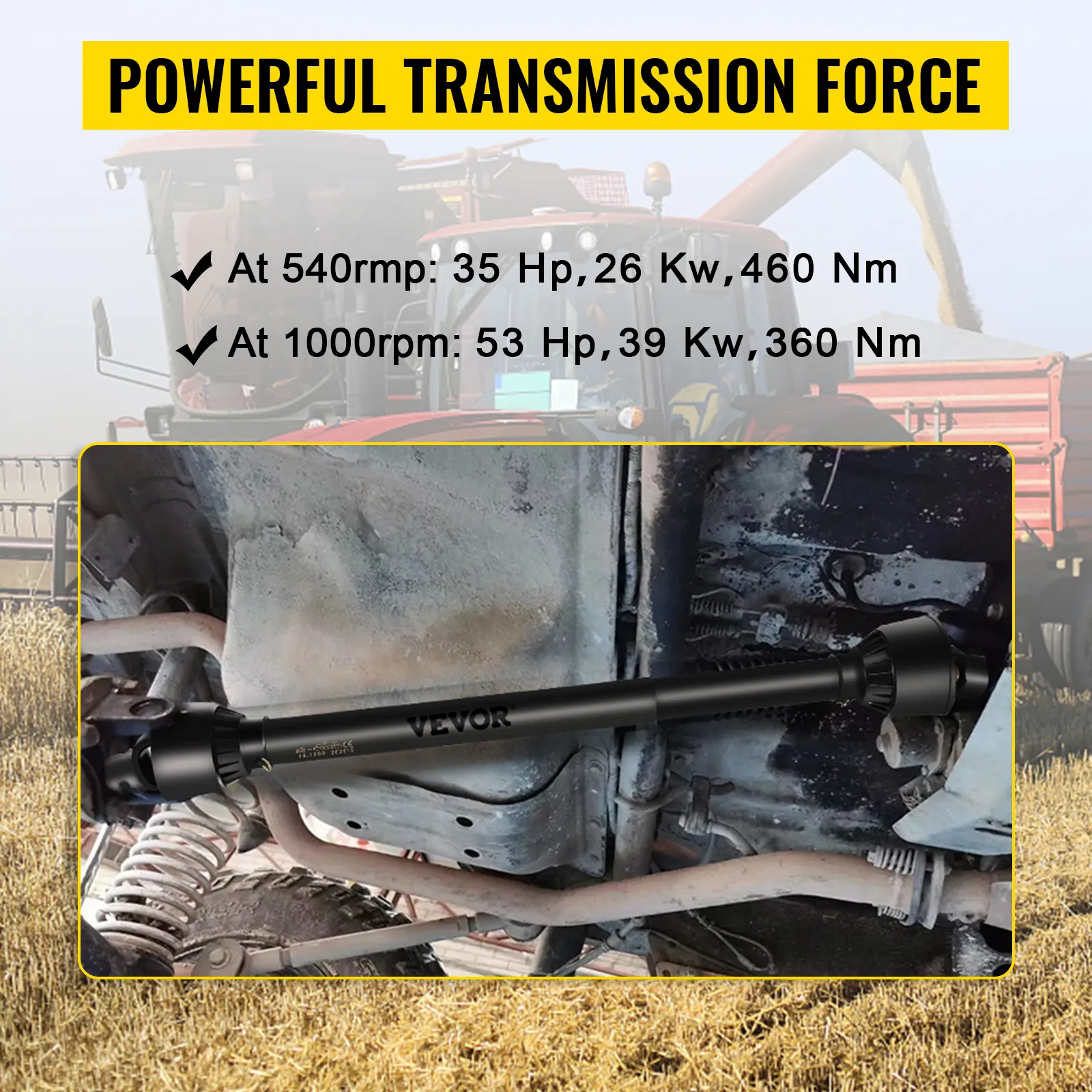

VEVOR pto shaft with specifications for powerful transmission force in farming equipment.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft features telescoping tubes, plastic shield, q345 steel tube, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
VEVOR pto shaft installation steps: detach, measure, cut, deburr, assemble.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.

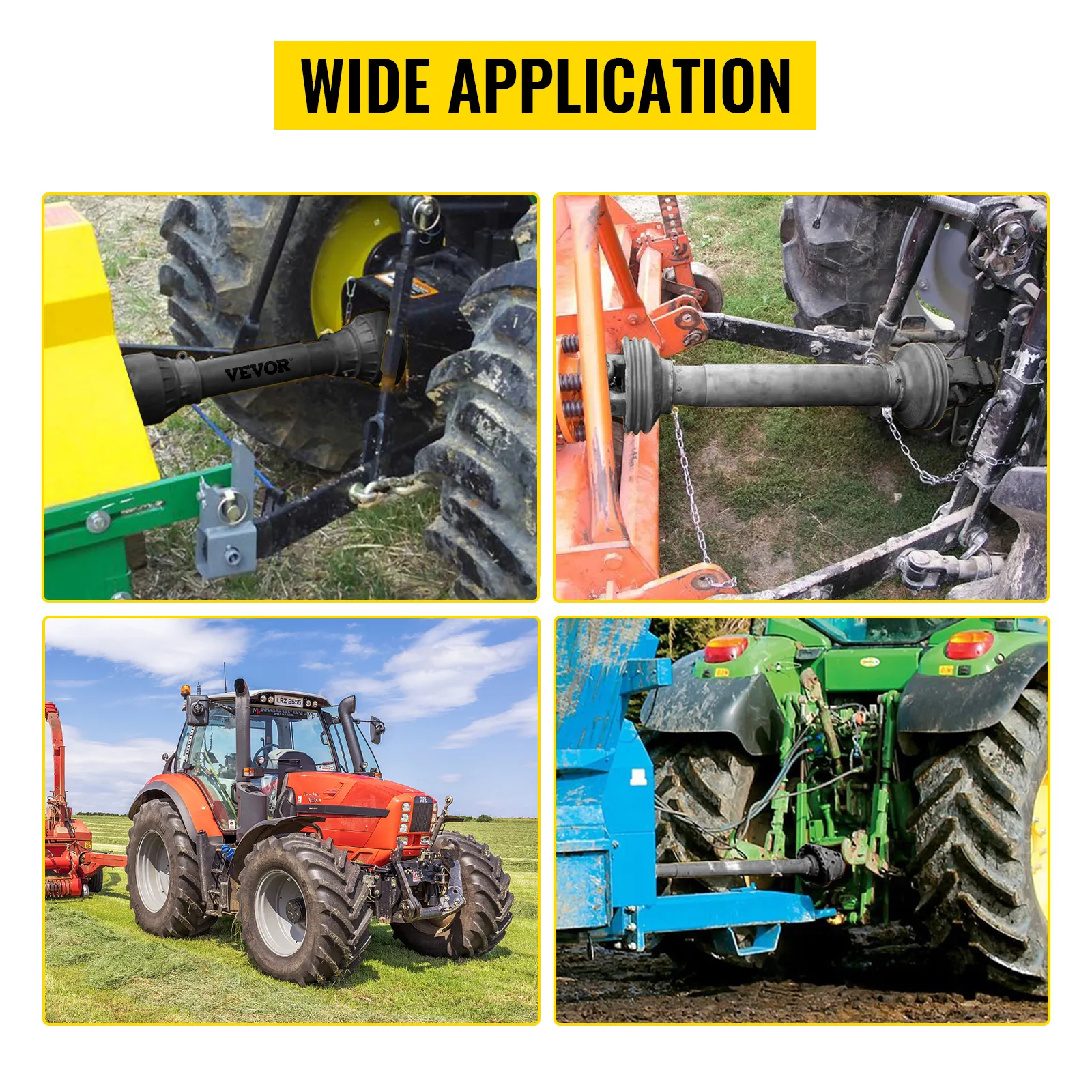

VEVOR pto shaft in use with various tractors showcasing wide application
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.

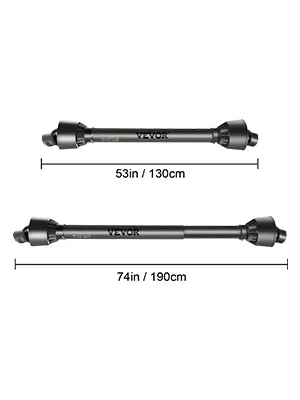

two VEVOR pto shaft models: 53in/130cm and 74in/190cm variants displayed.
Specifications
  • Model: T4-BⅢP*1300mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 7 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 51" / 1300 mm
  • Extended Overall Length: 74" / 1900 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

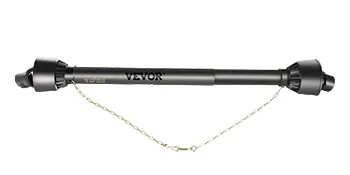

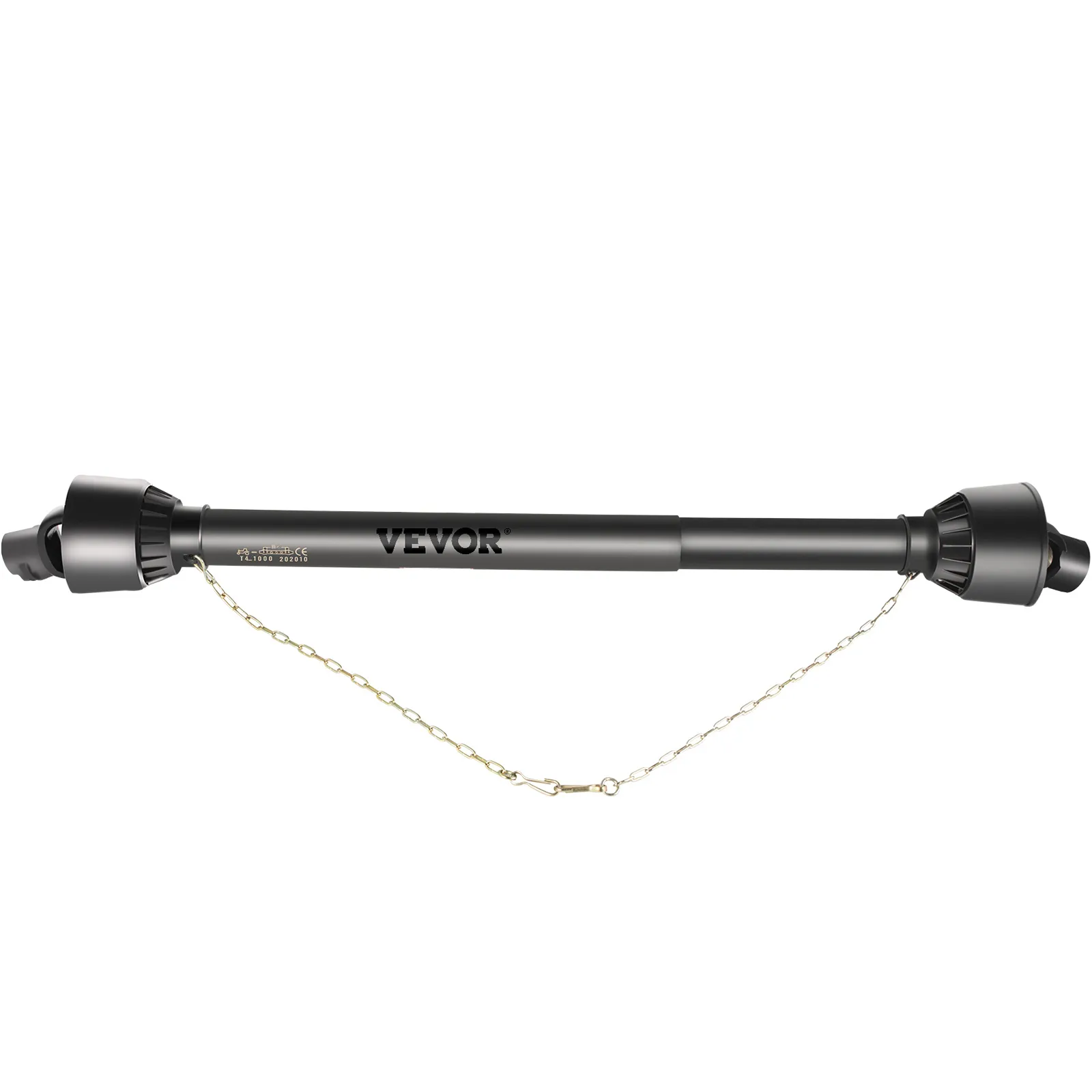

VEVOR pto shaft with a robust metal build and safety chain, isolated on a white background.
Package Content
  • 1 x PTO Shaft
  • 1 x User Manual
VEVOR pto shaft with tractor, 53"-79" adjustable length, 6-spline and round end.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
black VEVOR pto shaft with connecting chain and protective end caps
PTO Drive Shaft for Tractors
51"-74" & 1-3/8" Ends & Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
  • Sturdy and Durable
  • 6 Spline & Round Ends
  • Adjustable Length
  • Easy Assembly&Safer Use
VEVOR pto shaft features q345 steel tube, 20crmnti steel, and sturdy plastic shield.
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
VEVOR pto shaft with 1-3/8" implement and tractor ends, 53-74 inch length.
Perfect Match
With 51"-74" extendable length and featuring 1-3/8" 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
VEVOR pto shaft with specifications for powerful transmission force in farming equipment.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
VEVOR pto shaft features telescoping tubes, plastic shield, q345 steel tube, and universal joint.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
VEVOR pto shaft installation steps: detach, measure, cut, deburr, assemble.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
VEVOR pto shaft in use with various tractors showcasing wide application
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
VEVOR pto shaft with a robust metal build and safety chain, isolated on a white background.
Package Content
  • 1 x PTO Shaft
  • 1 x User Manual
two VEVOR pto shaft models: 53in/130cm and 74in/190cm variants displayed.
Specifications
  • Model: T4-BⅢP*1300mm*4.05.05B*4.05.A35
  • Part Type: PTO Drive Shaft
  • Series: 4
  • Certificate: CE Certification
  • Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
  • Tractor End: 1-3/8" x 7 Spline
  • Implement End: 1-3/8" x Round End
  • Compressed Length: 51" / 1300 mm
  • Extended Overall Length: 74" / 1900 mm
  • At 540RPM: 35hp, 26Kw, 460Nm
  • At 1000RPM: 53hp, 39Kw, 360Nm
  • Color: Black

Durable PTO Shaft for Reliable Performance

This shaft is made from high-quality 20CrMnTi carburized steel and Q345 steel. This ensures it can handle heavy-duty tasks without fail. Its strong construction makes it ideal for rotary cutters, brush hogs, and finish mowers. The shaft can withstand tough conditions while providing long-lasting performance. The materials used in its construction make it a durable investment for your farming needs. You can depend on this shaft for consistent performance, season after season. Because of its durability, you won't have to replace it often. This will save you money in the long run.


Cost-Effective Solution Compared to Local Stores

This is a great value for money. The VEVOR PTO shaft offers great value for money. It costs significantly less than similar products at local stores. Although the cost is lower, it does not compromise on quality. You can get a high-quality shaft without breaking the bank. This makes it an affordable solution for farmers and landowners. Cost savings are important, especially considering the shaft's durability and performance. It is a rational investment that pays for itself over time. You get the reliability you need at a price that fits your budget.


Easy Installation and Adjustment for Various Equipment

It is so simple to install the VEVOR PTO shaft. It comes with clear instructions, making it easy for anyone to set up. The shaft is adjustable and fits a variety of equipment. Whether you have a rotary cutter, brush hog, or finish mower, this shaft will likely fit. You may need to cut it down to size, but this process is easy. Adjustability ensures you get exactly the right fit every time. This ease of installation saves you time and frustration. Get back to work quickly, with minimal interruption.


Well-Packaged and Quick Shipping for Immediate Use

When it arrives, the VEVOR PTO shaft is well-packaged, ensuring it reaches you in perfect condition. The packaging protects the shaft during transit, preventing damage so you can use it immediately upon arrival. The shipping is also quick, getting your shaft to you promptly. This is important when you need to get back to work fast. Efficient packaging and shipping demonstrate VEVOR's commitment to customer satisfaction. You can trust them to deliver your products promptly and safely.


Perfect Fit for a Wide Range of Tractors and Mowers

The VEVOR PTO shaft fits a wide range of tractors and mowers. It is compatible with many farming and land equipment types, making it incredibly versatile. Whether you have an older or newer model, this shaft will likely fit. This versatility ensures that you can find the right fit for your equipment. It is compatible with both small and large-scale farming machinery. So, you won't need to look for a specialized shaft for each piece of equipment, making it easier to maintain your machinery. The VEVOR PTO shaft simplifies this process, making it easier to keep your machines running.


Pre-Greased for Immediate Use and Easy Maintenance

This shaft is pre-greased and ready for immediate use. This saves you time because you don't need to grease it before installation. The pre-greasing also guarantees smooth operation from the start. Maintenance is straightforward, with accessible grease fittings. Regular greasing keeps the shaft in top shape, extending its lifespan. This easy maintenance ensures that this shaft continues reliably. You can keep your equipment running smoothly with minimal effort. The pre-greased feature is a convenient addition that improves the usability of the shaft.


High-Quality Materials Ensure Long-Lasting Performance

The materials used in the VEVOR PTO shaft ensure long-lasting performance. 20CrMnTi carburized steel and Q345 steel provide exceptional strength and durability. These materials can handle the rigors of farm work, ensuring the shaft lasts. High-quality construction means you won't have to replace it often. This longevity saves you money and reduces downtime. The reliable performance of the shaft ensures your equipment operates efficiently. You can trust the materials to withstand tough conditions year after year.


See More

Specification

Model
T4-BⅢP*1300mm*4.05.05B*4.05.A35
Part Type
PTO Drive Shaft
Series
4
Certificate
CE Certification
Material
20CrMnTi Carburized Steel + Q345 Steel + Plastic
Tractor End
1-3/8" x 7 Spline
Implement End
1-3/8" x Round End
Compressed Length
51" / 1300 mm
Extended Overall Length
74" / 1900 mm
At 540RPM
35hp, 26Kw, 460Nm
At 1000RPM
53hp, 39Kw, 360Nm
Color
Black
Questions and Answers
4 Questions
How much drivelines overlap at max length of 75 inches. My PHD manual require 6". Is this excessive?
The product is suitable and will not be excessive.
By vevor
What is the maximum working length? My current pto shaft working length on my pull behind brush hog is 73” will this one work?
Yes, it does work.
By vevor
Can you tell me what the diameter is of the largest part of the plastic shield (around the U-joint)?
140.
By vevor
What size is the shear bolt hole size? 1/2” x 3”?
12.7*90.
By vevor
