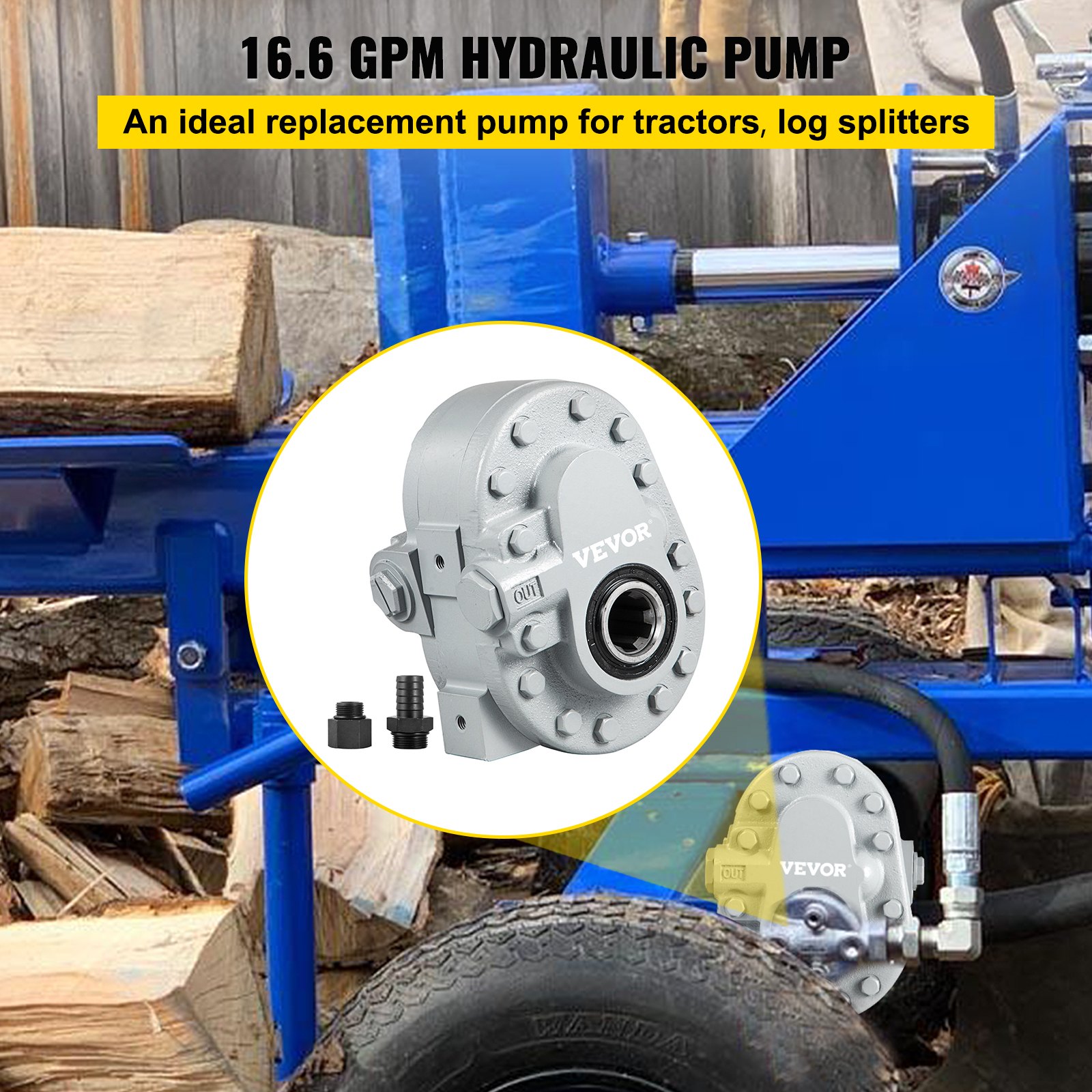

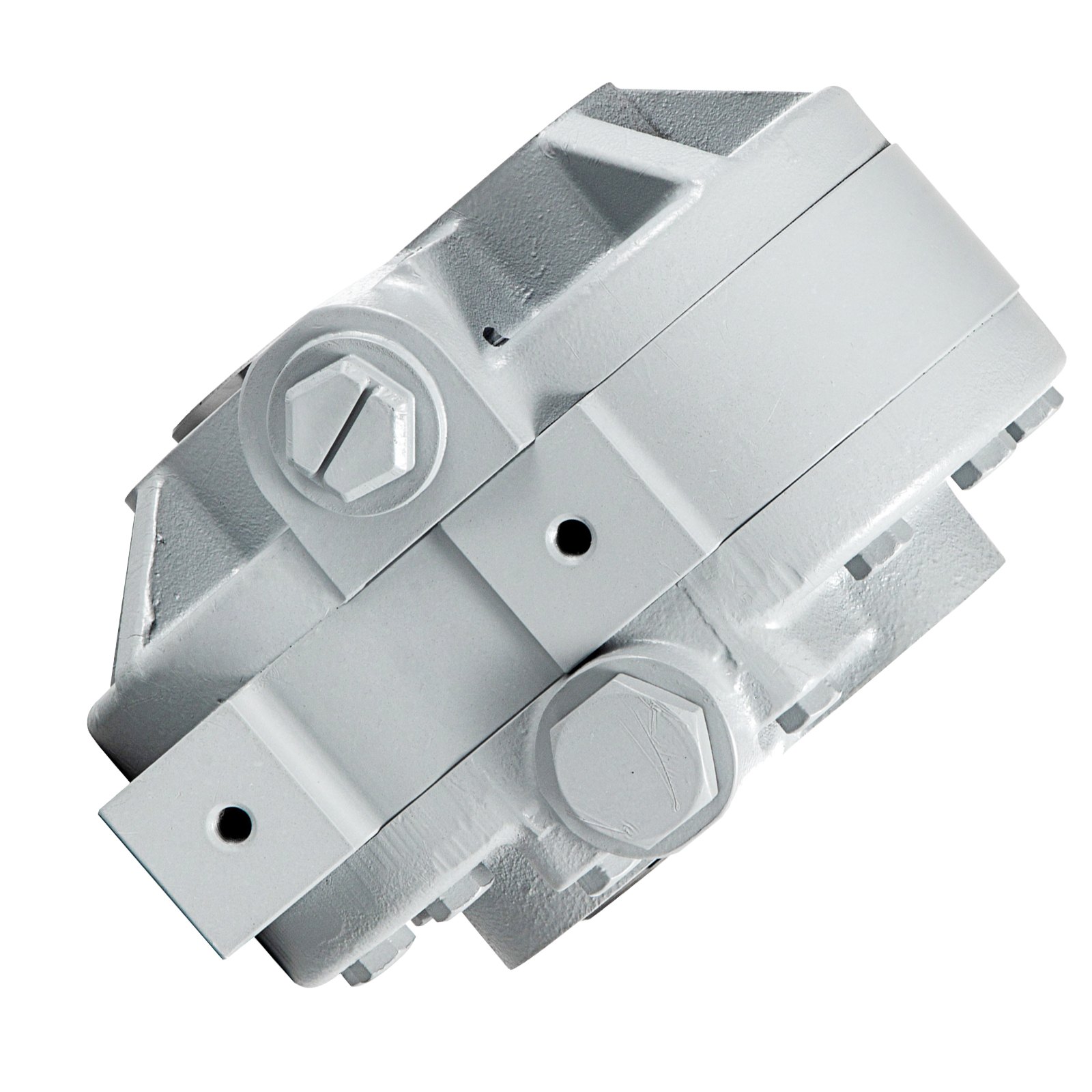

VEVOR hydraulic pump with outlet fittings and robust metal body. VEVOR hydraulic pump for tractors and log splitters in a woodcutting setup. VEVOR hydraulic pump showcasing 16.6 gpm flow rate, 540 rpm speed, and max pressure 2500 psi. VEVOR hydraulic pump with standard sae 16" inlet and 12" outlet ports. VEVOR hydraulic pump with sturdy metal housing, high-strength iron, and rust resistance. VEVOR hydraulic pump showcasing excellent performance benefits: rapid start, low noise, quick oil output. VEVOR hydraulic pump with dimensions and wood-splitting applications shown in photos.
CLB16.6GPM540RPM1V0

VEVOR Hydraulic Pump 16.6GPM Hydraulic Motor 540RPM Log Splitter 2500PSI Hydraulic Splitter SAE 12 Outlet Port Hydraulic Pump for Log Splitter for Truck Tailgate Lift,Scissor Lift, Dump Trailer

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • 16.6GPM Powerful Pump: This hydraulic pump features a 540 RPM max rotating speed, 2500PSI max operating pressure along with a 16.6 GPM high flow rate. It will bring powerful performance to your tractor, log splitter and other machines.
  • SAE 16 & SAE12 Ports: Our tractor pump is equipped with a standard SAE 12 outlet port and a SAE 16 on the inlet port. The standard size ensures a perfect fit with no fluid loss. Quality you can trust, for unmatched results you can see.
  • Sturdy & Durable: The high-strength iron casing with power-coated finish enables the pump to resist impact, rust, and high pressure. This sturdy structure can prevent leaks and ensure a prolonged service life.
  • Excellent Performance: This pump stands out with a simple design, and it allows for a direct and quick installation. Install the pump effortlessly, making your PTO powered equipment more effective and robust.
  • Wide Application: The hydraulic pump is excellent for tractors, log splitters, press, machine tools, and power units for snowplows. It has outstanding compatibility with many OEMs like Speeco, Huskee, Champion, and many more.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hydraulic Pump 16.6GPM Hydraulic Motor 540RPM Log Splitter 2500PSI Hydraulic Splitter SAE 12 Outlet Port Hydraulic Pump for Log Splitter for Truck Tailgate Lift,Scissor Lift, Dump Trailer
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
VEVOR hydraulic pump for tractors, sae 16 and sae 12 ports, 16.6 gpm, 540 rpm, 2500 psi.

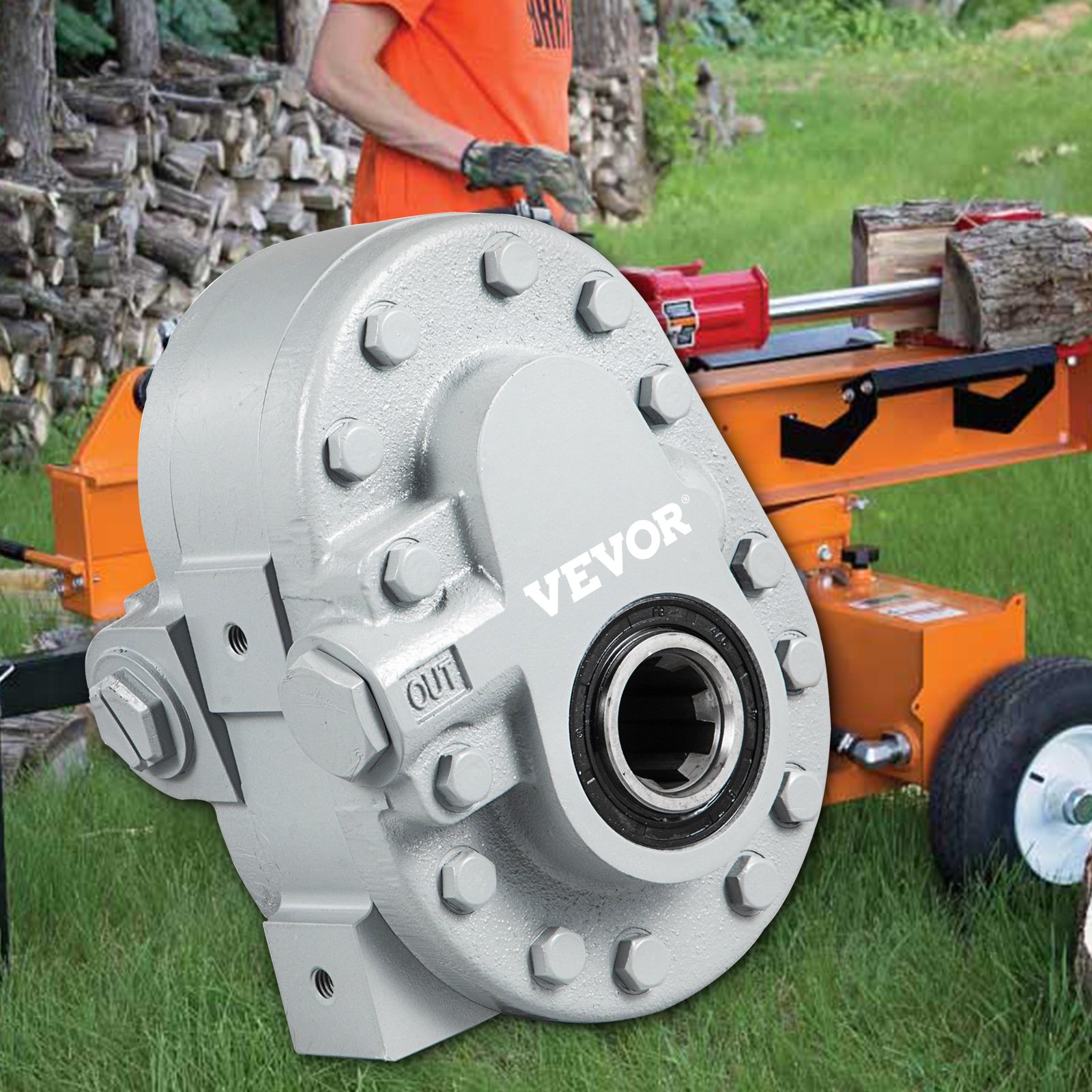

VEVOR hydraulic pump attached to machinery in an outdoor setting.
16.6 GPM Hydraulic Pump
This is an excellent replacement pump for log splitters, hydraulic presses, snow plow power units and a variety of other agricultural power equipment. Mounting Positions: Horizontal & Vertical This two-stage gear pump provides faster cycle times with an over-all higher pressure rating, so you can squeeze every bit of power out of your equipment.
  • High Quality Material for Longevity
  • Fast Starting
  • Safety Assurance
  • Easy To Operate

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic pump in use, enhancing work efficiency in an outdoor setting.
Sturdy and Durable
Over-pressure unit of pressure safety valve to avoid over pressure damage or extremely pressured.

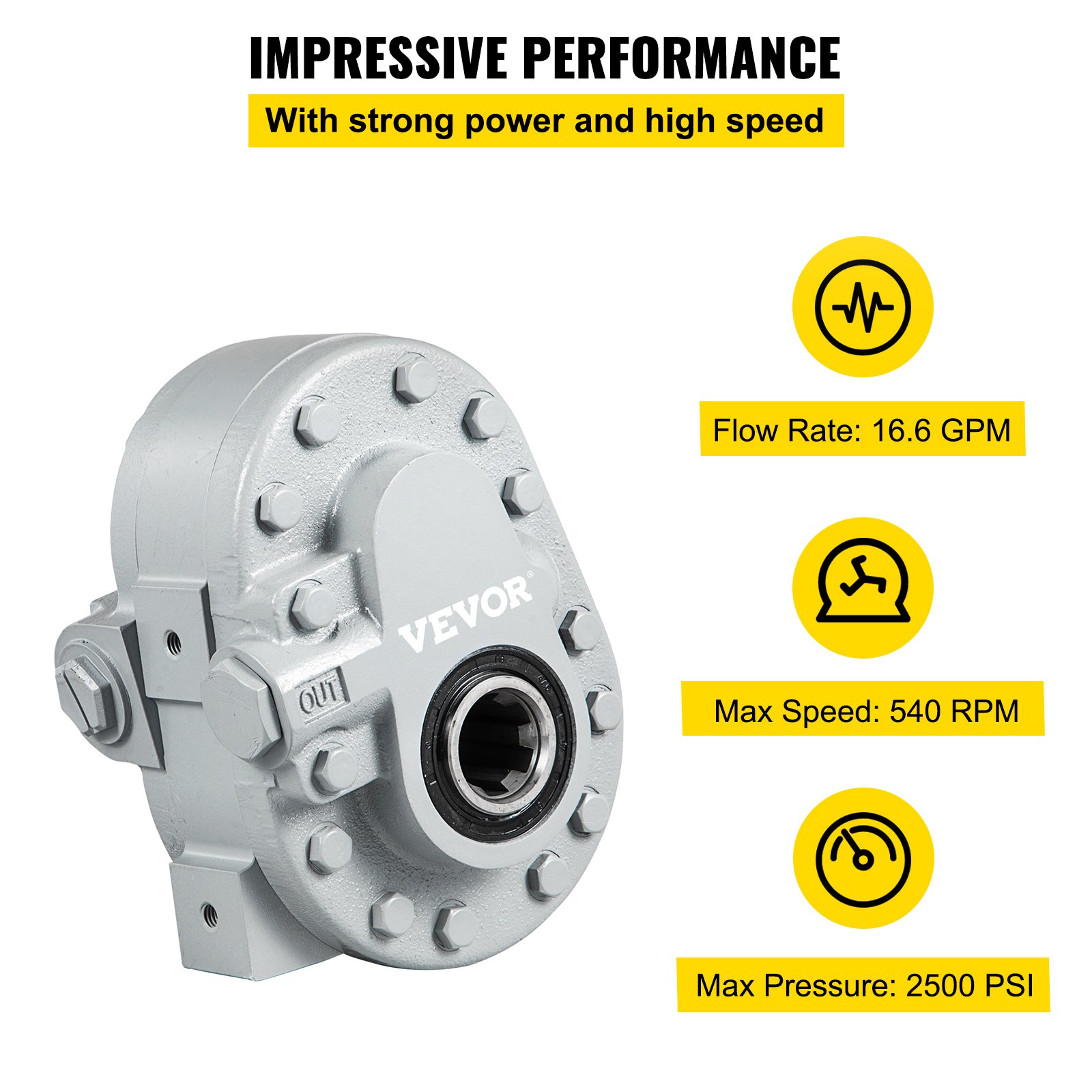

VEVOR hydraulic pump with 16.6 gpm, 540 rpm, and 2500 psi for fast and powerful performance.
Rapid Start
The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.Its high quality starter ensure long life and a fast starting each time.

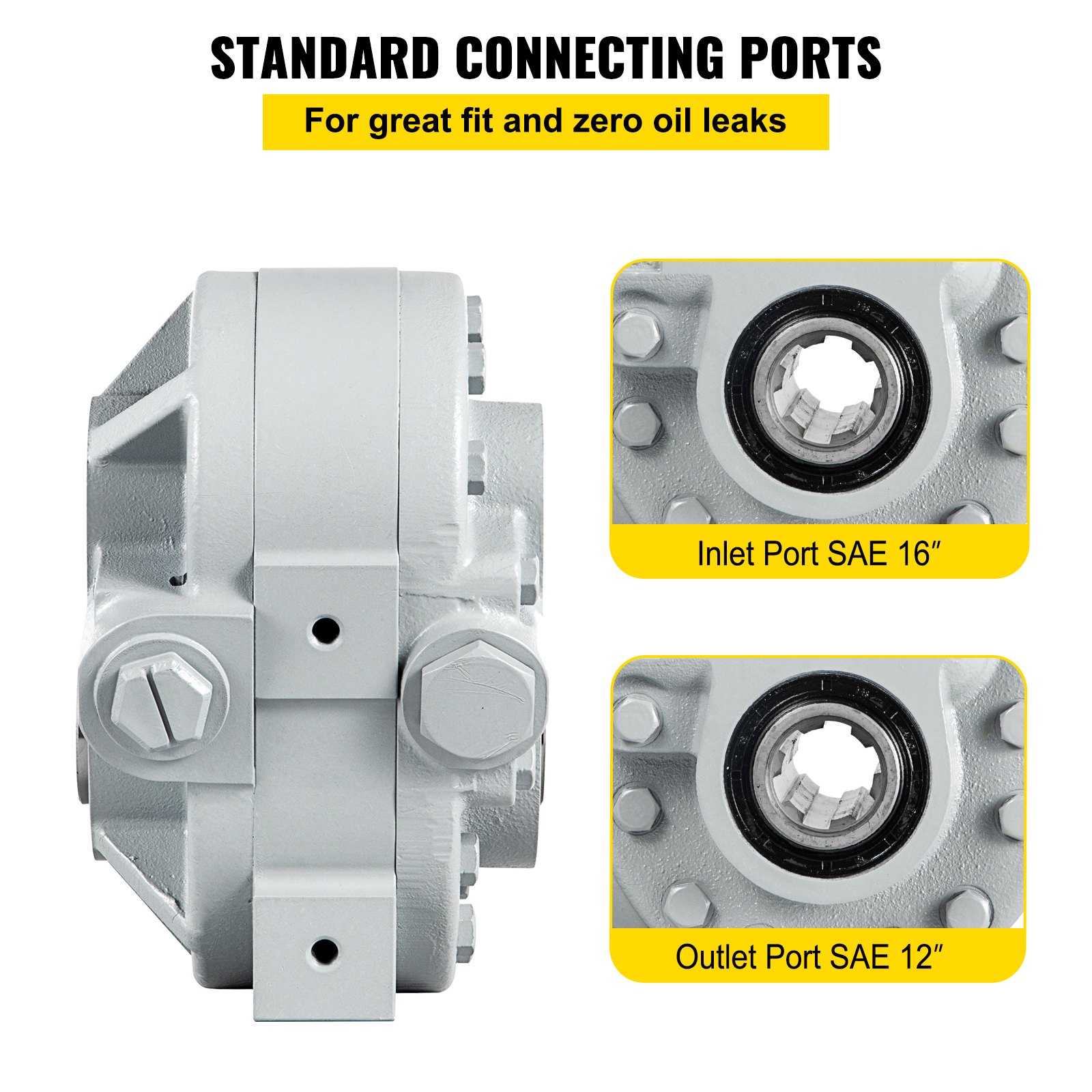

VEVOR hydraulic pump with no leaks, sae 16" inlet port, and sae 12" outlet port.
Low Noise
This log splitter hydraulic fluid constructed with high quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition.

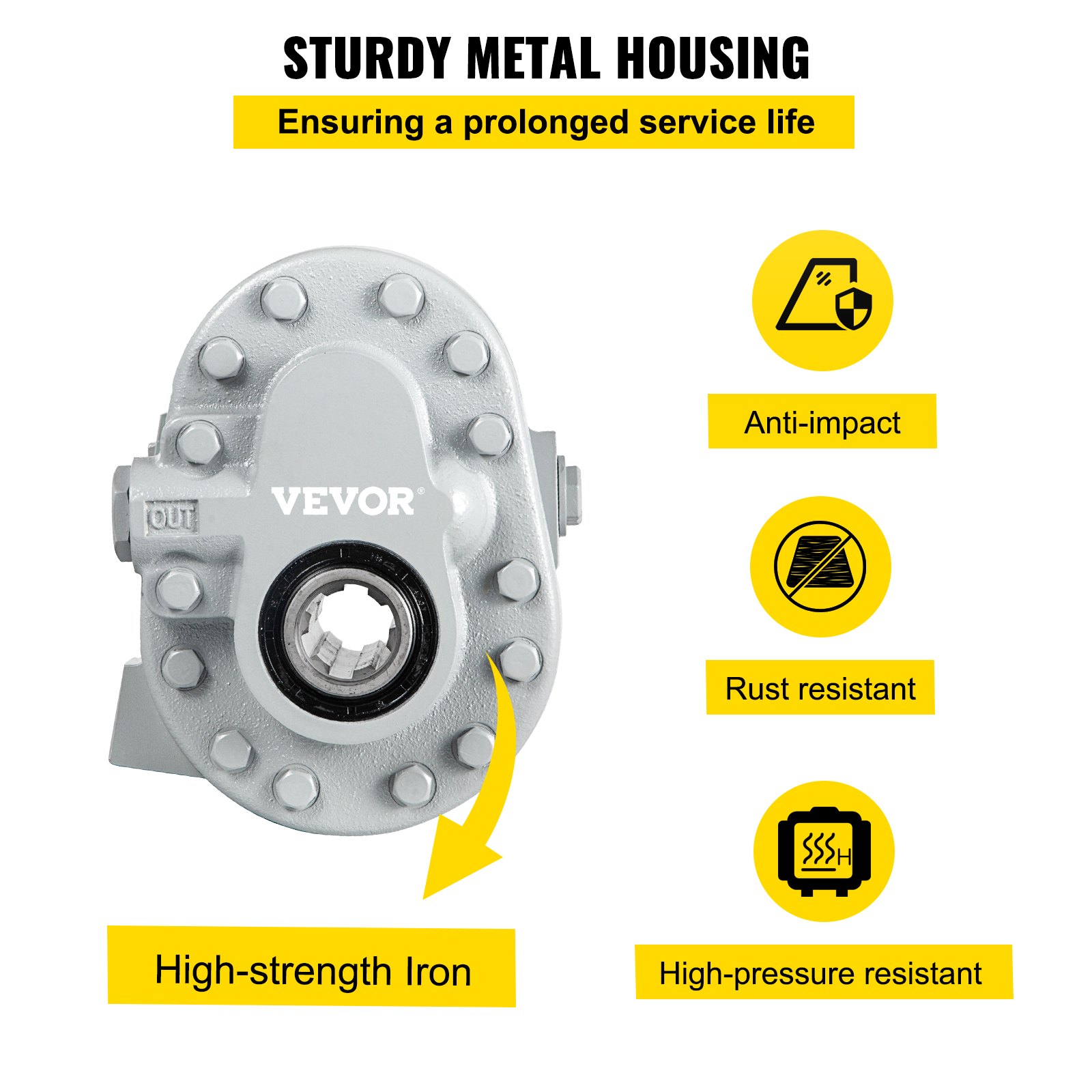

VEVOR hydraulic pump with reinforced iron casing, sturdy, rustproof, anti-vibration.
Quick Oil Output
Perfect replacement pump for log splitter coupling controlled hydraulic systems, designed for horizontal mounting, capable of quick oil output.

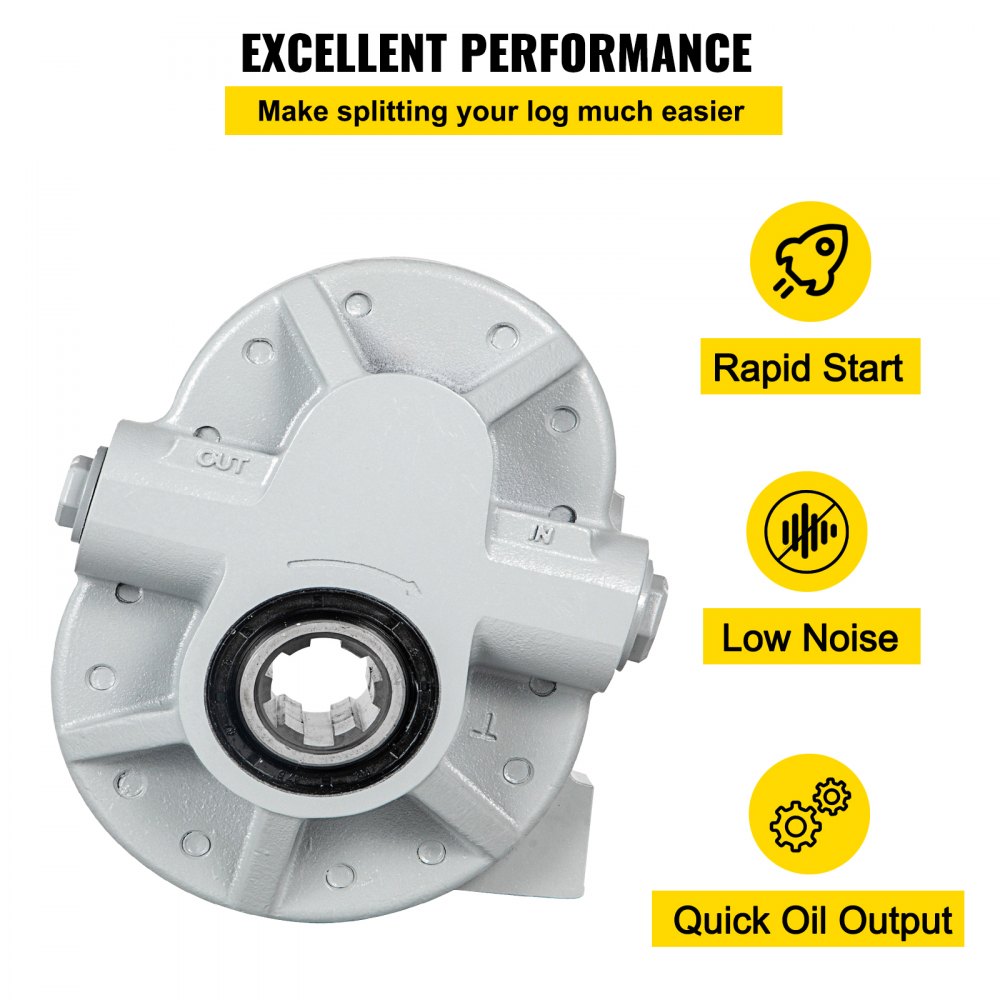

VEVOR hydraulic pump with high performance, rapid start, low noise, and quick oil output.
Fully Equipment
This hydraulic pump is equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work. Reduce labor intensity.
VEVOR hydraulic pump in various wood-splitting applications.
Wide Application
Used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, rv leveling, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling, wheelchair lifts, etc.

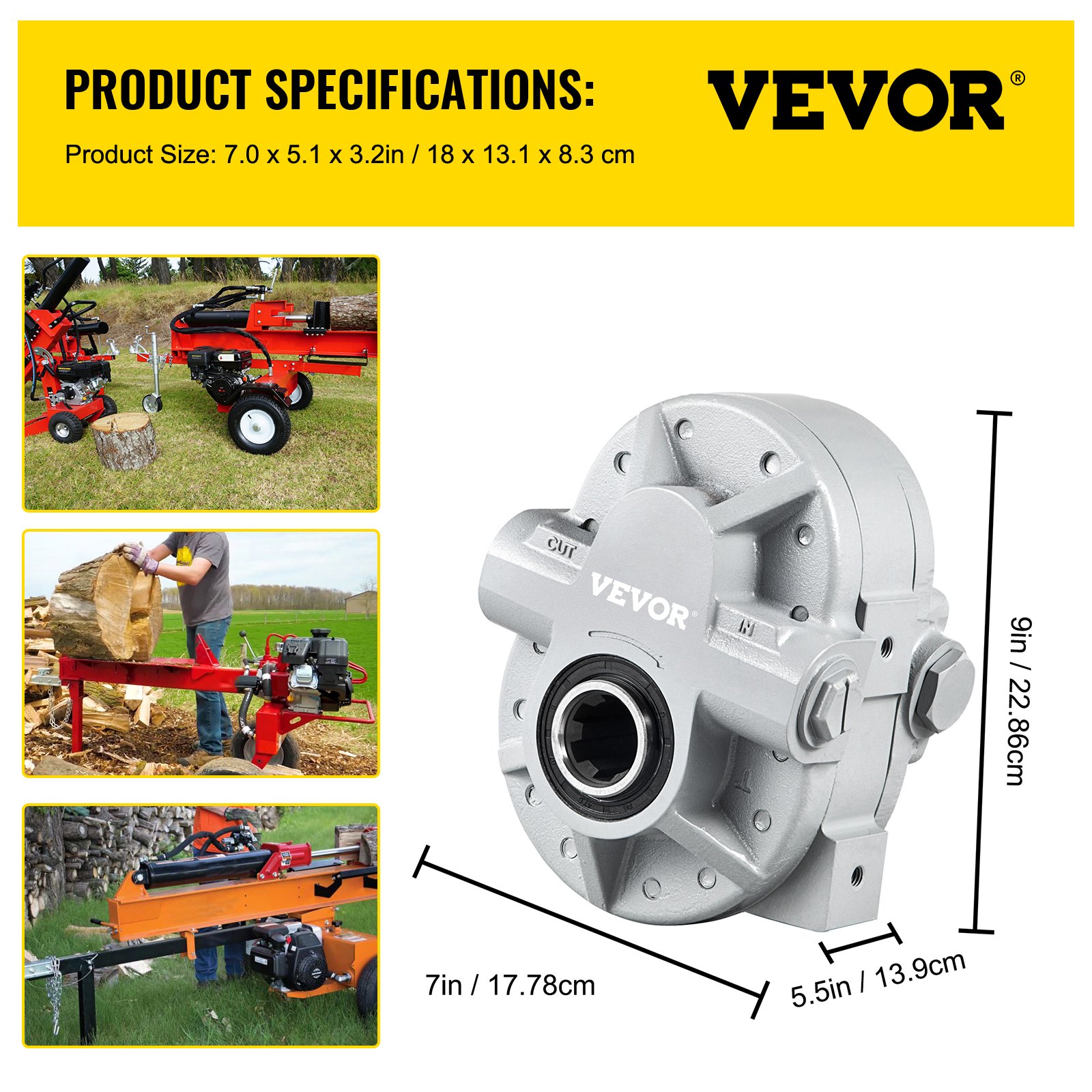

VEVOR hydraulic pump with dimensions: 9in height, 7in width, 5.5in depth.
Specifications
  • Disp. 7.62 cu. in. / rev.
  • Pump Type Gear
  • Pressure 2500 PSI max.
  • Speed: 540 RPM
  • Material: Cast Iron + Aluminium Alloy
  • Flow: 16.6 GPM at 540 RPM
  • Mount 2 bolt side for torque arm
  • Shaft 1-3/8" 6 tooth female spline
  • Inlet Port SAE 16
  • Outlet Port SAE 12
  • Size 6" x 6-3/4" x 8-3/4"
  • Packing weight: 43 lbs

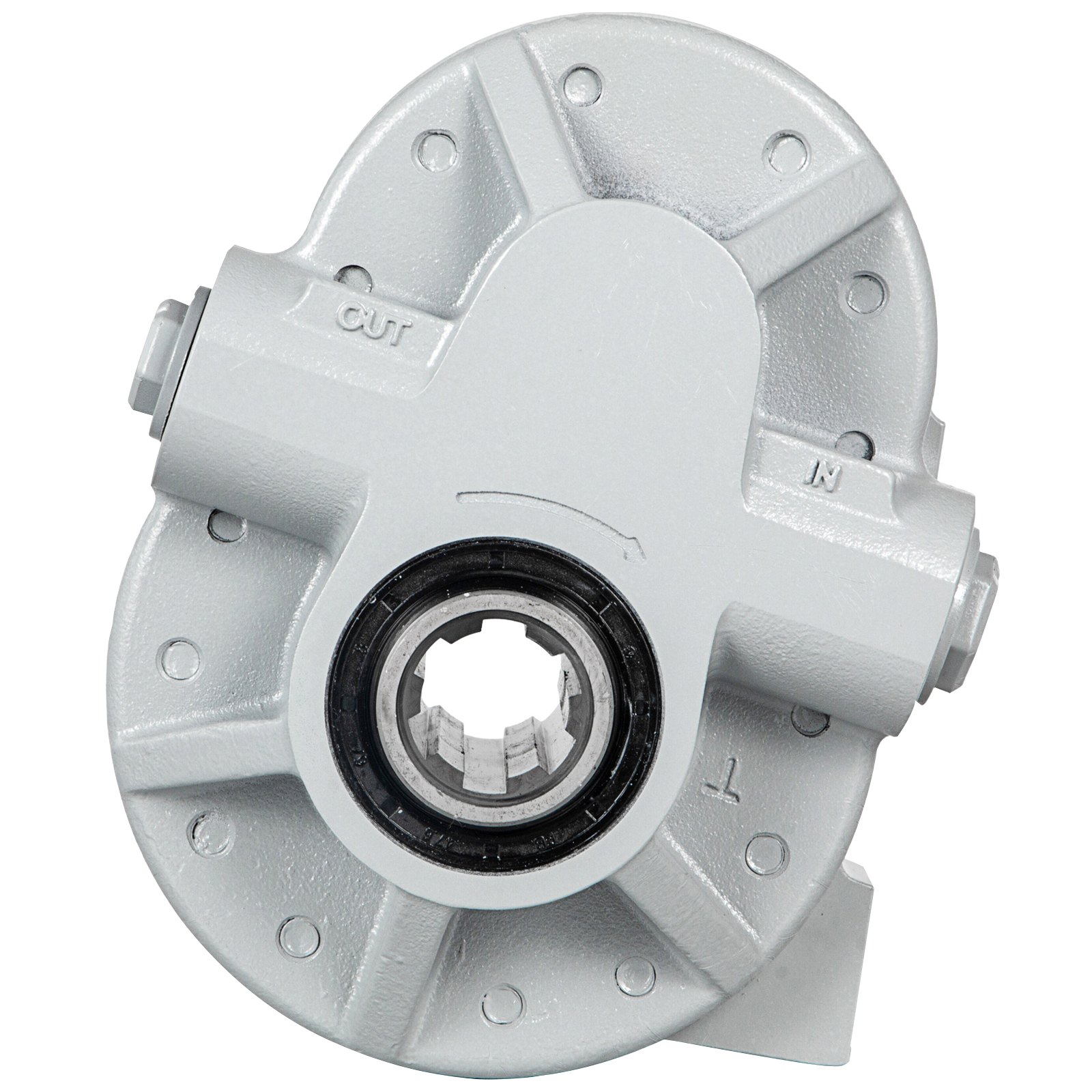

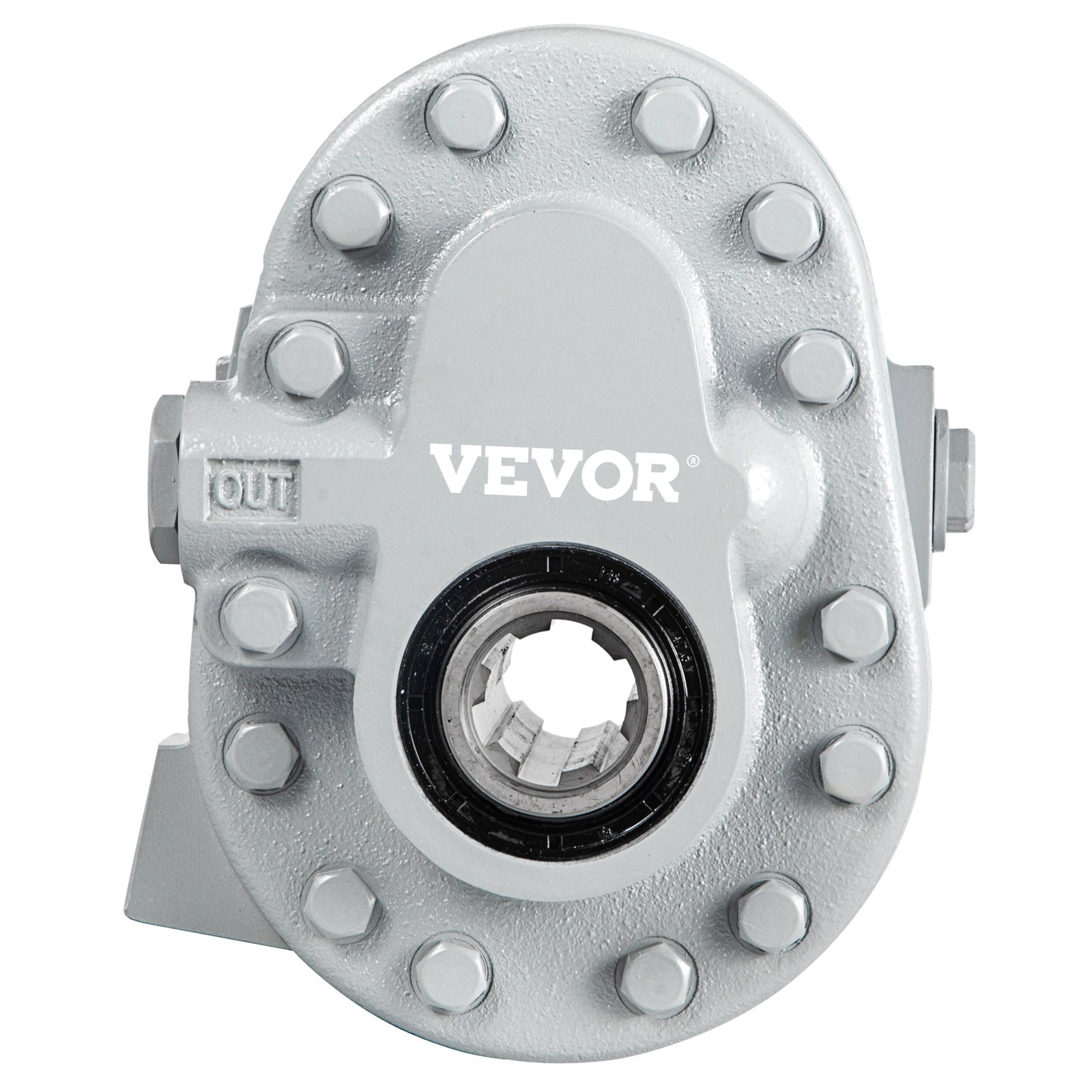

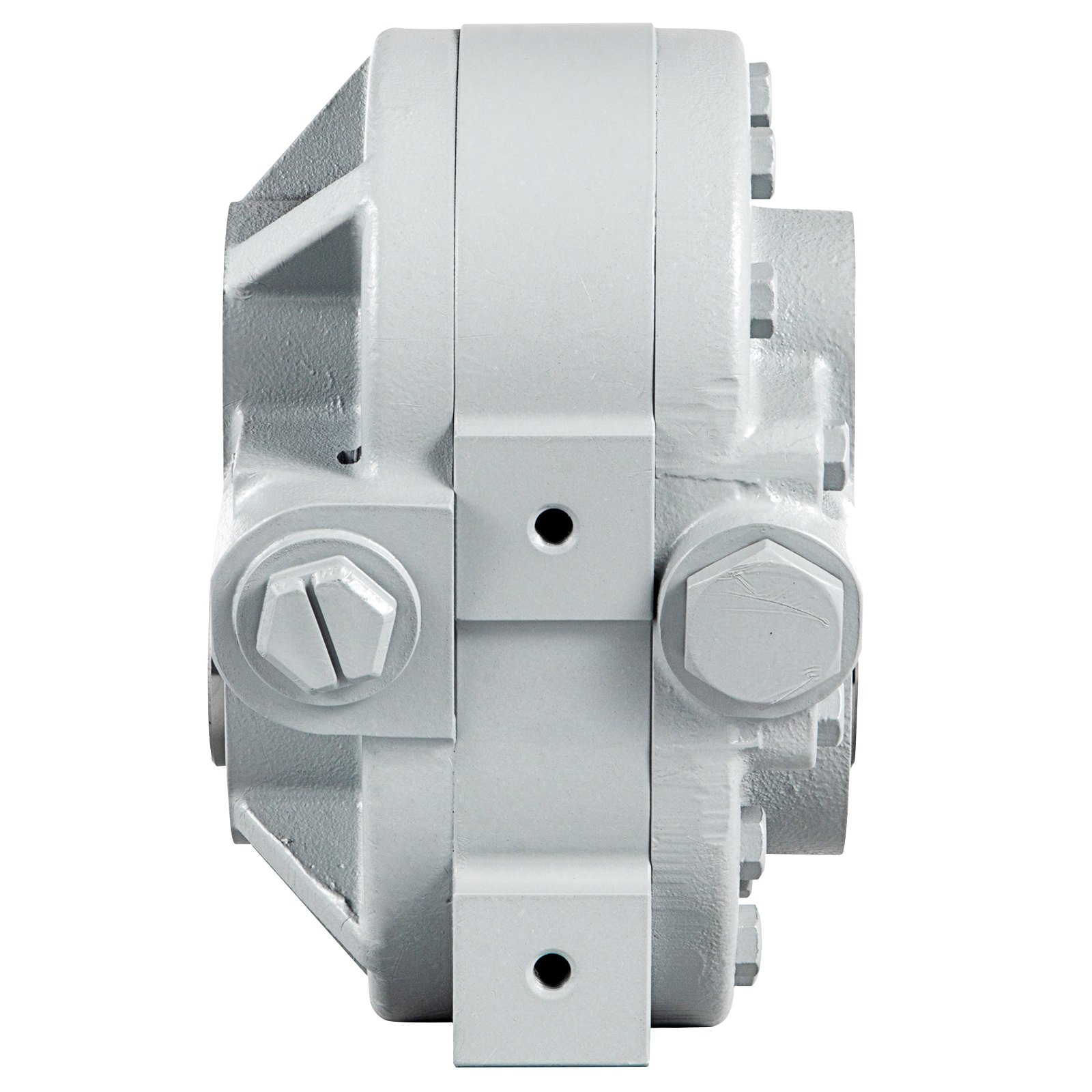

VEVOR hydraulic pump with a metallic gray housing and multiple mounting bolts.
Package Content
  • 1 x 16.6 GPM Hydraulic Pump
  • 1 x Seal Ring
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
VEVOR hydraulic pump for tractors, sae 16 and sae 12 ports, 16.6 gpm, 540 rpm, 2500 psi.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR hydraulic pump attached to machinery in an outdoor setting.
16.6 GPM Hydraulic Pump
This is an excellent replacement pump for log splitters, hydraulic presses, snow plow power units and a variety of other agricultural power equipment. Mounting Positions: Horizontal & Vertical This two-stage gear pump provides faster cycle times with an over-all higher pressure rating, so you can squeeze every bit of power out of your equipment.
  • High Quality Material for Longevity
  • Fast Starting
  • Safety Assurance
  • Easy To Operate
VEVOR hydraulic pump in use, enhancing work efficiency in an outdoor setting.
Sturdy and Durable
Over-pressure unit of pressure safety valve to avoid over pressure damage or extremely pressured.
VEVOR hydraulic pump with 16.6 gpm, 540 rpm, and 2500 psi for fast and powerful performance.
Rapid Start
The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.Its high quality starter ensure long life and a fast starting each time.
VEVOR hydraulic pump with no leaks, sae 16" inlet port, and sae 12" outlet port.
Low Noise
This log splitter hydraulic fluid constructed with high quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition.
VEVOR hydraulic pump with reinforced iron casing, sturdy, rustproof, anti-vibration.
Quick Oil Output
Perfect replacement pump for log splitter coupling controlled hydraulic systems, designed for horizontal mounting, capable of quick oil output.
VEVOR hydraulic pump with high performance, rapid start, low noise, and quick oil output.
Fully Equipment
This hydraulic pump is equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work. Reduce labor intensity.
VEVOR hydraulic pump in various wood-splitting applications.
Wide Application
Used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, rv leveling, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling, wheelchair lifts, etc.
VEVOR hydraulic pump with a metallic gray housing and multiple mounting bolts.
Package Content
  • 1 x 16.6 GPM Hydraulic Pump
  • 1 x Seal Ring
VEVOR hydraulic pump with dimensions: 9in height, 7in width, 5.5in depth.
Specifications
  • Disp. 7.62 cu. in. / rev.
  • Pump Type Gear
  • Pressure 2500 PSI max.
  • Speed: 540 RPM
  • Material: Cast Iron + Aluminium Alloy
  • Flow: 16.6 GPM at 540 RPM
  • Mount 2 bolt side for torque arm
  • Shaft 1-3/8" 6 tooth female spline
  • Inlet Port SAE 16
  • Outlet Port SAE 12
  • Size 6" x 6-3/4" x 8-3/4"
  • Packing weight: 43 lbs

Hydraulic Pump: Reliable Performance for Log Splitters and More

This hydraulic pump is built for tough performance. It delivers 16.6 GPM at 540 rpm. This ensures efficient power for your log splitters, truck tailgate lifts, and dump trailers. Built with cast iron and aluminum alloy, this pump lasts up to 2500 PSI (up to 3000 PSI). So, it can handle up to 2500 PsI. That's why it works well in heavy-duty applications. The pump has an efficient flow rate and high-pressure capacity. These features make it a reliable choice for various hydraulic tools. Whether you need it for a log splitting or retraction trailer, the VEVOR hydraulic pump provides consistent performance and reliability.


Quick and Efficient Hookup with Simple Design

This hydraulic pump has a simple design for easy installation. Quick connect fittings on both sides simplify the hookup process, saving you time and effort. This user-friendly design is ideal for those who need to switch between multiple tools. The pump's simple yet effective layout ensures hassle-free operation. Even if you're new to using hydraulic pumps, you will find the setup process straightforward. This quick and efficient hook-up improves your productivity by reducing downtime.


Powerful Hydraulic Motor 540RPM for Fast, Effective Operation

The hydraulic pump comes with a powerful 540 RPM motor. This high-speed motor ensures your tools work effectively and efficiently. Whether working on a logging splitter or dump trailer, you will experience fast and smooth performance. The speed helps the pump deliver a significant flow rate, making it suitable for demanding tasks. One of the main features of this hydraulic pump is its strong motor, which sets it apart from other pumps and ensures you get the job done quickly and efficiently.


Ideal for Dump Trailers: Robust and Efficient Operation

The best option for dump trailers is the VEVOR hydraulic pump. It offers strong and efficient operation. Hence, it’s a reliable choice for this application, too. With its high flow rate and pressure capacity, you can easily handle dump bag demands. The pump's durable construction ensures it can withstand the rigors of heavy-duty use. No matter if you're working on constructing a site or managing a personal farm, this pump provides the power you need for your dump haul operations.


Durable Construction: Cast Iron & Aluminum Alloy Ensures Longevity

Unlike other hydraulic tools, the VEVOR hydraulic pump is built to last. It features a strong construction with cast iron and aluminum alloy materials. This combination ensures durability and reliability, even in demanding environments. The pump's sturdy build can handle high pressure and heavy loads without compromising performance. Due to its robust structure, you can trust this pump for long-term use. Therefore, it’s an incredibly valuable investment for your hydraulic instruments.


Versatile Use: Perfect for Log Splitters, Truck Tailgate Lifts, and More

It is versatile. You can use it in a variety of applications. For example, log splitters, truck tailgate lifts, and dump trailers. This tool is ideal for log splitters, truck tailgate lifts, and dump trailer applications. The pump has an incredibly high flow rate and pressure capacity. So it’s suitable for multiple hydraulic tools. Whether you're working on constructing and managing a wind farm, this pump handles all kinds of tasks. With its versatility, your equipment makes it a dependable power source to perform various jobs easily.


High Flow Rate: 16.6 GPM at 540 RPM for Efficient Power

The VEVOR hydraulic pump offers a high flow rate of 16.6 GPM at 540 Rpm. This efficient power ensures your tools work smoothly and effectively. The high flow rate is ideal for demanding tasks, providing the necessary power to get things done quickly. Whether you're working on a logging splitter or dump trailer, this pump's flow rate ensures efficient and reliable performance. This high flow rate enhances the pump’s versatility and effectiveness.


Easy Installation with Quick Connect Fittings

The installation process is simple and hassle-free. Quick connect fittings on both sides of the pump make the hookup process quick and efficient. This user-friendly design saves you time and effort, allowing you to use your tools sooner. Even if you're unfamiliar with hydraulic pumps, you will find the installation procedure straightforward. This easy installation enhances your productivity by reducing downtime, making it a practical choice for various applications.


See More

Specification

Model
16.6GPMPUMP
Disp. 7.62 cu. in. / rev.
Pump Type Gear
Pressure 2500 PSI max.
Speed
540 RPM
Material
Cast Iron + Aluminium Alloy
Flow
16.6 GPM at 540 RPM
Mount 2 bolt side for torque arm
Shaft 1-3/8" 6 tooth female spline
Inlet Port SAE 16
Outlet Port SAE 12
Size 6" x 6-3/4" x 8-3/4"
Packing weight
43 lbs
Manual
Download Link
Questions and Answers
12 Questions
WHAT IS MINIMUM HORSE POWER REQUIREMENT?
Product horsepower requirements vary based on load changes. The power consumption of the pump is about 14Kw when the pressure is 10mpa.
By vevor
why are there two outlet ports on a 16.6 pto pump ?
It has one oil inlet and one oil outlet.
By vevor
Can you run this pump as a motor?
No.
By vevor
I have a 2019 jd 3032e looking to get rear hydraulic for a stick boom sickle mower ,or a flail mower , but not for a backhoe ! Seeing what are reasonable and good options for my tractor ! Thank you
It is recommended that you ask the seller of your machine. This depends on the machine's requirements for the pump.
By vevor
what size hydraulic tank should be used im going to use for 30 ton log splitter currently have a 10 gallon tank tried a 22gpm but came out of filler cap because it air bubbled up
It is recommended that it is 4 times the flow rate per minute. Foaming indicates that the pump has sucked in air, which can lead to early damage to the product.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
34 Review(s)
Clear filters
Rowdy Rowdy
Amazing deal for this pump!
I needed to power a hydraulic implement that my tractor doesn't have enough flow for, so I bought this pump to run on the pto shaft. Mounting took a little backyard engineering, but was very simple. The pump itself works as it should, and if it proves durable over time, it is an amazing bargain!
Allen Allen
Mr
Has way more power than we needed. Working great should’ve gotten a smaller one for the job. Using it on a tractor loader
VEVOR Customer VEVOR Customer
PTO pump
Exactly as advertised
William D Workman William D Workman
Pto pump
Easy to use simple hook up use for multiple tools.quick connect fittings on both sides for hassle free hoses for when in non use.
Monkey Futch Monkey Futch
Russian Engineer
This pump really woke the old loader tractor up! Just like a new heart transplant would. Scary fast now on the hydraulics. I have a Prince 21 gpm pump as well ( made in USA ) but it was FOUR times the price. Thank you VEVOR!!
Michael Michael
Mr
Second one I’ve bought. Works perfect for low flow attachments. Only had one problem with first one and that’s because seal blew out. My fault not a defect
Fourlix69@gmail.com Fourlix69@gmail.com
Welder, gentleman farmer
Perfect for my backhoe attachment on my Ford 1700. 7 gpm is the right size for a compact tractor backhoe attachment
James Buttz James Buttz
Good pump
So far its been a good hydraulic pump heavy duty built and does what i need it to do. Hoping it last many years
Mr G Mr G
good pump
bought to replace pump on tractor backhoe worked well just a little fast for application will use in another project 25 hp tractor ran it fine must chain to hold it on pto over all would buy again if I needed
David Freyling David Freyling
Buyer
Hydraulic pump delivers good pressure to my large log splitter even when tractor is just idling ,, so far I am very pleased with the pump.
