VEVOR pto slip clutch with heavy-duty springs and central shaft on a white background. VEVOR pto slip clutch with 20crmnti carburized steel, sturdy and durable design. VEVOR pto slip clutch with 1 3/8 inch 6 spline ends, black metal components. VEVOR pto slip clutch with adjustable clutch springs, 900 nm rated torque. VEVOR pto slip clutch with replaceable 2 friction discs and hp rating chart. technical diagram of VEVOR pto slip clutch with springs and bolts. tractors in various fields showcasing the VEVOR pto slip clutch in the center.
CDZGZBHQHSLDHJ001V0

VEVOR Slip Clutch, 1 3/8" PTO Slip Clutch, 6 Spline Ends PTO Friction Clutch, Carburized Steel Tractor Slip Clutch, Adjustable Rotary Cutter Slip Clutch, Black PTO Slip Clutch Spline for PTO Shaft

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

Black

  • Yellow
  • Black

About this item

  • Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement. This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds
  • Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact. The black-painted surface is smooth and anti-weary. So, it can withstand higher torque and speed to gain better protection for your PTO shaft.
  • 1-3/8" x 6 Spline Ends: Constructed with 6-spline ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends. It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.
  • Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp. You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch. Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.
  • Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up. It is assembled with fiction discs inside to help transmit forces. It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Slip Clutch, 1 3/8" PTO Slip Clutch, 6 Spline Ends PTO Friction Clutch, Carburized Steel Tractor Slip Clutch, Adjustable Rotary Cutter Slip Clutch, Black PTO Slip Clutch Spline for PTO Shaft
Black
VEVOR pto slip clutch on combine harvester in wheat field.
VEVOR pto slip clutch with multiple coiled springs and a central splined shaft.

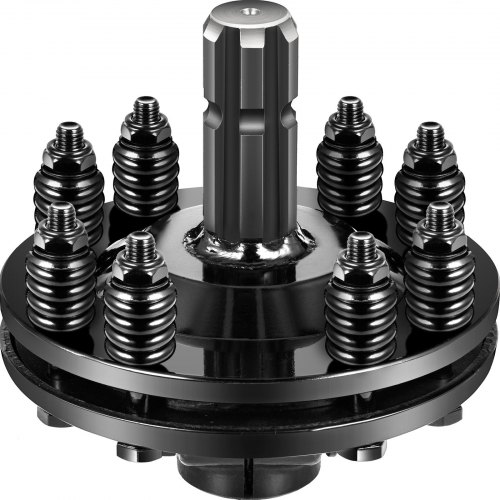

PTO Slip Clutch
1 3/8" 6 Splined & Black & Adjustable Tongue
This splined PTO slip clutch is built from heavy-duty 20CrMnTi steel, and features 1-3/8" x 6 spline male / female shaft ends with locking conical pin. It is equipped with adjustable tension springs, replaceable friction discs, and allow two speeds at the shaft ends.
  • Allow Two Speeds
  • Quality PTO Slip Clutch
  • 1-3/8" x 6 Spline Ends
  • Easy Torque Adjustments
  • Replaceable Friction Discs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto slip clutch in durable 20crmnti carburized steel with heavy-duty springs.
20CrMnTi Carburized Steel
This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a black-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.
VEVOR pto slip clutch with 1 3/8" and 6 spline ends, shown from multiple angles.
6 Spline Connection Ends
Designed with 6-splined shaft ends, this tractor PTO link slip clutch is compatible with 1-3/8" implement end or tractor end shafts. It stands out with superior protective ability, and it is way better than the shear bolts.
VEVOR pto slip clutch with adjustable clutch springs and 900 nm rated torque.
Adjustable Torque
Eight tension springs enable you to adjust the torque easily. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightness to ensure smooth operation.
black VEVOR pto slip clutch with spring detail and horsepower rating chart.
Protective Friction Discs
The friction discs have already been assembled in the fiction lining, and they are replaceable. The torque of the PTO slip clutch can be adjusted from 20 hp to 55 hp, by turning the springs.
technical drawing of VEVOR pto slip clutch with springs and bolts.
Compact Structure
Our PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel. It has two round ends attached to the engine / clutch shaft to perform the implements better.
tractors with VEVOR pto slip clutch working on various farm tasks in a quad layout.
Wide Application
Our PTO slip clutch has been widely used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.
VEVOR pto slip clutch with dimensions 7.5"/19.1cm height and 7"/18cm width.
Specifications
  • Material: 20CrMnTi Carburized Steel
  • Color: Black
  • Surface Finishing: Painted
  • Female & Male End Size: 1-3/8" 6 Spline
  • Tension Springs: Adjustable
  • Friction Discs: Replaceable
  • Rated Torque: 900 nm
  • Adjustment Range: 20 - 55 Horse Power
VEVOR pto slip clutch with multiple tension springs and central spindle mechanism.
Package Content
  • 1 x PTO Split Clutch
  • 1 x Torque Setting Instruction
VEVOR pto slip clutch on combine harvester in wheat field.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto slip clutch with multiple coiled springs and a central splined shaft.
PTO Slip Clutch
1 3/8" 6 Splined & Black & Adjustable Tongue
This splined PTO slip clutch is built from heavy-duty 20CrMnTi steel, and features 1-3/8" x 6 spline male / female shaft ends with locking conical pin. It is equipped with adjustable tension springs, replaceable friction discs, and allow two speeds at the shaft ends.
  • Allow Two Speeds
  • Quality PTO Slip Clutch
  • 1-3/8" x 6 Spline Ends
  • Easy Torque Adjustments
  • Replaceable Friction Discs
VEVOR pto slip clutch in durable 20crmnti carburized steel with heavy-duty springs.
20CrMnTi Carburized Steel
This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a black-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.
VEVOR pto slip clutch with 1 3/8" and 6 spline ends, shown from multiple angles.
6 Spline Connection Ends
Designed with 6-splined shaft ends, this tractor PTO link slip clutch is compatible with 1-3/8" implement end or tractor end shafts. It stands out with superior protective ability, and it is way better than the shear bolts.
VEVOR pto slip clutch with adjustable clutch springs and 900 nm rated torque.
Adjustable Torque
Eight tension springs enable you to adjust the torque easily. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightness to ensure smooth operation.
black VEVOR pto slip clutch with spring detail and horsepower rating chart.
Protective Friction Discs
The friction discs have already been assembled in the fiction lining, and they are replaceable. The torque of the PTO slip clutch can be adjusted from 20 hp to 55 hp, by turning the springs.
technical drawing of VEVOR pto slip clutch with springs and bolts.
Compact Structure
Our PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel. It has two round ends attached to the engine / clutch shaft to perform the implements better.
tractors with VEVOR pto slip clutch working on various farm tasks in a quad layout.
Wide Application
Our PTO slip clutch has been widely used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.
VEVOR pto slip clutch with multiple tension springs and central spindle mechanism.
Package Content
  • 1 x PTO Split Clutch
  • 1 x Torque Setting Instruction
VEVOR pto slip clutch with dimensions 7.5"/19.1cm height and 7"/18cm width.
Specifications
  • Material: 20CrMnTi Carburized Steel
  • Color: Black
  • Surface Finishing: Painted
  • Female & Male End Size: 1-3/8" 6 Spline
  • Tension Springs: Adjustable
  • Friction Discs: Replaceable
  • Rated Torque: 900 nm
  • Adjustment Range: 20 - 55 Horse Power

PTO Slip Clutch Eliminates Frequent Shear Bolt Replacement

The VEVOR PTO slip clutch is a game-changer. It reduces the need to replace shear bolts constantly. This feature is especially useful when you are mowing heavy brush. You no longer have to worry about damaging your tractor's PTO box. The slip grip absorbs shock, saving you time and effort. So, it’s an excellent addition for anyone using a shear pin. And it ensures that your tasks are completed smoothly without interruptions.


Durable Construction with Carburized Steel

This is the best way to maintain your land efficiently. The clutch is made from 20CrMnTi carburized steel. It provides strong performance. This material ensures the clutch can handle tough conditions. You can rely on it for long-term use. Because of its resistance to wear and tear, you can trust it with heavy-duty tasks. That's why maintaining your soil requires such efficiency. The VEVOR PTO slip clutch stands up to the rigors of mowing and other demanding applications.


Adjustable Rotary Cutter Clutch for Versatility

The adjustable tension springs are available in this PTO slip clutch. This feature allows you to customize the clutch's performance. You can set it to slip at different torque levels. Hence, versatility makes it suitable for various applications. Whether mowing heavy grass or clearing brush, you can adjust the latch accordingly. It ensures optimal performance and protection for your equipment. The variable feature adds value to your investment.


Easy Installation and Compatibility with 1 3/8" PTO Shaft

It is easy to install the VEVOR PTO slip clutch. This clutch fits perfectly on a 1 3/8" PTO shaft. The package includes two bolts and extra clutch plates. These things make the installation process hassle-free. You can get it up and running quickly. The clutch's compatibility with standard PTO shafts enhances its usability. So, it’s able to work effectively for many tractors and mowers. Easy installation saves you time and effort.


Reliable Performance in Heavy-Duty Applications

This clutch is reliable in heavy-duty tasks. It handles thick brush and tough terrain without slipping. So, it ensures consistent performance during mowing and other demanding jobs. The clutch's reliability means you can depend on it for land management. You protect your equipment while obtaining efficient results. Therefore, this makes it a valuable tool for both professional and personal use.


Cost-Effective Solution Compared to Local Offerings

This is a great value for money when choosing the VEVOR PTO slip clutch. It costs less than similar products found locally. This cost-effective solution does not compromise on quality. You get a slick, high-quality, durable clutch at a fair price. That's why it’s an attractive option for budget-conscious buyers. The clutch's performance and durability make it an excellent investment. Saving you money while providing reliable service.


Enhanced Protection for Your Tractor's PTO Drivetrain

The VEVOR PTO slip clutch provides enhanced protection. It protects your tractor's PTO drivetrain from damage. By slipping under heavy loads it avoids costly repairs. This feature is crucial for maintaining the longevity of your equipment. The clutch's strong construction and adjustable settings ensure optimal protection in operation. You keep your tractors and attachments safe during operation; this peace of mind is invaluable for anyone who relies on their equipment.


User-Friendly Design with Extra Friction Discs Included

The design of the VEVOR PTO slip clutch is user-friendly. It includes extra friction discs, which adds to its usability. These discs are replaceable, extending the life of this tool. The clutch's design ensures that it is easy to use and maintain. You can adjust and service it without professional help. This user-friendly feature makes it accessible to everyone. No matter whether you're an experienced farmer or hobbyist, you can benefit from this clutch’s design.


See More

Specification

Material
20CrMnTi Carburized Steel
Color
Black
Surface Finishing
Painted
Female & Male End Size
1-3/8" 6 Spline
Tension Springs
Adjustable
Friction Discs
Replaceable
Rated Torque
900 nm
Adjustment Range
20 - 55 Horse Power
Questions and Answers
3 Questions
Does this mount on the tractor side of the pto shaft? i'm not seeing a way to use on the implement side.
Yes,this Clutch can be mount on the tractor.
By vevor
what are the specs for the shearing pin including the bolt as it seems a narrow space
The diameter is 34·93.
By vevor
Will this Vevor PTO slip clh fit a 1950 Ford 8n tractor?
Hello Ira. It is not suitable for tractor.
By vevor
