VEVOR pto slip clutch with yellow springs and two washers. VEVOR pto slip clutch featuring sturdy 20crmnti carburized steel construction. VEVOR pto slip clutch, 1 3/8" 6 spline ends, four yellow clutch assemblies VEVOR pto slip clutch with 900 nm rated torque and adjustable clutch springs. VEVOR pto slip clutch with replaceable friction discs and spring length chart VEVOR pto slip clutch diagram with labeled parts and dimensions. VEVOR pto slip clutch with various tractors working in different fields.
CDZGZBHQHS2DHJ001V0

VEVOR Slip Clutch, 1 3/8” PTO Slip Clutch, 6 Spline Ends PTO Friction Clutch, Carburized Steel Tractor Slip Clutch, Adjustable Rotary Cutter Slip Clutch, Yellow PTO Slip Clutch Spline for PTO Shaft

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

Yellow

  • Yellow
  • Black

About this item

  • Allow Two Speeds: Our PTO slip clutch limits the amount of torque being transferred from the tractor to the implement. This is accomplished by slipping or spinning free, which allows the two sides of the PTO shaft to spin at different speeds
  • Quality PTO Slip Clutch: The 20CrMnTi carburized steel which built this tractor PTO slip clutch has been reinforced to resist impact. The black-painted surface is smooth and anti-weary. So, it can withstand higher torque and speed to gain better protection for your PTO shaft.
  • 1-3/8" x 6 Spline Ends: Constructed with 6-spline ends, this PTO clutch has a standard size of 1-3/8" for both male and female ends. It perfectly matches the same diameter of implement input shaft and tractor output shaft, featuring superior safety functions as shear bolts.
  • Easy Torque Adjustments: Rated torque: 900 nm, adjustment range: 20 - 55 hp. You can adjust the length of the tension springs to acquire an appropriate torque for your rotary cutter slip clutch. Just tight / loose the eight nuts by 1/4 of a turn and check its tightness for correct operation.
  • Replaceable Friction Discs: The PTO slip clutch adopts an essential spring and disc set-up. It is assembled with fiction discs inside to help transmit forces. It is most commonly used on rotary tilling attachments like rotary cutters, brush cutters, rotary mowers, and tractors.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Slip Clutch, 1 3/8” PTO Slip Clutch, 6 Spline Ends PTO Friction Clutch, Carburized Steel Tractor Slip Clutch, Adjustable Rotary Cutter Slip Clutch, Yellow PTO Slip Clutch Spline for PTO Shaft
Yellow
VEVOR pto slip clutch displayed with a combine harvester in a wheat field.

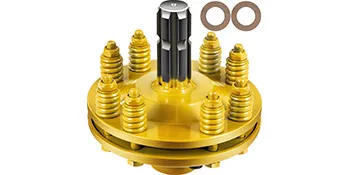

VEVOR pto slip clutch with yellow springs and two washers on a white background.
PTO Slip Clutch
1 3/8" 6 Splined & Yellow & Adjustable Tongue
This splined PTO slip clutch is built from heavy-duty 20CrMnTi steel, and features 1-3/8" x 6 spline male / female shaft ends with locking conical pin. It is equipped with adjustable tension springs, replaceable friction discs, and allow two speeds at the shaft ends.
  • Allow Two Speeds
  • Quality PTO Slip Clutch
  • 1-3/8" x 6 Spline Ends
  • Easy Torque Adjustments
  • Replaceable Friction Discs
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

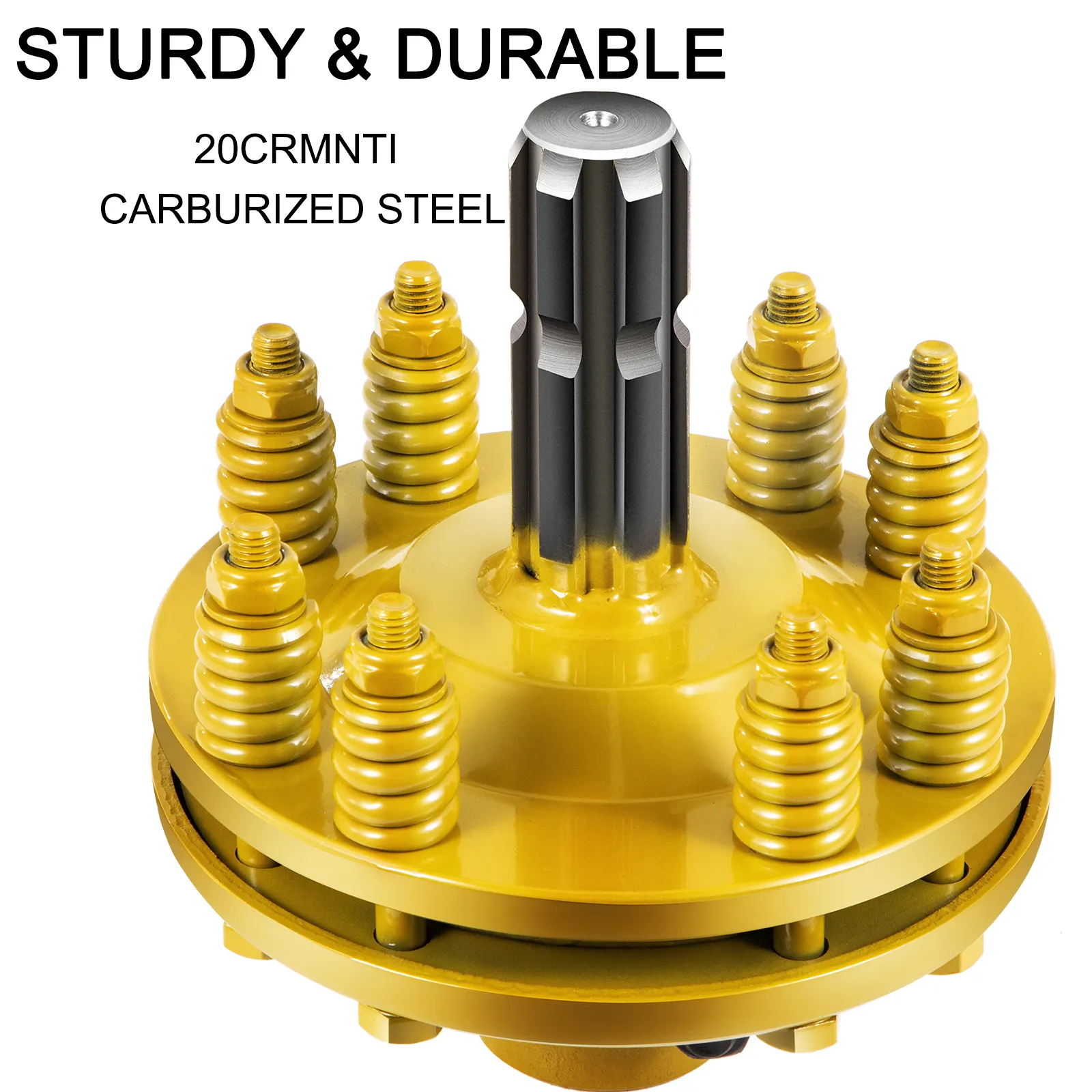

VEVOR pto slip clutch with 8 springs, 20crmnti carburized steel. sturdy and durable.
20CrMnTi Carburized Steel
This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a yellow-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.

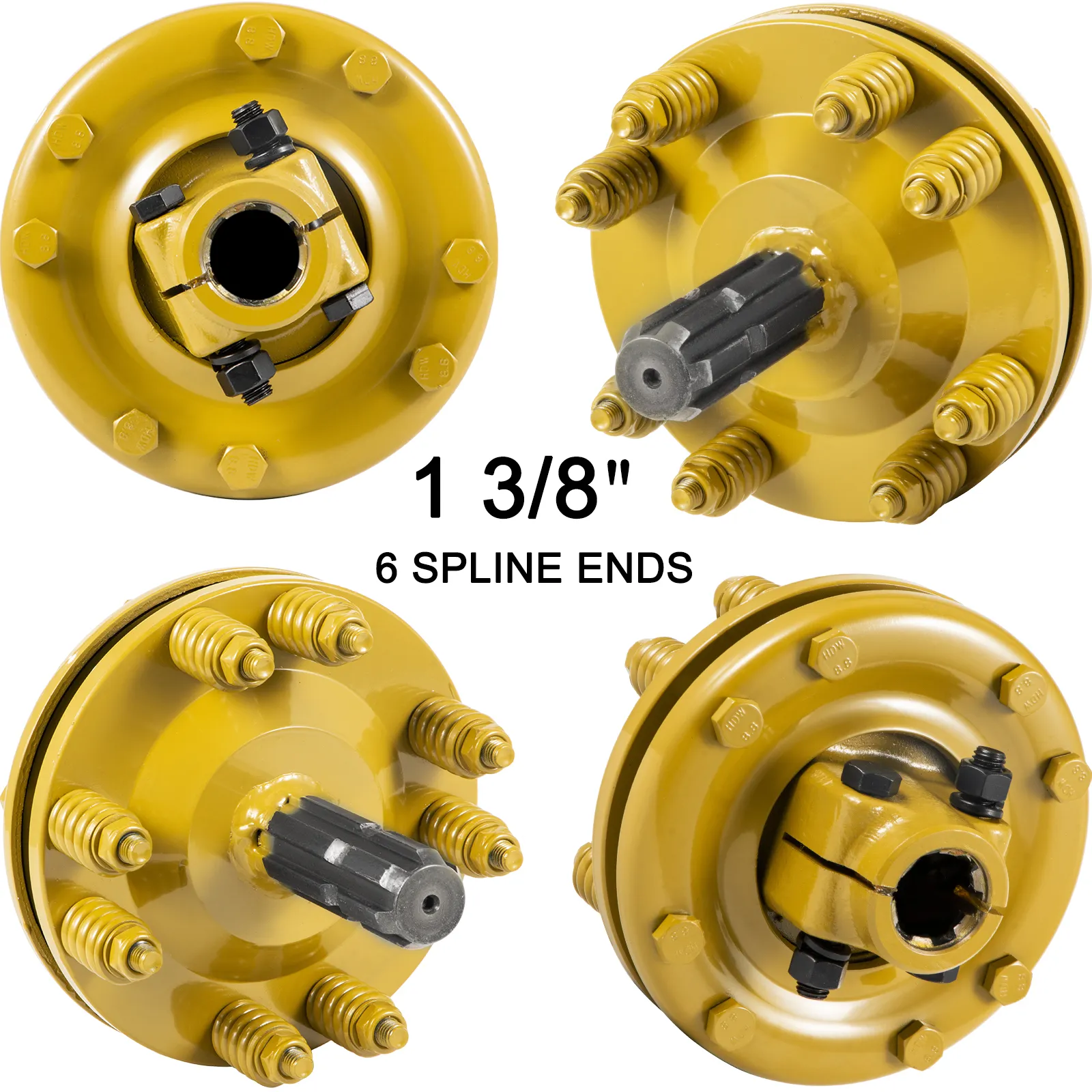

VEVOR pto slip clutch with 1 3/8" 6 spline ends in yellow.
6 Spline Connection Ends
Designed with 6-splined shaft ends, this tractor PTO link slip clutch is compatible with 1-3/8" implement end or tractor end shafts. It stands out with superior protective ability, and it is way better than the shear bolts.

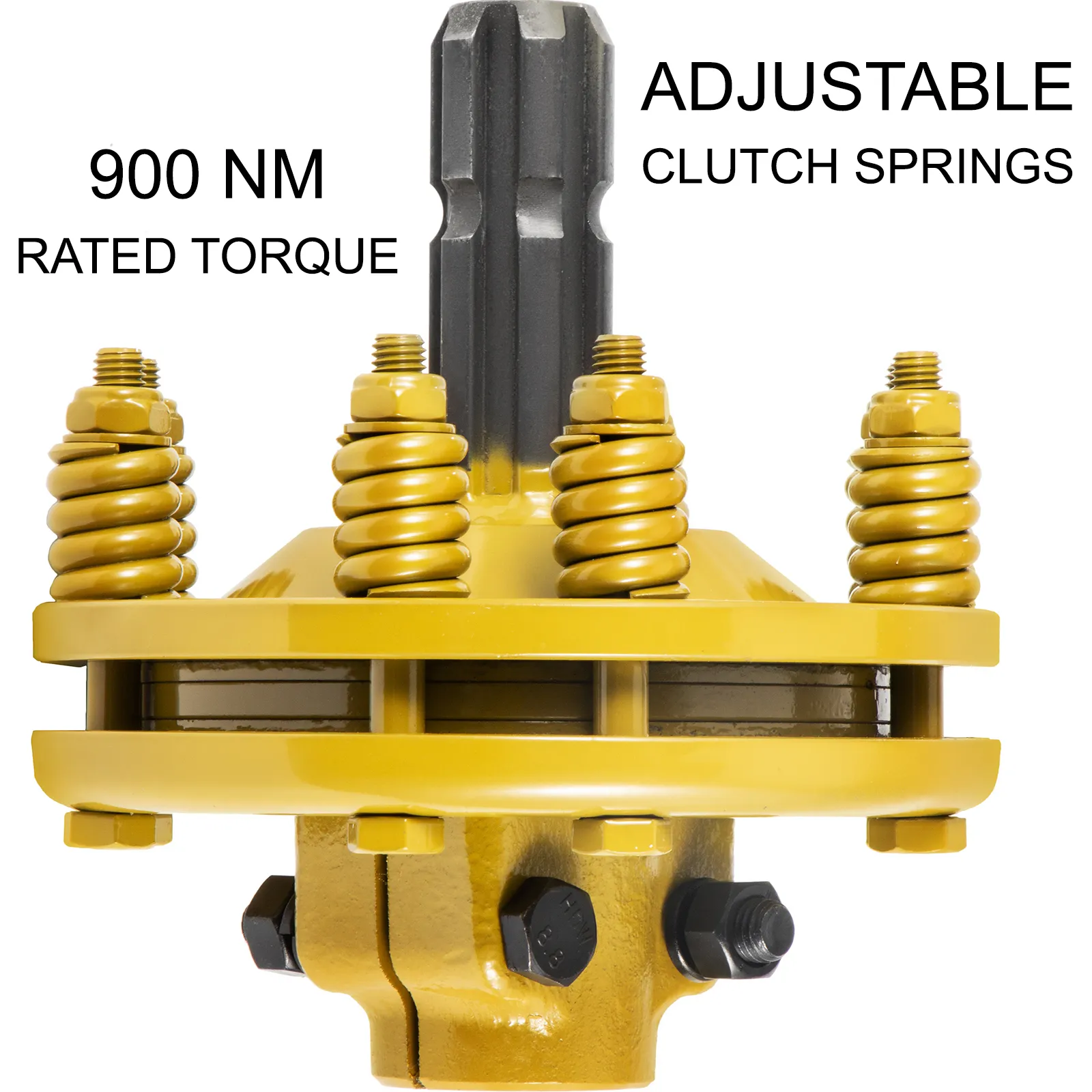

VEVOR pto slip clutch with adjustable springs and 900 nm rated torque.
Adjustable Torque
Eight tension springs enable you to adjust the torque easily. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightness to ensure smooth operation.

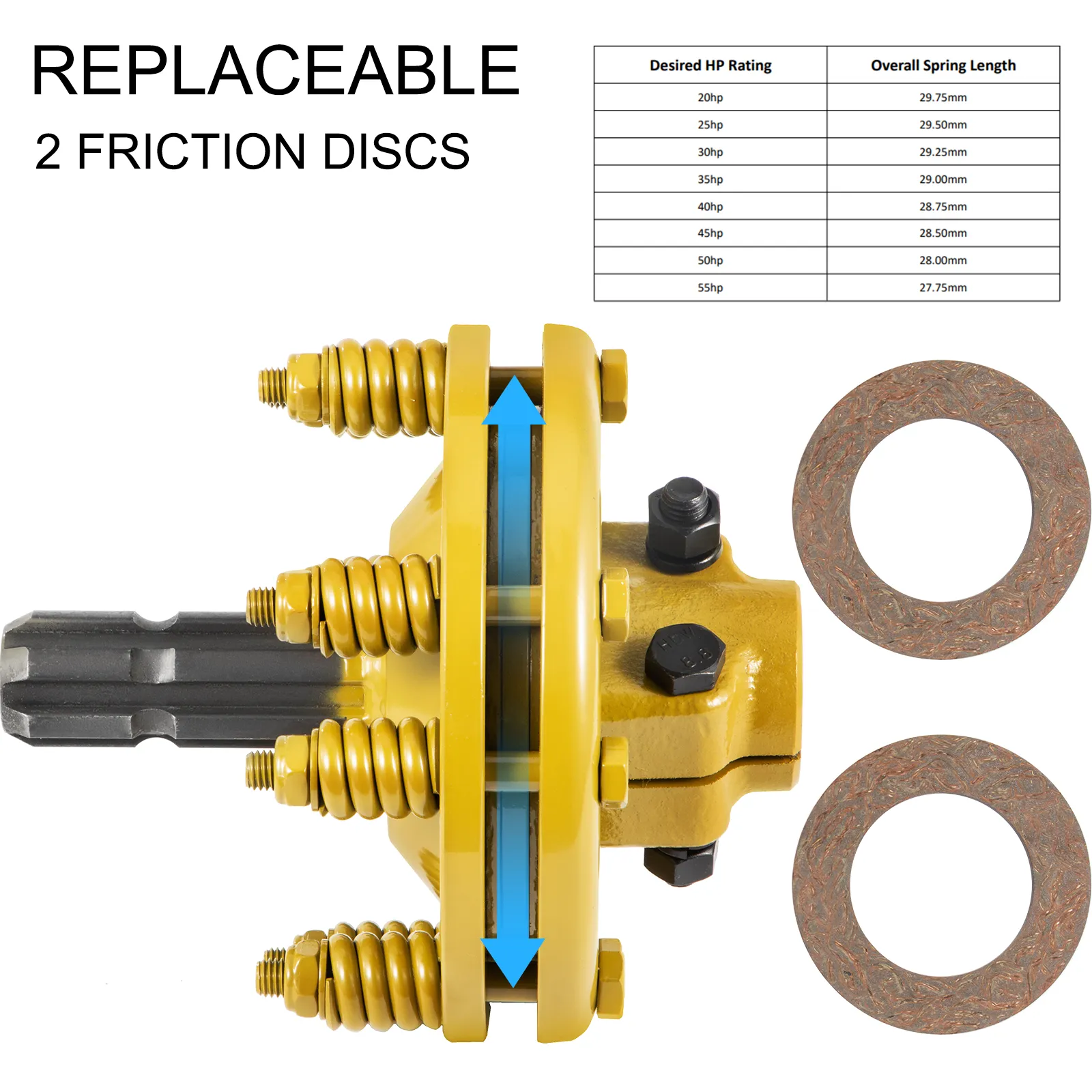

VEVOR pto slip clutch with replaceable friction discs and hp rating guide
Protective Friction Discs
The friction discs have already been assembled in the fiction lining, and they are replaceable. The torque of the PTO slip clutch can be adjusted from 20 hp to 55 hp, by turning the springs.

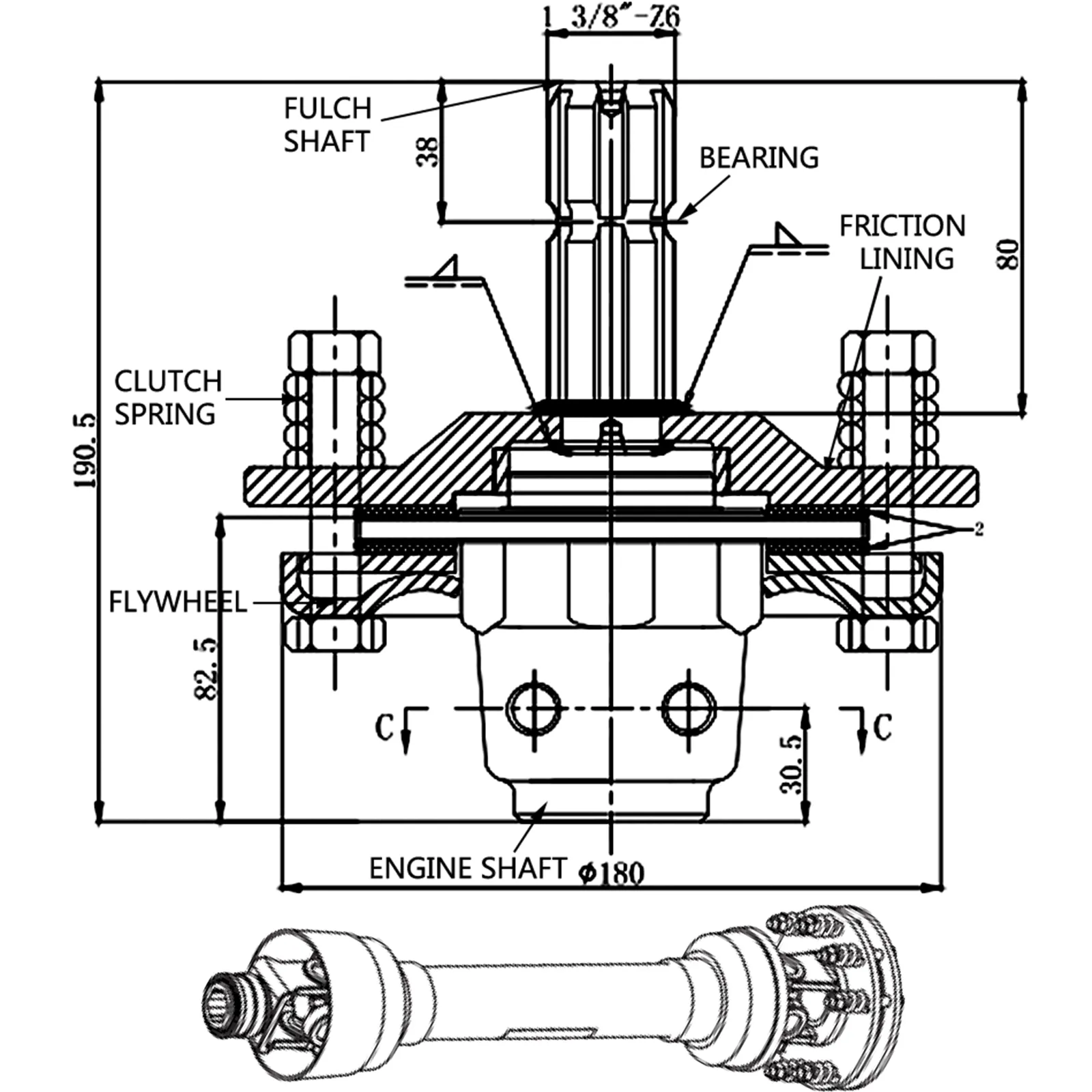

VEVOR pto slip clutch technical diagram with labeled dimensions and components.
Compact Structure
Our PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel. It has two round ends attached to the engine / clutch shaft to perform the implements better.

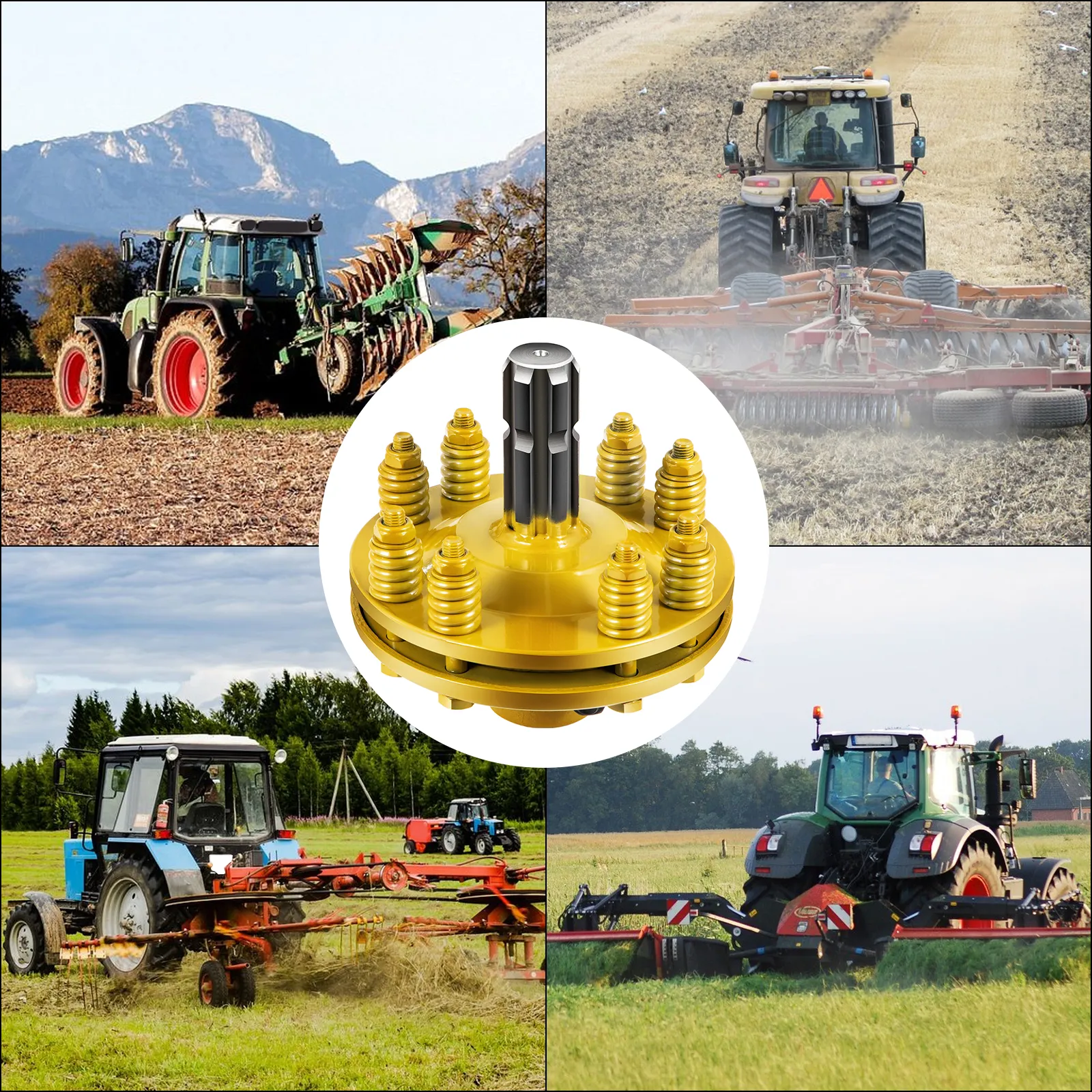

tractors using VEVOR pto slip clutch for various field activities under different conditions.
Wide Application
Our PTO slip clutch has been widely used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.

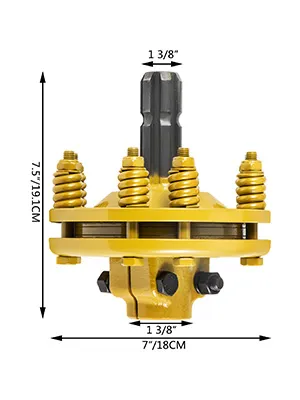

VEVOR pto slip clutch, yellow, with measurements: 7.5"/19.4cm height, 7"/18cm width.
Specifications
  • Material: 20CrMnTi Carburized Steel
  • Color: Yellow
  • Surface Finishing: Painted
  • Female & Male End Size: 1-3/8" 6 Spline
  • Tension Springs: Adjustable
  • Friction Discs: Replaceable
  • Rated Torque: 900 nm
  • Adjustment Range: 20 - 55 Horse Power

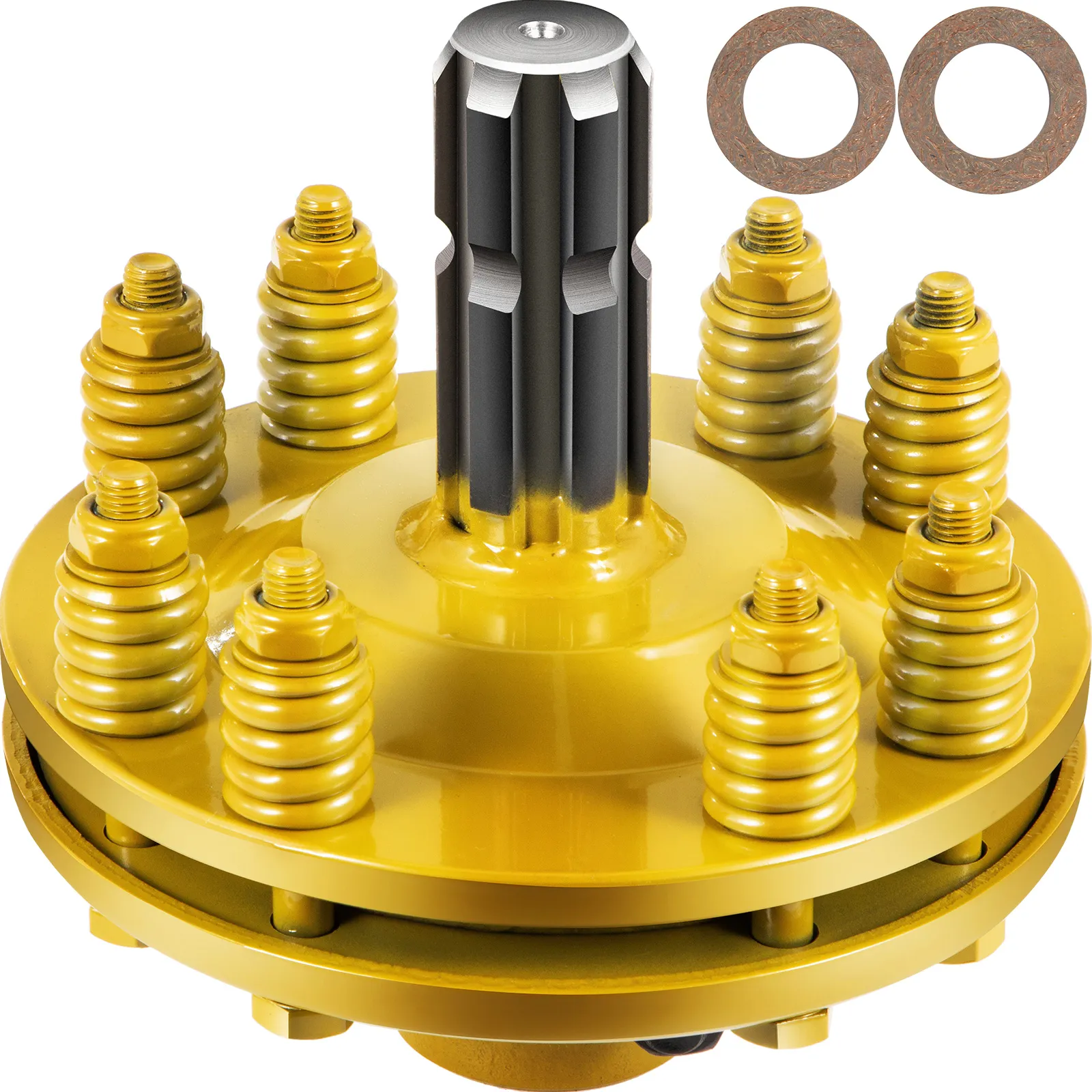

VEVOR pto slip clutch with eight yellow springs and two washers above.
Package Content
  • 1 x PTO Split Clutch
VEVOR pto slip clutch displayed with a combine harvester in a wheat field.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR pto slip clutch with yellow springs and two washers on a white background.
PTO Slip Clutch
1 3/8" 6 Splined & Yellow & Adjustable Tongue
This splined PTO slip clutch is built from heavy-duty 20CrMnTi steel, and features 1-3/8" x 6 spline male / female shaft ends with locking conical pin. It is equipped with adjustable tension springs, replaceable friction discs, and allow two speeds at the shaft ends.
  • Allow Two Speeds
  • Quality PTO Slip Clutch
  • 1-3/8" x 6 Spline Ends
  • Easy Torque Adjustments
  • Replaceable Friction Discs
VEVOR pto slip clutch with 8 springs, 20crmnti carburized steel. sturdy and durable.
20CrMnTi Carburized Steel
This PTO overrunning clutch is made of high-quality 20CrMnTi carburized steel, with a yellow-painted surface to strengthen its durability and stand large impacts, higher torque, and speed.
VEVOR pto slip clutch with 1 3/8" 6 spline ends in yellow.
6 Spline Connection Ends
Designed with 6-splined shaft ends, this tractor PTO link slip clutch is compatible with 1-3/8" implement end or tractor end shafts. It stands out with superior protective ability, and it is way better than the shear bolts.
VEVOR pto slip clutch with adjustable springs and 900 nm rated torque.
Adjustable Torque
Eight tension springs enable you to adjust the torque easily. Tighten or loosen the nuts by 1/4 of a turn to increase or decrease the torque and check its tightness to ensure smooth operation.
VEVOR pto slip clutch with replaceable friction discs and hp rating guide
Protective Friction Discs
The friction discs have already been assembled in the fiction lining, and they are replaceable. The torque of the PTO slip clutch can be adjusted from 20 hp to 55 hp, by turning the springs.
VEVOR pto slip clutch technical diagram with labeled dimensions and components.
Compact Structure
Our PTO slip clutch consists of springs, friction plates, pressure plates, and a flywheel. It has two round ends attached to the engine / clutch shaft to perform the implements better.
tractors using VEVOR pto slip clutch for various field activities under different conditions.
Wide Application
Our PTO slip clutch has been widely used on rotary tilling attachments like rotavators, stone buriers, brush hugs, and rotary mowers. They can also be used as hay tenders, balers, hole diggers, etc.
VEVOR pto slip clutch with eight yellow springs and two washers above.
Package Content
  • 1 x PTO Split Clutch
VEVOR pto slip clutch, yellow, with measurements: 7.5"/19.4cm height, 7"/18cm width.
Specifications
  • Material: 20CrMnTi Carburized Steel
  • Color: Yellow
  • Surface Finishing: Painted
  • Female & Male End Size: 1-3/8" 6 Spline
  • Tension Springs: Adjustable
  • Friction Discs: Replaceable
  • Rated Torque: 900 nm
  • Adjustment Range: 20 - 55 Horse Power

PTO Slip Clutch: Durable and Reliable Performance

This is based on high-quality 20CrMnTi carburized steel. This ensures it can withstand heavy use and harsh conditions. The clutch is designed to fit 1 3/8" 6 spline PTO shafts. It is ideal for various rotary cutters and mowers and perfect for different rotor cutters and mower systems. Our carburized steel construction enhances durability. You get reliable performance, even in tough terrains like the following. It is a key part of protecting your drivetrain. It prevents damage from sudden stops or jams, and the durable material guarantees long-lasting use. So, you avoid frequent replacements as well. The yellow painted finish adds visibility. This finish aids in identification and maintainability.


Adjustable Tension Springs for Optimal Slip Clutch Functionality

The VEVOR slip clutch features adjustable tension springs. These springs are used to set the slip point. You can adjust it according to your specific needs. The adjustment range is between 20 and 55 horsepower. This flexibility is ideal for different mowing conditions. It helps prevent shear bolt breakage. In addition, the adjustable springs ensure the clutch slips at the right moment. They protect your equipment from damage. Also, it makes your mowing tasks more efficient. Easy-to-adjust spring saves you time and effort. There is no need to stop frequently for adjustments. This feature enhances the overall usability of the grip.


Replaceable Friction Discs for Extended Clutch Life

Replaceable friction discs are essential for the clutch's functionality. Over time, they may wear out due to use. The replaceable design ensures you can easily swap them out. This extends the life of your clutch. It saves you from buying a new unit. An extra set of friction disks included in the package is a bonus. Knowing you have spares provides peace of mind. The ability to replace worn discs ensures consistent performance. They keep your equipment running smoothly. This feature is especially beneficial for frequent users.


Saves Time and Money with Easy Installation

The clutch has a simple installation process. You can fit it on your rotary cutter or mower without any trouble. The package includes all necessary bolts and nuts. This makes the setup process quick and easy. No special tools or skills are required. Clear instructions guide you through the process, saving you time and effort. Easy installation also means that you can start using it right away. It helps in reducing downtime. The clutch saves you money by preventing shear bolt replacements. It also protects your PTO drivetrain from costly damages.


Heavy-Duty Design Ideal for Tough Mowing Conditions

The VEVOR slip clutch is made to handle tough mowing conditions. Its heavy-duty design ensures it performs well in heavy grass and brush. The clutch maintains its efficiency even under high loads. This prevents your equipment from stalling. So your mowing tasks become more manageable. Heavy-duty construction also guarantees long-term performance. You can rely on the heavy-duty construction for longer periods. In addition, it resists the rigors of frequent use. This makes it a reliable choice for landowners and professionals. The torque is perfect for clearing overgrown areas.


Cost-Effective Solution Compared to Local Options

The VEVOR slip clutch provides an efficient solution for cost-effectiveness. It is priced lower than many local options. Despite its affordable price, it does not compromise on quality. The clutch offers excellent performance. You save money by reducing shear bolt replacements and protecting your equipment from costly damages. These cost savings add up over time. This makes it a wise investment for your mowing needs. The durability of the clutch ensures long-term value. For budget-conscious buyers, the cost-effectiveness does not come at the expense of functionality.


Enhances Equipment Efficiency and User Experience

This is a great improvement in the efficiency of your rotary cutter or mower. It ensures your machine works efficiently. The clutch prevents frequent stops due to shear bolt breakage. It improves your mowing efficiency. You can cover more ground in less time. User experience is also enhanced. No more dealing with the hassle of replacing shear bolt systems. Our clutch's reliable performance reduces stress. It makes mowing tasks easier. Enhanced efficiency also translates into cost savings. You save on fuel and maintenance costs. The clutch helps maximize the potential of your equipment.


See More

Specification

Material
20CrMnTi Carburized Steel
Color
Yellow
Surface Finishing
Painted
Female & Male End Size
1-3/8" 6 Spline
Tension Springs
Adjustable
Friction Discs
Replaceable
Rated Torque
900 nm
Adjustment Range
20 - 55 Horse Power
Questions and Answers
5 Questions
What size are the replacement friction disc for this
Its size is 5.5 inches.
By vevor
where can you buy replacement parts ?
We do not sell parts separately. All our products have a 12 month warranty and if there is a problem with your purchase during the warranty period, we can send you a replacement part free of charge(In the case of parts that are not consumable). Please click the following link to contact us: https://www.vevor.com/pages/contact-us.
By vevor
What's the difference between the yellow and black
There is no difference except the color.
By vevor
What is the outside diameter?
This 6-spline PTO clutch has a size of 1 3/8" for both male and female ends.
By vevor
Can this be put on the tractor pto shaft and set to the tractors PTO HP rating to protect the tractor from any equipment you attach to the PTO?
Yes, this can be put on the tractor pto shaft and set to the tractors PTO HP rating to protect the tractor from any equipment you attach to the PTO.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
35 Review(s)
Clear filters
Art Art
Slip clutch
It came in when it supposed to. It’s good quality works just fine exactly what I want. Never had a problem with anything From veror
Josh Josh
Slip clutch
As advertised I bolted it up so far so good haven’t had any issues with it yet.. Price seemed very fair…
Kschu Kschu
Clutch Prevents Overload to my Rotary Cutter
Added the VEVOR 1 3/8" PTO Slip Clutch to prevent equipment overload for my rotary cutter. The original shaft frequently sheared pins and finally failed because it didn't have this clutch. Works much better now w/ this new clutch. Great price and quality.
TJN TJN
Good Product
Good price, heavy duty and perfect fit! Not changing shear pins anymore. Product was shipped very fast and installation was a breeze. Free shipping was also a plus.
Adam Dawson Adam Dawson
Great
Fits perfectly works great saved 100 bucks or more it's on a 30 hp tractor with 6 ft brushog so fars so good
Mark Mark
Slip Clutch.
The slip clutch is of good quality and price. Eliminates shear pin and hassle of replacing. With proper care should last a long time.
Dennis Postema Dennis Postema
Uncleared land owner
After breaking numerous shear bolts on 6' brush hog I ordered this, I stalled, and it is working excellent. I wish there was a smaller version to try on snow blower.
Josh Josh
Great slip clutch for the money.
Got this to use on a 5 foot brush hog. Ones at the local tractor store were double the price of this one. Upon inspection, this appears to be built to very similar quality. After a weekend of brush hogging , it is working well!
P Russell P Russell
Owner
After what seems like hours of replacing shear bolts, in the heat, trying to mow some heavy brush I saw this skip clutch advertised on Vevor, much lower price than I could find locally, I ordered it. It arrived just days later, and I wasted no time installing it on my old, smaller rotary mower. Adjusted the slippage, and job was done. Started mowing that afternoon and to my delight no more shear boltsbto replace, no worrying about damage to tractor PTO box, and my overgrown land started looking alive ( the deer seemed to appreciate it too. As well as my neighbors, whom later asked me to do some mowing for them and they wound up paying for the slip clutch and my fuel.
Angelo Angelo
Used for Auger
I'm no fan of shear bolts especially when it comes to post augers, this slip clutch arrived in time well packaged and works great. Plenty of videos on the Tube on how to "slip" the clutch and install it. Best used on the implement end of the PTO shaft, it came set for 45hp but I had to back the nuts off until they sat flush with the stud bolt ends just to get the thing to slip for initial break in, kept them as such for use on my auger and the only time it catches (kicks in) is when the auger is truly stuck. The only semi-gripe I have is the smooth shaft on my auger gear box is just shy of a true 1 3/8" which, after comparing to other smooth shaft gear boxes is common. There's a lot of waller room, to fix this I ordered 1/2" to 3/8" reducer bushings online, for some reason the bolt hole on the gearbox of my old auger was 3/8" not the normal 1/2" so I had to do some....urban rigging as it be, a trip to my local hardware store for anew 3/8" bolt and nyloc nut, problem solved. It attached to the Vevor PTO shaft I purchased just fine, works like a champ now. Both TSC and RK had similar clutches (probably made by the same people) for well over twice the cost. People complain about the finish paint not holding up which seems accurate but it's a freakin' PTO clutch. Also, it does not come with replacement clutch discs, only the one installed on assembly, I'm not quite sure about this company's ability to provide good American-standard product support, but that's just my assumption given where it's made and the price. But hey, it works and that's that.
