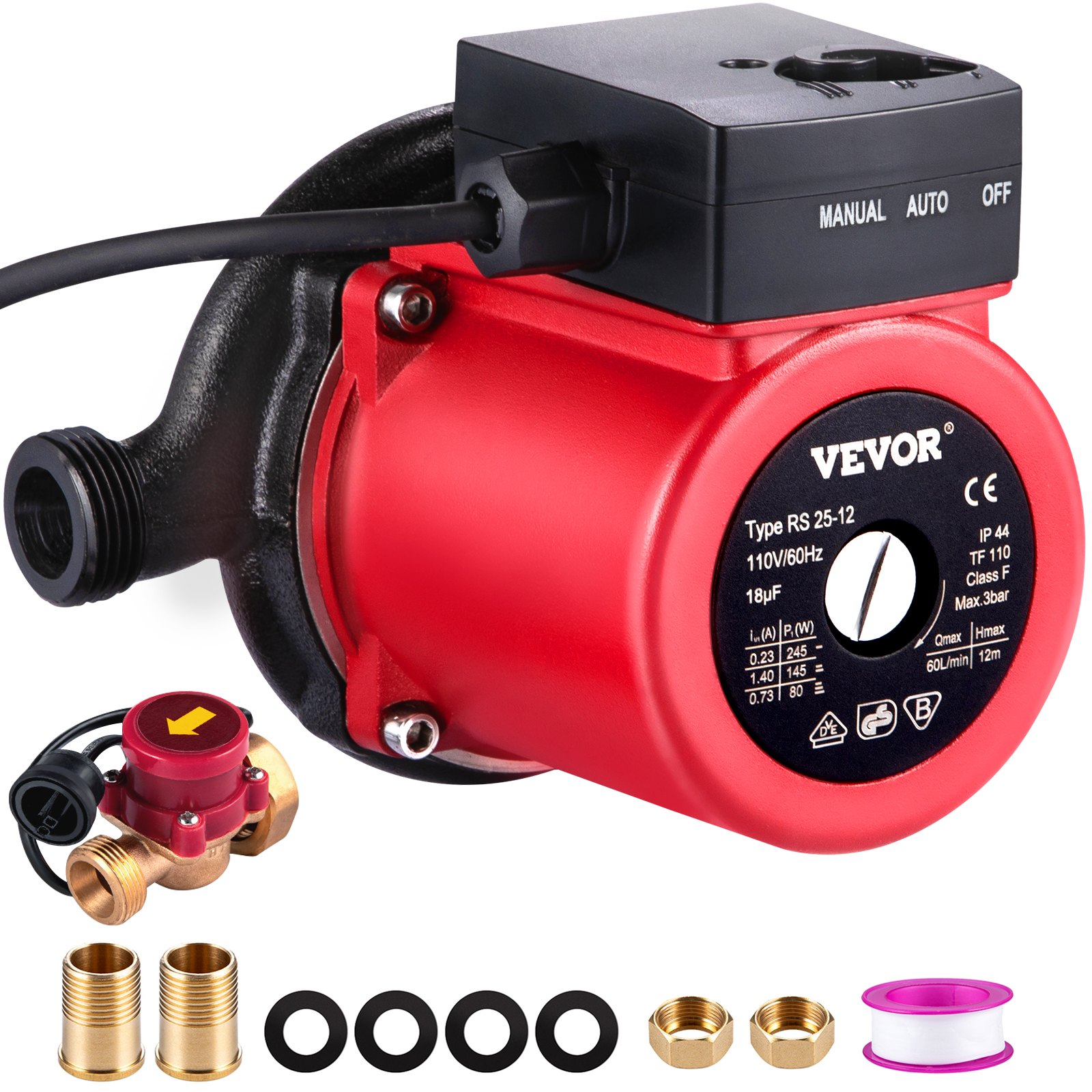

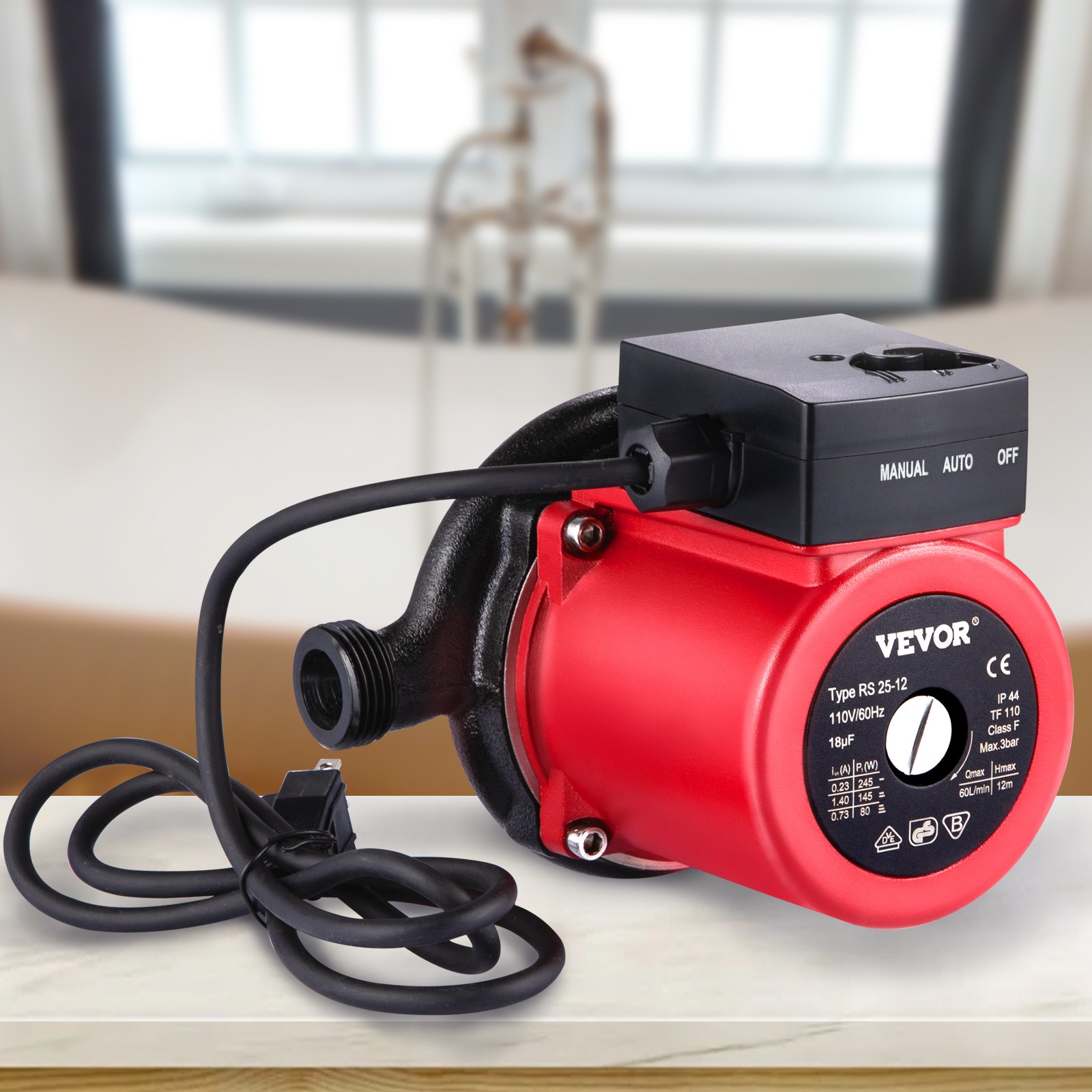

red VEVOR hot water recirculating pump with fittings and accessories. VEVOR hot water recirculating pump, perfect for boosting water pressure in daily use. VEVOR hot water recirculating pump with cast iron head, aluminum housing, and brass fittings. VEVOR hot water recirculating pump before and after comparison for faucets and showerheads. VEVOR hot water recirculating pump with manual/auto start and electronic sensor. VEVOR hot water recirculating pump with low noise levels comparison chart. VEVOR hot water recirculating pump with product specifications and dimensions.
ZYXHBZTMCUPA-UQ0HV1

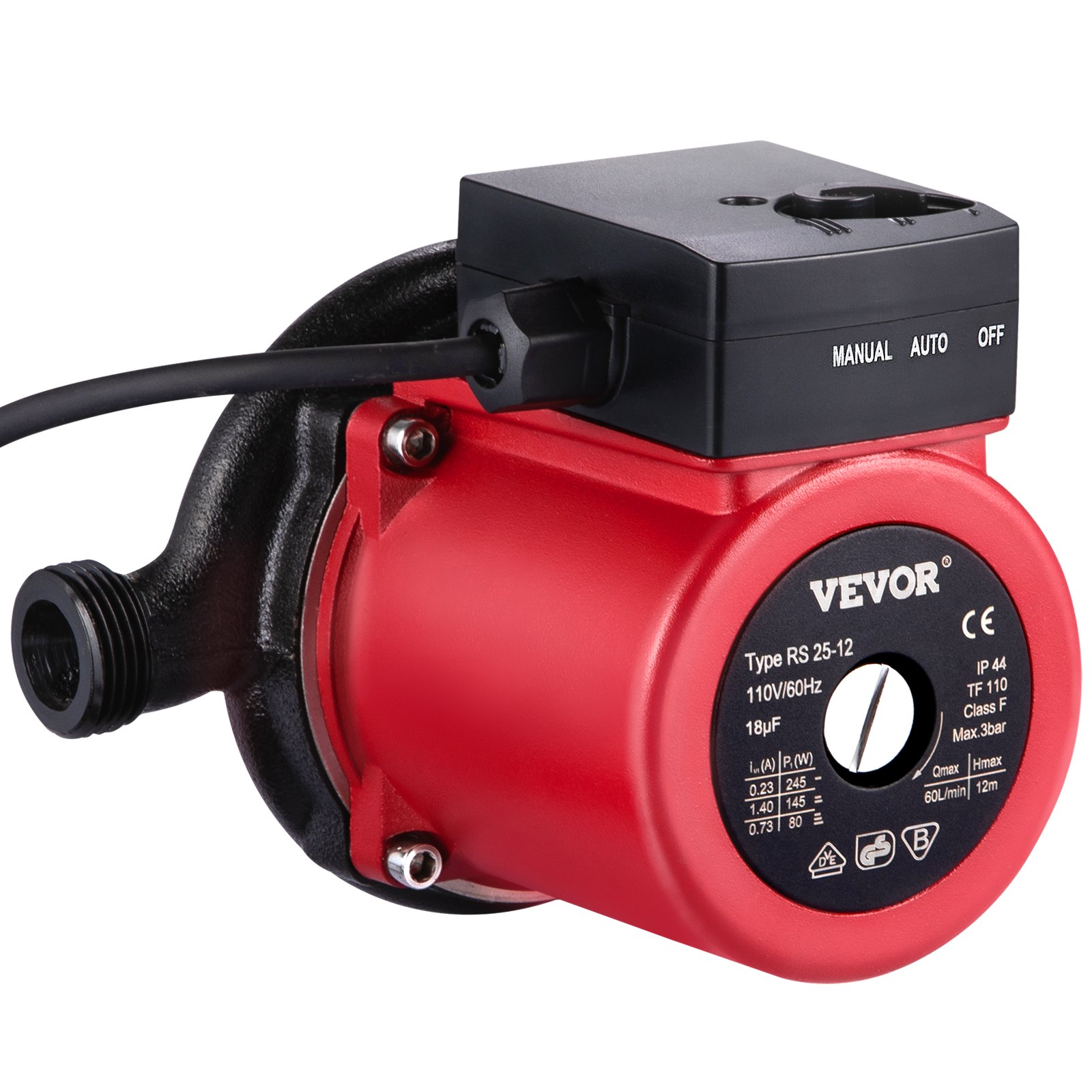

VEVOR Hot Water Recirculating Pump, 245W 110V Water Circulator Pump, Automatic Start Circulating Pump NPT 3/4" w/Brass Fittings, Stainless Steel Head, 2 Speed Control for Electric Water Heater System

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

245W

  • 245W
  • 100 W
  • 120 W
  • 46/67/93W

About this item

  • Constructed with durable materials for rust-proof and waterproof performance. Comes with brass fittings, flow gauge, and water-stop for corrosion-proof and leakage-proof.
  • Powerful circulator pump with large flow and quiet running. Provides high performance with low noise levels.
  • Features manual/auto switch for convenient operation. Can be turned on/off easily. Auto mode enables automatic start-up/shutoff.
  • Easy installation with NPT 1" inlet/outlet hose. Lubricating oil taste disappears after a few uses. Shaft should be kept horizontal after installation.
  • Suitable for various applications including city buildings, suburban villas, houses, industrial equipment, air conditioning, boilers, solar circulating system, and water heater system.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Hot Water Recirculating Pump, 245W 110V Water Circulator Pump, Automatic Start Circulating Pump NPT 3/4" w/Brass Fittings, Stainless Steel Head, 2 Speed Control for Electric Water Heater System
245W
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
VEVOR hot water recirculating pump, 120w 110v, stainless steel, large flow, quiet running.
245W Recirculating Pump
Brass Fittings & Two Control Modes & Auto-start
  • This water circulator pump is made of a premium stainless steel pump head and aluminum pump housing, features high power efficiency, low energy consumption, ample water flow, low noise running, and easy installation. Convenient for daily use, perfect for family water heating systems, such as remote villas, cabins, etc.
  • Note: Never let water outlet facing downward, or the valve will be plugged up.
  • Cast Iron Material
  • Manual/Auto Switch
  • Large Flow & Quiet Running
  • Easy Installation

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

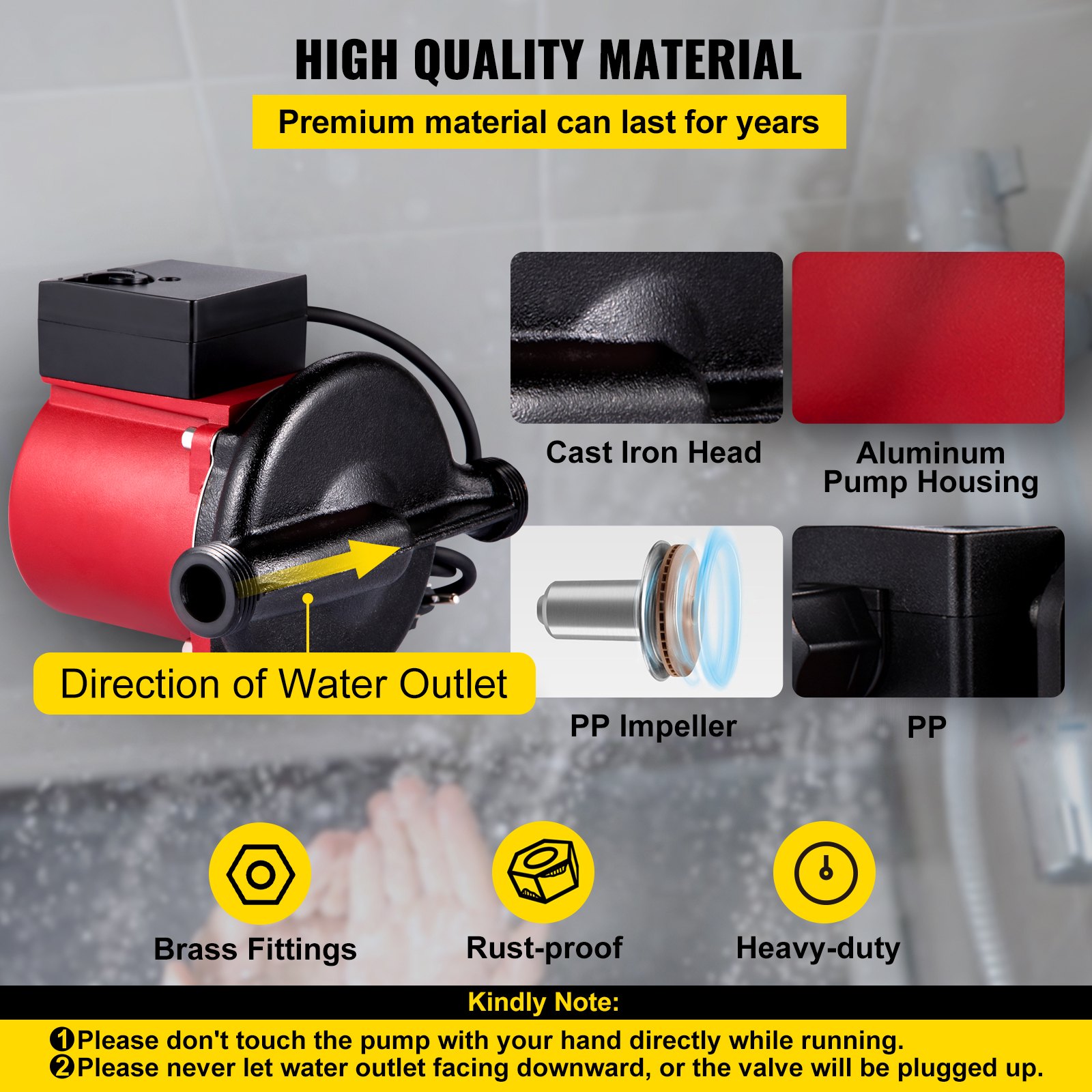

VEVOR hot water recirculating pump with cast iron head, aluminum housing, pp impeller.
Heavy-duty Material
Our recirculating pump comprises a heavy-duty iron head, aluminum housing, and PP impeller and is also equipped with brass fittings, flow gauge, and water-stop. As a result, rust-proof, waterproof, corrosion-proof, and leakages-proof can last for years.

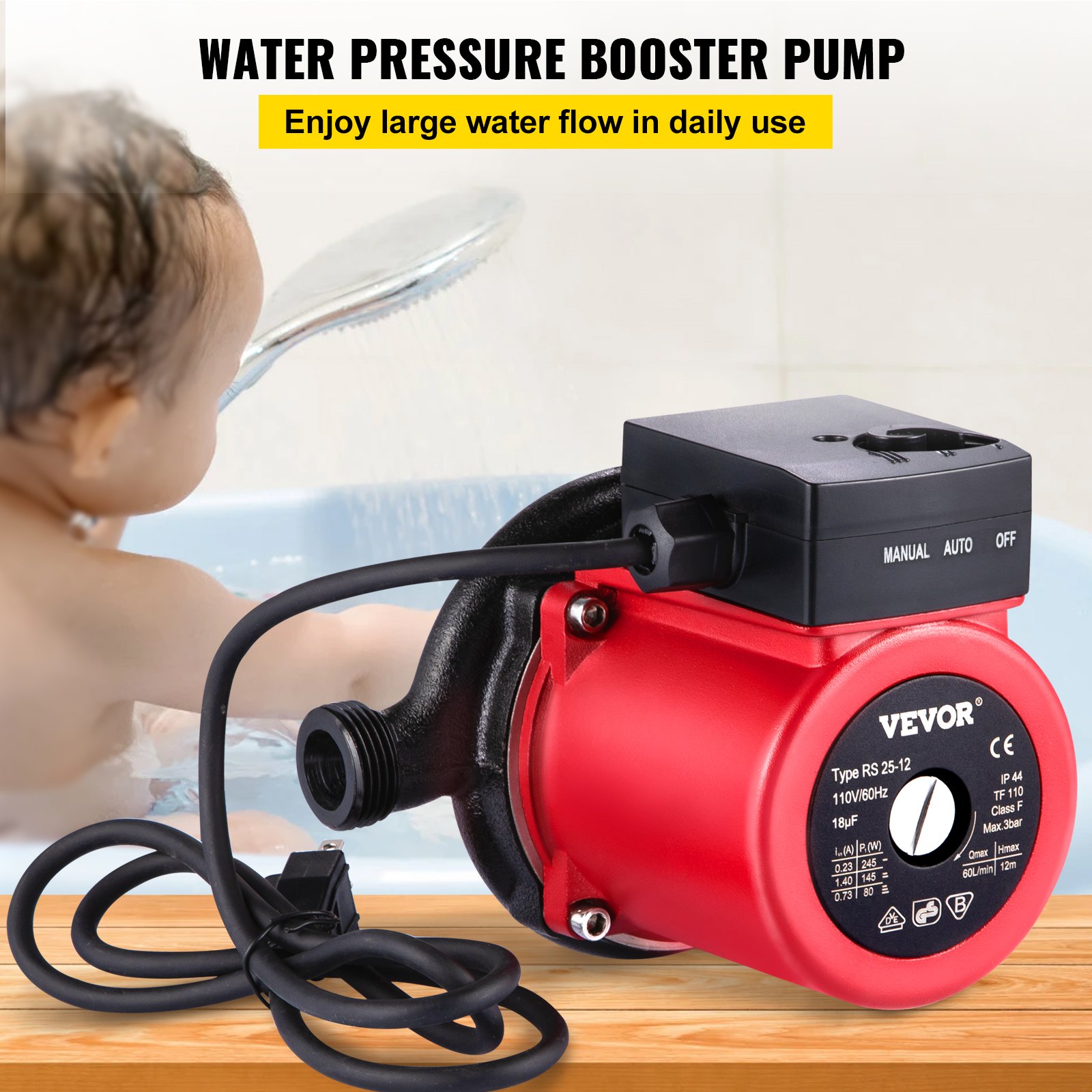

boost water pressure with VEVOR hot water recirculating pump; before and after comparison.
Boost Water Flow
Powerful flow with 16 GPM and the highest head lift can reach 49.2 ft. The maximum pressure of this water circulator pump is 10 Bar(145Psi). High efficient and large flow but low energy consumption.

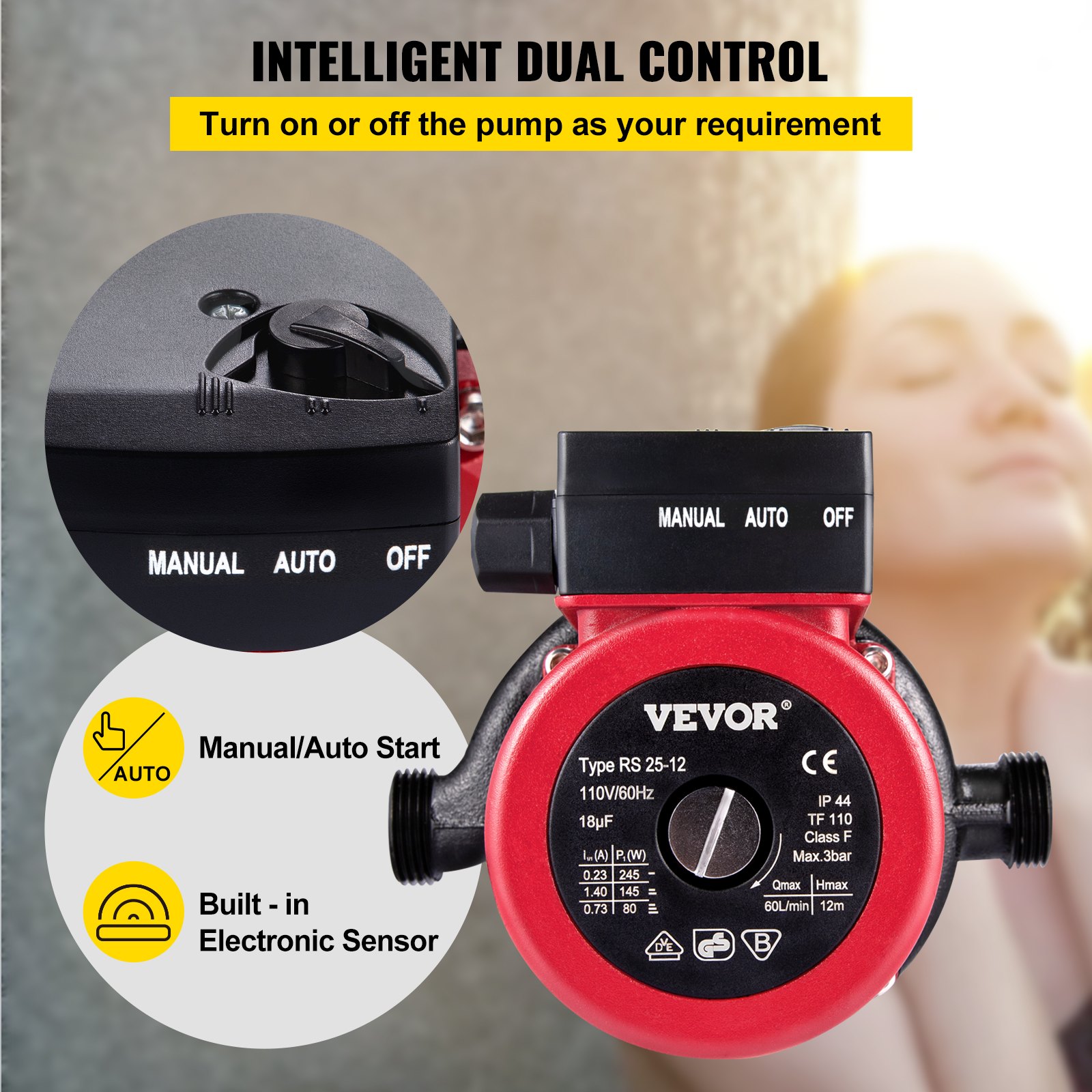

VEVOR hot water recirculating pump with intelligent dual control and electronic sensor.
Dual Control Mode
The pump features a built-in high-sensitive electronic sensor, two control methods-manual start or automatic start. The pump will run continuously for manual mode, and the pump will run when the water flows when turned on automatic mode.

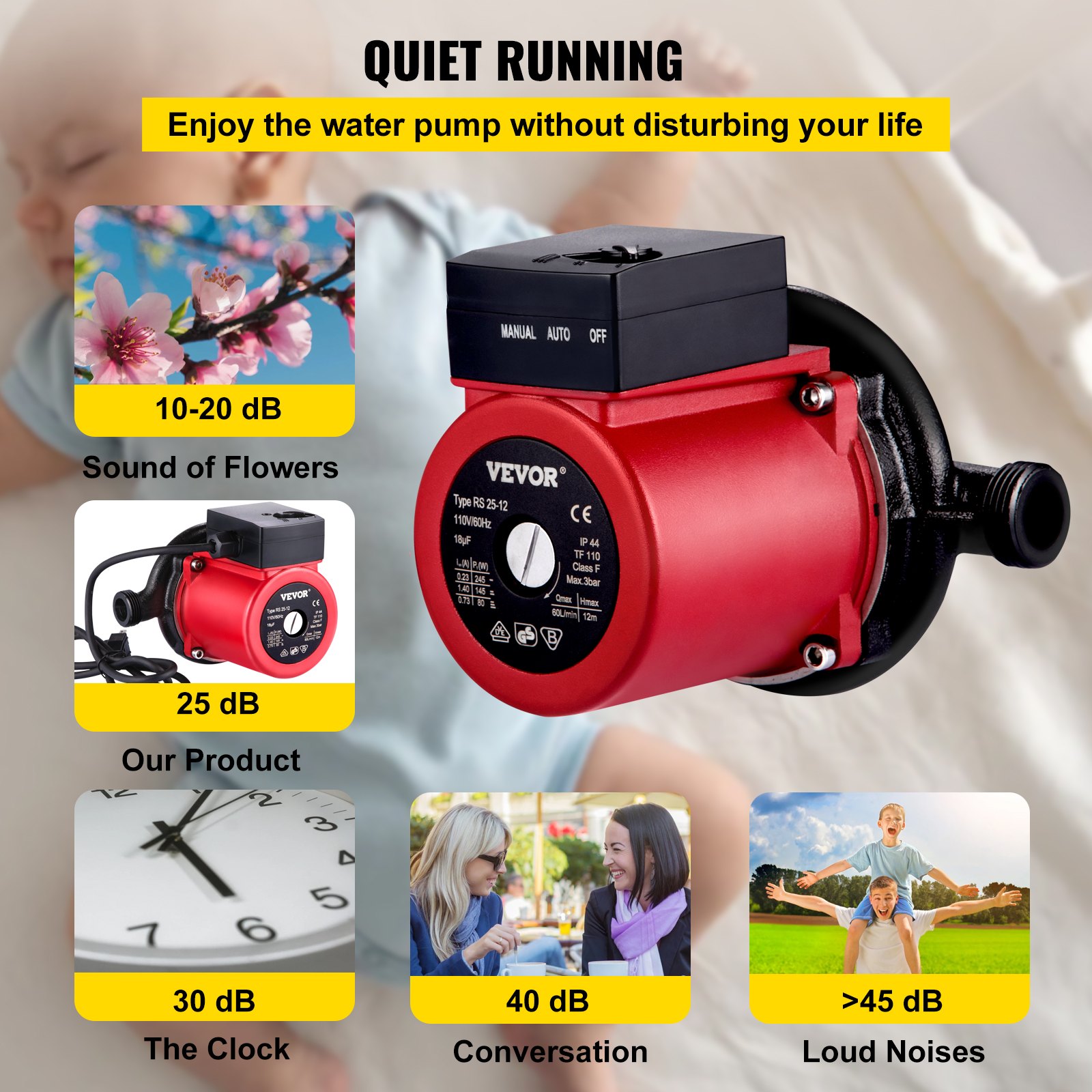

VEVOR hot water recirculating pump with low noise running, suitable for quiet spaces.
Quiet Operation
This circulating pump for hot water boasts a powerful motor for stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.
easy installation of VEVOR hot water recirculating pump with labeled components.
Effortless to Install
The recirculating hot water pump is easy to install on appliances and industrial electric or gas water equipment. However, you need to keep the pump shaft horizontally after installation.
VEVOR hot water recirculating pump for versatile uses: domestic water, gas, solar, electric heater.
Various Application
The recirculating pump for a water heater is a convenient water pressure boosting pump used in the water heating system, such as solar water heater, electric water heater, domestic water pipelines, etc.

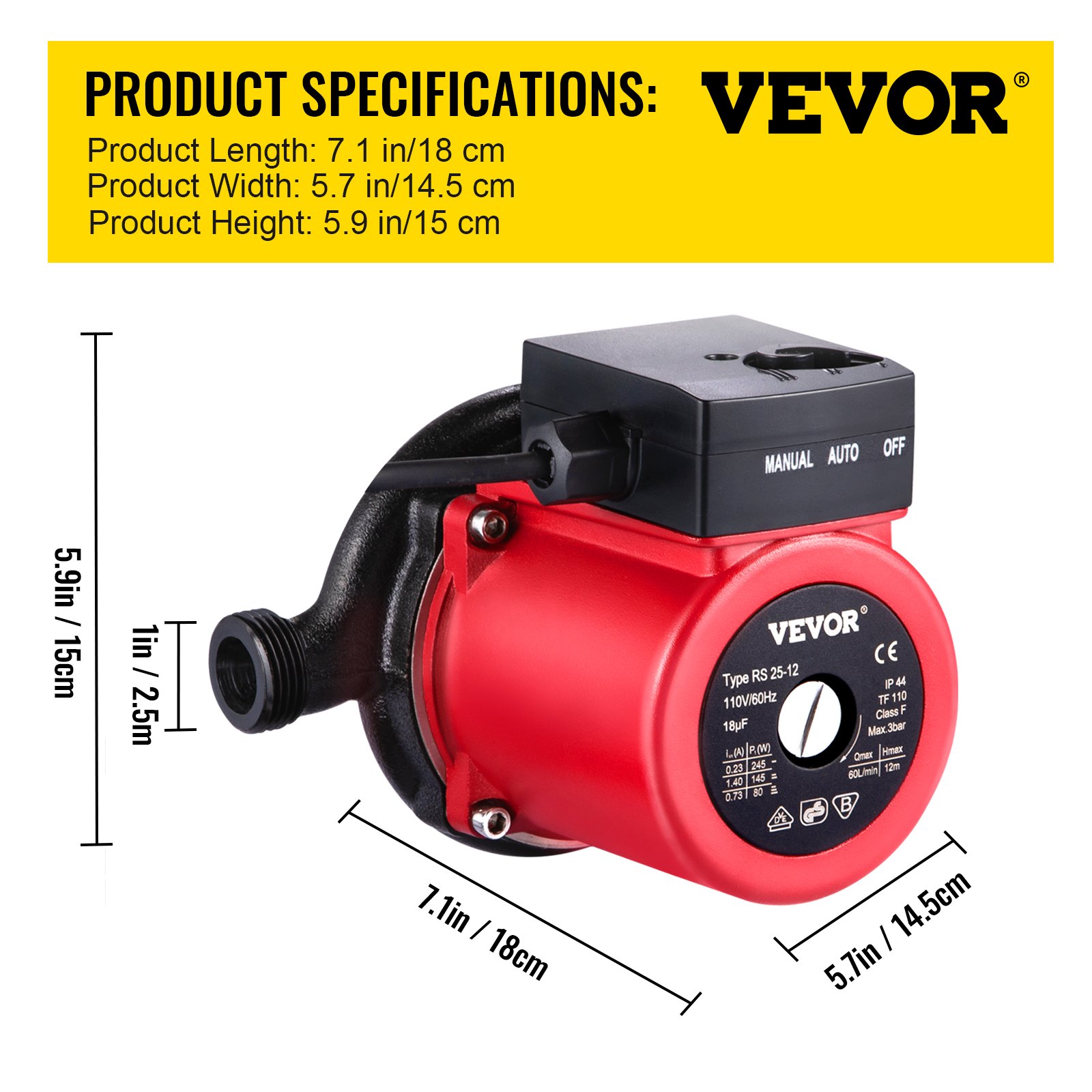

VEVOR hot water recirculating pump with dimensions labeled: 5.9x7.1x5.7in.
Specifications
  • Model: VV-ZT-ZYB UPA120
  • Power: 245W
  • Voltage: 110V/60HZ
  • Body Color: Red/Black
  • Pump Head: Cast Iron
  • Pump Housing: Aluminum
  • Impeller Material: PP
  • Shaft Material: Ceramic
  • Bearing Material: Carbon
  • Noise Level: 25dB
  • Inlet/Outlet Dia.: NPT 1" /2.54 cm
  • Max. Flow Rate: 16 Gpm / 60 L/min
  • Max. Head Lift: 49.2 ft / 15 m
  • Rated Pressure: 1.28 Bar / 18.5 Psi
  • Max. Pressure: 10 Bar/ 145 Psi
  • Cable Length: 4 ft / 1.25 m
  • Liquid temperature:32~212℉/0~100℃
  • Ambient temperature: 32~104℉/0~40℃
  • Mounting Position: Shaft Horizontal
  • Protection Level: IP44
  • Insulation Class: F
  • Product Size: 7.1x5.7x5.9 in / 18x14.5x15 cm
VEVOR hot water recirculating pump with accessories and fittings in red and black design.
Package Content
  • 1 x Recirculating Pump
  • 1 x Flow Gauge
  • 2 x Brass Fittings
  • 2 x Rubber Gaskets
  • 1 x Water-stop(3.28ft)
  • 1 x Instruction Manual
VEVOR logo with tagline "tough equipment & tools, pay less" in black and yellow.
VEVOR hot water recirculating pump, 120w 110v, stainless steel, large flow, quiet running.

Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR logo
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
245W Recirculating Pump
Brass Fittings & Two Control Modes & Auto-start
  • This water circulator pump is made of a premium stainless steel pump head and aluminum pump housing, features high power efficiency, low energy consumption, ample water flow, low noise running, and easy installation. Convenient for daily use, perfect for family water heating systems, such as remote villas, cabins, etc.
  • Note: Never let water outlet facing downward, or the valve will be plugged up.
  • Cast Iron Material
  • Manual/Auto Switch
  • Large Flow & Quiet Running
  • Easy Installation
VEVOR hot water recirculating pump with cast iron head, aluminum housing, pp impeller.
Heavy-duty Material
Our recirculating pump comprises a heavy-duty iron head, aluminum housing, and PP impeller and is also equipped with brass fittings, flow gauge, and water-stop. As a result, rust-proof, waterproof, corrosion-proof, and leakages-proof can last for years.
boost water pressure with VEVOR hot water recirculating pump; before and after comparison.
Boost Water Flow
Powerful flow with 16 GPM and the highest head lift can reach 49.2 ft. The maximum pressure of this water circulator pump is 10 Bar(145Psi). High efficient and large flow but low energy consumption.
VEVOR hot water recirculating pump with intelligent dual control and electronic sensor.
Dual Control Mode
The pump features a built-in high-sensitive electronic sensor, two control methods-manual start or automatic start. The pump will run continuously for manual mode, and the pump will run when the water flows when turned on automatic mode.
VEVOR hot water recirculating pump with low noise running, suitable for quiet spaces.
Quiet Operation
This circulating pump for hot water boasts a powerful motor for stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.
easy installation of VEVOR hot water recirculating pump with labeled components.
Effortless to Install
The recirculating hot water pump is easy to install on appliances and industrial electric or gas water equipment. However, you need to keep the pump shaft horizontally after installation.
VEVOR hot water recirculating pump for versatile uses: domestic water, gas, solar, electric heater.
Various Application
The recirculating pump for a water heater is a convenient water pressure boosting pump used in the water heating system, such as solar water heater, electric water heater, domestic water pipelines, etc.
VEVOR hot water recirculating pump with accessories and fittings in red and black design.
Package Content
  • 1 x Recirculating Pump
  • 1 x Flow Gauge
  • 2 x Brass Fittings
  • 2 x Rubber Gaskets
  • 1 x Water-stop(3.28ft)
  • 1 x Instruction Manual
VEVOR hot water recirculating pump with dimensions labeled: 5.9x7.1x5.7in.
Specifications
  • Model: VV-ZT-ZYB UPA120
  • Power: 245W
  • Voltage: 110V/60HZ
  • Body Color: Red/Black
  • Pump Head: Cast Iron
  • Pump Housing: Aluminum
  • Impeller Material: PP
  • Shaft Material: Ceramic
  • Bearing Material: Carbon
  • Noise Level: 25dB
  • Inlet/Outlet Dia.: NPT 1" /2.54 cm
  • Max. Flow Rate: 16 Gpm / 60 L/min
  • Max. Head Lift: 49.2 ft / 15 m
  • Rated Pressure: 1.28 Bar / 18.5 Psi
  • Max. Pressure: 10 Bar/ 145 Psi
  • Cable Length: 4 ft / 1.25 m
  • Liquid temperature:32~212℉/0~100℃
  • Ambient temperature: 32~104℉/0~40℃
  • Mounting Position: Shaft Horizontal
  • Protection Level: IP44
  • Insulation Class: F
  • Product Size: 7.1x5.7x5.9 in / 18x14.5x15 cm

Hot Water Recirculating Pump for Instant Hot Water

Get instant hot water with this hot water recirculating pump. It is a dependable and energy-saving way to stop waiting for warm water at your faucets. This pump quickly circulates hot water through your pipes, so you have it when you need it, saving water and cutting utility costs. It’s easy to install, it runs quietly, and it’s is practical. It is an eco-friendly addition to any home. This water-circulating pump is built to last, which improves the comfort and efficiency of your home’s hot water system.


Superior Performance & Quiet Operation

The VEVOR hot water recirculating pump offers strong performance and quiet operation. Its powerful motor can pump up to 60 liters of water per minute. Its maximum pressure is 10 bar (145 psi), and its head lift reaches 49.2 feet. This means it can handle large water flows efficiently.


Despite its strength, the pump runs very quietly, with a noise level of only 25 decibels, about as quiet as a soft whisper. You can enjoy its high performance without any loud noise disturbing your peace. The automatic start circulating pump uses energy efficiently. It also provides a fast flow rate of 16 gallons per minute.


Smooth Setup with Easy Installation

The easy installation allows you to save time and effort by fumbling over procedures. The VEVOR hot water recirculating pump comes with an easy installation feature. This makes it easy to add to your system. You can quickly install it on both home appliances and industrial water heaters, whether they’re electric or gas. Just remember to keep the pump shaft horizontal after installation for the best results.


This NPT 3/4" brass fittings pump can be directly connected to drinking water pipes using a wrench. It fits with a 1-inch NPT inlet/outlet hose. After using the pump 3 to 5 times, any slight taste from the lubricating oil will go away. Overall, it’s a simple and effective solution for getting hot water quickly and easily.


Heavy-Duty Construction

Regular pumps may require more frequent repairs or replacements due to their less sturdy construction. The VEVOR hot water recirculating pump is built to last. It has a strong iron pump head, an aluminum housing, and a durable PP (polypropylene) impeller. These materials make the pump resistant to rust and water damage.


This stainless steel head pump also has a water-stop device, a flow gauge, and brass fittings to help prevent leaks and corrosion. Ultimately, the pump's robust construction ensures its long-lasting functionality, which can withstand challenging circumstances.


Smart Dual-Mode Control System

With its dual control mechanism, this hot water recirculating pump provides two user-friendly settings. When the pump is in manual mode, it operates nonstop, providing you with hot water whenever you need it. This works well if you want hot water on hand all the time.


When the water circulating pump is in automated mode, it only turns on when it senses water flow. Because the pump only operates when necessary, this contributes to energy savings. It strikes a balance between performance and efficiency with a 245W power rating. By allowing you to move between these modes as needed, you may reduce the amount of energy used when the pump is not in use.


Versatile Applications

The VEVOR hot water recirculating pump is really versatile and works in many different settings. It’s great for city buildings, suburban homes, and even industrial setups. It works well for suburban dwellings, city structures, and even industrial settings. It is compatible with solar heating systems, boilers, and air conditioning units.


It is ideal for solar water heaters, electric heaters, and residential water pipelines because it increases water pressure in water heaters. This water-circulating pump helps make sure you get hot water quickly and efficiently everywhere.


See More

Specification

Model
VV-ZT-ZYB UPA120
Power
245W
Voltage
110V/60HZ
Body Color
Red/Black
Pump Head
Cast Iron
Pump Housing
Aluminum
Impeller Material
PP
Shaft Material
Ceramic
Bearing Material
Carbon
Noise Level
25dB
Inlet/Outlet Dia.
NPT 1" /2.54 cm
Max. Flow Rate
16 Gpm / 60 L/min
Max. Head Lift
49.2 ft / 15 m
Rated Pressure
1.28 Bar / 18.5 Psi
Max. Pressure
10 Bar/ 145 Psi
Cable Length
4 ft / 1.25 m
Liquid temperature
32~212℉/0~100℃
Ambient temperature
32~104℉/0~40℃
Mounting Position
Shaft Horizontal
Protection Level
IP44
Insulation Class
F
Product Size
7.1x5.7x5.9 in / 18x14.5x15 cm
Manual
Download Link
Questions and Answers
7 Questions
How can this be corrosion resistant if its made of cast iron , and how can it be made for potable water if it is cast iron ?
It can't be used for potable water.
By vevor
Does it have a cast iron pump head or a stainless steel pump head? The description above lists both.
The pump head is made of iron.
By vevor
Which location of water heater we shout instsl this pump. At the entrance of water or where the hot water coming out of water heater?.
It needs to connect the pump at the water inlet.
By vevor
Does the pump shut off when it senses hot water while in the manual mode?
Hello Mikyo. No it doesn't. It's controlled by water flow.
By vevor
Looking for a fluid pump for a ultrasonic cleaner. A 5 gallon tank and will filter the fluid. If you also have a filter system I'm looking for one. Will your VV-2T-2YB-UPA-1230 pump work for me?
Sorry, this one does not have a filter system.
By vevor

Customer Reviews

105 Review(s)
Clear filters
Jim Jim
Good little pump
If you need a low powered pump that’s quiet this is a good choice. This is not a powerful pump, but works well. Don’t know about longevity yet. The auto on feature does a good job cutting pump on when water flows. There is confusion about the threads. These are straight threads meant to be used with a washer seal, unlike tapered npt threads that seal when the threads tighten. 3/4 female iron pipe fittings FIP will screw on the pump with no problems. They seal with a rubber washer.
Phoenecian Phoenecian
Used pump to replace hot tub circulation pump and it worked better than before.
This pump was a direct replacement to a hot tub circulation pump that cost between $175 to $250 to replace. It needed basic pvc and brass pieces to complete and it slid right into my tub perfectly. I run it on the lowest speed. Speed 3 is pretty decent output, but for a 4 man tub, speed one is sufficient. Still better output for heater and ozinator bubbler than the old one. $31.00 vs. $200 and up? No contest. Great components and runs absolutely silent. I had to add a ground wire terminal to the body by using existing screw on motor body cover, but it is double bonded, and double grounded.
anthony h. anthony h.
Worked perfectly for hot water recirculating system.
Bought straight thread to NPT adaptors-worked perfectly with no leaks.
Dennis Dennis
Great quality for the price
I am a contractor so from my prospective it was easy to install. Overall I give it a 5 but individually quality is 3.5, price is a 10 and installing a 4, - also I bought 2 the other one is for my cnc plasma table fluid filtration system. I needed to get a 3/4” union for the pump to water heater but that’s normal with most pumps. For the low price of $35 the quality is great. It does have flaws its not perfect but if you are on a budget thes is i great pump and wow save you on waisted water and gas to heat it. I installed it on my water heater witch is the preferred installation. I used an inexpensive valve at the fertherest bathroom sink. But I recommend buying the stainless steal valve. Installation including the bypass valve tool 20 minutes I already had electric at the water heater. My only concern is it says it’s automatic on off but so far it on all the time. So I’m going to install a dusk to dawn Timmie and if it continues to run all day I’ll add ap pressure sensor switch or it may be the plastic bypass valve not shutting off if so an other reason to go with the better SS valve. But the pump is worth the $.
Maury Maury
Bomba Recirculating water
Excellent VEVOR my encant I recommend the equipment to you. My sister Silvio, it was very useful for her house in Cuba. Thank you very much.
Richard Richard
Good for the money
I gave it a four star rating because it did help getting my hot water sooner but still not that quick. I had to install a timer in order to get hot water quicker. With the timer I would set it at least 30 minutes before I would take a shower then set it when you want it to turn off.
Mike Mike
#1 dummy
Price was lower than I expected to find, delivery was within suitable time and it probably took me 30 to 45 minutes to complete the installation and at least 20 minutes of that was because I had to go find and replace a valve on the other end of the line. That had nothing to do with the pump, just part of the job. I was as pleased with this replacement as much as anything I have ever bought.
TroubleShooter TroubleShooter
BSP is not quite the same as NPT
The included couplings threaded perfectly into adapters I had on hand for NH hose fittings. Works perfectly for my purpose, draining a water heater. Didn't measure, but I believe it pumped almost 10 GPM on high speed.
Alex Alex
Don't understand why people have problems with it
For the price, you can't beat it. It's pretty quiet, it's cast iron body. For people who are trying to find adaptors for this pump, I don't understand you. You have to use unions that come with it. Then either go 3/4\" female over it or sweat 1/2\" pipe right into it, which I prefer better. Takes about 5 minutes to install this pump. I'm a professional plumber and I plumb houses for a living. Buying 10 more today.
Dan Dan
home repair guy
This pump is very nice. I use it in my hot tub. It is extremely quiet while operating. Thanks!
