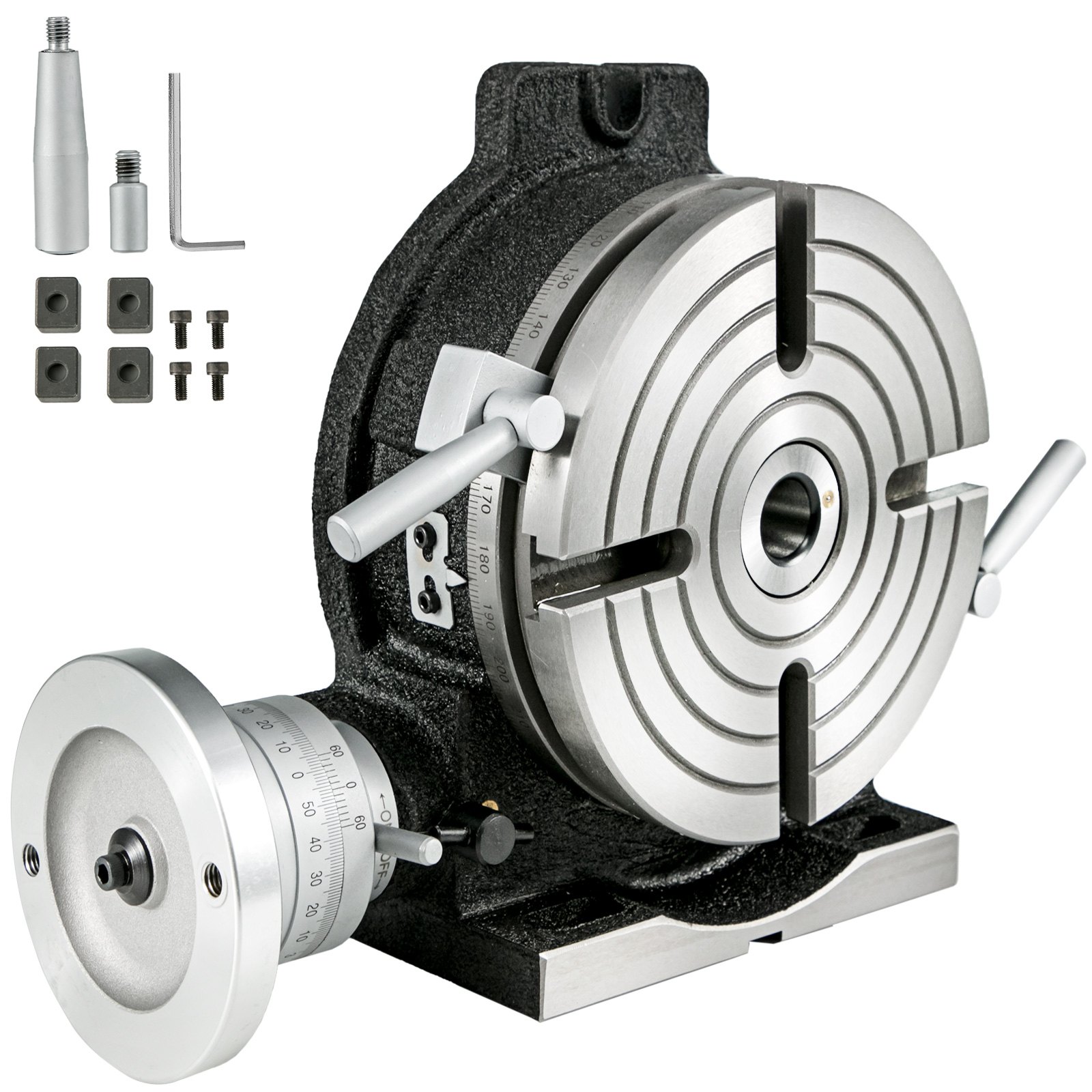

VEVOR rotary table with accessories, featuring precise scale and sturdy design. VEVOR rotary table, silver rotary table wheel with vertical & horizontal design. VEVOR rotary table with ht200 casting for precision machining. close-up of the VEVOR rotary table dials showing detailed measurement markings. close-up of the VEVOR rotary table adjustment handle for easy operation and precision. VEVOR rotary table accessories, including free wrench, adapter, and screws. industrial machines showcasing VEVOR rotary table applications. various models displayed.
GZTHV-80000000001V0

VEVOR Rotary Table 8 Inch Horizontal Vertical HV8 Precision 3MT Milling Drilling Machine Vernier Reading Milling Drilling Boring

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

4 Slots

  • 3 Slots
  • 4 Slots

About this item

  • Remarkable Quality: HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment. Using it as the material, our products are durable, shock-absorbing and heat-resistant.
  • Vertical & Horizontal Design: Our precise rotary table is 8" with 4 slots can be used in both horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience.
  • Excellent Precision: The indexing plate can be graduated 360 Degrees. Resetting dial and hand wheel can be graduated in seconds. The minimum scale is calibrated to 10 seconds with high precision.
  • Convenient to Adjust: The dial is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.
  • Multiple Application: Designed to be widely used in milling machine like index boring, milling, circle cutting, spot facing and boring hole and so on. Practical design can meet a variety of workshop work needs.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Rotary Table 8 Inch Horizontal Vertical HV8 Precision 3MT Milling Drilling Machine Vernier Reading Milling Drilling Boring
4 Slots
VEVOR rotary table, 8" diameter, ht200 casting in an industrial setting.

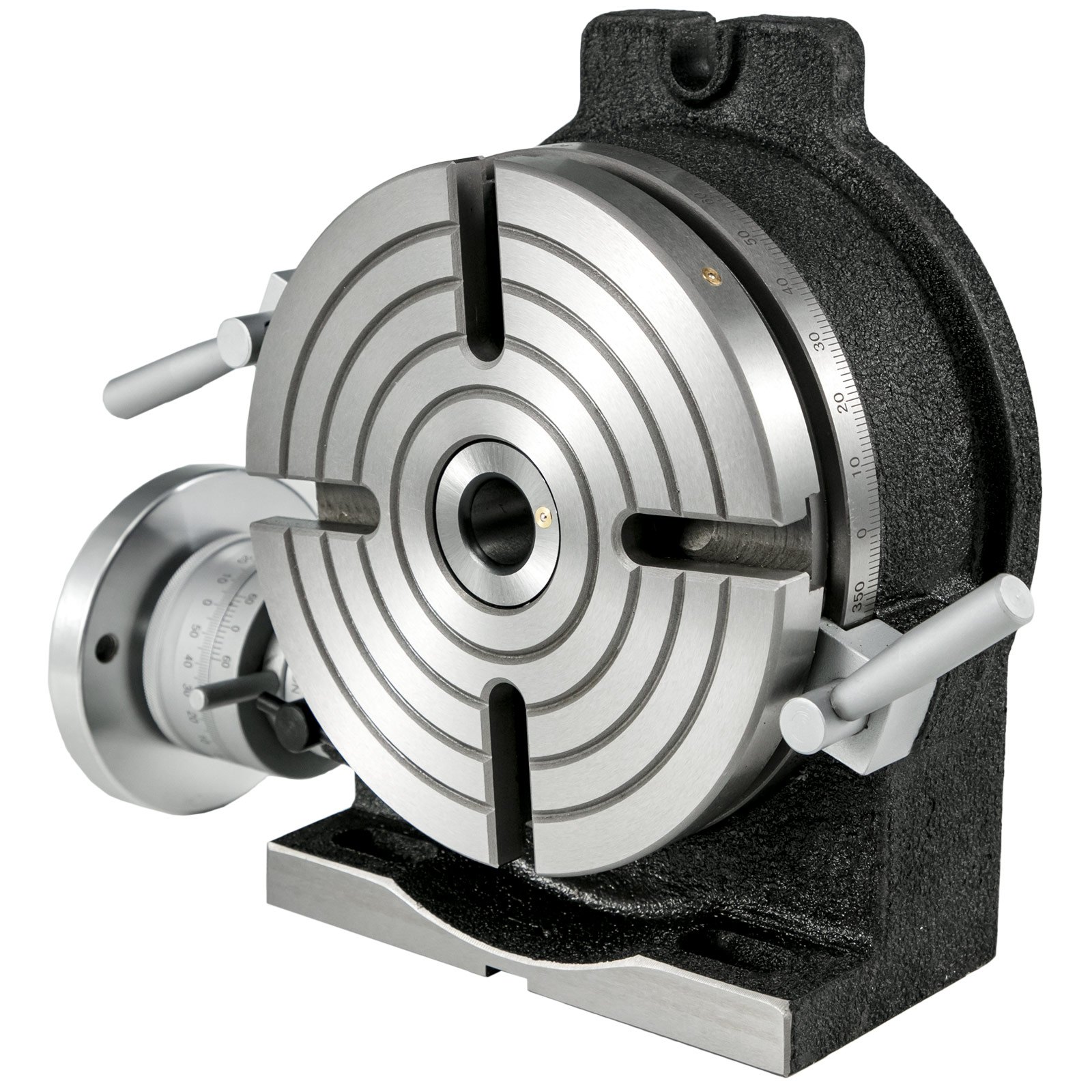

VEVOR rotary table with precision scale and included accessories.
8" Vertical & Horizontal Rotary Table
The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on.
Our amazing rotary table is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost. They are definitely your best choice!
  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

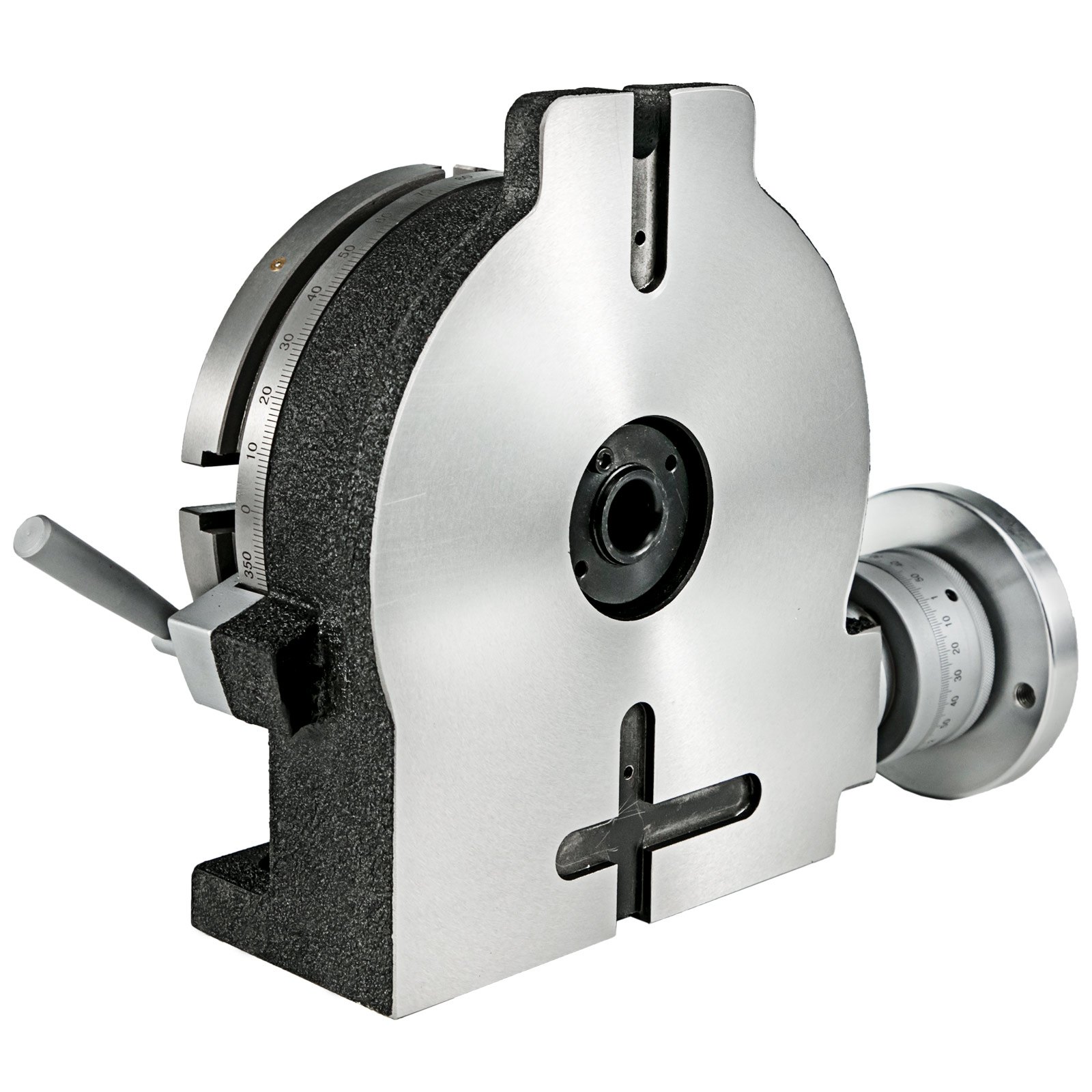

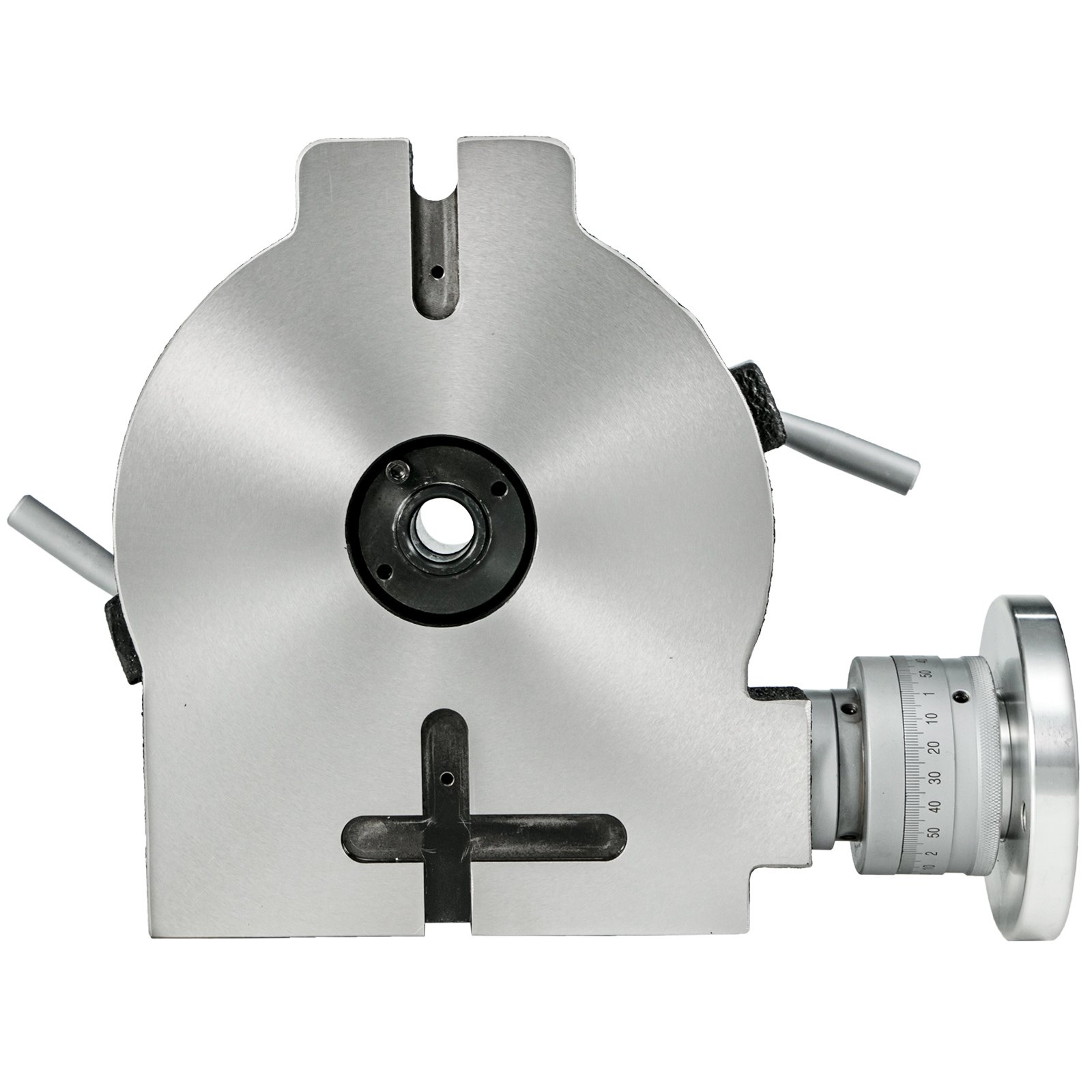

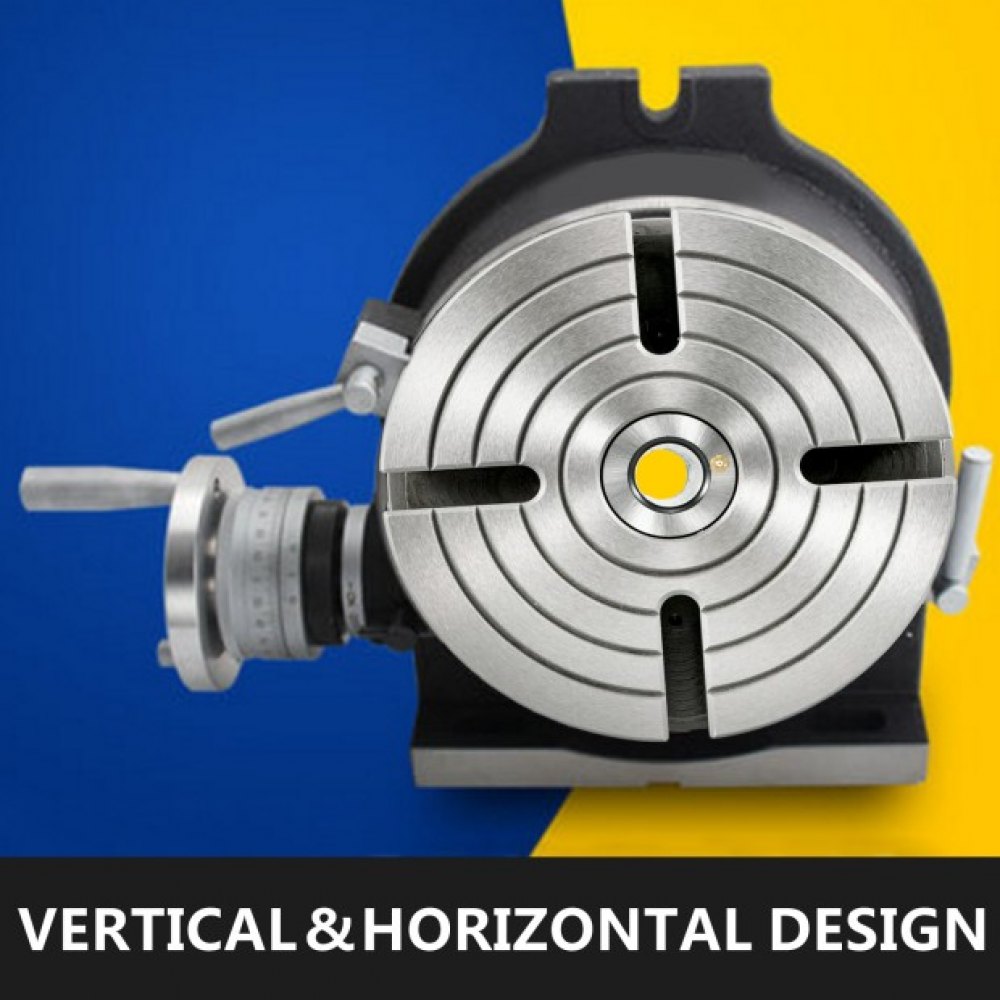

VEVOR rotary table with vertical and horizontal orientation.
Vertical & Horizontal Design
Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.

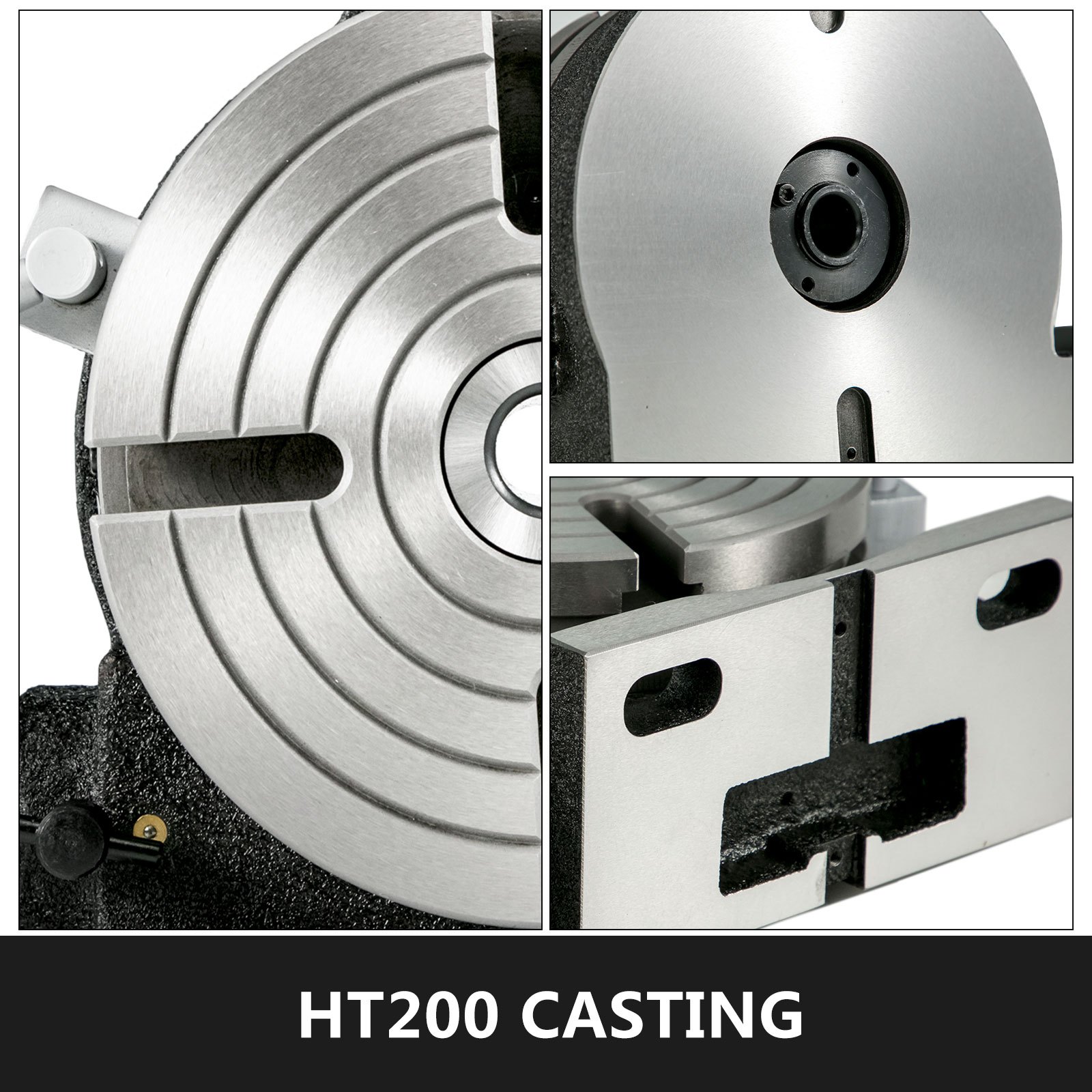

ht200 casting components of the VEVOR rotary table showing detailed grooves and slots
HT200 Casting
HT200 casting has good casting performance, shock absorption performance as well as high strength heat resistance. It ensures the of superior performance the machine and provides you a good sense of use.

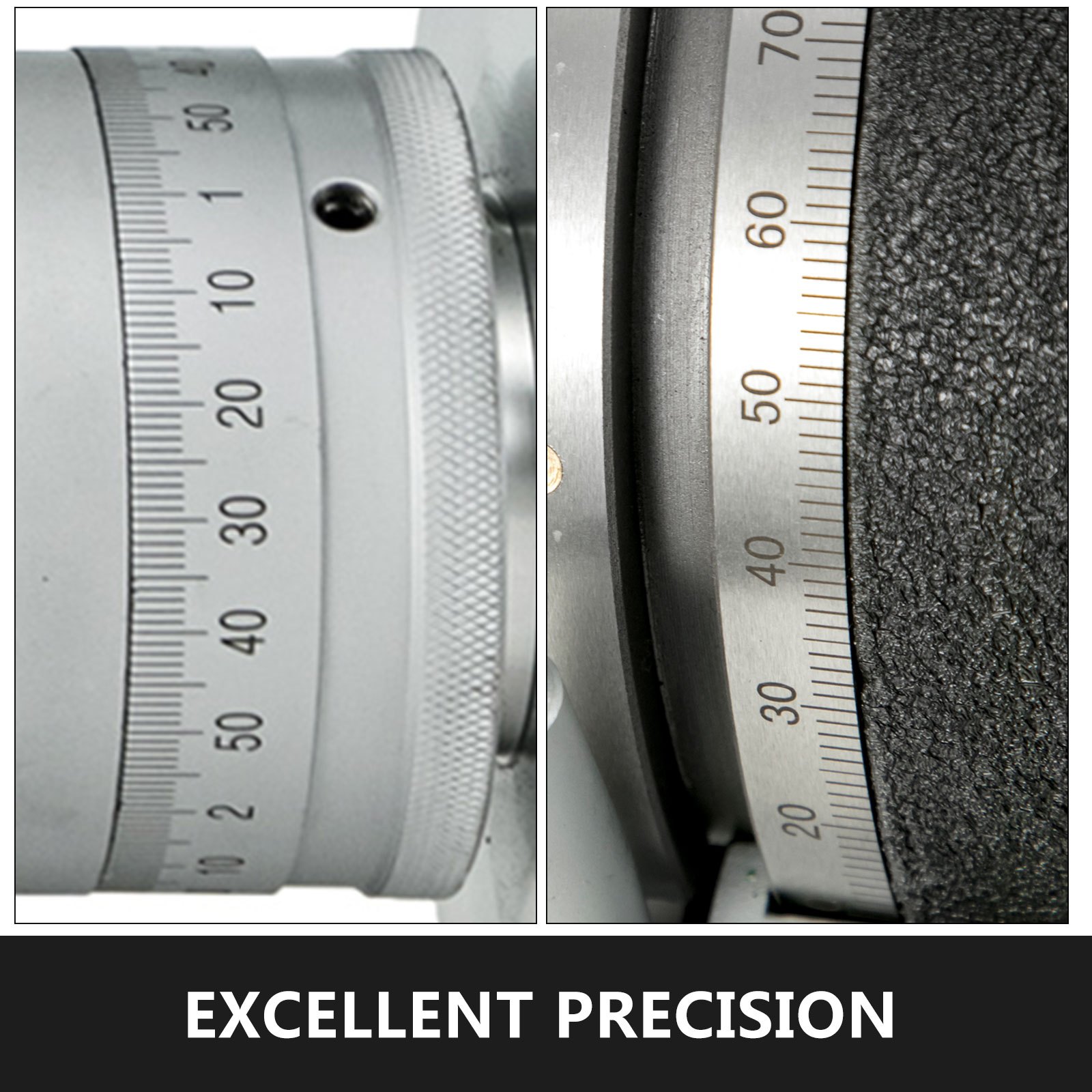

precision scales on a VEVOR rotary table, emphasizing excellent measurement accuracy.
Excellent Precision
The dial is divided into 360 degrees in total. The handle is 4 degrees per revolution. The minimum scale can be accurate to 10 seconds. All of these help you handle more complex and more precise tasks.

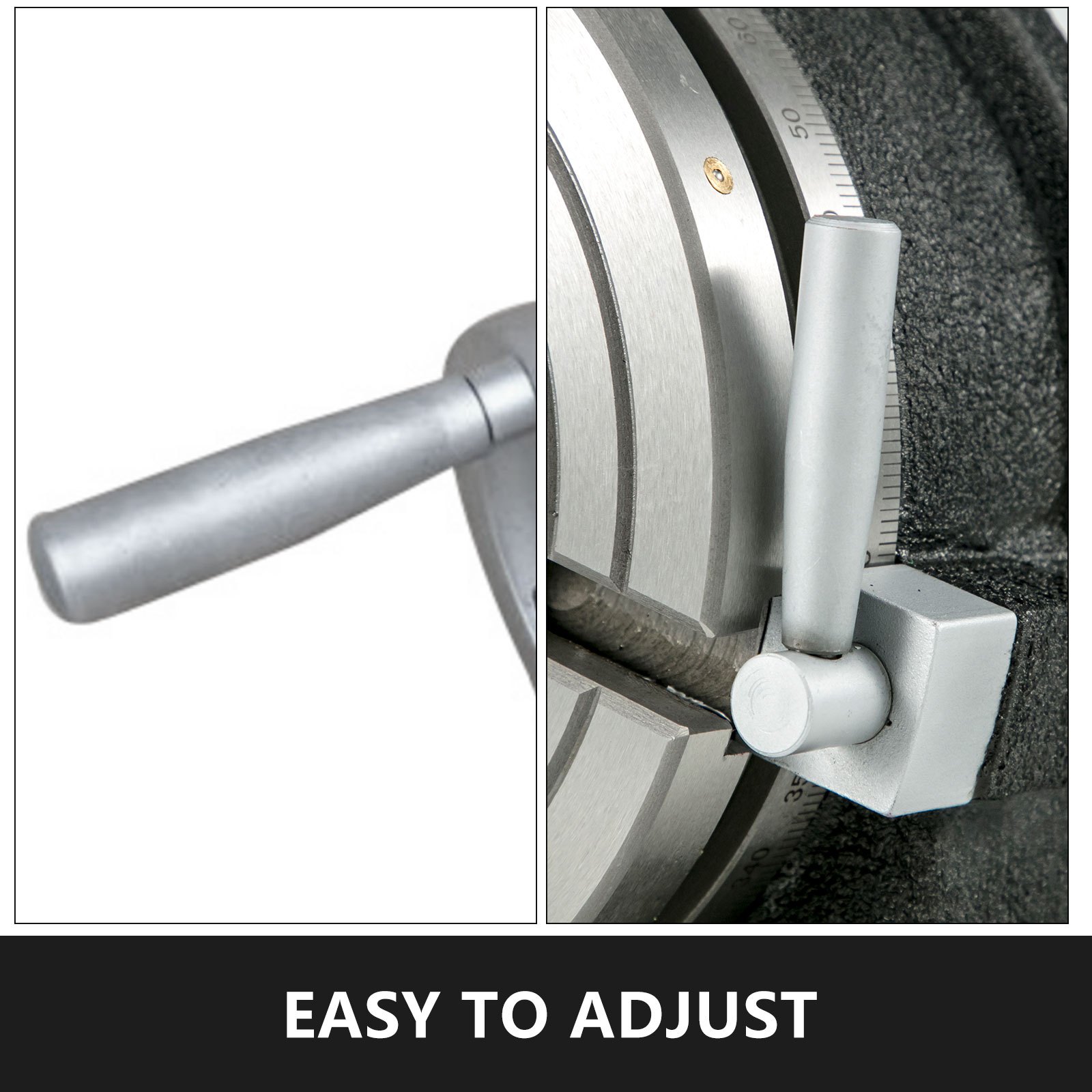

handle and adjustment dial close-up of VEVOR rotary table, showcasing easy-to-adjust feature.
Easy to Adjust
It's not difficult for you to adjust the rotary table milling machine. What you should to do is just adjust the handle to the position where you want. Because the precise scale is marked on the dial.

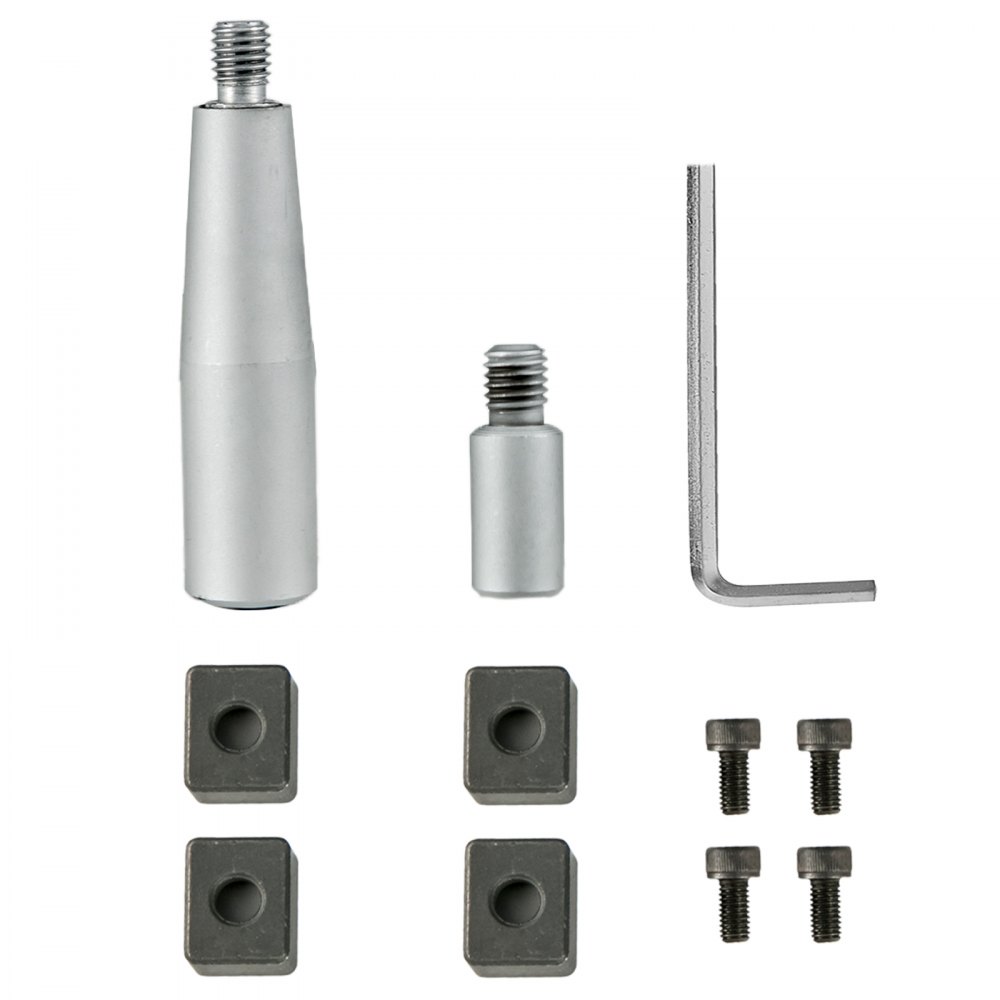

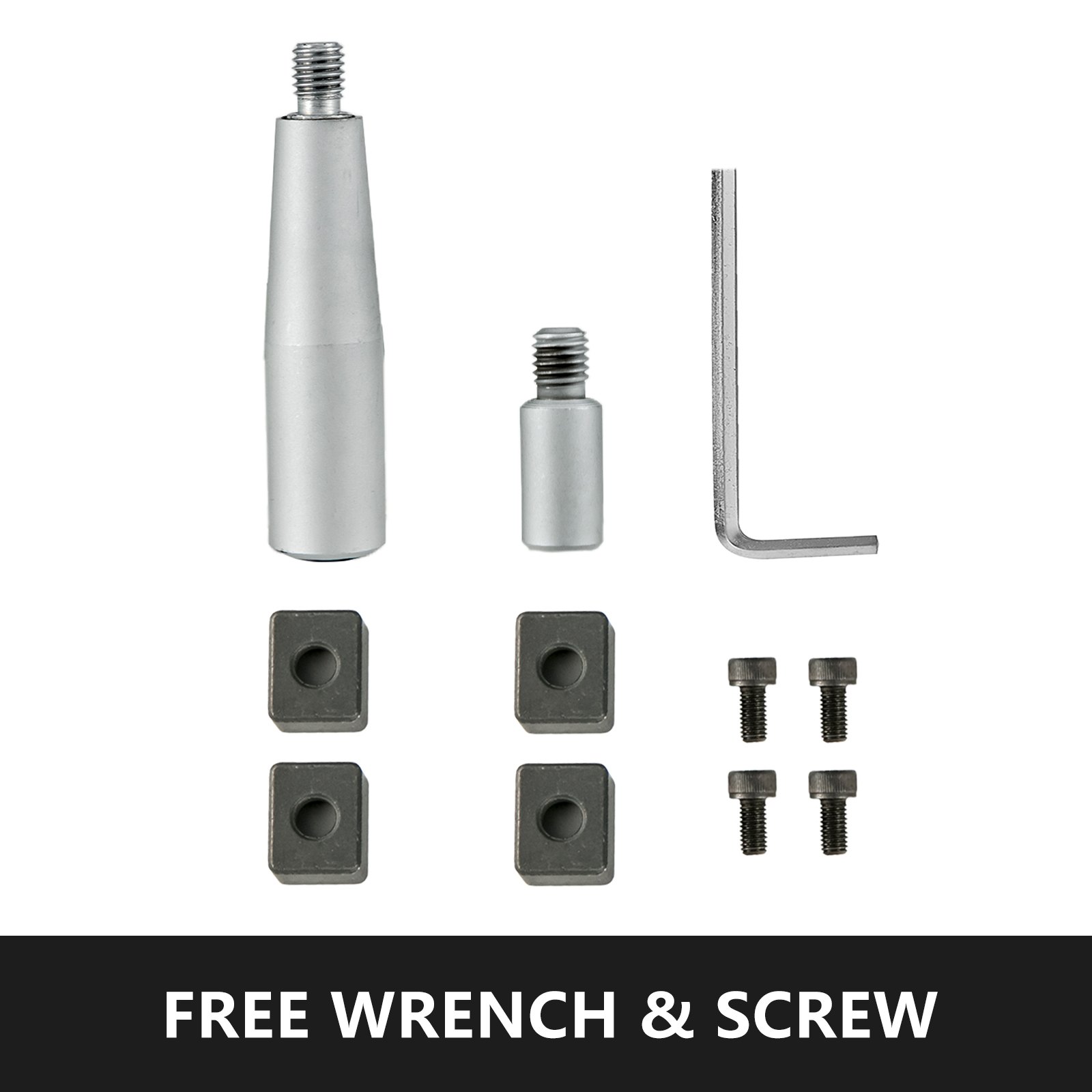

VEVOR rotary table accessories: wrench, screws, and mounting blocks.
Wrench & Screw
If you purchase our product, we are going to give you a free wrench, 2 positioning keys and screws. When you install the vertical & horizontal rotary table, these accessories will bring you a lot of conveniences.

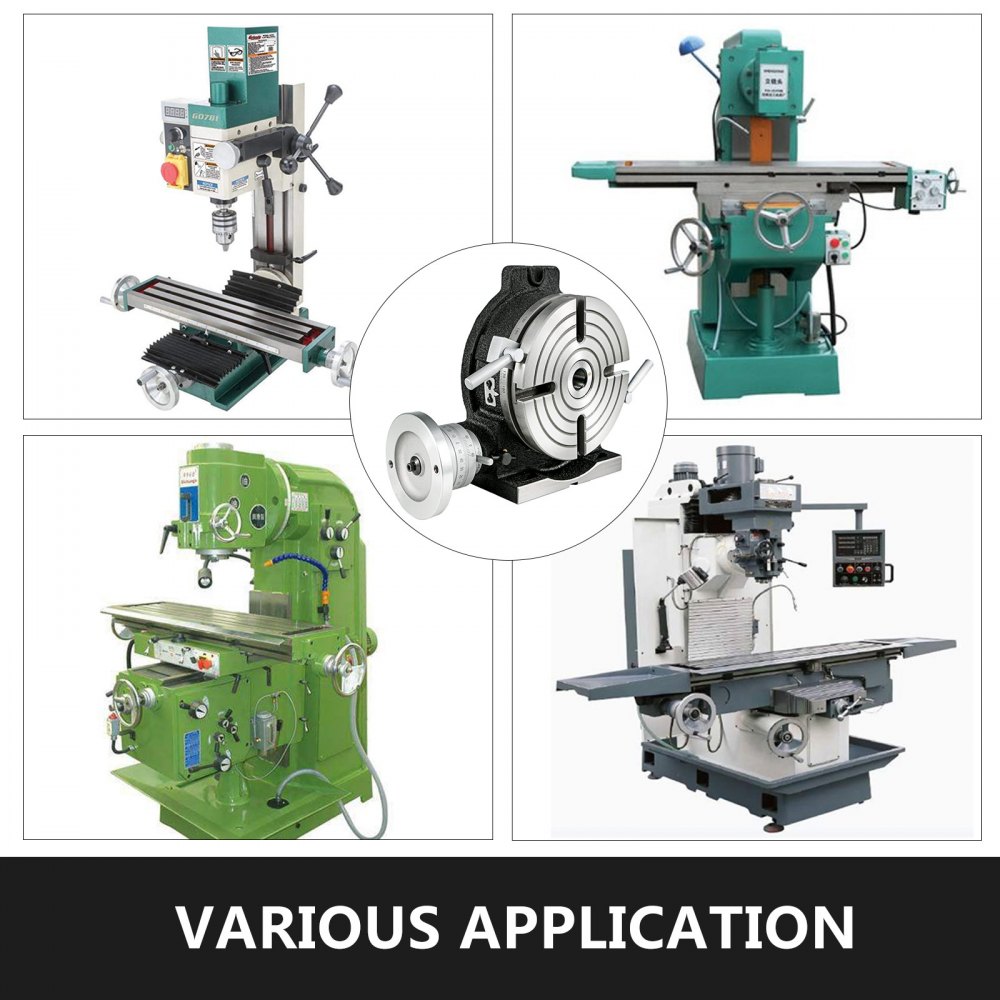

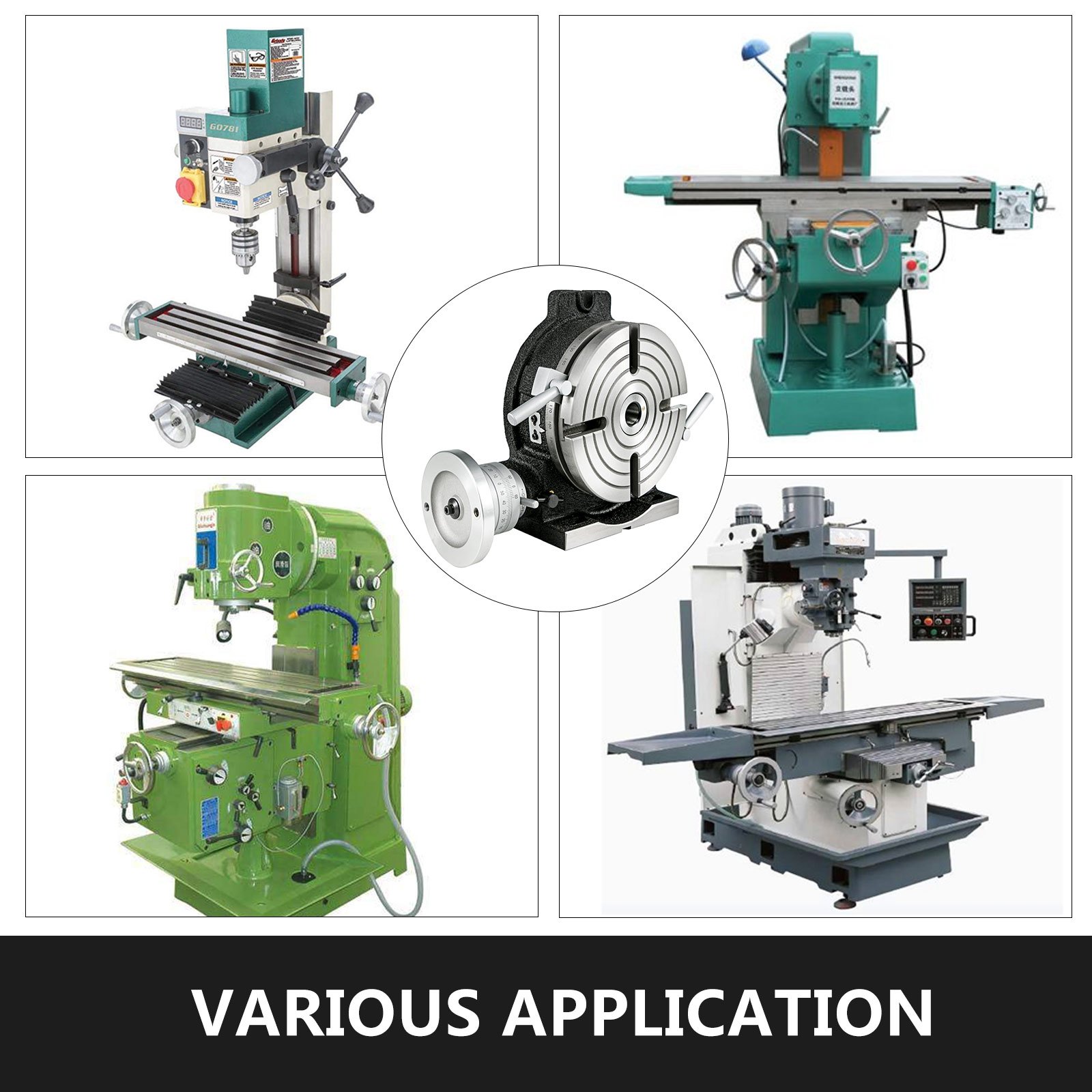

various machinery applications with a central VEVOR rotary table for precise adjustments.
Various Application
This machine is designed for milling, drilling, fixture boring and many common workshop applications. It makes it possible for operators to drill or cut work at exact intervals around a fixed axis in the process of working.

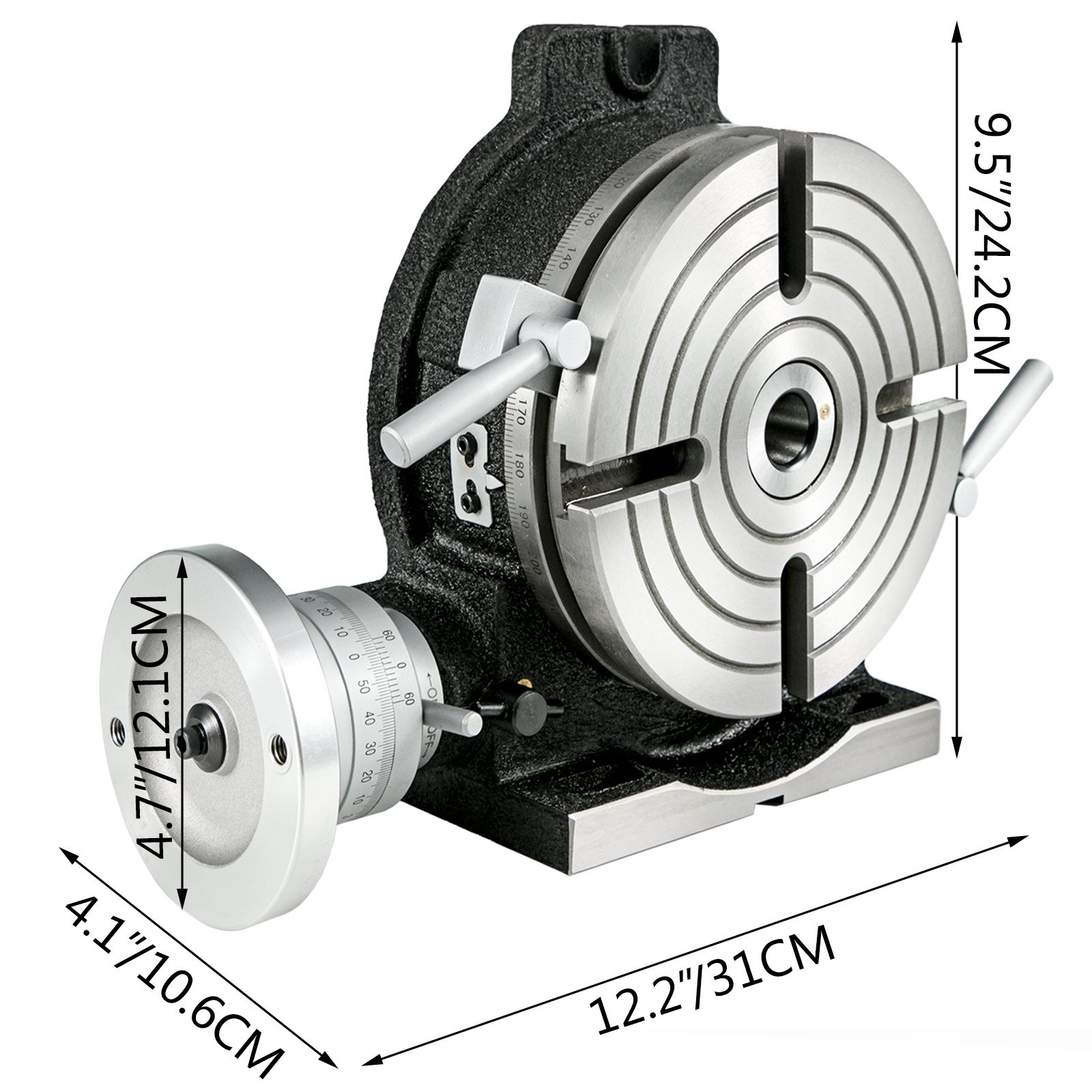

VEVOR rotary table with dimensions labeled: 12.2"x9.5"x4.7".
Specifications
  • Material: HT200 Casting
  • Table Diameter: 8"
  • Center Bore: MT-3
  • Reduction ratio: 1:90
  • Horizontal Height : 105 mm/4.13 inch
  • Vertical Height : 40 mm/1.57 inch
VEVOR rotary table with accessories including bolts, wrench, and centering tools.
Package Content
  • 1 x Wrench
  • 2 x Positioning Keys
  • 2 x Mounting Screws
  • 1 X Vertical and Horizontal Rotary Working Table
VEVOR rotary table, 8" diameter, ht200 casting in an industrial setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR rotary table with precision scale and included accessories.
8" Vertical & Horizontal Rotary Table
The vertical & horizontal rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring and so on.
Our amazing rotary table is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost. They are definitely your best choice!
  • Remarkable Quality
  • Excellent Precision
  • Multiple Application
  • Vertical & Horizontal Design
VEVOR rotary table with vertical and horizontal orientation.
Vertical & Horizontal Design
Our rotary table is both vertical and horizontal with two functions. When the vertical position of the table is used together with the tail part, it is also possible to complete circle cutting, indexing drilling, milling and more complicated work.
ht200 casting components of the VEVOR rotary table showing detailed grooves and slots
HT200 Casting
HT200 casting has good casting performance, shock absorption performance as well as high strength heat resistance. It ensures the of superior performance the machine and provides you a good sense of use.
precision scales on a VEVOR rotary table, emphasizing excellent measurement accuracy.
Excellent Precision
The dial is divided into 360 degrees in total. The handle is 4 degrees per revolution. The minimum scale can be accurate to 10 seconds. All of these help you handle more complex and more precise tasks.
handle and adjustment dial close-up of VEVOR rotary table, showcasing easy-to-adjust feature.
Easy to Adjust
It's not difficult for you to adjust the rotary table milling machine. What you should to do is just adjust the handle to the position where you want. Because the precise scale is marked on the dial.
VEVOR rotary table accessories: wrench, screws, and mounting blocks.
Wrench & Screw
If you purchase our product, we are going to give you a free wrench, 2 positioning keys and screws. When you install the vertical & horizontal rotary table, these accessories will bring you a lot of conveniences.
various machinery applications with a central VEVOR rotary table for precise adjustments.
Various Application
This machine is designed for milling, drilling, fixture boring and many common workshop applications. It makes it possible for operators to drill or cut work at exact intervals around a fixed axis in the process of working.
VEVOR rotary table with accessories including bolts, wrench, and centering tools.
Package Content
  • 1 x Wrench
  • 2 x Positioning Keys
  • 2 x Mounting Screws
  • 1 X Vertical and Horizontal Rotary Working Table
VEVOR rotary table with dimensions labeled: 12.2"x9.5"x4.7".
Specifications
  • Material: HT200 Casting
  • Table Diameter: 8"
  • Center Bore: MT-3
  • Reduction ratio: 1:90
  • Horizontal Height : 105 mm/4.13 inch
  • Vertical Height : 40 mm/1.57 inch

Enhance Your Milling Projects — Vertical Rotary Table

Elevate your milling and drilling accuracy with the VEVOR 8-inch horizontal vertical rotary table. It is crafted from durable HT200 casting. This versatile table has a 360-degree indexing plate and a finely calibrated dial. This offers unmatched precision. Whether you're a hobbyist or a professional, this table is ideal. Its easy setup makes it accessible to users of all skill levels. The wide range of applications makes it indispensable for achieving exceptional results in your workshop. You can experience a rotary table built for performance and longevity.


Heat Dissipation for Safety

Safety is important when working with machinery. This 8-inch rotary table boasts high heat dissipation capability. This ensures it performs consistently even under high-stress conditions. The result is equipment that does not wimp on any job; this milling, drilling and boring table stands firm. Its efficient heat dissipation system prevents overheating. This minimizes burn risks and ensures consistent performance even under demanding conditions.


Flexible Build – Maximum Versatility

A flexible table means you can work on different projects with one piece of equipment. This rotary table can be tilted in horizontal and vertical positions. The VEVOR rotary table will give you the flexibility needed for diversified projects.


Be it milling circular shapes or drilling accurate holes, this 8-inch rotary table can be turned to your needs. Hence, an easier and more convenient workflow is guaranteed. This saves you time and effort while ensuring precision in your projects.


Highly Reliable Precision

A precise machine will produce perfect results every time. The VEVOR precision milling machine table has high accuracy ratings. It has a 360-degree indexing plate and a finely resettable dial that ensures it. Thus, it gives precise measurements and accurate results for your projects.


The minimum scale reads down to 10 seconds. So with this rotary table, you are guaranteed to get all the measurements you need for your projects. This ensures that your workpieces meet the highest standards of quality.


Easy to Setup & Adjust

An easy-to-set-up machine means you can get its benefits quickly. Setting up this horizontal vertical rotary table is easy. An accurate scale on the dial and an intuitive control handle allows for adjustments to be easy and quick to make without hassle.


The setup is pre-oiled, which is why it is easy to get things going right away. This design simplicity lets even beginners work wonders with a rotary table the first time around. There is no need for extensive setup or adjustments. You can start using the rotary table immediately.


100% Durability

Durable equipment will last long. This rotary table, made from HT200 casting, is a testament to this. It will surely be a good companion for any serious miller, driller, or borer. The high-grade casting of cast iron in this device offers longevity and brilliant shock resistance. This ensures your rotary table is secure and long-lasting.


This heavy-duty construction and fine craftsmanship will make it a reliable companion in the workshop. It has smooth operation and a sturdy build that holds up pretty well even to regular usage. The fit and finish of this table are exceptionally good. It could be used for both hobbyists, and professional needs.


Wide Range of Applications

One machine should be needed to handle different projects. From index boring to circle cutting, the VEVOR precision milling machine table is highly versatile. It's designed to meet various workshop requirements. Hence, it is suitable for milling, drilling, and boring.


You can use it for everything from optic cuts on slides to fabricating mounts. It has the capacity to do both simple and complex projects. This makes it an ideal and versatile tool for any workshop.


See More

Specification

Material
HT200 Casting
Table Diameter
8"
Center Bore
MT-3
Reduction ratio
1
Horizontal Height
105 mm/4.13 inch
Vertical Height
40 mm/1.57 inch
Manual
Download Link
Questions and Answers
6 Questions
We're looking at bringing this rotary table into a custom machine design. Is there a STEP file available for this?
Here is the link to the manual: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/RoundMillingTableManual_1654850375815.pdf.<br/>
By vevor
What is the ratio of this rotary table
1:90.
By vevor
Are dividing plates available for this rotary table?
There is no dividing plates available for this rotary table.
By vevor
what is the t-slot size? Is it wide enough for a 1/2" stud?
The size is 14mm.
By vevor
Do you sale a 8 inch chuck that will mount to the table
No, we don't sell a 8 inch chuck that will mount to the table.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
26 Review(s)
Clear filters
VEVOR Customer VEVOR Customer
Very well made tool
This rotary table can not be beat for the price. The fit and finish were more than acceptable right out of the box. I did have a problem with the micro dial being etched in the wrong direction. Contacted the sellers customer service and they are shipping me a replacement part. Great tool, great price and great customer service.
T Durham T Durham
Good addition to my knee mill
Works pretty good although as I turn the table a certain way, the on/off feature go's to off which allows the table to quit moving. This may work in some instances but for now I tightened the set screw so the lever can't go to off. Other than that everything works fine. Easy to turn, the table locks work good and it seams to be pretty accurate. I used it to make some adopters from 3 hole wheel pattern to a larger 4 hole I'm going to use one a go-kart.
Robert in Ashland VA Robert in Ashland VA
Hobbist
You get what you pay for. My problem is with Vevor. I accidently hit the buy button twice and they would not let me return the second one for a refund. Robert in Ashland VA
Customer Service Reply: Thank you for your patience and cooperation throughout this process. We are pleased to inform you that we have reached a mutual agreement regarding your recent concern.We sincerely apologize for any inconvenience this may have caused and appreciate your understanding. Your satisfaction is our top priority, and we are committed to ensuring that you have a positive experience with our service.
Lexie Lexie
Works as advertised!
Rotary table worked as advertised! Maybe it isn't top grade hardware, I'm not a machinist and I don't have years of experience in machining. But the backlash isn't crazy, table rotates smoothly, and I think it is 10 seconds accurate. There were some issues with shipping, not of this rotary table, but of a compound table (sold by the same company), but ultimately everything worked out.
Blair Blair
Some "assembly" required.
I bought this for a job, used it then "fixed it". I had to make a 12" dia. disk, then make slots in the disk. I had the worst chatter while turning the handle and cutting. Also seemed to have tight spots. When I finished the job, I took the table apart to see if there was anything I find that would cause this, maybe some backlash or something I could fix. The table works by turning the handle, which drives a worm gear set. The hub of the worm gear is (should have been) bolted to the table top. There are two sets of bolts for this job. What I found was they had counterbored one of the sets too small. So the socket head cap screw would not down the bore. This in turn didn't have enough threads engaged to hold the hub onto the table and they had all backed out or were stripped out. There is 6 of these screws and one of the six didn't even line up and was missing. The other set of holes had a chamfer on the bottom for socket head cap screws, so the bottom of the SHCS made point contact with the chamfer. The fix was to take the right sized end mill and correct the counterbores. To finish, I broke all the edges with a file and stoned the flat surfaces. For the price, some "rework" should be expected. I expected I would have to remove burrs. I didn't expect to have to fix holes. The customer for this table will likely have the skills to rework this table as it comes out of the box.
Kevin R Langworthy Kevin R Langworthy
Great for the price
Used it on a few projects now. Very pleased with this product for the price. The only complaints I have are very minor and minor. 1) The \"On / Off\" engagement labeling for the worm gear is backwards. I believe someone else mentioned this too. Does not affect function at all, just causes confusion the first time you're trying it out. 2) If the worm gear is engaged all the way there is a very sticky spot somewhere along it. I am getting around it by only 'mostly' engaging it; when I do that there is no sticking but there is I believe more free play. I can make that work since I'm not doing precise enough work to need the graduations on the handle.
Hobby Guy Hobby Guy
Very Functional
Item arrived in a timely manner and as described. This is my very first rotary table. More than adequate for my usage. Item was well packaged to minimize any damage during shipment. Very satisfied!
Capt. Art Capt. Art
purchaser
Very nice rotary table. wish that it had 6 slots to make setups easier. Heavy duty construction with good finish. Only concern is that my initial concentricity checks show a difference when tramming the MT3 hole from the spindle versus putting the indicator on the rotary table and tramming to the spindle. Will have to redo these measurements a few more times to see if indeed the rotary table is not concentric, or if my measurements were not done correctly.
xjanderson xjanderson
Proprietor
I've only used this for light work so far and it's pretty damn good especially for the price. The workmanship appears to be excellent and I think it will hold up well but if not I'll redo the review!
Ken Ken
Nice product
The only reason I gave this 4 stars instead of 5 is that I haven't had it long enough to determine overall quality.
