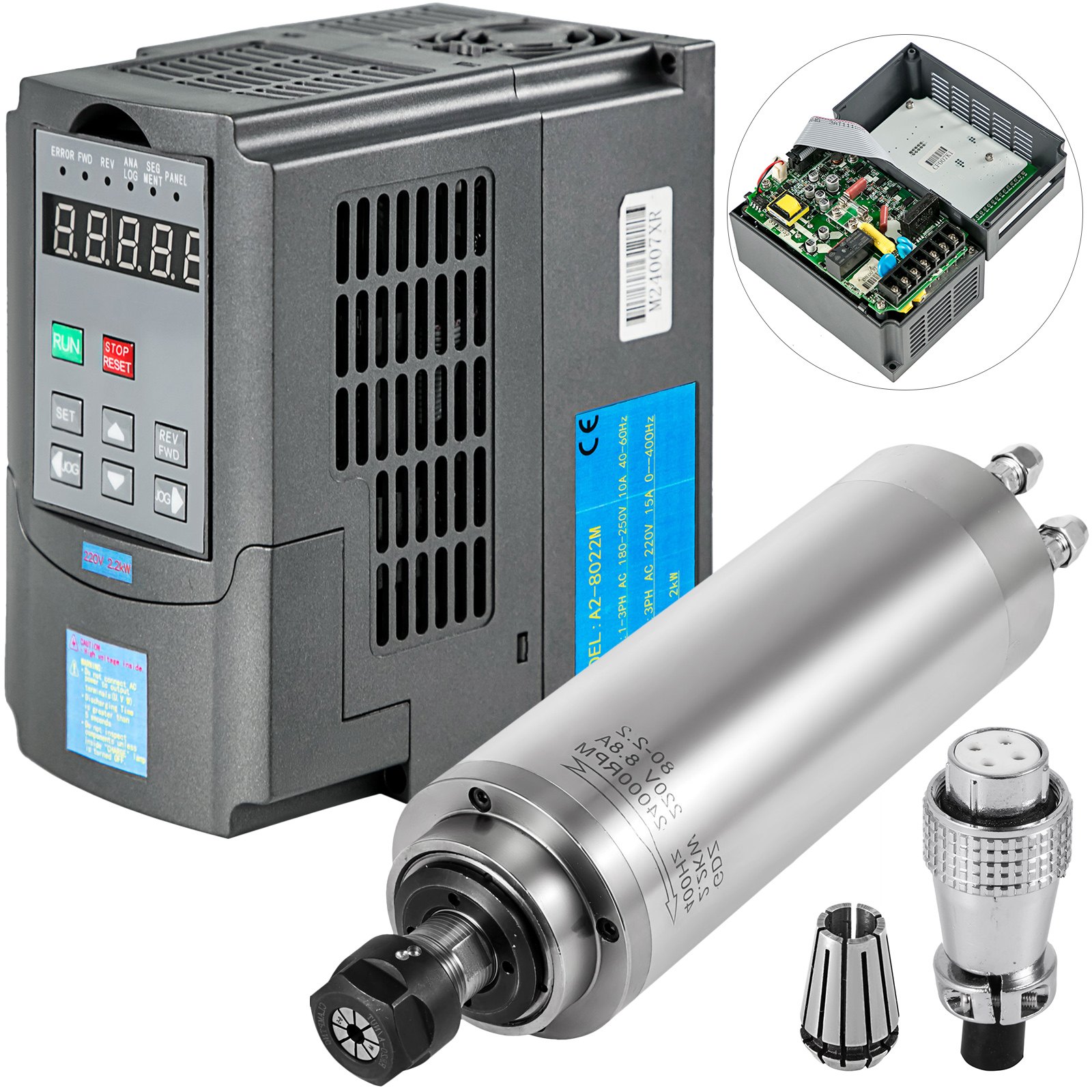

VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine
2.2KWBPQ+SLDJ0001V0

VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine

See All Customer Reviews
58 Reviews 5 answered questions
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off for your first three orders on the App.
Download Now
Exclusive $5.00 off for your first three orders on the App.
Scan the QR code to download

About this item

  • This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.
  • 【PRODUCT DETAILS】- The 2.2KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 3HP 2.2KW variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Spindle Motor 2.2KW Square Water Cooled Spindle Motor ER20 Collect & VFD Variable Frequency Drive 220V 2.2KW for CNC Router Engraving Milling Machine
Description Specification Questions and Answers Reviews
This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor. Speed: 8000-24000 R/min. Runout off: less than 0.005mm. Power: 2.2 KW. Frequency: 400 Hz. ER20(4mm,6mm,8mm,12mm,12.7mm).
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.

  • 【PRODUCT DETAILS】- The 2.2KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 3HP 2.2KW variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
  • 【WORKS COOPERATIVELY】- The  water cooled spindle, together with variable frequency drive inverter, it's definitely a nice combination to imporve the work efficiency and performace of the VFD.
  • Product Parameters
The 2.2KW water-cooled spindle motor features stable performance and low noise, with 8000-24000 R/min and 400 Hz frequency.The 3HP 2.2KW 10A VFD is 220V inpute voltage, 208-240VAC output voltage, 48-63 Hz inpute frequency,1 or 3 phase inpute phase, 3 phase outpute phase.
  • Superior Quality
Both of the VFD and water cooled spindle motor use the superior material to make. They are exquisite in appearance and fine in workmanship.The fabulous materials provides them stable perfromance and a great experience of use.
  • Excellent Performance
The PID control technology that uses advanced calculous PID closed-loop arithmetic is applied in the VFD. That gives it quick responding speed as well as high suitability. It also supports low output ratting torque0.5HZ-150% and low speed running ability.
  • Perfect Protection System
The VFD has perfect protection systems such as the overload protection, short circuit starting protection and fuse protection. If something wrong happens, the machine will stop in time, which will help recuce the damage to the product.
  • Easy PLC Function
Easy PLC function of the VFD drive can realize 16 legs of speed and inverter control function with extremely strong anti-jamming capability. It has many advantages like small size, light weight and low energy consumption.
  • Fast Assemble
All devices needed for installation is provided in the box. The English manual will be provided for the variable frequency drive inverter. It's easy and convenient for you to finish a fast assemble.
Technical Parameters for Variable Frequency Drive Inverter
  • Inpute Voltage: 220V
  • Output Voltage: 208-240VAC ( analogous to Input Voltage )
  • Inpute Frequency: 48-63 Hz
  • Outpute Frequency: 0-400 Hz

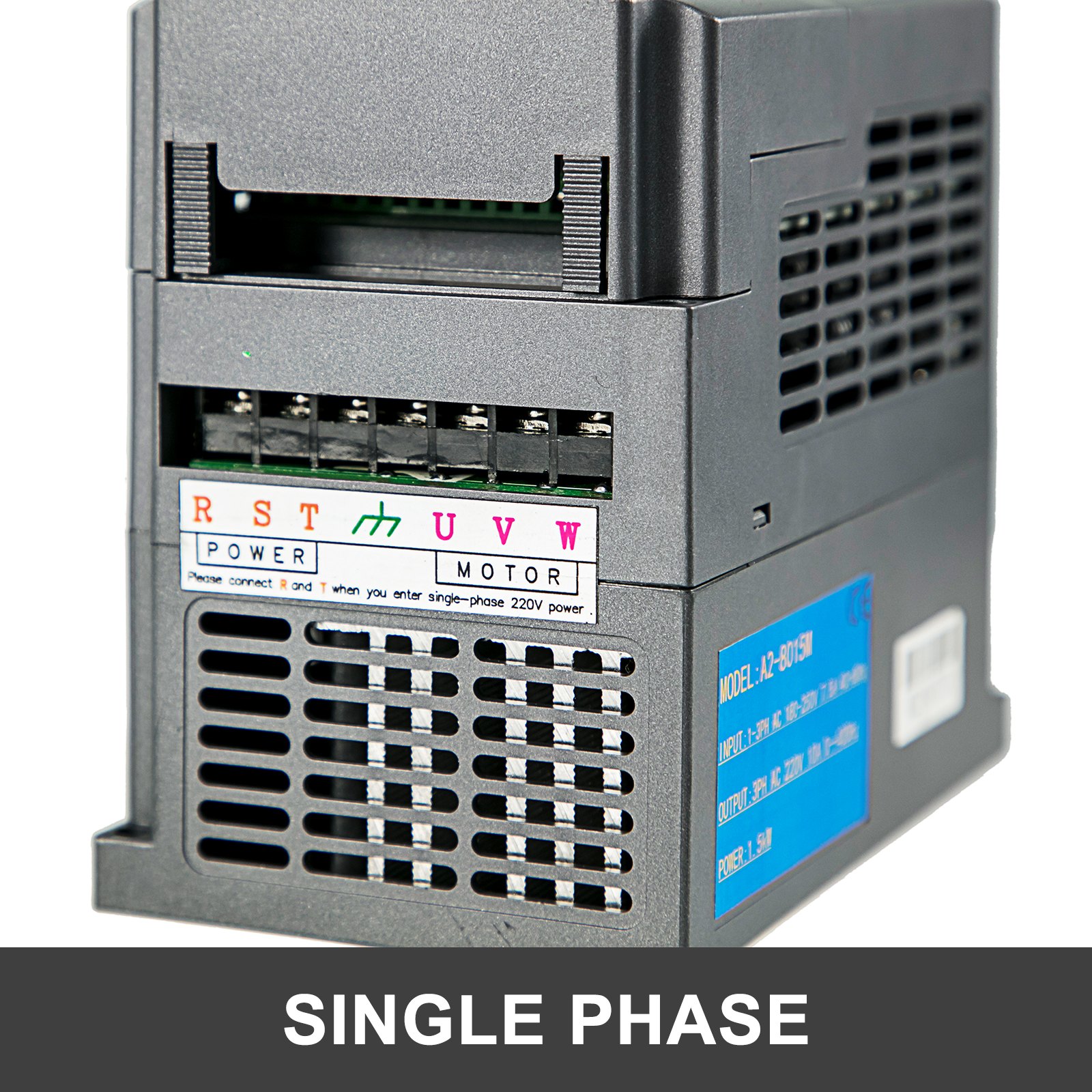

  • Inpute Phase: 1 or 3 phase as you like
  • Outpute Phase: 3 phase
  • Control Mode:SPWM
  • Input Power:220V class：220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature:-10~40℃
  • Humidity:0-95% Relative Humidity（without dew）
  • Vibration:Below 0.5G
  • Dimension:8.5 x 14 x 12.5 cm (L x W x H)

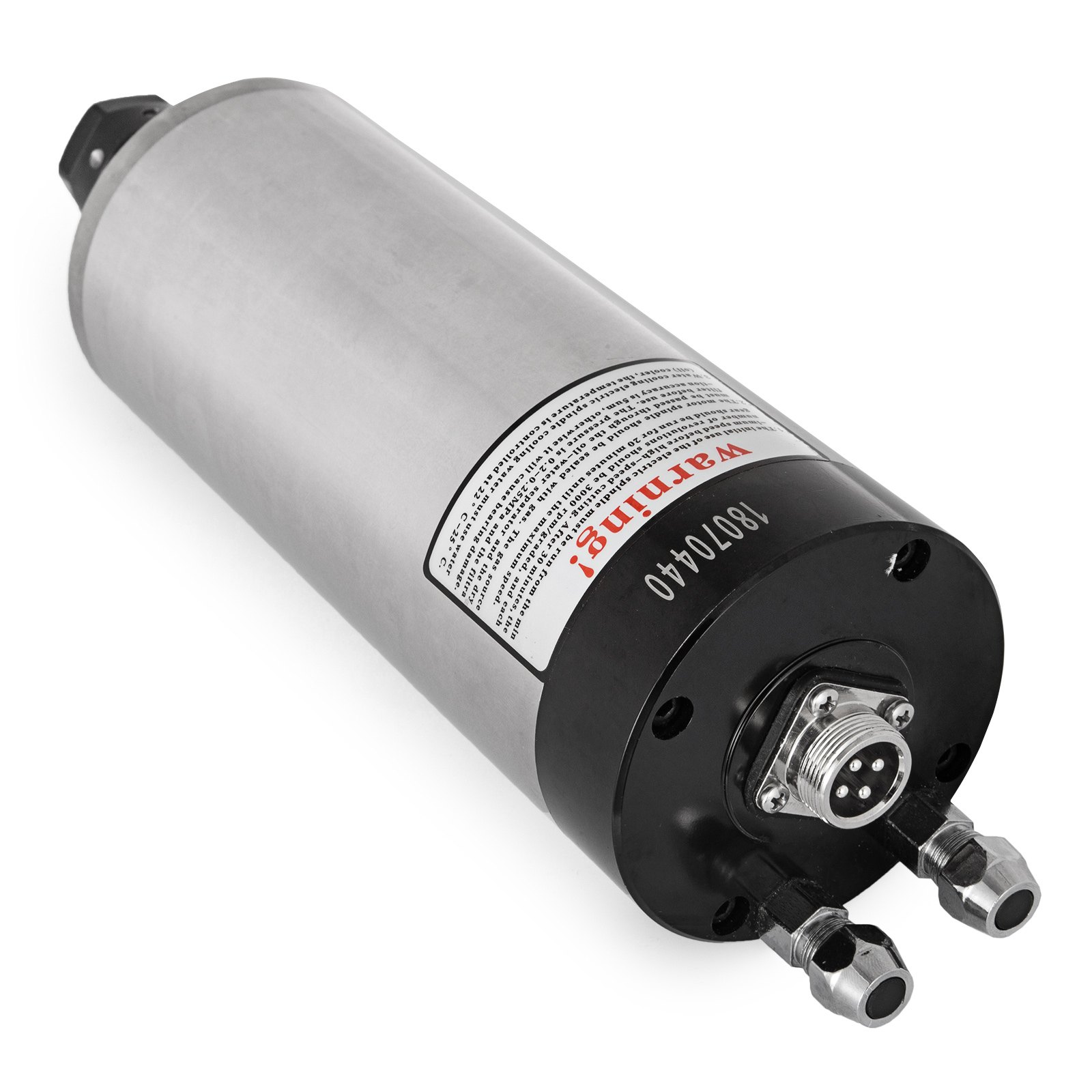

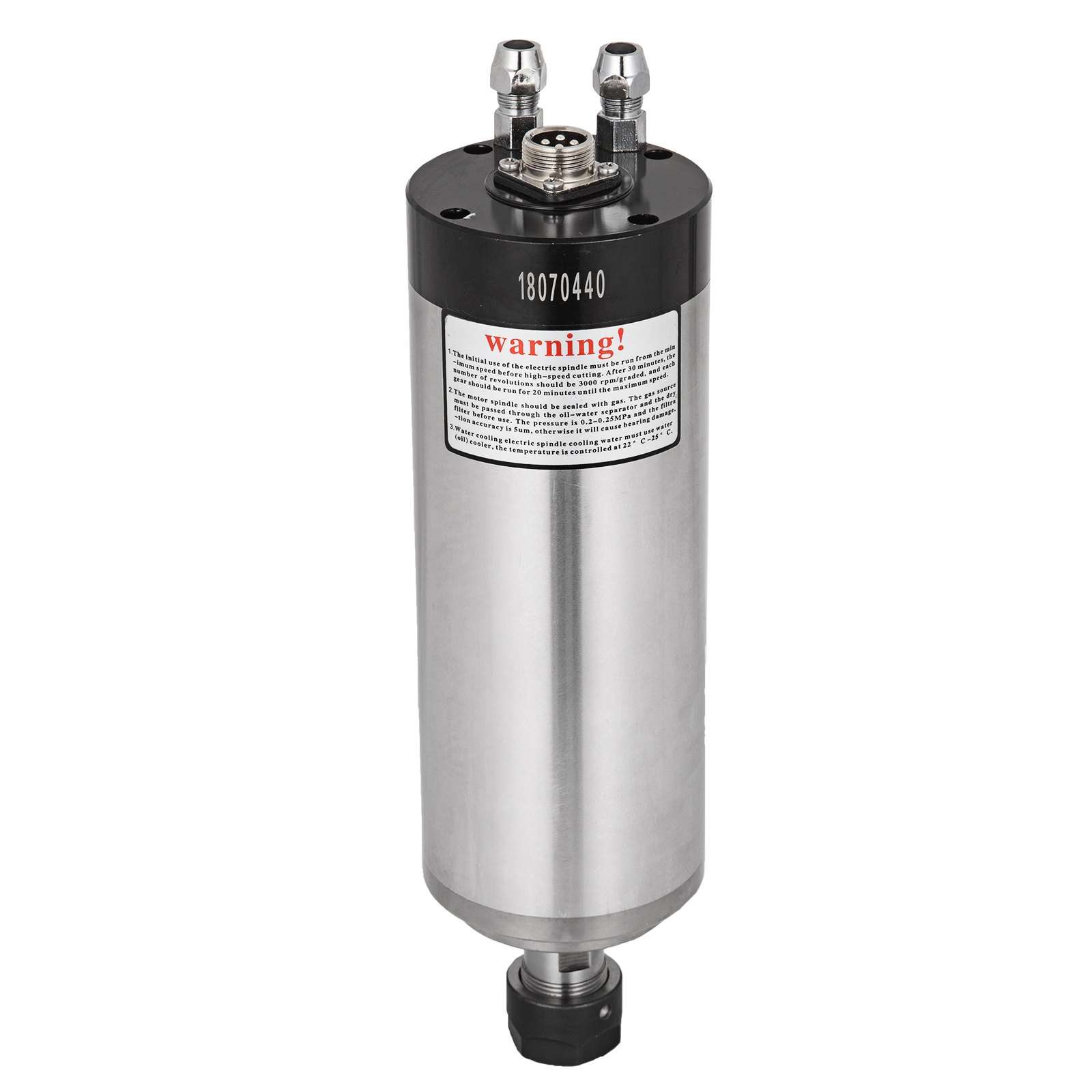

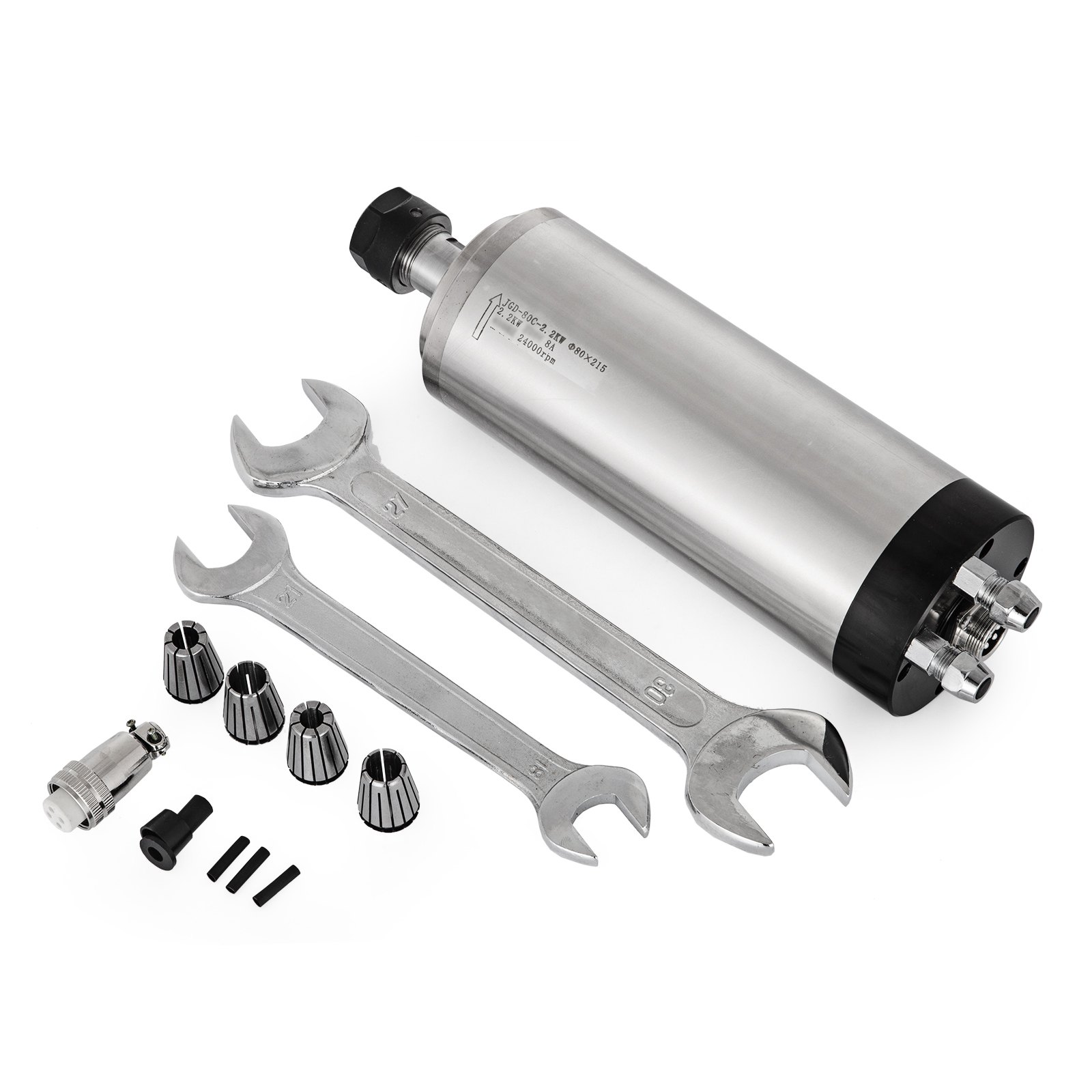

Technical Parameters for Spindle Motor
  • Spec: φ80x200 mm (Diameter: 80mm x Length: 200mm)
  • Power: 2.2 KW
  • Voltage: 220V~250V
  • Frequency: 400 Hz
  • Speed:8000-24000 R/min
  • Water Cooling
  • Runout off: less than 0.005 mm
  • Grease Lubrication
  • Product Dimension:39 x 19 x 17 cm (L x W x H)
  • Gross Weight：5KG(11.02 lbs)
Package for Variable Frequency Drive Inverter
  • 1 x 2.2KW Variable Frequency Drive Inverter
  • 1 x English Manual
Package for Spindle Motor
  • 1 x 2.2KW Water Coolde Spindle Motor
This spindle motor adopts Germany imported bearing which can make it use for three times longer useful time than ordinary spindle motor. Speed: 8000-24000 R/min. Runout off: less than 0.005mm. Power: 2.2 KW. Frequency: 400 Hz. ER20(4mm,6mm,8mm,12mm,12.7mm).
This VFD can be used for constant torque loads ( such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.

  • 【PRODUCT DETAILS】- The 2.2KW water cooled spindle motor's speed is 8000-24000 R/min, 400 Hz frequency and less than 0.005 mm runout off. The 3HP 2.2KW variable frequency drive uses PID control, advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability.
  • 【PREMIUM QUALITY】- The spindle motor adopts Germany imported bearing. The VFD is also made of high quality material. So both of them have stable performance, easy operation, high quality, less noise and so on.
  • 【POWERFUL PERFORMANCE 】- The variable frequency drive inverter has quick responding speed and high suitability because that it adopts advanced calculous PID closed-loop arithmetic. Apart from this, it has low output ratting torque0.5HZ-150% and low speed running ability.
  • 【GREAT PROTECTION SYSTEM】- The perfect error protection and short circuit starting protection are applied in variable frequency drive inverter, which reduces the damage to the machine and extendeds the service life of the product. It will offer you an excellent safety performance.
  • 【WORKS COOPERATIVELY】- The  water cooled spindle, together with variable frequency drive inverter, it's definitely a nice combination to imporve the work efficiency and performace of the VFD.
  • Product Parameters
The 2.2KW water-cooled spindle motor features stable performance and low noise, with 8000-24000 R/min and 400 Hz frequency.The 3HP 2.2KW 10A VFD is 220V inpute voltage, 208-240VAC output voltage, 48-63 Hz inpute frequency,1 or 3 phase inpute phase, 3 phase outpute phase.
  • Superior Quality
Both of the VFD and water cooled spindle motor use the superior material to make. They are exquisite in appearance and fine in workmanship.The fabulous materials provides them stable perfromance and a great experience of use.
  • Excellent Performance
The PID control technology that uses advanced calculous PID closed-loop arithmetic is applied in the VFD. That gives it quick responding speed as well as high suitability. It also supports low output ratting torque0.5HZ-150% and low speed running ability.
  • Perfect Protection System
The VFD has perfect protection systems such as the overload protection, short circuit starting protection and fuse protection. If something wrong happens, the machine will stop in time, which will help recuce the damage to the product.
  • Easy PLC Function
Easy PLC function of the VFD drive can realize 16 legs of speed and inverter control function with extremely strong anti-jamming capability. It has many advantages like small size, light weight and low energy consumption.
  • Fast Assemble
All devices needed for installation is provided in the box. The English manual will be provided for the variable frequency drive inverter. It's easy and convenient for you to finish a fast assemble.
Technical Parameters for Variable Frequency Drive Inverter
  • Inpute Voltage: 220V
  • Output Voltage: 208-240VAC ( analogous to Input Voltage )
  • Inpute Frequency: 48-63 Hz
  • Outpute Frequency: 0-400 Hz
  • Inpute Phase: 1 or 3 phase as you like
  • Outpute Phase: 3 phase
  • Control Mode:SPWM
  • Input Power:220V class：220±15%
  • 5-Digits Display & Status Indicator Lamp:Displaying frequency, current, revolution, voltage, counter, temperature, FOR or REV rotation, and fault, etc.
  • Working Temperature:-10~40℃
  • Humidity:0-95% Relative Humidity（without dew）
  • Vibration:Below 0.5G
  • Dimension:8.5 x 14 x 12.5 cm (L x W x H)
Technical Parameters for Spindle Motor
  • Spec: φ80x200 mm (Diameter: 80mm x Length: 200mm)
  • Power: 2.2 KW
  • Voltage: 220V~250V
  • Frequency: 400 Hz
  • Speed:8000-24000 R/min
  • Water Cooling
  • Runout off: less than 0.005 mm
  • Grease Lubrication
  • Product Dimension:39 x 19 x 17 cm (L x W x H)
  • Gross Weight：5KG(11.02 lbs)
Package for Variable Frequency Drive Inverter
  • 1 x 2.2KW Variable Frequency Drive Inverter
  • 1 x English Manual
Package for Spindle Motor
  • 1 x 2.2KW Water Coolde Spindle Motor

Specification

1 x 2.2KW Variable Frequency Drive Inverter
1 x English Manual
Package for Spindle Motor
1 x 2.2KW Water Coolde Spindle Motor
Questions and Answers
5 Questions
or Ask a Question
Does this come with a water pump?
Answer This Question
No, it doesn't come with a water pump.
By vevor
Helpful ( 2 )
What is the diameter of the spindle?
Answer This Question
80mm.
By vevor
Helpful ( 1 )
Does that mean 0 to 8000 rpm is low range and 8000 to 25000 is hi range ? And is the torque good at say 3000 rpm ?
Answer This Question
Hello, 18000-24000 is the high range and 12000-18000 is the low range.
By vevor
Helpful ( 0 )
Is the minimum speed 8000rpm as the specs indicate? (The air cooled version has the exact specs except it indicates the minimum spindle speed is 0rpm.)
Answer This Question
Hello, 18000-24000 is the high range and 12000-18000 is the low range.
By vevor
Helpful ( 0 )
The minimum can reach 8000, but the torque will drop a lot.
By vevor
Helpful ( 0 )
Can I connect to Mach3 controller?
Answer This Question
Yes, you can.
By vevor
Helpful ( 0 )
