red vertical VEVOR lantern wind turbine with hex key included. VEVOR lantern wind turbine by a lake, mountains, and a camper with bikes. VEVOR lantern wind turbine with aluminum body, stable structure, and efficient control. VEVOR lantern wind turbine with red nylon fiber blades in front of a log cabin. VEVOR lantern wind turbine with bird-proof design and electricity generation features. VEVOR lantern wind turbine easy assembly in four steps with red blades. VEVOR lantern wind turbine specs: height 23.6in/60cm, wheel diameter 35in/90cm.
HDRD-100W12V-VDIMV0

VEVOR Lantern Wind Turbine, 12V/100W Vertical Turbine Generator, 35" Wind Wheel Diameter Vertical Axis Wind Turbine w/Monitoring Light/Built-in Controller for Terrace/Chalet/Fishing Boat/Motor Home

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • Lantern Shape Generator: This lantern wind turbine adopts a five-leaf vertical blade design, a shape likes a lantern, secure, stable, and quiet. The vertical axis wind turbine can better collect airflow around buildings and other structures and has high wind energy utilization.
  • Premium Generator & Blade: The vertical turbine generator is combined with a 100W/12V three-phase NdFeB permanent magnet synchronous motor and 5pcs nylon fiber blades, low start-up wind speed. The turbine's blade features corrosion-proof, lightweight, and automatically windward.
  • Monitoring Indicator: Our vertical wind turbine is designed with a monitoring indicator. The indicator light will shine when the generator is running normally, and it will double flash if the generator runs at a low speed, provides you a suitable warning and keep birds away from the turbine.
  • Effortless Assembly: This vertical wind generator kit comes with the internal controller and hoop installed, more convenient than the flange and external controller. Hoop type & built-in controller design will keep you from mistake installation, saving more time and process.
  • Widely Application: Our vertical wind generator has high wind energy utilization, low operating vibration, and ultra-low noise, also can increase annual power generation, is ideal for monitoring systems, mobile homes, fishing boats, terraces, chalet, marine, and other charging usages.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR Lantern Wind Turbine, 12V/100W Vertical Turbine Generator, 35" Wind Wheel Diameter Vertical Axis Wind Turbine w/Monitoring Light/Built-in Controller for Terrace/Chalet/Fishing Boat/Motor Home
VEVOR lantern wind turbine near a wooden cabin, 100w, 12v, 5 blades in a scenic setting.

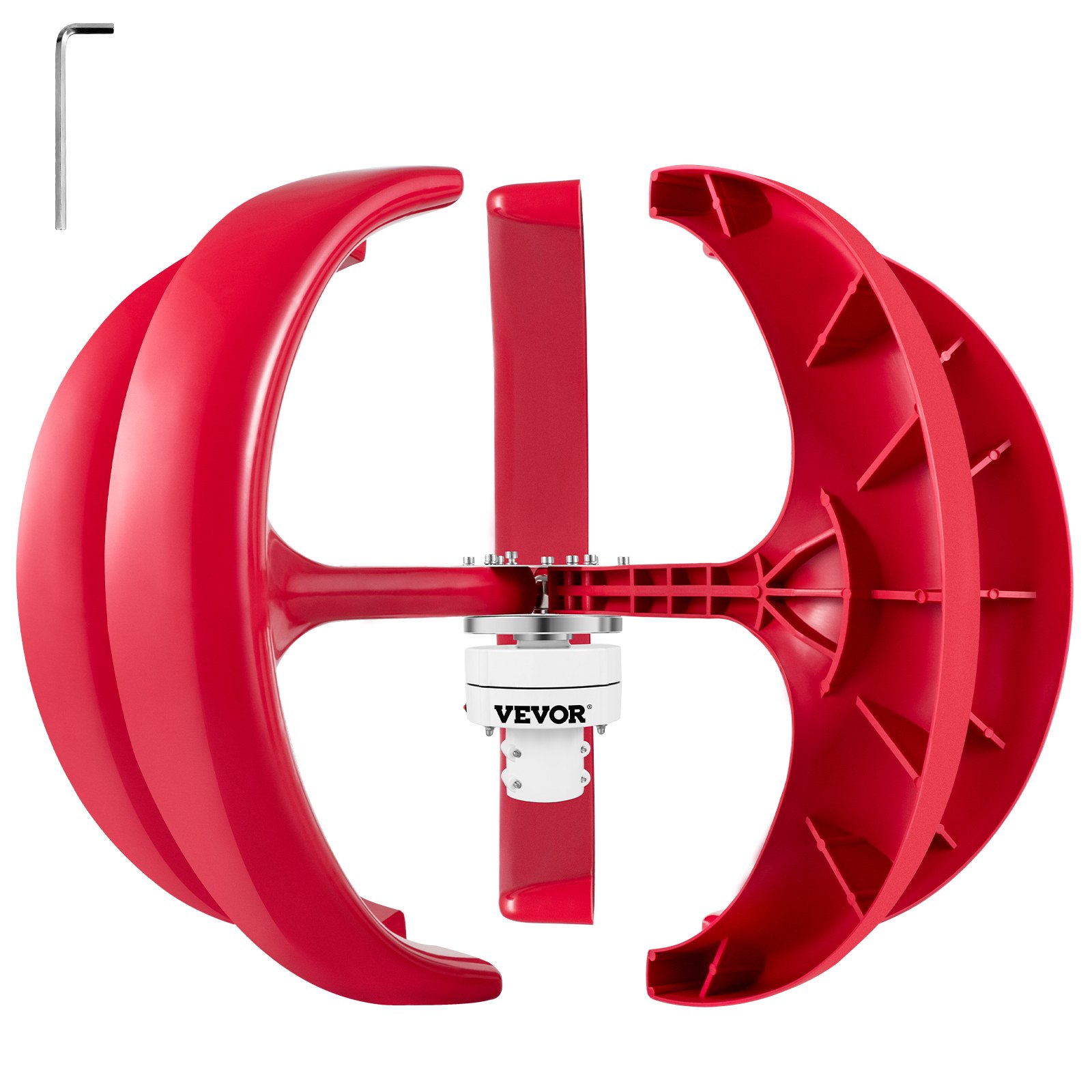

red VEVOR lantern wind turbine with a hex key on a white background.
100W/12V Lantern Wind Turbine 5 Blades
This wind generator comprises a high-quality aluminum alloy body and nylon fiber blade, features low start-up speed, high wind energy utilization, and low vibration. The turbine adopts a three-phase magnet motor, built-in controller, and hoop installation, providing you with high power efficiency and effortless installation. In addition, you can monitor the running status of the turbine through the indicator light, perfectly suitable for a fishing boat, motor home, monitoring system, and other charging usages.
  • Lantern Shape Generator
  • Premium Generator & Blade
  • Monitoring Indicator
  • Effortless Assembly
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

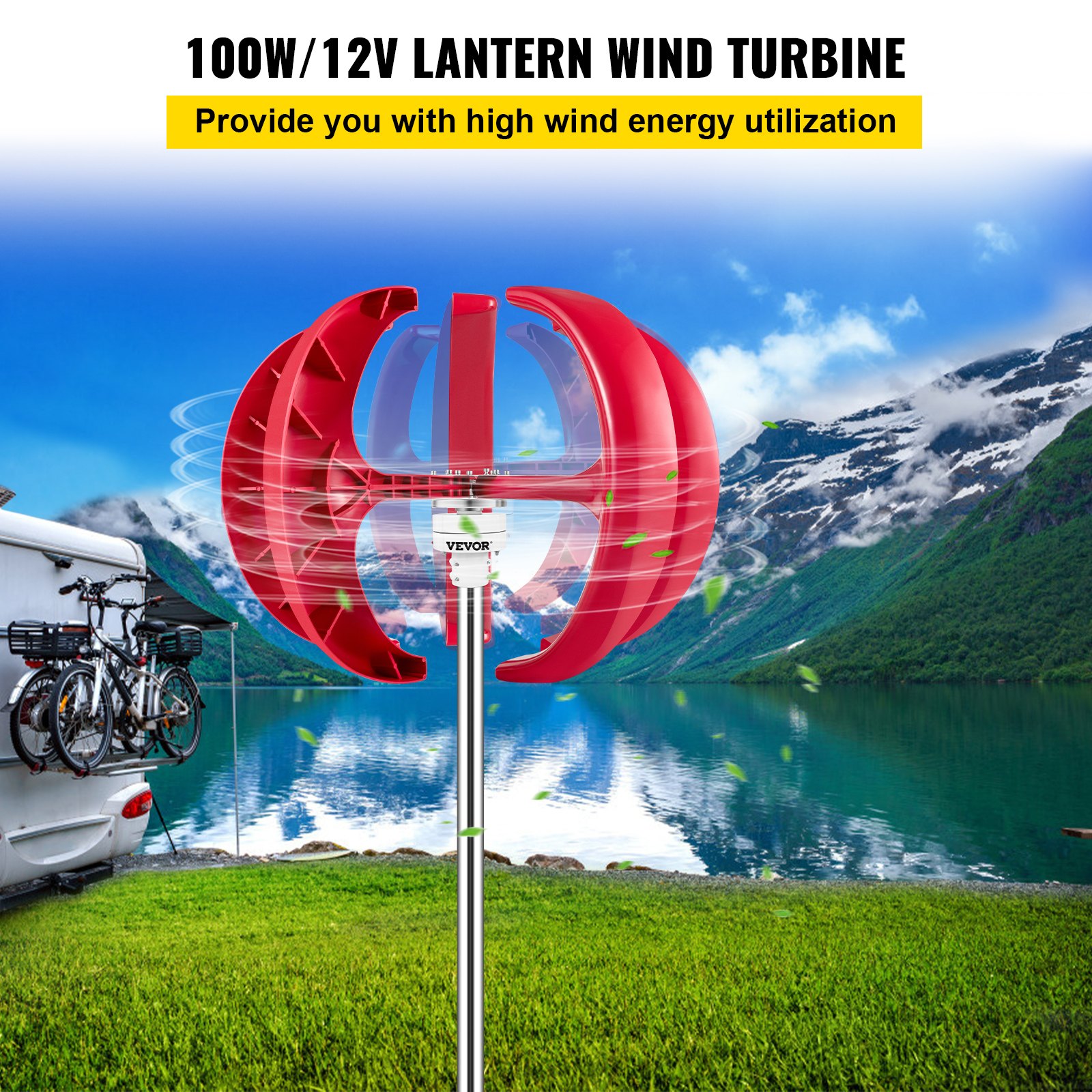

VEVOR lantern wind turbine with high wind energy utilization, stable structure, wind-proof.
Lantern Shape Turbine
The 5-leaf bi-axial vertical blade design of the wind generator kit looks like a lantern, has ultra-low noise, low start-up wind speed, and high security. In addition, this lantern wind turbine features low operating vibration, good performance, and increase annual power generation, provides you a long time use.

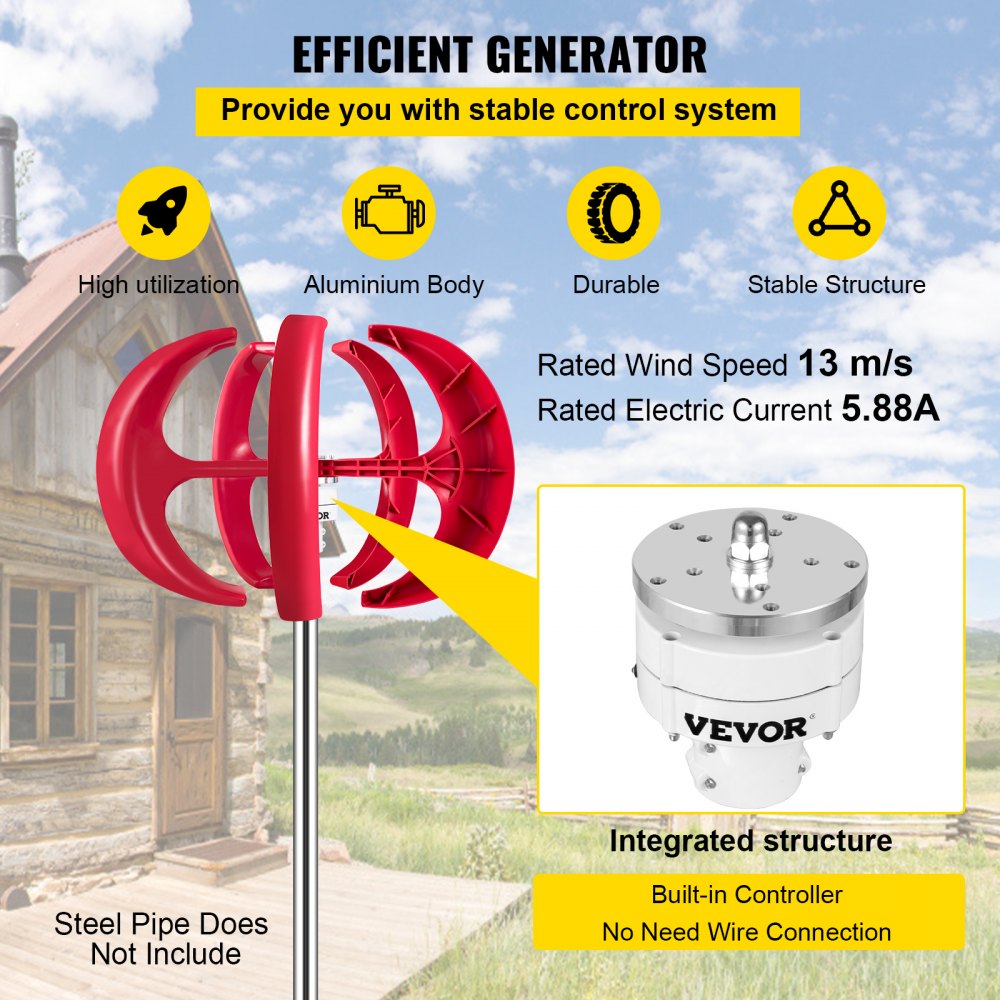

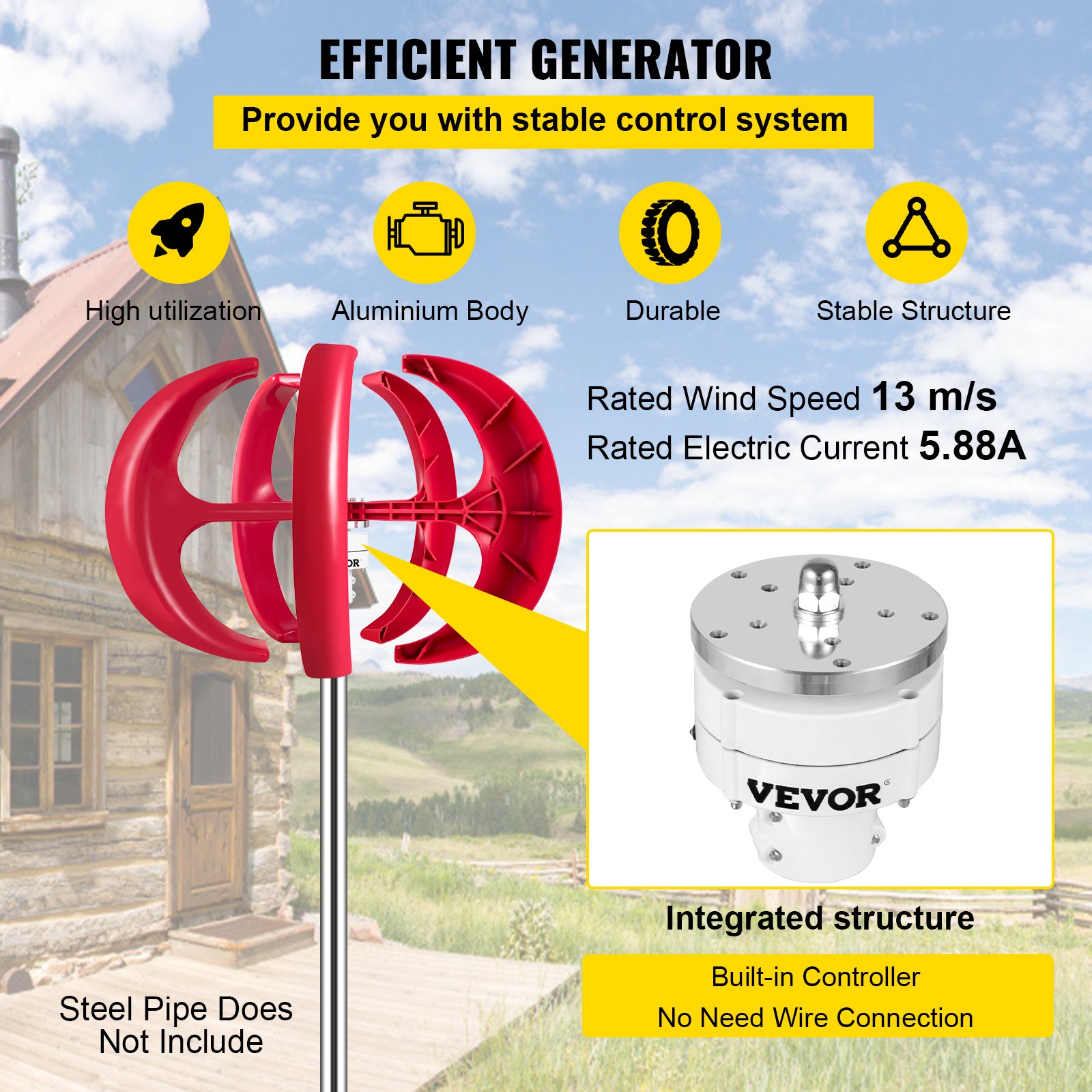

VEVOR lantern wind turbine, 100w/12v, efficient generator with low start-up speed.
Efficient Generator
Our vertical axis wind turbine adopts a three-phase synchronous motor with a high-performance NdFeB permanent magnet. The power of the turbine is 100W/12, meet your basic charging requirements. You also do not need to connect complex wires anymore as the machine has a built-in controller.

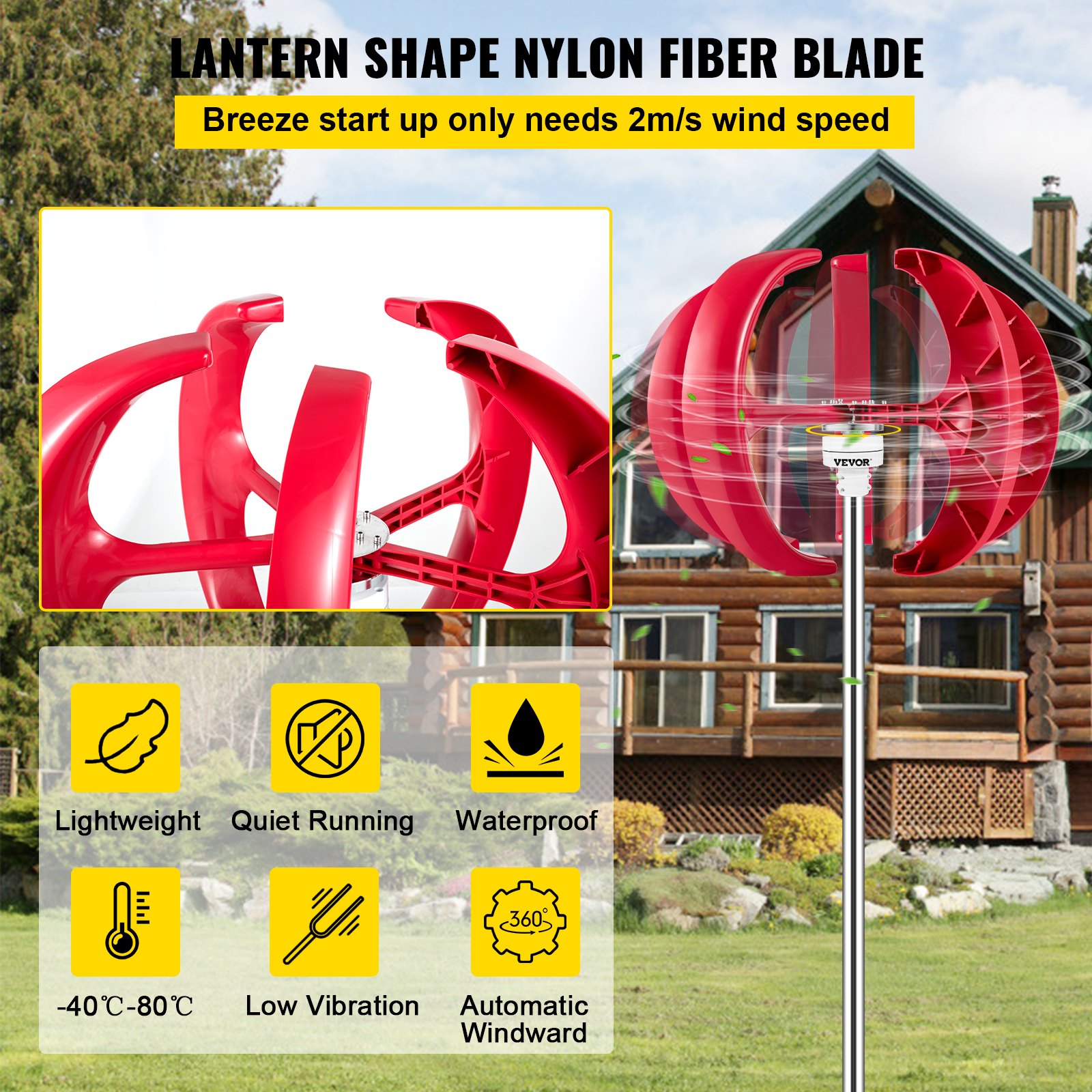

VEVOR lantern wind turbine red nylon fiber blade, corrosion-proof, lightweight, high intensity.
Nylon Fiber Blade
The blade of the vertical turbine generator is made of fiber nylon which is lightweight, corrosion-proof, and has a strong ability of intensity. The temperature bearing range is -40℃~80℃, suitable for all-year use. The vertical wind blades can start by the breeze at a speed of 2m/s, and it can automatically catch the wind direction; no yaw system is required.

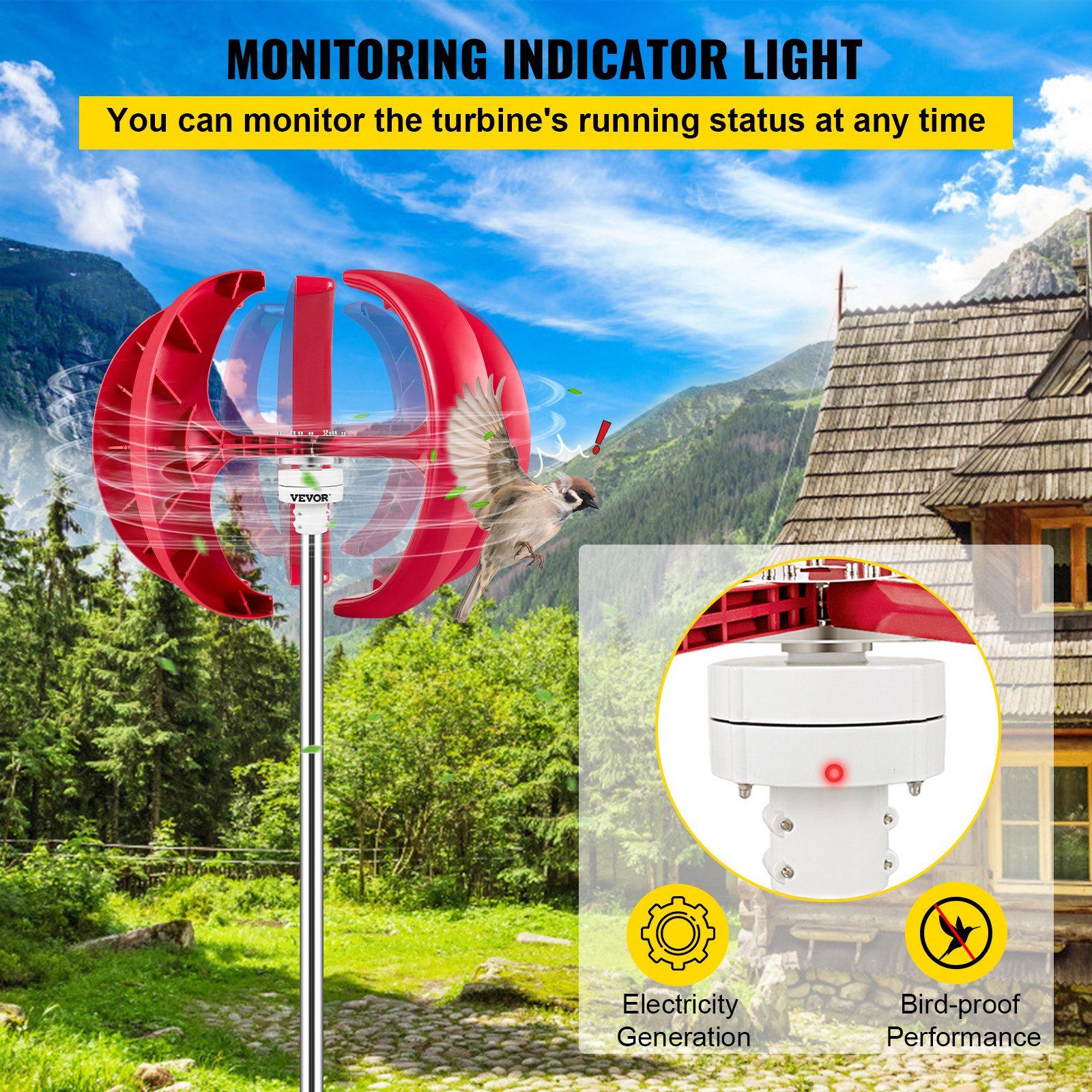

VEVOR lantern wind turbine with bird-proof performance and electricity generation.
Energy Monitoring Light
This vertical wind turbine features an output indicator; the light will double flash when the generator is running at a low speed, which is convenient to observe the running status of the generator. Meanwhile, it can also use as a birds repeller to drive birds away from the turbine.

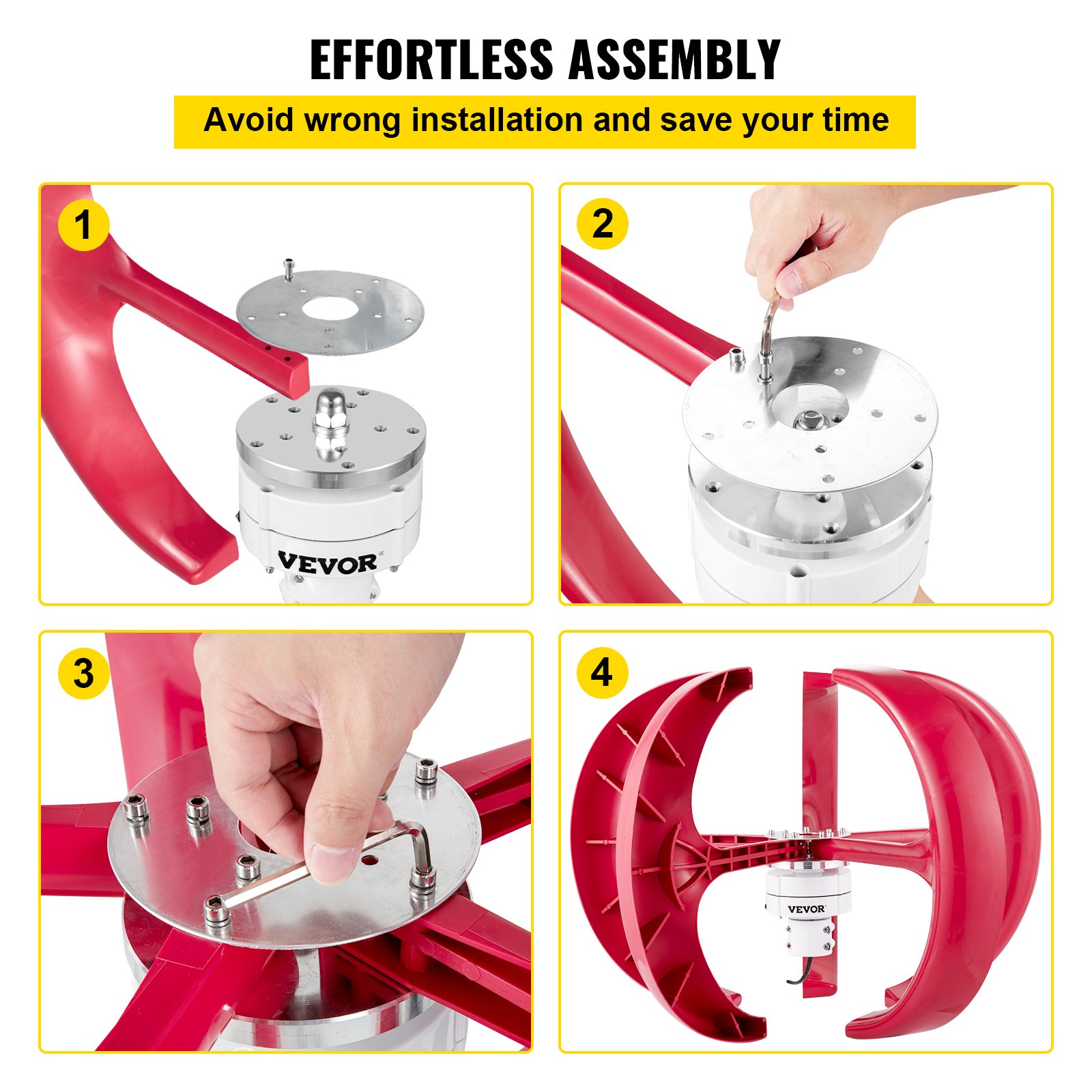

VEVOR lantern wind turbine installation steps: tools, blades, nuts, hoop. effortless setup.
Effortless Installation
The vertical wind generator kit adopts the hoop connection, convenient and fast, and is suitable for pole links with a diameter of ø54mm. Compared to the flange type connection, the hoop type is much easier, saves a lot of time, and keeps you from wrong installations.
VEVOR lantern wind turbine on terrace, boat, chalet, and motorhome. wide application.
Various Application
The small wind turbine generator kit can produce energy to meet your various charging requirements. Meanwhile, it is convenient to install and maintain, perfectly suitable for charging needs of home monitoring, motor home, boats, gazebos, chalets, marine, etc.

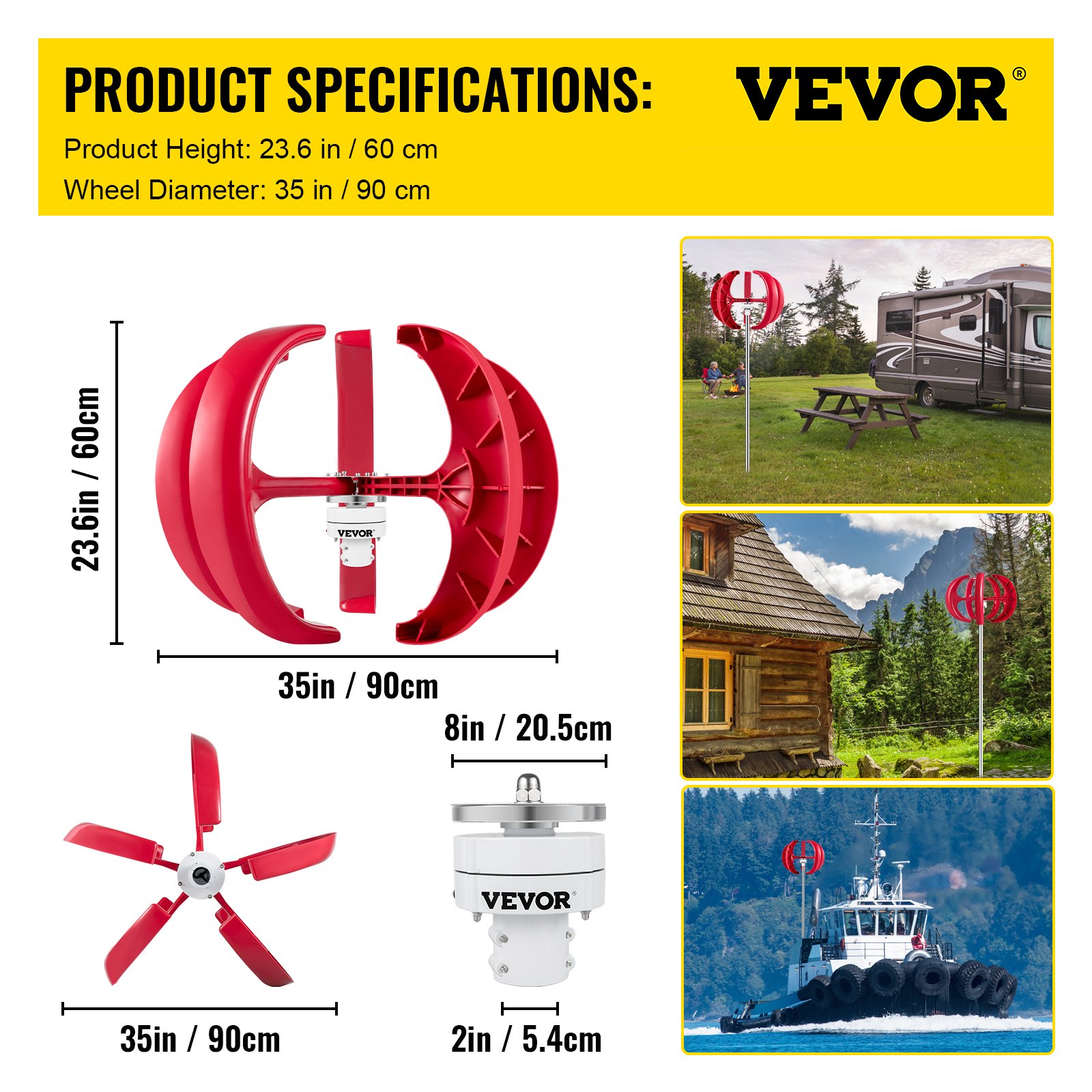

VEVOR lantern wind turbine dimensions and components in red and white.
Specifications
  • Model: VV-DLX-RD-100W12V
  • Rated Power: 100W
  • Max Power: 130W
  • Rated Voltage: 12V
  • Rated Current: 5.88A
  • Hoop Diameter: 2in/54mm
  • Rotor Diameter: 35in/90cm
  • Net Weight: 13.5kg/29.5lb
  • Blades Number: 5
  • Blade Material: Nylon Fiber
  • Start-up Wind Speed: 6.56ft/s(2m/s)
  • Rated Wind Speed: 36ft/s(11m/s)
  • Survival Wind Speed: 147.64ft/s(45m/s)
  • Rated Speed: 1100r/min
  • Working Temperature: -104℉~176℉/-40℃~80℃
  • Package Dimension: 24x17x12in/61x44x30cm
  • Generator: 3-Phase AC Permanent Magnet
  • Magnetic Material: Neodymium Iron Boron
  • Controller System: Electromagnetic/Yaw
  • Regulating Way: Automatic Adjustment
  • Controller Type: Built-in

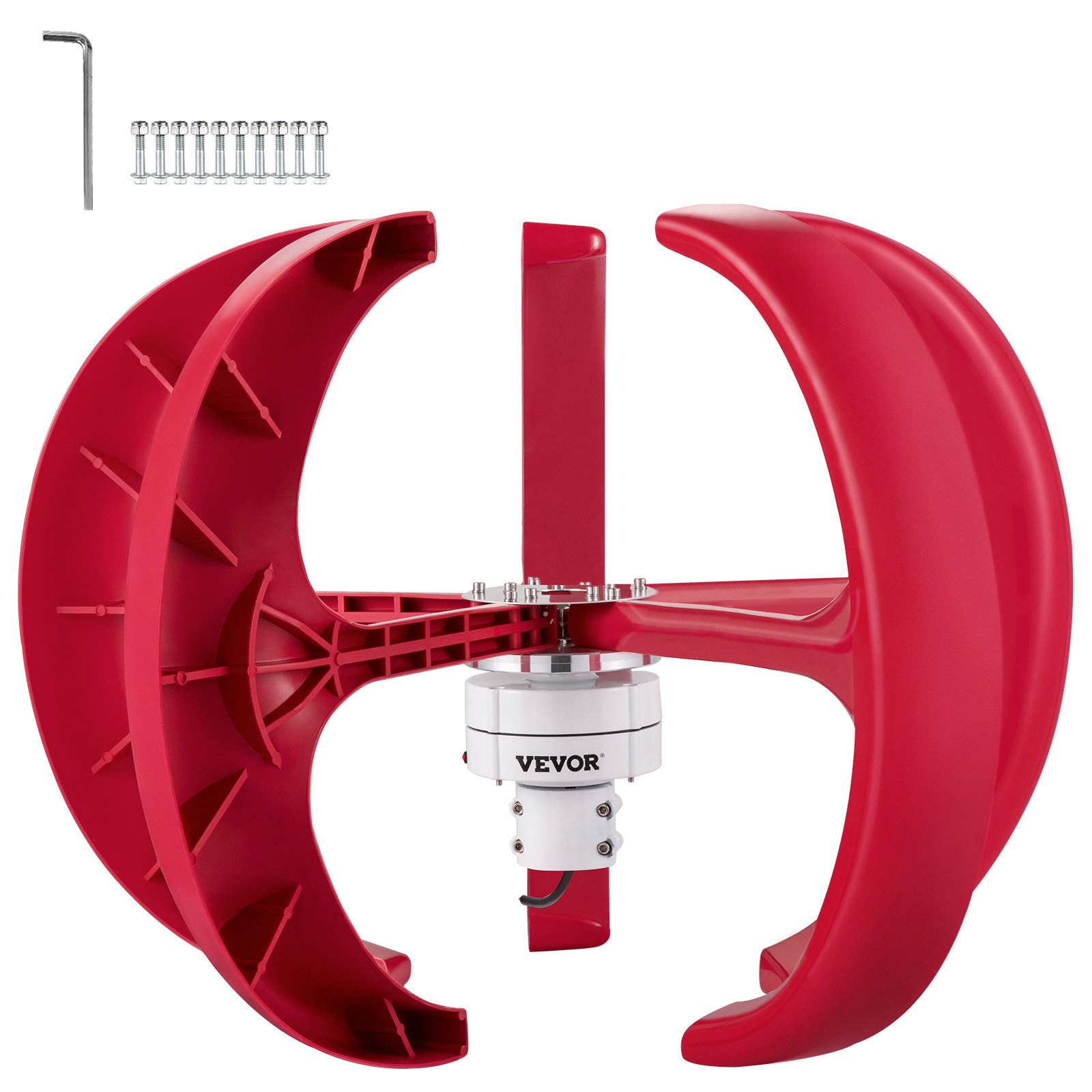

red VEVOR lantern wind turbine with assembly screws against a white background.
Package Content
  • 1 x Lantern Wind Turbine
  • 1 x Set Screws and Nuts
  • 5 x Nylon Blades
  • Steel Pipe Does Not Include
VEVOR lantern wind turbine near a wooden cabin, 100w, 12v, 5 blades in a scenic setting.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
red VEVOR lantern wind turbine with a hex key on a white background.
100W/12V Lantern Wind Turbine 5 Blades
This wind generator comprises a high-quality aluminum alloy body and nylon fiber blade, features low start-up speed, high wind energy utilization, and low vibration. The turbine adopts a three-phase magnet motor, built-in controller, and hoop installation, providing you with high power efficiency and effortless installation. In addition, you can monitor the running status of the turbine through the indicator light, perfectly suitable for a fishing boat, motor home, monitoring system, and other charging usages.
  • Lantern Shape Generator
  • Premium Generator & Blade
  • Monitoring Indicator
  • Effortless Assembly
VEVOR lantern wind turbine with high wind energy utilization, stable structure, wind-proof.
Lantern Shape Turbine
The 5-leaf bi-axial vertical blade design of the wind generator kit looks like a lantern, has ultra-low noise, low start-up wind speed, and high security. In addition, this lantern wind turbine features low operating vibration, good performance, and increase annual power generation, provides you a long time use.
VEVOR lantern wind turbine, 100w/12v, efficient generator with low start-up speed.
Efficient Generator
Our vertical axis wind turbine adopts a three-phase synchronous motor with a high-performance NdFeB permanent magnet. The power of the turbine is 100W/12, meet your basic charging requirements. You also do not need to connect complex wires anymore as the machine has a built-in controller.
VEVOR lantern wind turbine red nylon fiber blade, corrosion-proof, lightweight, high intensity.
Nylon Fiber Blade
The blade of the vertical turbine generator is made of fiber nylon which is lightweight, corrosion-proof, and has a strong ability of intensity. The temperature bearing range is -40℃~80℃, suitable for all-year use. The vertical wind blades can start by the breeze at a speed of 2m/s, and it can automatically catch the wind direction; no yaw system is required.
VEVOR lantern wind turbine with bird-proof performance and electricity generation.
Energy Monitoring Light
This vertical wind turbine features an output indicator; the light will double flash when the generator is running at a low speed, which is convenient to observe the running status of the generator. Meanwhile, it can also use as a birds repeller to drive birds away from the turbine.
VEVOR lantern wind turbine installation steps: tools, blades, nuts, hoop. effortless setup.
Effortless Installation
The vertical wind generator kit adopts the hoop connection, convenient and fast, and is suitable for pole links with a diameter of ø54mm. Compared to the flange type connection, the hoop type is much easier, saves a lot of time, and keeps you from wrong installations.
VEVOR lantern wind turbine on terrace, boat, chalet, and motorhome. wide application.
Various Application
The small wind turbine generator kit can produce energy to meet your various charging requirements. Meanwhile, it is convenient to install and maintain, perfectly suitable for charging needs of home monitoring, motor home, boats, gazebos, chalets, marine, etc.
red VEVOR lantern wind turbine with assembly screws against a white background.
Package Content
  • 1 x Lantern Wind Turbine
  • 1 x Set Screws and Nuts
  • 5 x Nylon Blades
  • Steel Pipe Does Not Include
VEVOR lantern wind turbine dimensions and components in red and white.
Specifications
  • Model: VV-DLX-RD-100W12V
  • Rated Power: 100W
  • Max Power: 130W
  • Rated Voltage: 12V
  • Rated Current: 5.88A
  • Hoop Diameter: 2in/54mm
  • Rotor Diameter: 35in/90cm
  • Net Weight: 13.5kg/29.5lb
  • Blades Number: 5
  • Blade Material: Nylon Fiber
  • Start-up Wind Speed: 6.56ft/s(2m/s)
  • Rated Wind Speed: 36ft/s(11m/s)
  • Survival Wind Speed: 147.64ft/s(45m/s)
  • Rated Speed: 1100r/min
  • Working Temperature: -104℉~176℉/-40℃~80℃
  • Package Dimension: 24x17x12in/61x44x30cm
  • Generator: 3-Phase AC Permanent Magnet
  • Magnetic Material: Neodymium Iron Boron
  • Controller System: Electromagnetic/Yaw
  • Regulating Way: Automatic Adjustment
  • Controller Type: Built-in

Lantern Wind Turbine for Sustainable Power Generation

Produce noiseless power with the VEVOR lantern wind turbine. Its lightweight and high-quality blades can withstand rough, windy weather. You can generate power even at low wind speeds. Its built-in control system allows you to monitor the turbine with its lights. The versatility of this turbine will enable you to use it in multiple settings, such as home, RV, boat, chalet, etc. It will help you reduce your reliance on off-grid power supplies. It will also complement your place with its stylish looks.


User-Friendly Monitoring Indicator

If your turbine has a built-in monitoring system, it will provide real-time performance status for your turbine. Here, the VEVOR built-in controller wind turbine has an electromagnetic controller system that enables automatic adjustments. This system will protect your 100W wind turbine from harsh weather and shut down the turbine.


With this monitoring light wind turbine, you can detect its speed. Its light will shine in the normal wind, and it will flash twice when the turbine is running at low speed. Moreover, you won't be hurting birds in your surroundings because this light will keep them away. So, it is safe to use even in wildlife areas.


Easy & Effortless Installation

This vertical turbine generator will not be a challenging task to install. It has a hoop installed, so you can quickly attach this wind turbine to a pole. You only need to slide its circular hoop or collar over a pole. This hoop installation doesn’t require any tools and avoids complex processes. Get a simple and secure connection and prevent the wrong installation. The detailed, glossy photographic instructions make the assembly straightforward.


Noiseless Operation

Old turbines are noisy. However, this vertical-axis wind turbine design reduces the sweeping motion of the old ones. It ensures a peaceful environment, which makes it ideal for residential areas. This turbine has a slow rotation speed, which produces less noise and minimizes disturbance to your neighbors. It will provide a more peaceful sleep with its lantern-shaped small wind turbine. Moreover, its blades have a curved shape. This minimizes sound production. It also reduces the stress and anxiety of noisy machinery.


Sleek Look for Elegance

This turbine not only performs exceptionally well but also looks great. Its stylish, lantern-shaped design adds a touch of elegance to every setting. You can use it in a modern city or a rustic chalet. This wind turbine makes any place more attractive. So, no matter wherever you desire to set up this turbine, it will nicely enhance the overall view of a place.


Durable & Reliable Material

The VEVOR has utilized sturdy and durable materials to design the 12V wind turbine. It features long-lasting, premium-quality nylon fiber blades that are lightweight and corrosion-proof. Temperatures are not an issue for this turbine. It can work efficiently in every season. Also, this 35-inch wind turbine has a three-phase AC permanent magnet generator.


It maximizes the use of wind energy. Hence, its dual bearings ensure stability with low vibration. You can efficiently use this turbine in small spaces due to its compact and perfect design. The strong construction of this turbine increases its lifespan. It is an ideal solution for sustainable energy needs.


Versatility Turbine for Multiple Solutions

The VEVOR features a solid wind wheel-diameter turbine that captures maximum winds and efficiently converts them into energy. You can use this turbine in various settings. However, when your solar panels don't work at night, get this motor home wind turbine. It will light up your home. Also, you can use it as a fishing boat wind turbine to power your batteries.


It can be used as a chalet wind turbine or a terrace wind turbine as well to reduce reliance on traditional electricity. The VEVOR turbine provides energy independence. You can use it for emergency backup, research stations, and eco-lodges. Its reliable power adapts to diverse needs.


See More

Specification

Model
VV-DLX-RD-100W12V
Rated Power
100W
Max Power
130W
Rated Voltage
12V
Rated Current
5.88A
Hoop Diameter
2in/54mm
Rotor Diameter
35in/90cm
Net Weight
13.5kg/29.5lb
Blades Number
5
Blade Material
Nylon Fiber
Start-up Wind Speed
6.56ft/s(2m/s)
Rated Wind Speed
36ft/s(11m/s)
Survival Wind Speed
147.64ft/s(45m/s)
Rated Speed
1100r/min
Working Temperature
-104℉~176℉/-40℃~80℃
Package Dimension
24x17x12in/61x44x30cm
Generator
3-Phase AC Permanent Magnet
Magnetic Material
Neodymium Iron Boron
Controller System
Electromagnetic/Yaw
Regulating Way
Automatic Adjustment
Controller Type
Built-in
Manual
Download Link
Questions and Answers
20 Questions
I think this produces 12 V AC, 100 W. What do I need to convert this to 12 V DC and connect it to a battery? Tha
The controller of the product has been built in, and the two output cables are already direct current, the positive pole is directly connected to the positive pole of the battery, and the negative pole is connected to the negative pole of the battery.
By vevor
Can I connect 4 of these in series to make 48 volts?
Due to the wind disturbance factors on the installation site, the voltage is generally less than 48V.
By vevor
Does this generator connect directly to the battery bank or to a charge controller? Says internal charge controller so does it brake automatically and connect directly to the battery? If so thats probably the best innovation I've seen in wind turbines
This product has a built-in controller, which can be directly connected to the battery and has a brake protection function.
By vevor
Were could a get a more detail instalation guide
Here is the link to the manual:<br/>https://d2v0huudrf11kh.cloudfront.net/1611216173096.pdf
By vevor
Is this unit AC or DC?
Built in controller, output cable, brown is positive, blue is negative.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
9 Review(s)
Clear filters
jayzeusX jayzeusX
Is this really over $300 bucks now?
I bought this for $159 a year ago....not sure if it's the same model/bundled w/ additional accessories now or what - but if it is the same, that's a startling jump in price...Anyway, the one I have is still sitting in the box due to me having bought the non-lantern 'windmill' style turbine having thought that Vevor (at my direction) had cancelled my order for this item (which of course didn't happen - as it's pretty impossible to cancel an order/get ahold of anyone at Vevor to halt processing/obtain a refund...sigh...) - and the fact that in my particular corner of the earth, there's been ne'er a gust capable of adequate turbine thrust (it p****s down rain though - so a contraption that can make electricity out of that garbage would certainly be a welcome innovation :) .... Anyway, given that a fair number of folks seem to be getting at least modest results, it might be time for me to try the (at the very least more decorative) option. Cheers to those who posted prior reviews as well (were it not for those, I might not have even remembered what the heck was in that big box on the top shelf of the closet!).
Alex S. Alex S.
Looks very nice
Easy to put together and excellent quality english instructions!
David Southcott David Southcott
Vevor Lantern Wind Turbine Vertical Axis Wind Power 100w/12v 5 Blades With Light
Karl C. Karl C.
Looks very nice
very nice looking unit....
Andrick Andrick
Great product
Exceeded my expectations,would like to have as a package with pole.
german german
Simple mente lo recomiendo
No hace ruido y trabaja muy bien para mi sistema off grio
Mudhwk Mudhwk
Easy to put together and excellent quality english instructions!
I bought one of these on a whim to supplement my off-grid solar array with a bit of help at night. Unit appeared high quality. Powder coated motor, high quality hardware - -washers AND Lockwashers - (almost unheard of these days). Drilling was to spec and pieces went together easilly. I mounted it on a 1.25 inch black pipe with a threaded flange from an orange home chain store. The drilled holes almost match the 4 pattern flange holes. (A dremel tool helps.) Major Kudos to a Chinese company for putting out glossy photographic instructions with a professional quality English translatio!. (Much better than some I've seen.!) As noted, output can be inconsistent in gusty winds, and you really need to be honest with yourself about how much wind is blowing at the mounting location vs. the treetops. Also, as noted, the controller will track wind gusts with lag. This will work best in a location with steady winds. I don't get as much as I hoped for, but on very windy nights, my overnight battery voltage drop is noticably less than it was before I installed it. Lastly, laws of physics say the wind pressure (I.e. power) goes up with the square of the wind speed more or less, so although it will generate power at lower wind speeds, don't expect much until you get steadily above 20mph or so.
Alex Lofton Alex Lofton
Happy
Using this to provide oower to my off grid home. Great addition to my solar set up.
Kevin Smith Kevin Smith
Works good. Difficult to install.
It did come with a pole, and it cost me a lot of money to have the mounting bracket machined to fit on a pole.
