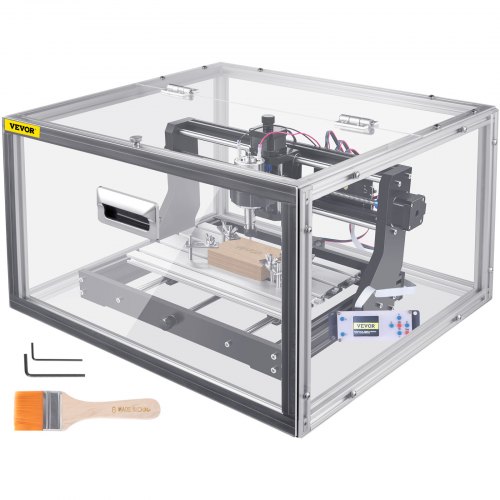

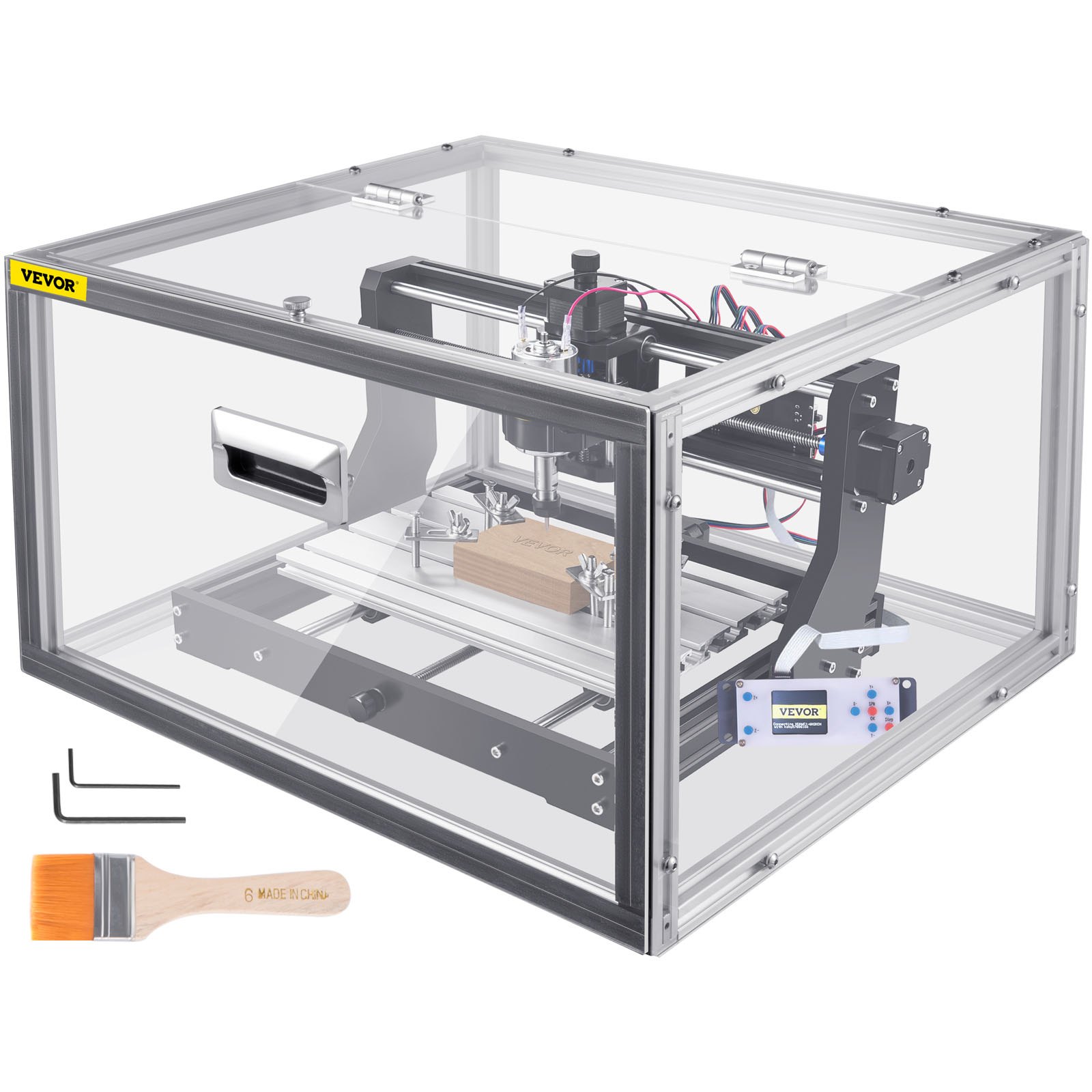

VEVOR cnc router machine in enclosure with tool and brush set. VEVOR cnc router machine with laser module, ideal for wood, leather, nylon, and acrylic. VEVOR cnc router machine with transparent, dust-proof enclosure for enhanced security. VEVOR cnc router machine with manual control axes and 11.8" x 7.1" working area. VEVOR cnc router machine with 775 dc spindle motor, high precision, and ball screw drive. VEVOR cnc router machine control board comparison: stable, reliable, integrated vs inferior. VEVOR cnc router machine with dimensions and material samples for diy projects.
JCKDF3018PRO-P2NIV1

VEVOR CNC 3018 PRO Router Machine, GRBL Control 3-Axis Milling Engraver Engraving Machine, DIY CNC Router Kit with Transparent Enclosure, Offline Controller, for Wood Acrylic Plastic PCB PVC Carving

Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.
Exclusive $5.00 off on your first three app orders. Only App.
Download Now
Exclusive $5.00 off on your first three app orders. Only App.
Scan the QR code to download

About this item

  • CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. This milling engraving machine has a transparent enclosure keeping your workspace clean and reduces noise. We provide a detailed user manual, assembly instructions, and installation video for your convenience. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more.
  • Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
  • Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.
  • Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
  • Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The thickened side plates can improve the accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR CNC 3018 PRO Router Machine, GRBL Control 3-Axis Milling Engraver Engraving Machine, DIY CNC Router Kit with Transparent Enclosure, Offline Controller, for Wood Acrylic Plastic PCB PVC Carving

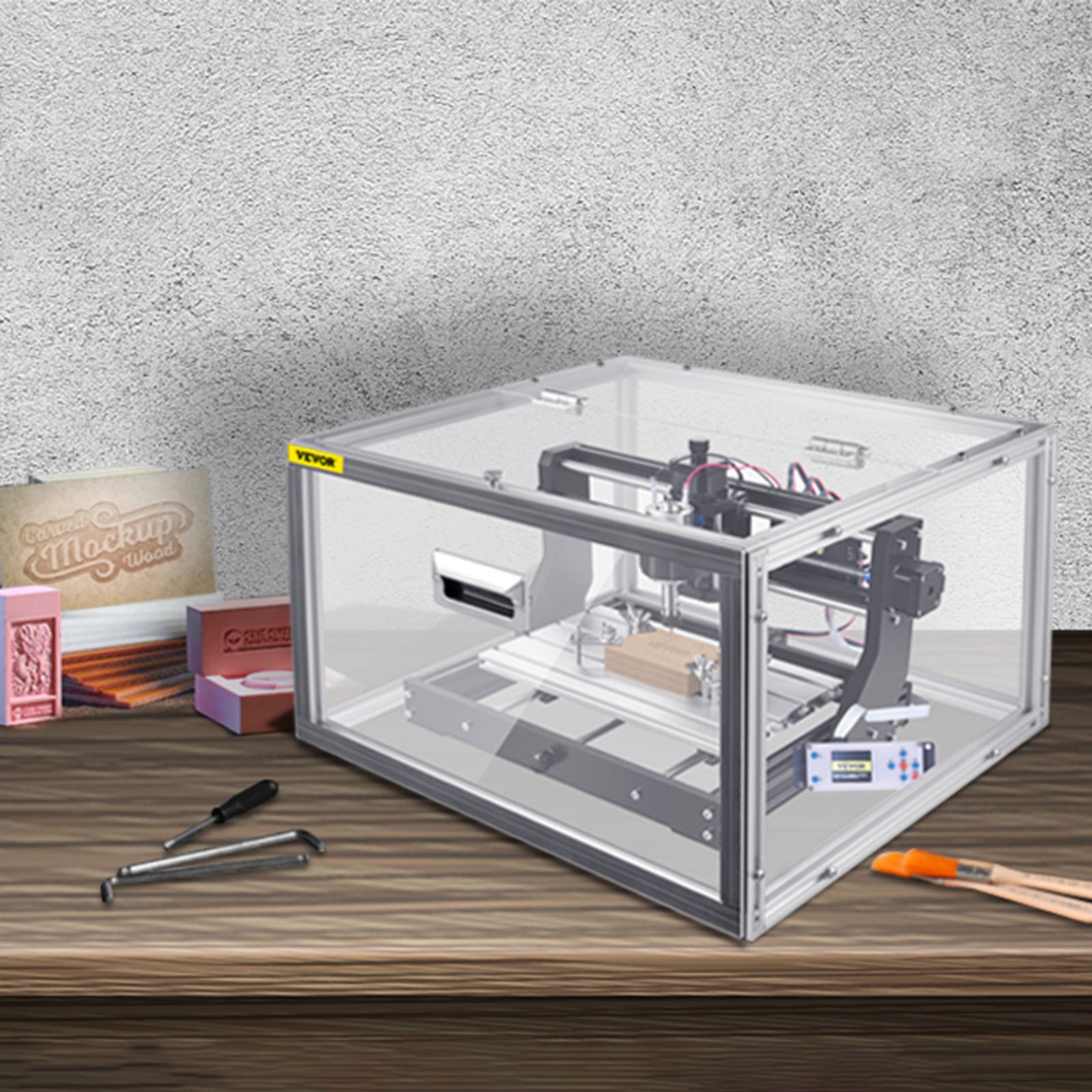

VEVOR cnc router machine on a wooden desk with tools and materials.
VEVOR cnc router machine in a transparent enclosure with tools and wooden block.

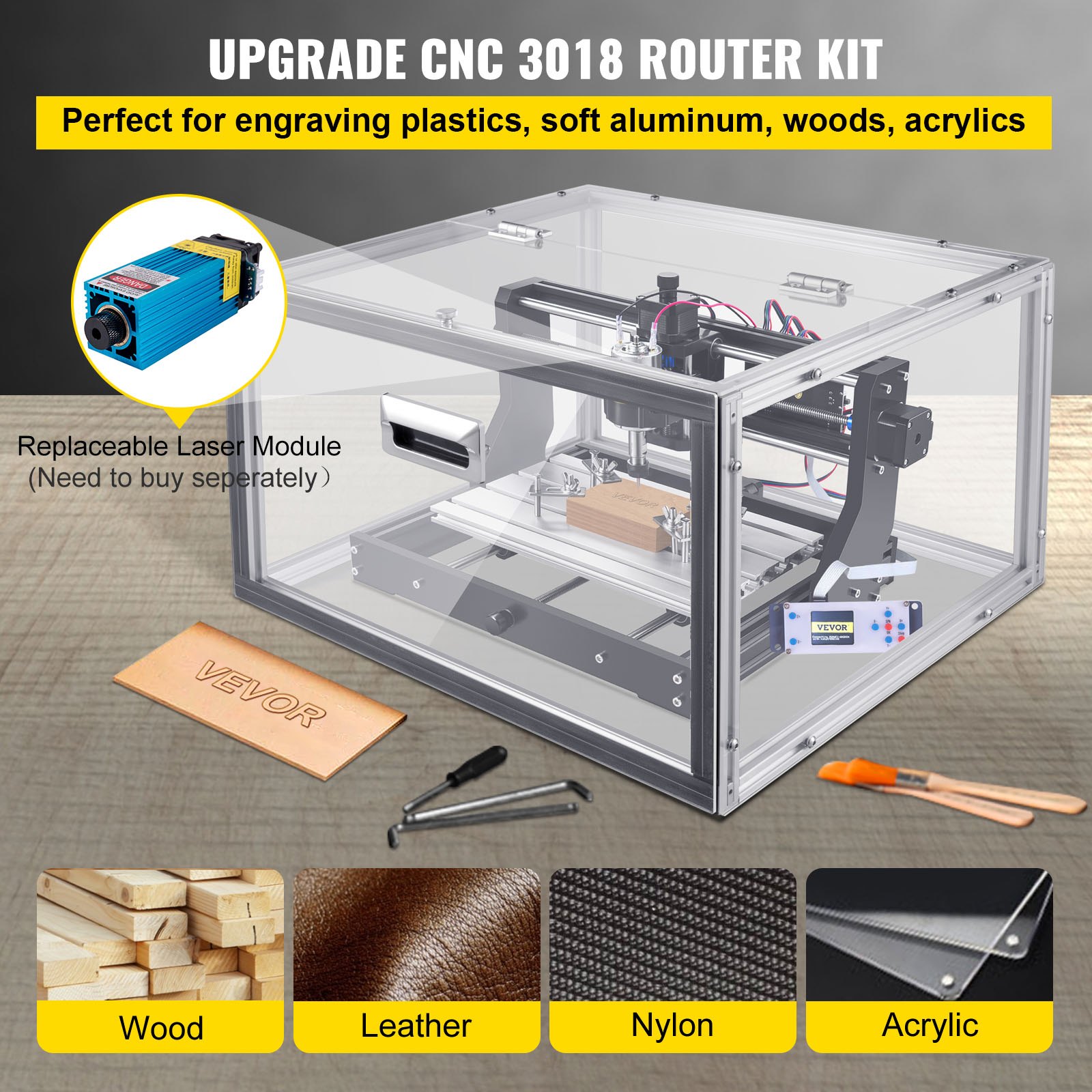

CNC 3018 Engraving Machine
Transparent Enclosure & Easy to Use & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service

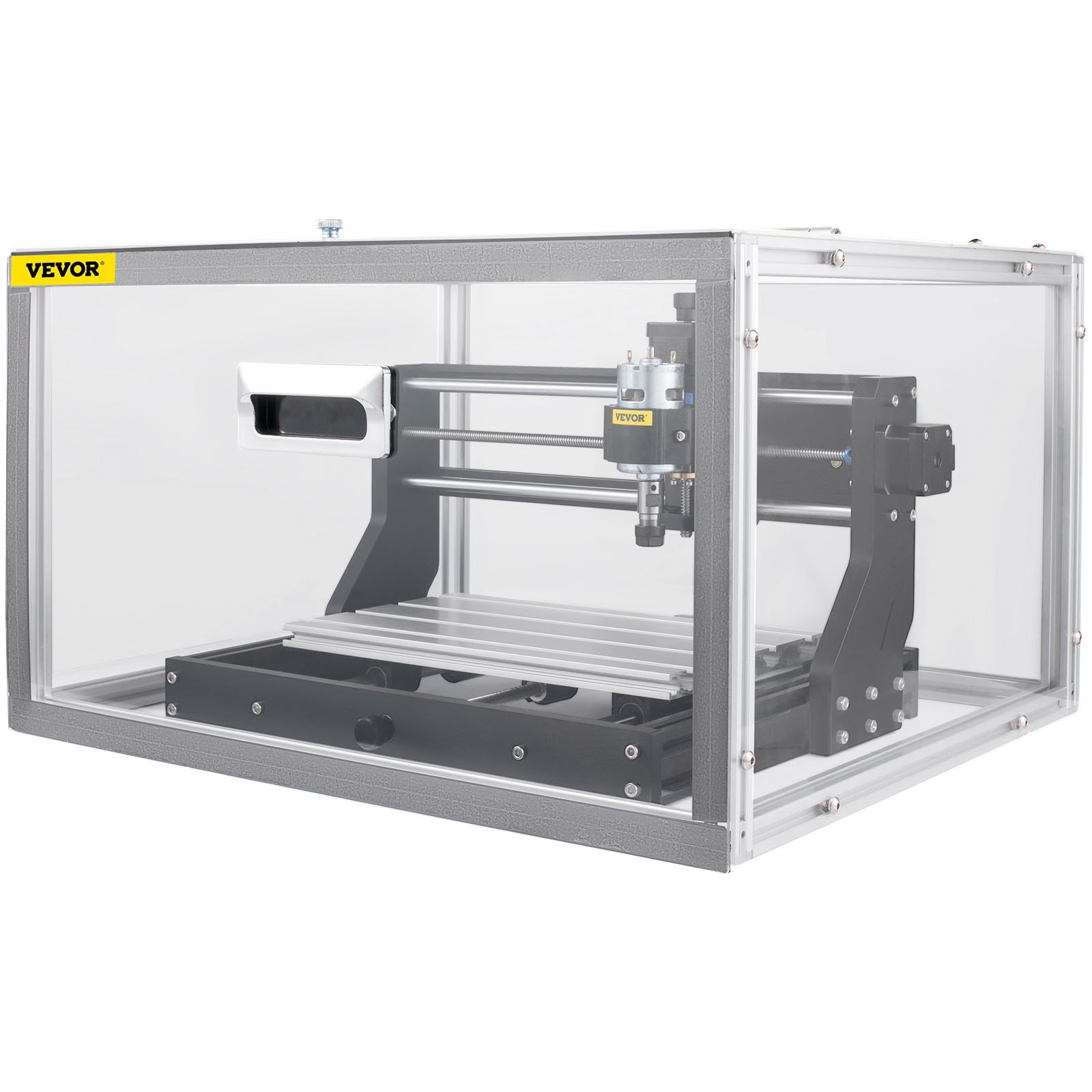

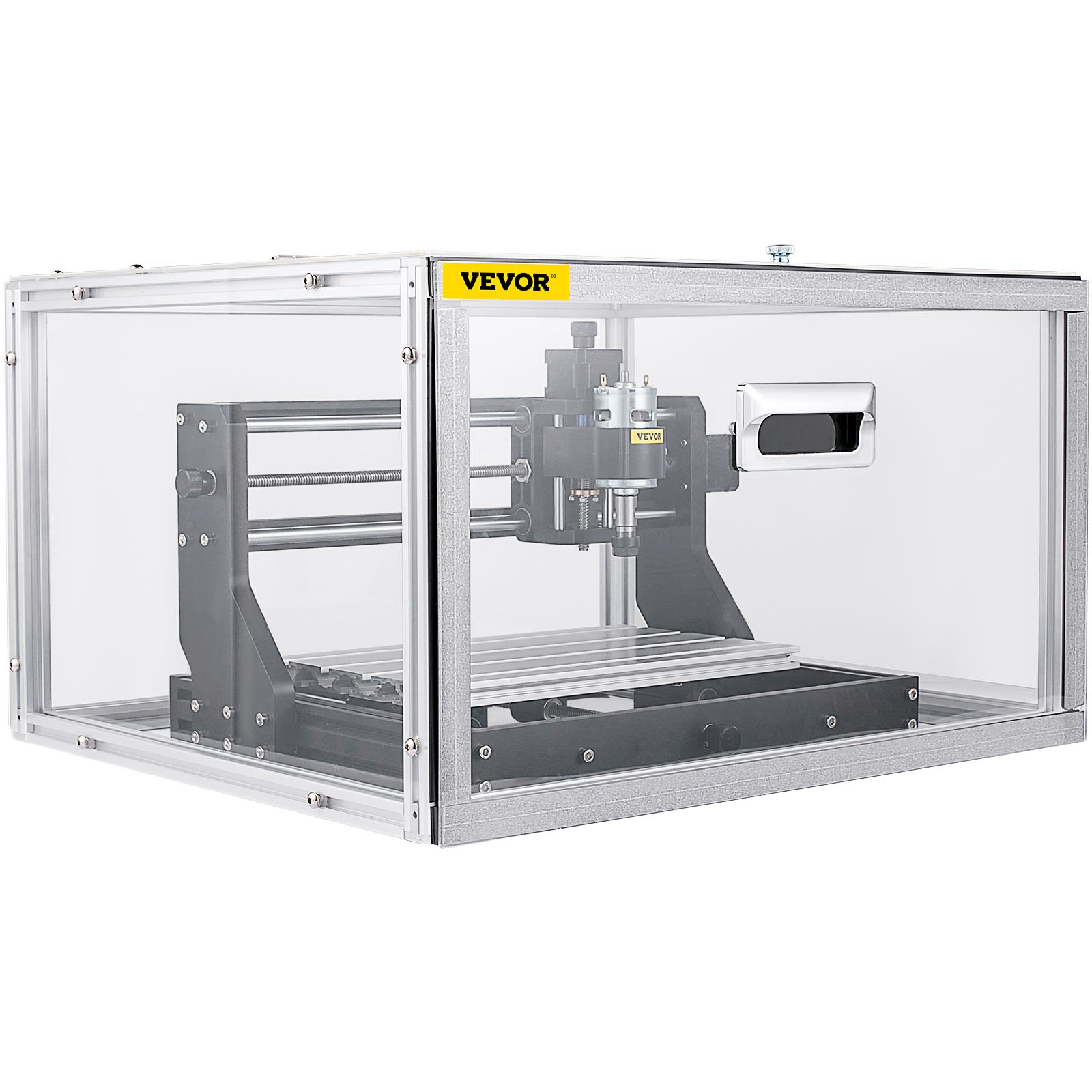

VEVOR cnc router machine enclosed in a dust-proof acrylic case for security and noise reduction.

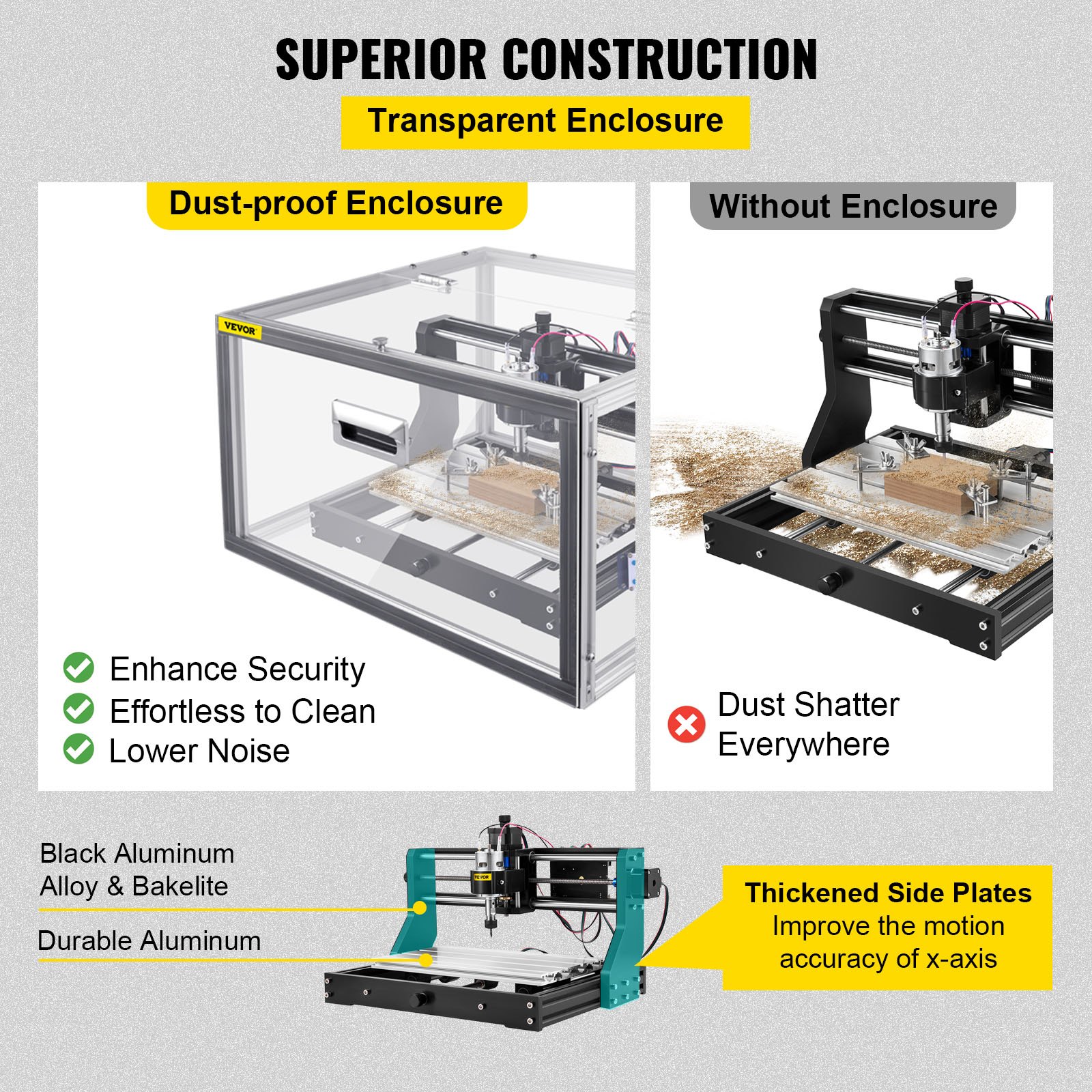

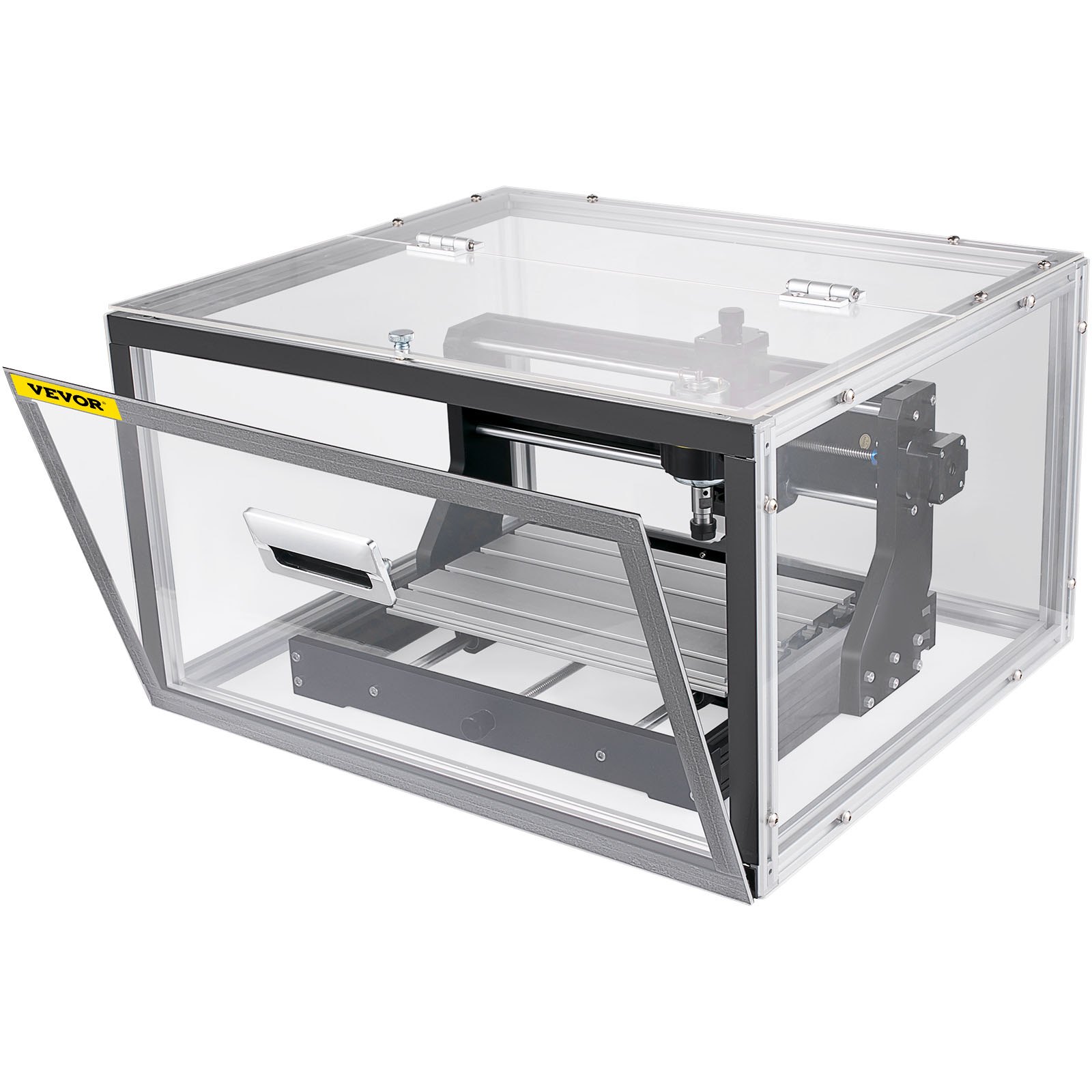

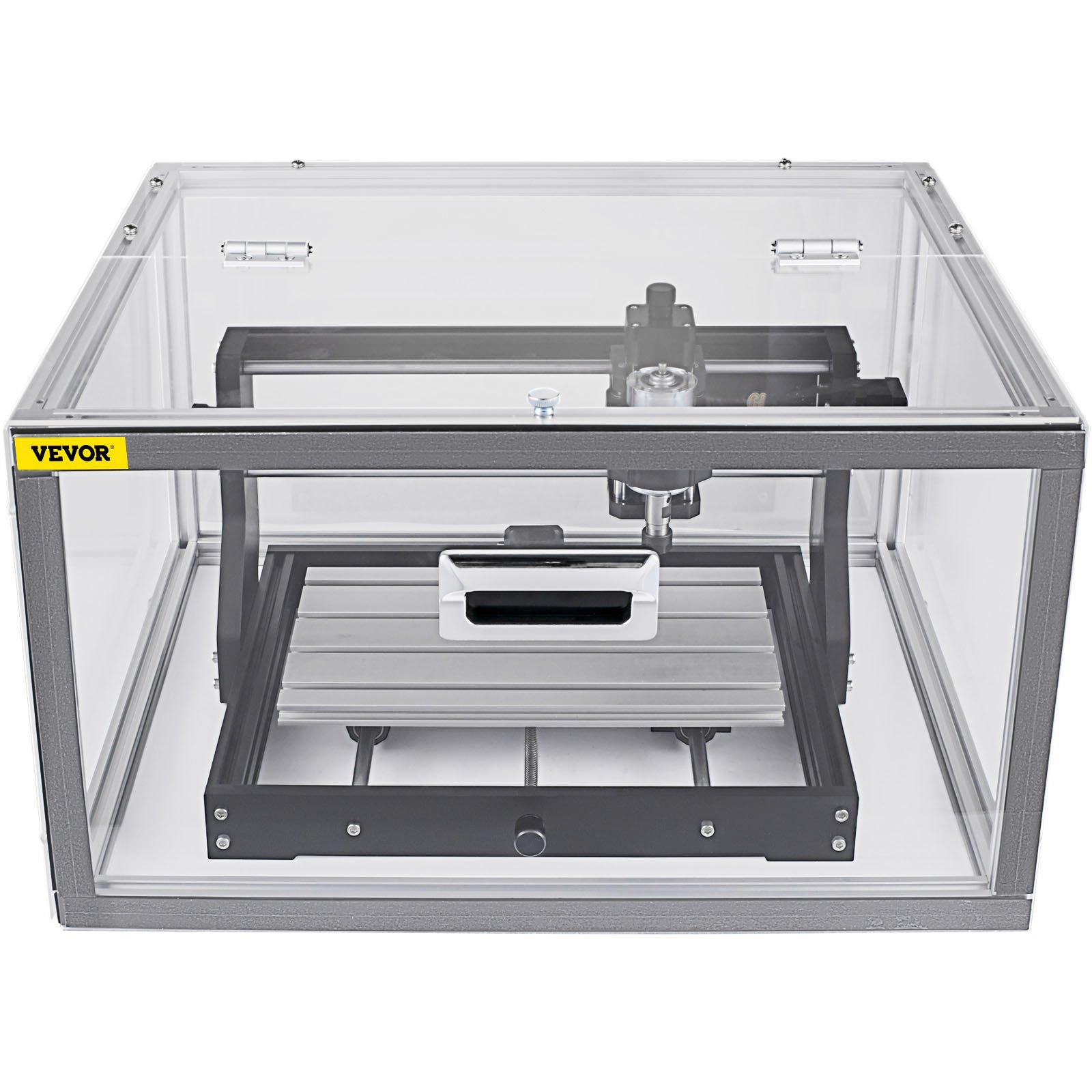

Acrylic CNC Enclosure
This acrylic CNC enclosure is constructed with premium aluminum alloy and acrylic boards to provide an all-around safe shield. It also prevents your workspace from being dirty and messy. Moreover, the noise will reduce up to 21dB during operation.
VEVOR cnc router machine with large working area and manual adjust functionalities.

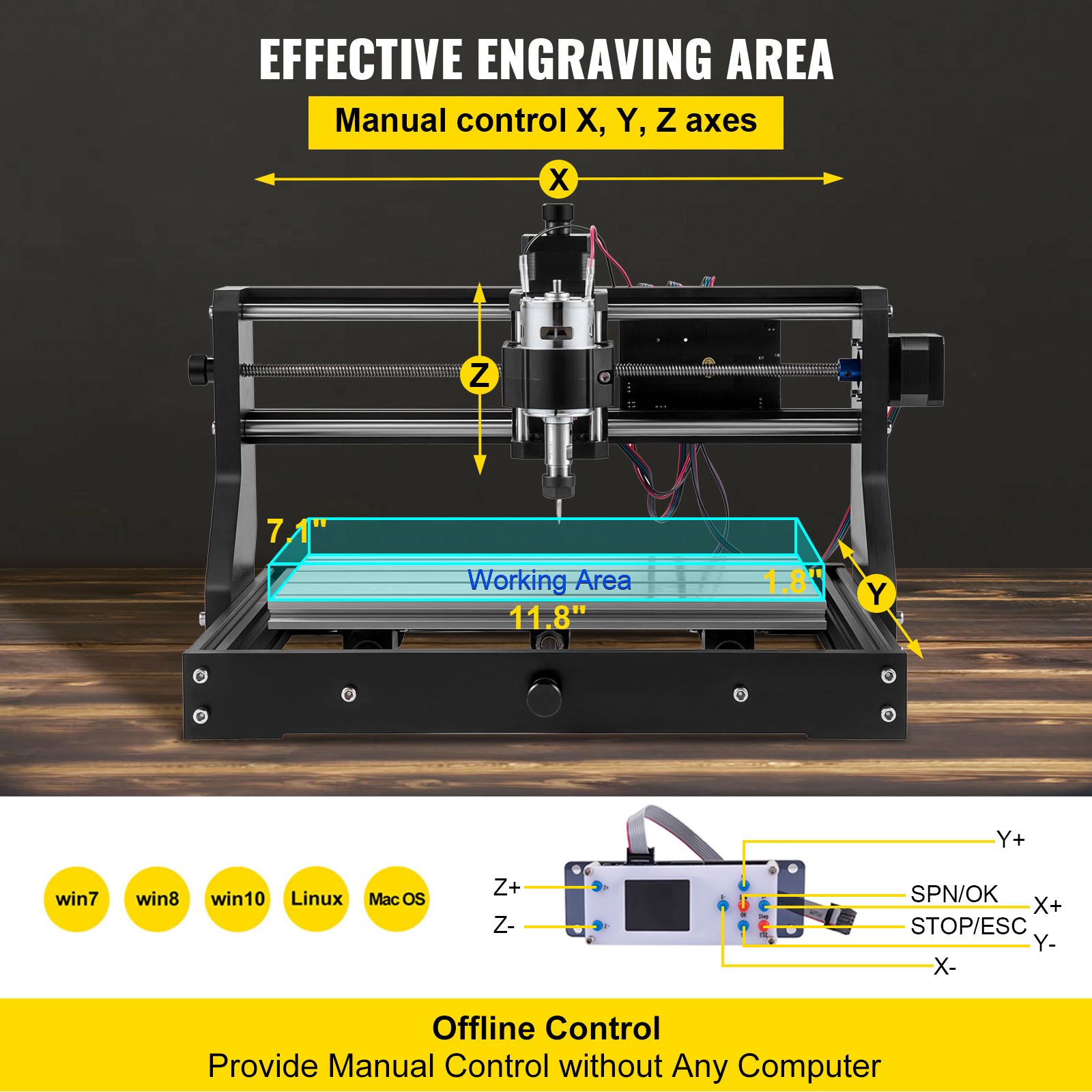

Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.

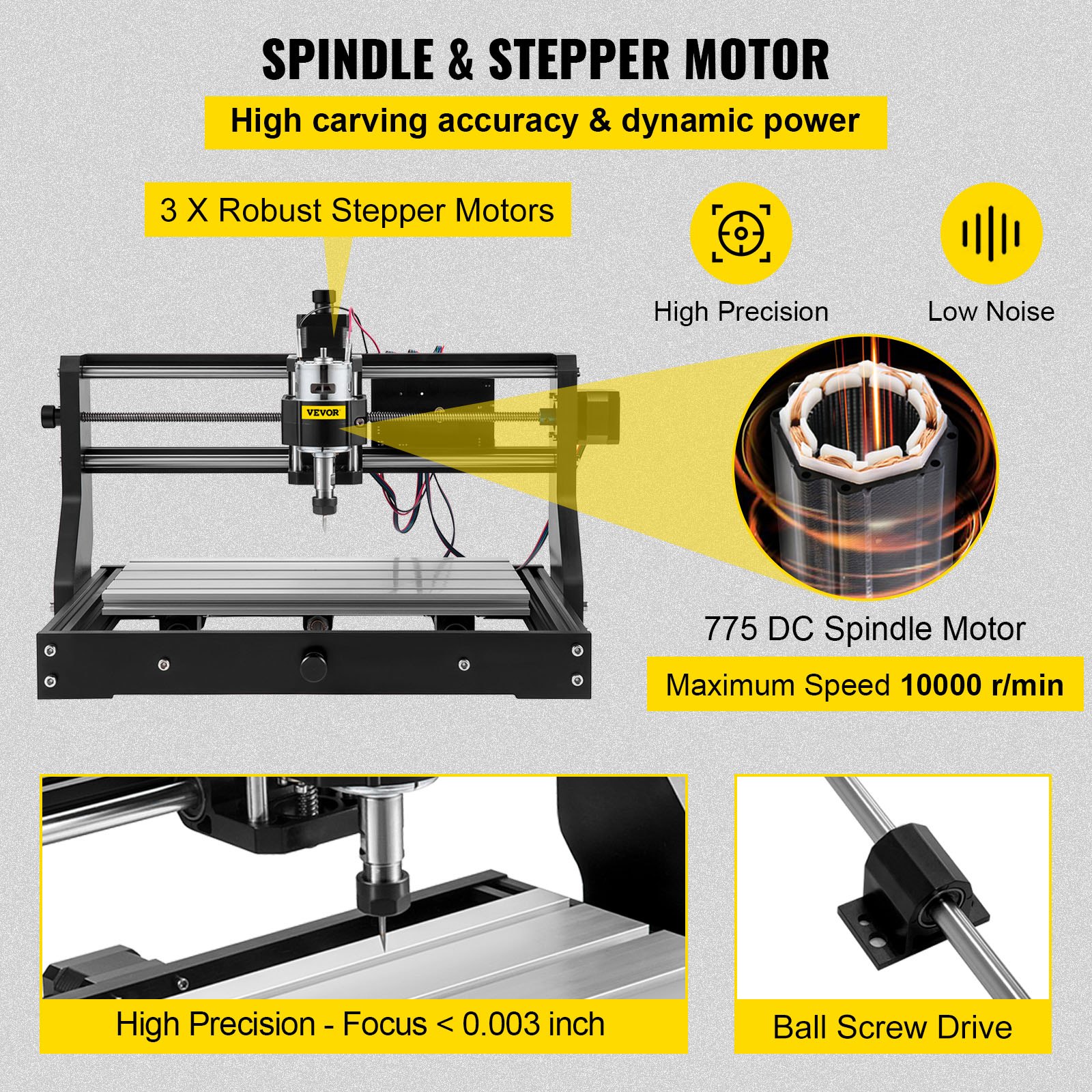

VEVOR cnc router machine with powerful dc spindle motor and three robust stepper motors.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
VEVOR cnc router machine control board comparison: integrated, stable, reliable vs. assembled, unstable.

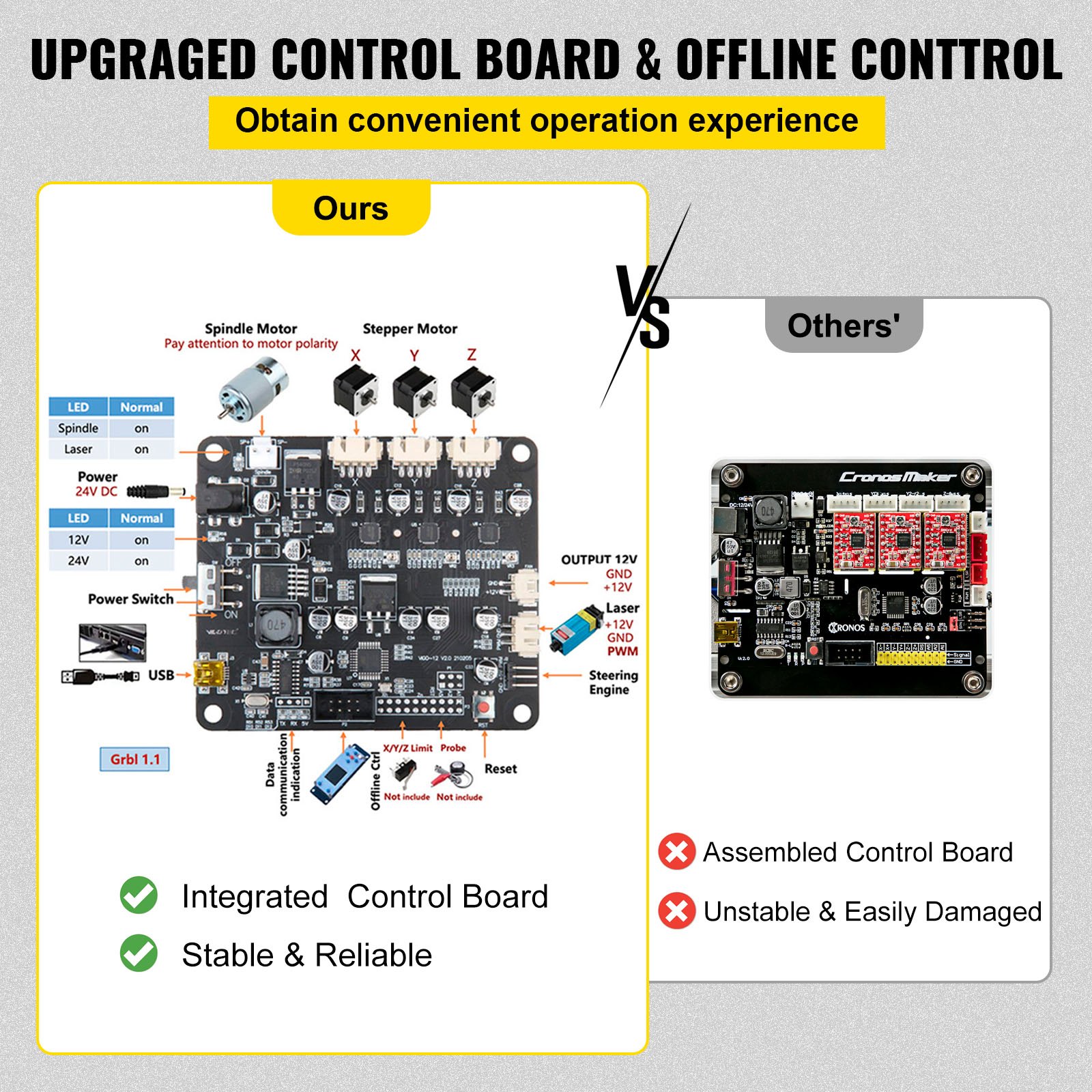

Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
VEVOR cnc router machine, easy to install, with complete accessories displayed.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by high precision and durability.
VEVOR cnc router machine for engraving plastics, soft aluminum, woods, and acrylics.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

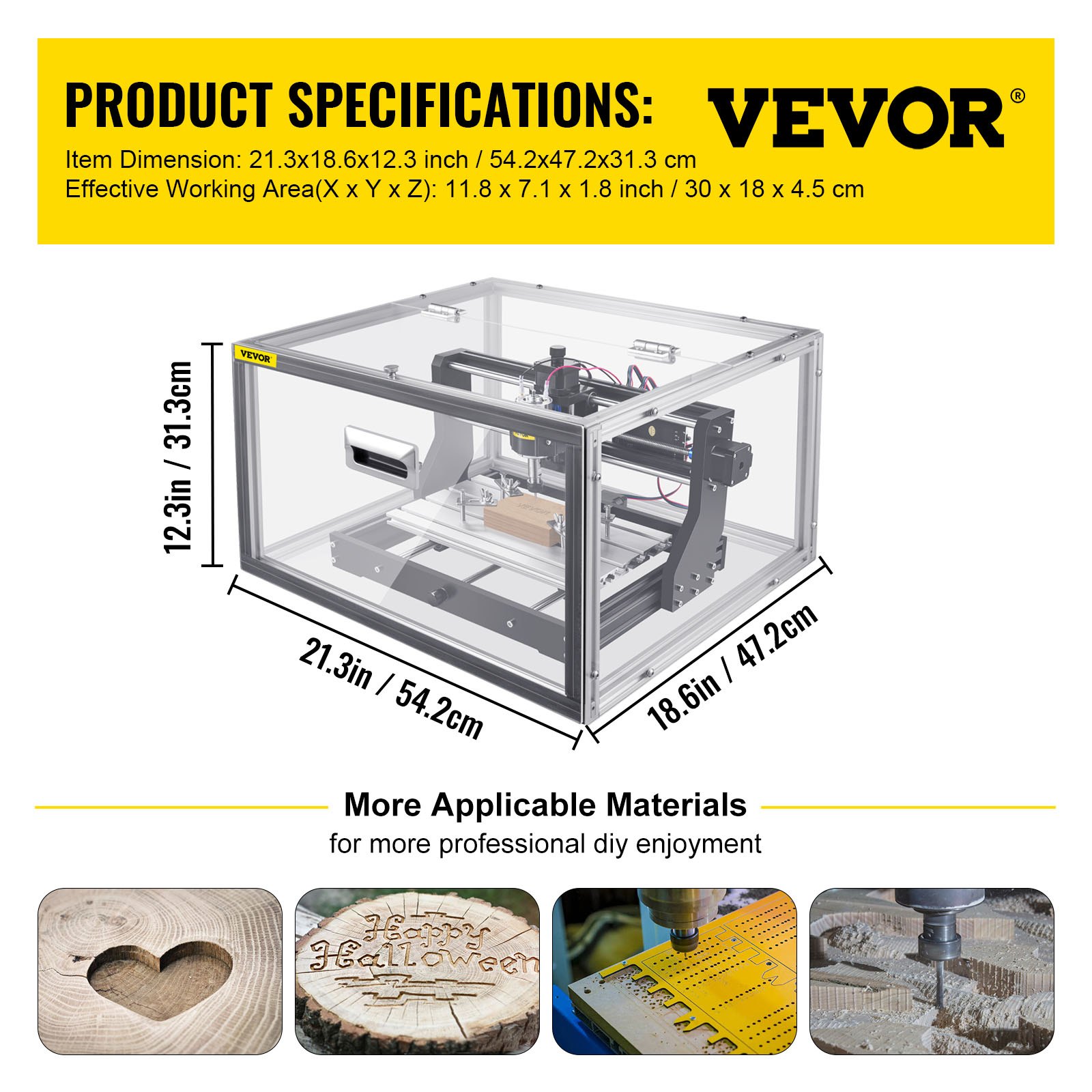

VEVOR cnc router machine with dimensions and enclosure for precision woodworking.
Specifications
  • Model: 3018Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: Stainless Steel Screws
  • Spindle Rated Power: 775 Spindle 60W; 10000 RPM
  • Stepping Motor: 42HD, 12V, Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Positioning Accuracy: 0.003 inch / 0.08 mm
  • Cutter Diameter: 0.125 inch / 3.175 mm
  • Enclosure Material: Aluminum Alloy & Acrylic
  • Enclosure Thickness: 0.12 inch / 3 mm
  • Machine Net Weight: 13.18 lbs / 5.98 kg
  • Enclosure Net Weight: 5.6 lbs / 2.54 kg
  • Machine Size(L x W x H): 15.7 x 13.0 x 9.4 inch / 40 x 33 x 24 cm
  • Enclosure Size(L x W x H): 21.3 x 18.6 x 12.3 inch / 54 x 47 x 31 cm
orange brush with wooden handle and two hex keys for VEVOR cnc router machine.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x Acrylic CNC Enclosure
  • 1 x Offline Controller
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Cable
  • 1 x Brush
  • 1 x Manual
VEVOR cnc router machine on a wooden desk with tools and materials.
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
  • Premium Tough Quality
  • Incredibly Low Prices
  • Fast & Secure Delivery
  • 30-Day Free Returns
  • 24/7 Attentive Service
VEVOR cnc router machine in a transparent enclosure with tools and wooden block.
CNC 3018 Engraving Machine
Transparent Enclosure & Easy to Use & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.
  • Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
  • CNC 3018 Router Machine
  • Large Working Area
  • Excellent Motor
  • Upgraded Control Board
  • Sturdy Material
VEVOR cnc router machine enclosed in a dust-proof acrylic case for security and noise reduction.
Acrylic CNC Enclosure
This acrylic CNC enclosure is constructed with premium aluminum alloy and acrylic boards to provide an all-around safe shield. It also prevents your workspace from being dirty and messy. Moreover, the noise will reduce up to 21dB during operation.
VEVOR cnc router machine with large working area and manual adjust functionalities.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.
VEVOR cnc router machine with powerful dc spindle motor and three robust stepper motors.
Powerful Motor
There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.
VEVOR cnc router machine control board comparison: integrated, stable, reliable vs. assembled, unstable.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
VEVOR cnc router machine, easy to install, with complete accessories displayed.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by high precision and durability.
VEVOR cnc router machine for engraving plastics, soft aluminum, woods, and acrylics.
Extensive Application
This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.
orange brush with wooden handle and two hex keys for VEVOR cnc router machine.
Package Content
  • 1 x 3018 CNC Router Kit
  • 1 x Acrylic CNC Enclosure
  • 1 x Offline Controller
  • 1 x U-Disk (Software & Instruction)
  • 1 x Set of Milling Cutter
  • 1 x Cable
  • 1 x Brush
  • 1 x Manual
VEVOR cnc router machine with dimensions and enclosure for precision woodworking.
Specifications
  • Model: 3018Pro
  • Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
  • Materials: Aluminum Profile & Bakelite
  • Input Power: DC 24V 5A
  • Driving Units: Stainless Steel Screws
  • Spindle Rated Power: 775 Spindle 60W; 10000 RPM
  • Stepping Motor: 42HD, 12V, Torque: 0.25 N/m
  • Control Software: GRBL Control
  • Positioning Accuracy: 0.003 inch / 0.08 mm
  • Cutter Diameter: 0.125 inch / 3.175 mm
  • Enclosure Material: Aluminum Alloy & Acrylic
  • Enclosure Thickness: 0.12 inch / 3 mm
  • Machine Net Weight: 13.18 lbs / 5.98 kg
  • Enclosure Net Weight: 5.6 lbs / 2.54 kg
  • Machine Size(L x W x H): 15.7 x 13.0 x 9.4 inch / 40 x 33 x 24 cm
  • Enclosure Size(L x W x H): 21.3 x 18.6 x 12.3 inch / 54 x 47 x 31 cm

Easily Create Custom Designs — Transparent Enclosure CNC

Get an accurate design with the VEVOR DIY CNC router kit. With this machine, you can work on many materials, like wood, plastic, acrylic, PVC, or PCB. They will provide three types of axes that will control the machine’s different motions to work with precision. You can also modify and upgrade this tool kit. Its software control is user-friendly, and it provides offline control as well. You can monitor this tool kit even without connecting your computer. However, most of its parts come pre-assembled, so installation wouldn’t be a hassle anymore.


3-Axis Milling Engraver

Controlling every movement in any direction is easy with the VEVOR CNC 3018 pro router machine. Its three axes are the X-axis, the Y-axis, and the Z-axis. Its X-axis will handle the horizontal motion of this machine. The Y-axis will handle the vertical motion, and the Z-axis will control its depth and height movements. These axes will help you shape complex designs with efficiency. It will also ensure precise positioning, accurate cutting, and engraving so that you can work with different materials and sizes.


Modifiable & Upgradeable

Modification is necessary for any tool to get the most out of it. So, the VEVOR CNC 3018 pro router machine can be modified and upgraded for efficient working. You can simply upgrade its parts by replacing them. These parts can be motors, drivers, or controllers to enhance the performance or compatibility of this tool kit. Its firmware can also be customized to support new materials.


Moreover, if you want to add extensions, this toolkit will let you install them. You can add new modules or accessories, like laser engravers or 3D printing heads, to make it proficient and increase its capabilities.


Smooth Software Control

When your DIY CNC router kit provides smooth software control, it will ensure precise and accurate movements without any struggle. Here, the VEVOR and engraving tool kit has a GRBL control system that provides efficient working. This tool kit also has a user-friendly software control for your convenience. You can effortlessly install this software and control it smoothly.


It can also accept G-code files, which makes it suitable for many CAD and CAM software programs. Its offline controller, CNC, will allow you to control this tool without a computer connection. However, if you are using Windows or Mac operating systems, it will work perfectly. provide.


Durable & Sturdy Design

It has a strong foundation that helps reduce twisting or bending due to its aluminum alloy and solid frame. This toolkit has stainless steel axes, which are strong, have less friction, and do not corrode. Also, the motor of this DIY CNC router kit is of premium quality and offers accurate and reliable movements. Furthermore, you will get a durable bearing to make the working process smooth and noiseless.


Straightforward Assembly and Setup

The VEVOR CNC 3018 pro router machine has a design that allows you to install it easily. An installation guide will be provided, and you will find instructions on how to install this product within no time. Its modular design makes it easy to attach and detach, which saves you time. Also, many parts come pre-assembled to ensure you won't be stressed.


This transparent CNC enclosure allows you to see the procedure during its operation. Moreover, it offers an adjustable setting with a knob to control speed and depth according to your desires. This machine also ensures safety, such as emergency stops and protective covers, to provide a safe working process.


Wide Range of Application

This wood engraving machine has a versatile range of applications. It is an ideal tool for your industrial and hobbyist projects. Cutting and shaping your wood will be effortless. If you are working on furniture or woodcrafts, this wood carving machine is perfect for you.


You can operate this tool as an acrylic engraving machine, a plastic engraving machine, a PCB engraving machine, or a PVC carving machine. It will help you cut and shape plastic sheets and acrylic for signs, displays, and prototypes. Because of its compatibility, you can work on various projects with multiple materials with ease.


See More

Specification

Model
3018Pro
Effective Working Area(X x Y x Z)
11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
Materials
Aluminum Profile & Bakelite
Input Power
DC 24V 5A
Driving Units
Stainless Steel Screws
Spindle Rated Power
775 Spindle 60W; 10000 RPM
Stepping Motor
42HD, 12V, Torque
Control Software
GRBL Control
Positioning Accuracy
0.003 inch / 0.08 mm
Cutter Diameter
0.125 inch / 3.175 mm
Enclosure Material
Aluminum Alloy & Acrylic
Enclosure Thickness
0.12 inch / 3 mm
Machine Net Weight
13.18 lbs / 5.98 kg
Enclosure Net Weight
5.6 lbs / 2.54 kg
Machine Size(L x W x H)
15.7 x 13.0 x 9.4 inch / 40 x 33 x 24 cm
Enclosure Size(L x W x H)
21.3 x 18.6 x 12.3 inch / 54 x 47 x 31 cm
Manual
Download Link
Questions and Answers
12 Questions
Can this engrave soft metals?
This can not engrave soft metals.
By vevor
is there a specific type of laser that can be added so that you don’t have to change anything mostly
Sorry, they are no longer available and have been discontinued. Please refer to their specifications. Link 1: https://www.vevor.com/laser-engraving-machine-c_11141/15w-laser-module-head-450nm-12v-focusable-blue-for-cnc-engraving-cutter-machine-p_010780752694. Link 2: https://www.vevor.com/laser-engraving-machine-c_11141/vevor-laser-module-5-5w-ttl-cnc-laser-module-450nm-12v-focusable-blue-laser-head-p_010958670884.
By vevor
Will this machine work with Easel software?
We have not used Easel software yet, so we are not sure. The machine generally supports standard G-code files, and we provide Candle execution software with the goods.
By vevor
how do you program
The Candle software for tool engraving supports the .nc file format for executing G code. ArtCAM software can be used to convert pictures or CAD files into G code files, and then the provided Candle software can be used to realize relief or cutting.
By vevor
How do I connect my computer to your machines? Which drafting program is best for your machines?
There is a data cable included with the product. Use the USB data cable to connect to the computer. We provide the execution software. The Candle software for tool engraving supports the .nc file format for executing G code. ArtCAM software can be used to convert pictures or CAD files into G code files, and then the provided Candle software can be used to realize relief or cutting.
By vevor

Customer Reviews

Ratings by Features

  • 4.8
  • 4.7
  • 4.7
  • 4.7
  • See More See Less
86 Review(s)
Clear filters
Laura Pizarro Laura Pizarro
VEVOR CNC Router Machine, 3018-PRO w/ GRBL Offline - An Affordable & Powerful Entry-Level CNC Router
The VEVOR CNC Router Machine, 3018-PRO, is a well-rounded choice for beginners or hobbyists looking to dive into CNC projects without a massive investment. The offline controller, compatibility with various design software, and solid build make it a powerful tool for creative projects. Whether you’re crafting custom items or learning CNC basics, the 3018-PRO delivers quality and flexibility at an impressive price. Pros:Solid construction with aluminum frame for precision work, easy to assemble with clear instructions, offline controller provides flexibility for mobile workspaces, and versatile enough for wood, acrylic, plastics, and soft metals.
timber timber
well made, accurate, reliable machine
Out of the box this machine impressed me, all parts were heavy duty, stepper motors - screws - slides were top quality. Took about an hour to assemble, no problem with the instructions, just needed a way to measure CM/MM for layout of a few components. All motors have nice couplings with double set screws that hold the screw securely. I use the online easel software from inventables to make the design, download the g-code to the included SD card using the included USB adaptor, then plug the SD card into the offline controller and launch. Note that my unit would randomly error and the spindle would carve across the workpiece to the machine limits with no warning. However, Vevor's customer service was great, they determined that it was interference between the motor and control board and sent an upgraded motor and new control board which solved the issue (shipped from China to USA in just a couple days). The only real downer is that there are no limit switches so if you overshoot your x/y/z the stepper motors will growl. I'd buy another without question, well done Vevor!
David David
None
The machine appears to be sturdy and well-engineered. One BIG problem: It came with NO instructions for making all the electrical connections. Everything on the Internet shows different wires, a different controller and different hookups to the controller. The bottom line is, I haven't used it yet. The mechanical assembly instructions were short of adequate but I made it through them. If something doesn't show itself pretty soon, it will become an expensive boat anchor with nearly $700 down the toilet.
Ed Ed
Mr.
The product arrived quickly and undamaged and was as advertised. Both the enclosure and router came with detailed instructions and were easy to assemble. The manual controller worked the first time with no problems. I had to download a missing *.dll file on my PC to get the Candle software to work. I have since accessorized the unit with additional collets, router bits, and spoil boards. I am going through some online tutorials to learn the Candle software better and to take advantage of the I/O pins on the control board for various switches and a height probe, which are not included. Overall the Vevor 3018 Pro is the best value for a quality starter CNC router.
Danny Danny
i love vevor
this little cnc is very stout for its size, nice build easy instructions ,i would buy again, i have not cut anything yet but looks like it will persevere
Hadi Alam Hadi Alam
Perfect
It arrives in time, and it was a gift, the man who received it very happy.
Aaron Williamson Aaron Williamson
Recommand
Works great as we need.
Judith coneliano Judith coneliano
Nice product
It can engrave the items we need, nice CNC, we will recommand it.
Rangeleywood Rangeleywood
Amazing
This CNC is amazing, I've cut several signs from it, it works great for the price. You can easily extend it with extension kits available on the web, very happy with my purchase, would purchase again.
Ravenclaw123 Ravenclaw123
Great product and superior quality.
It works great and is the perfect 4th axis to my CNC
